Open Source Steel

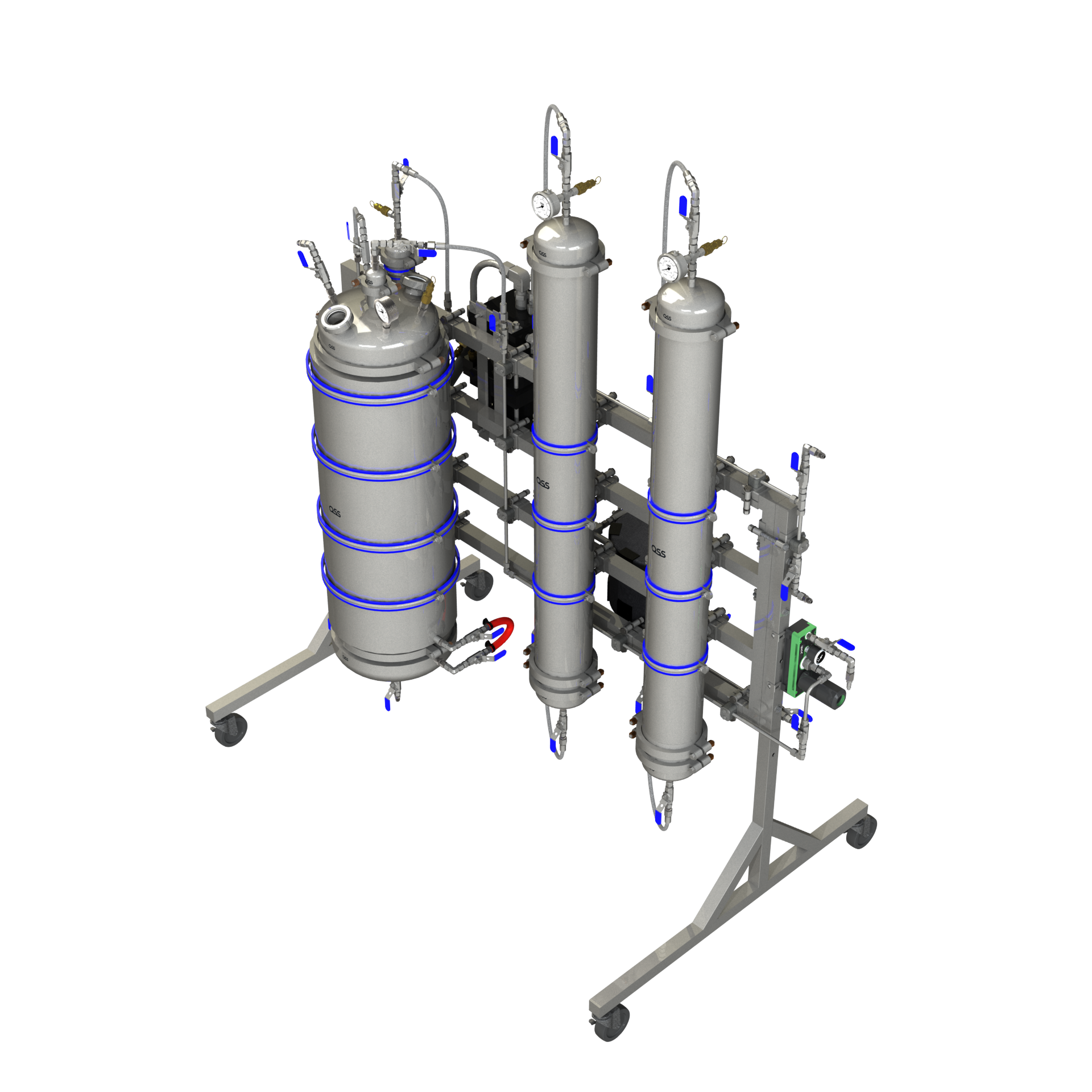

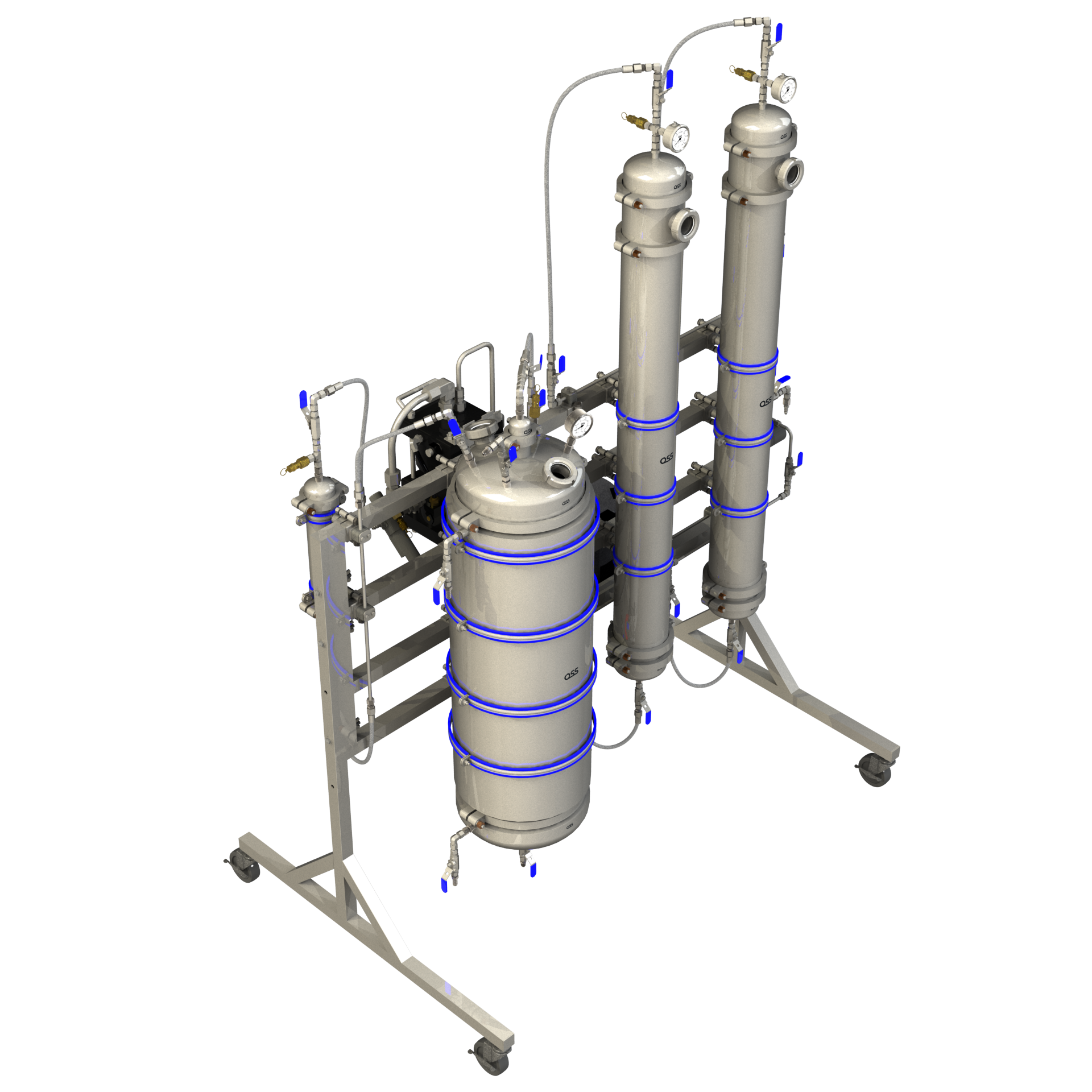

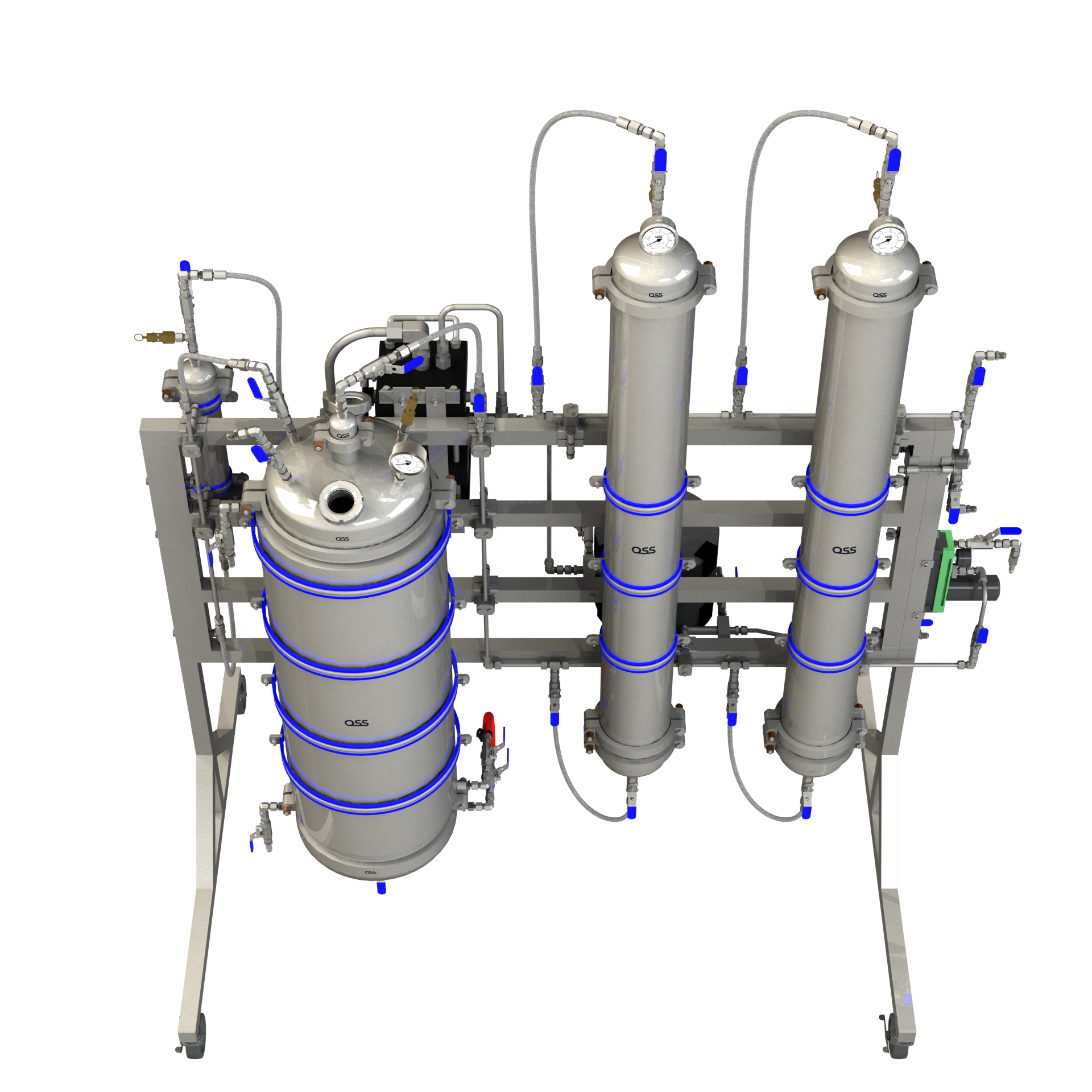

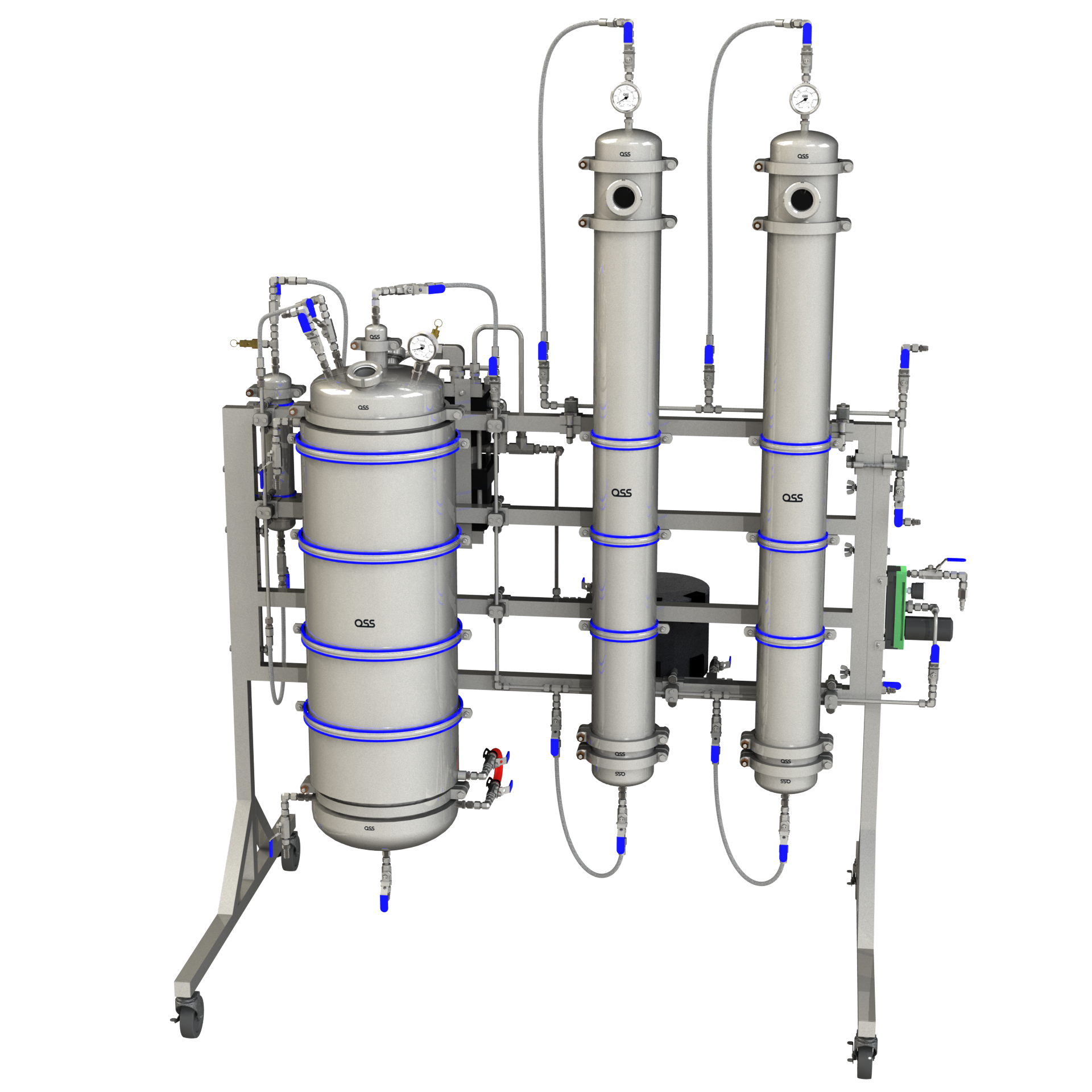

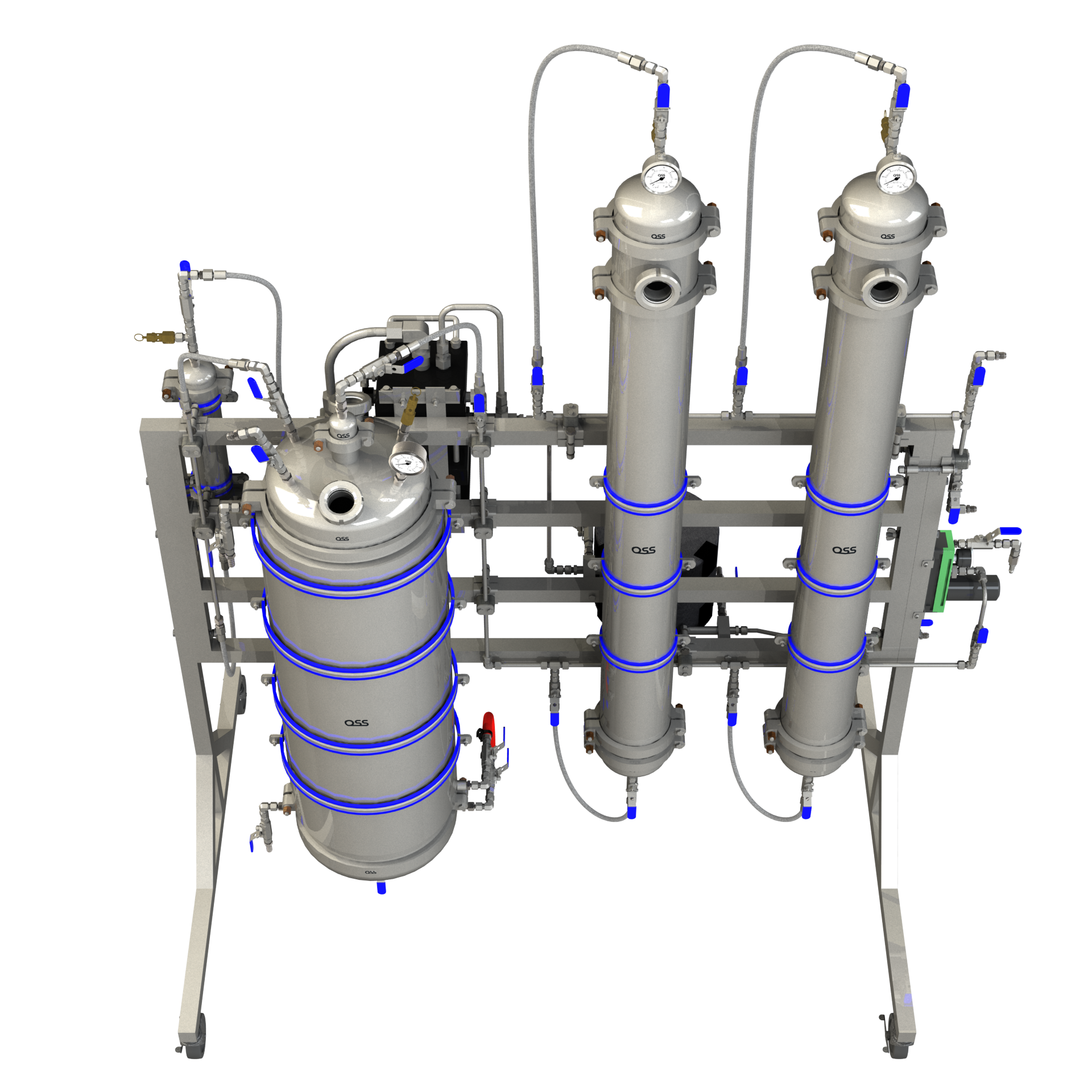

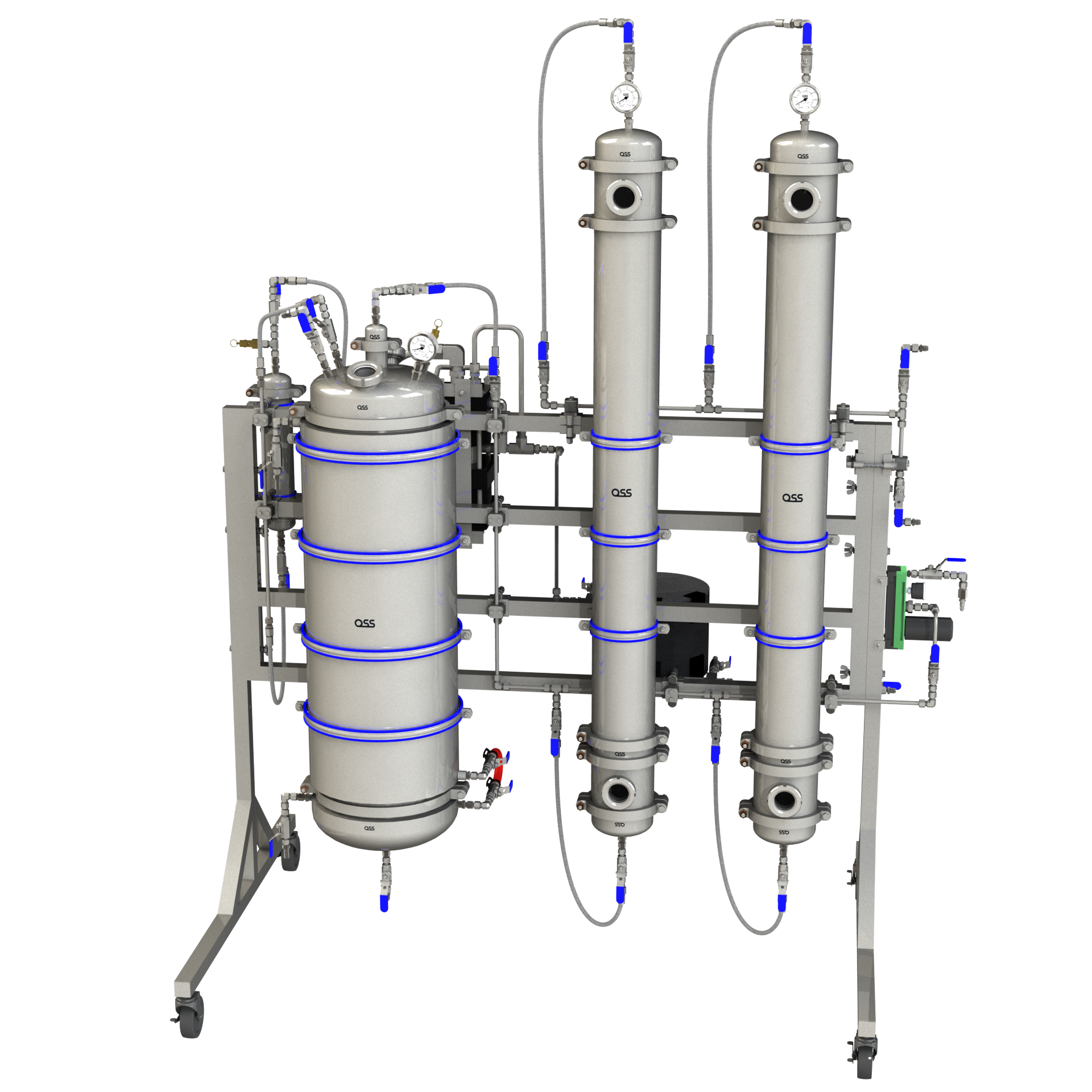

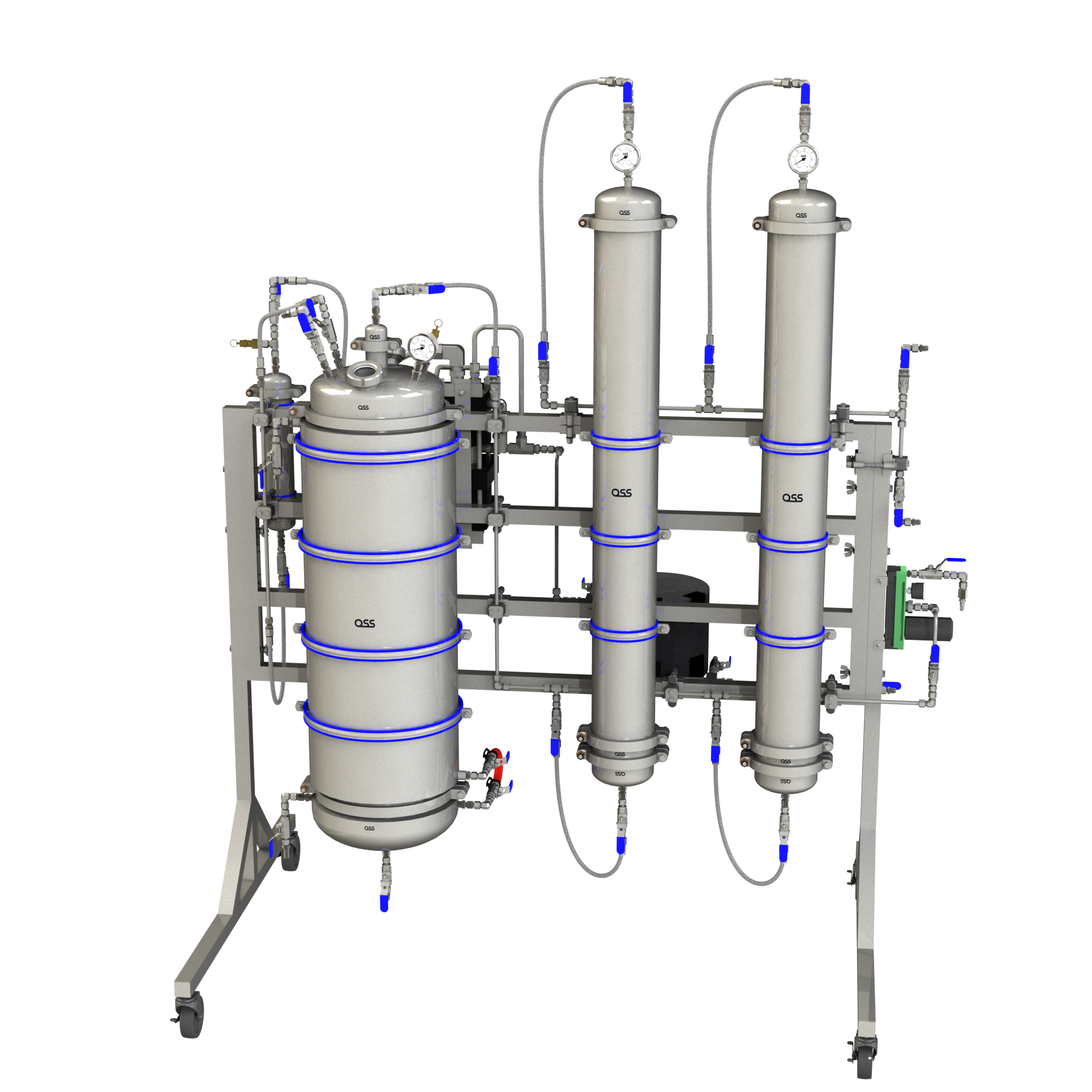

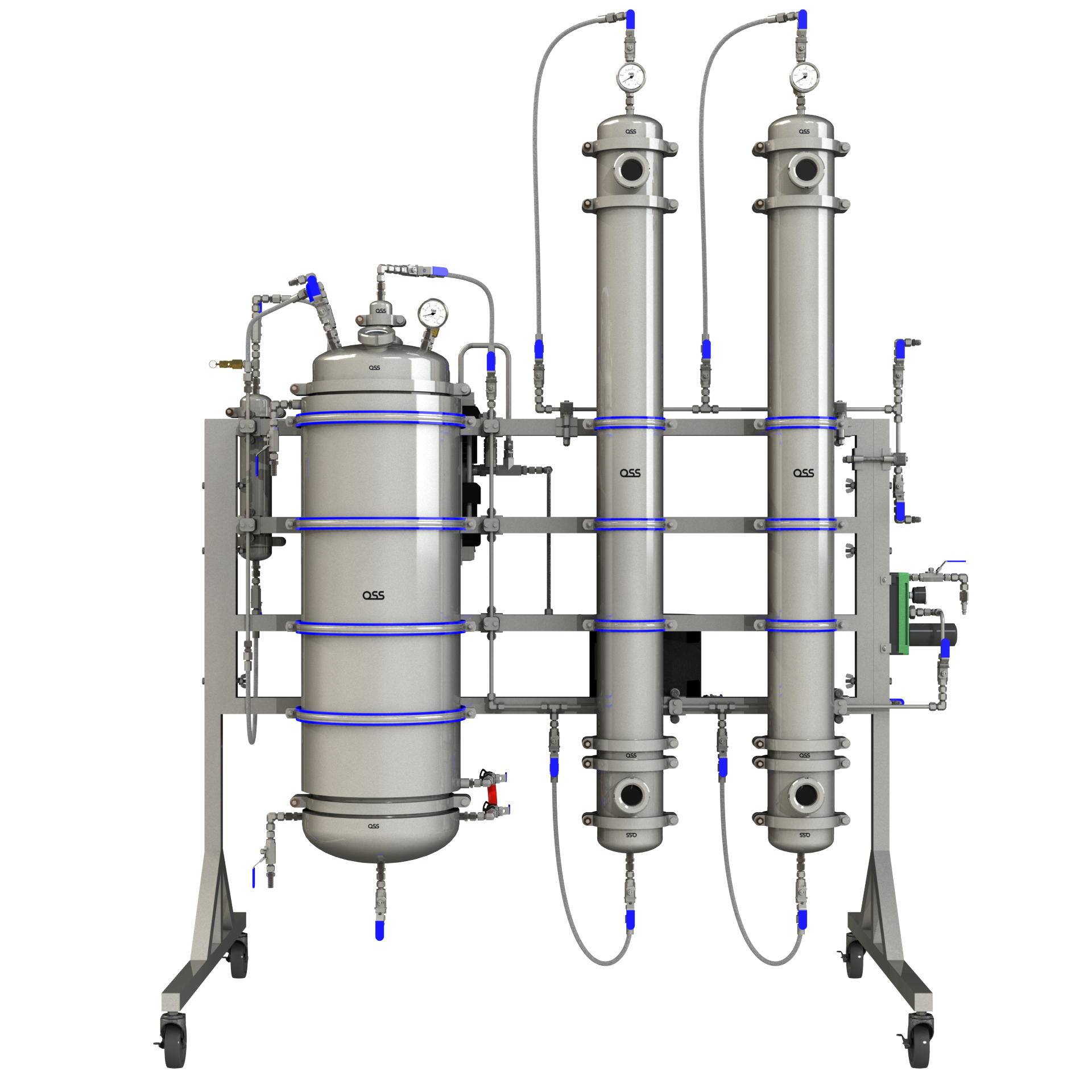

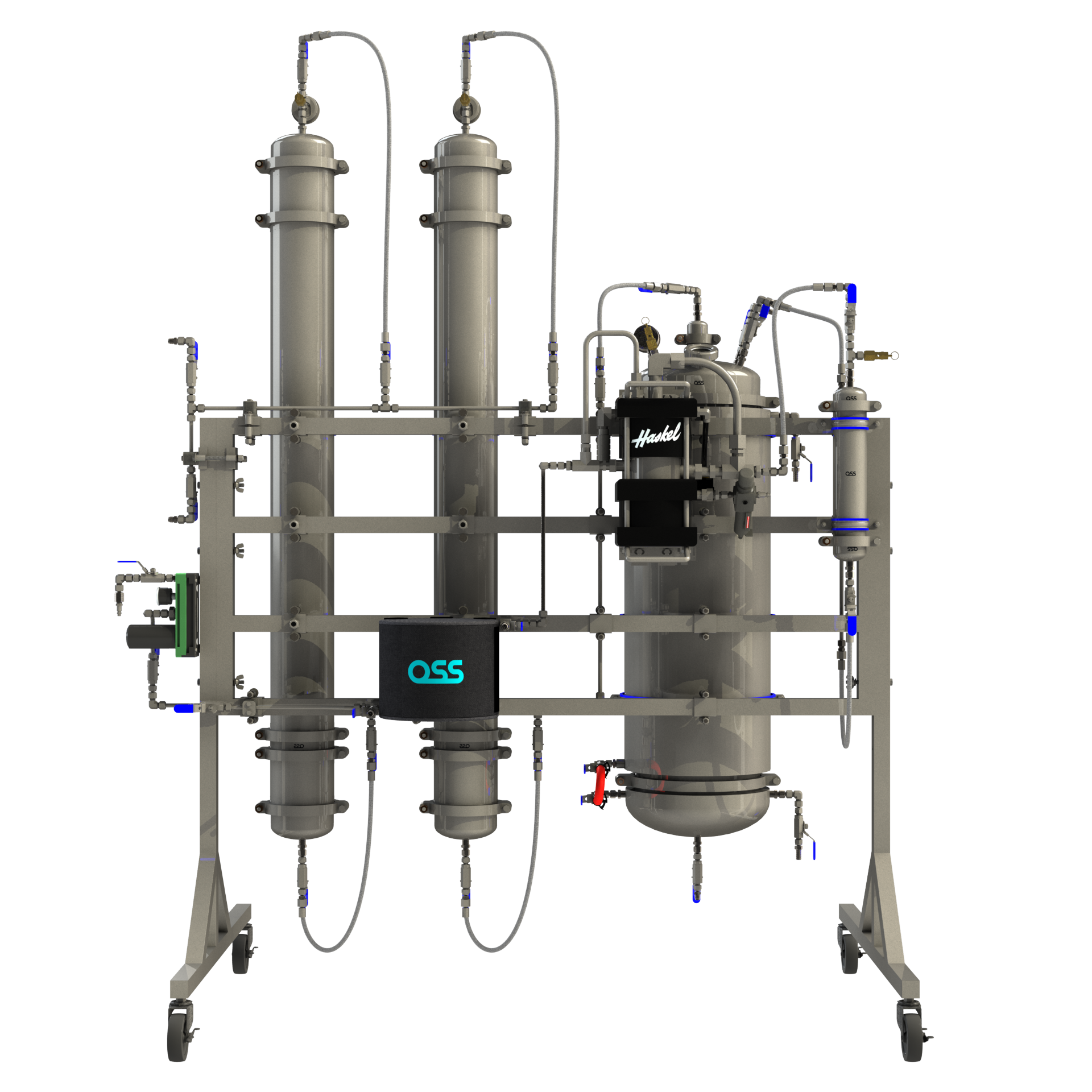

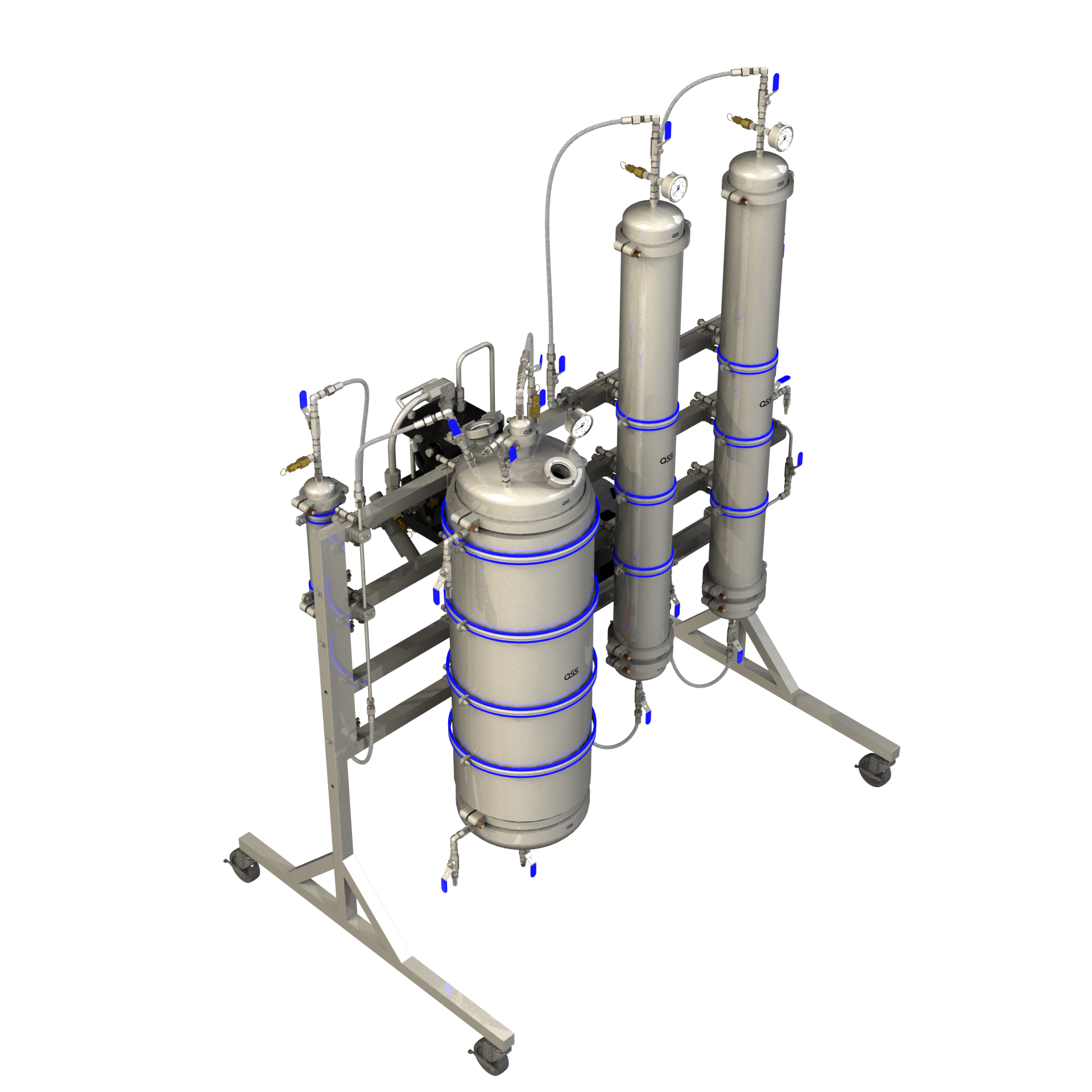

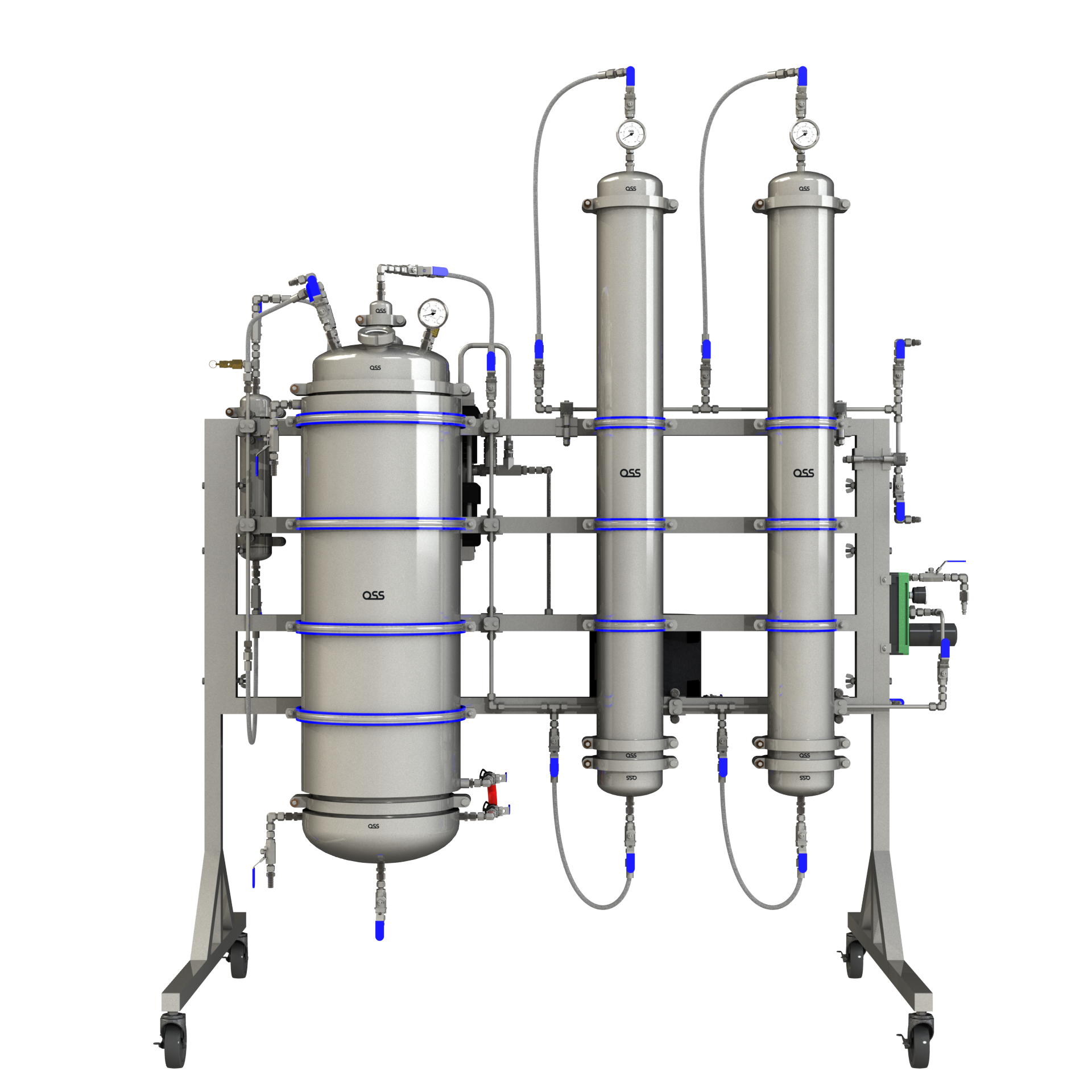

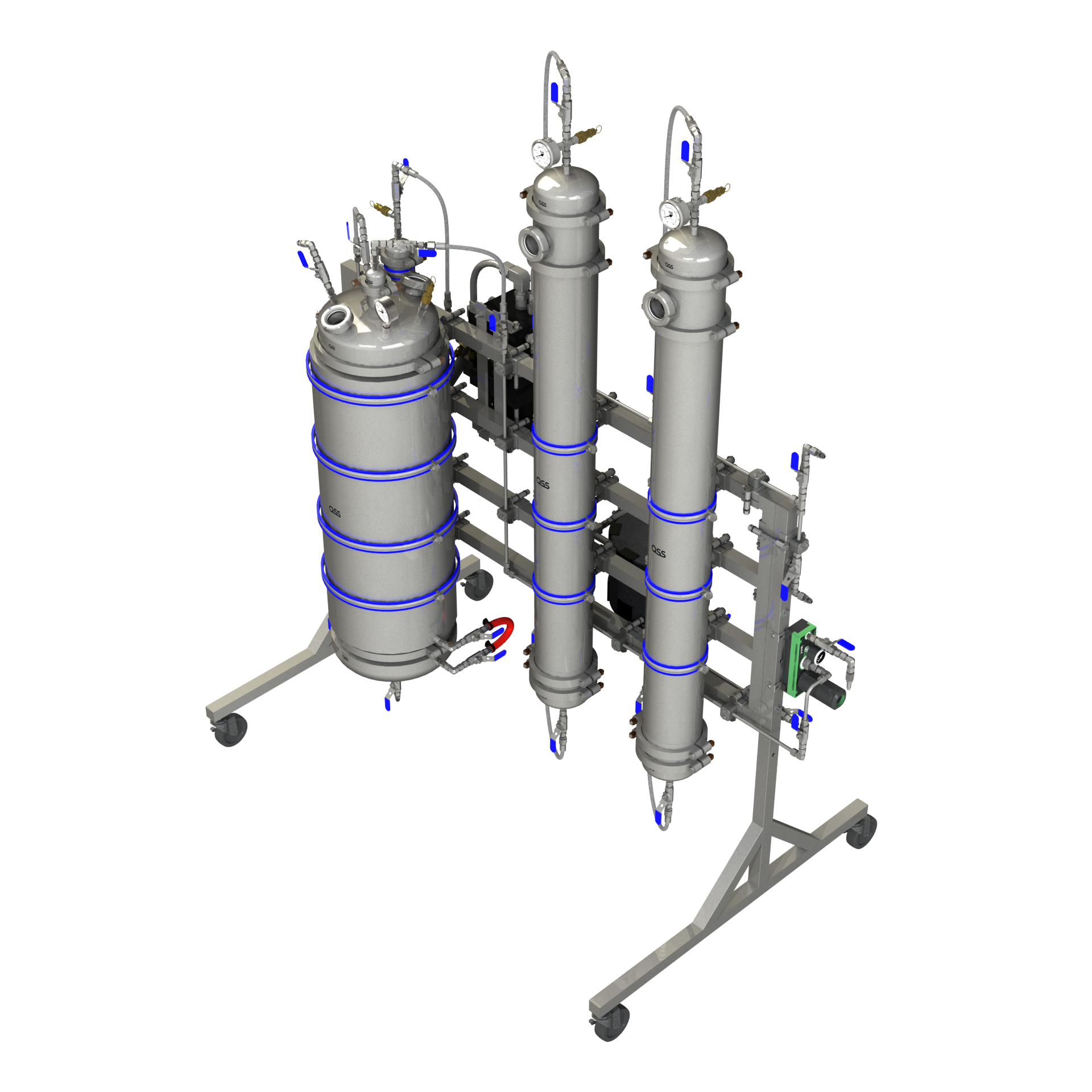

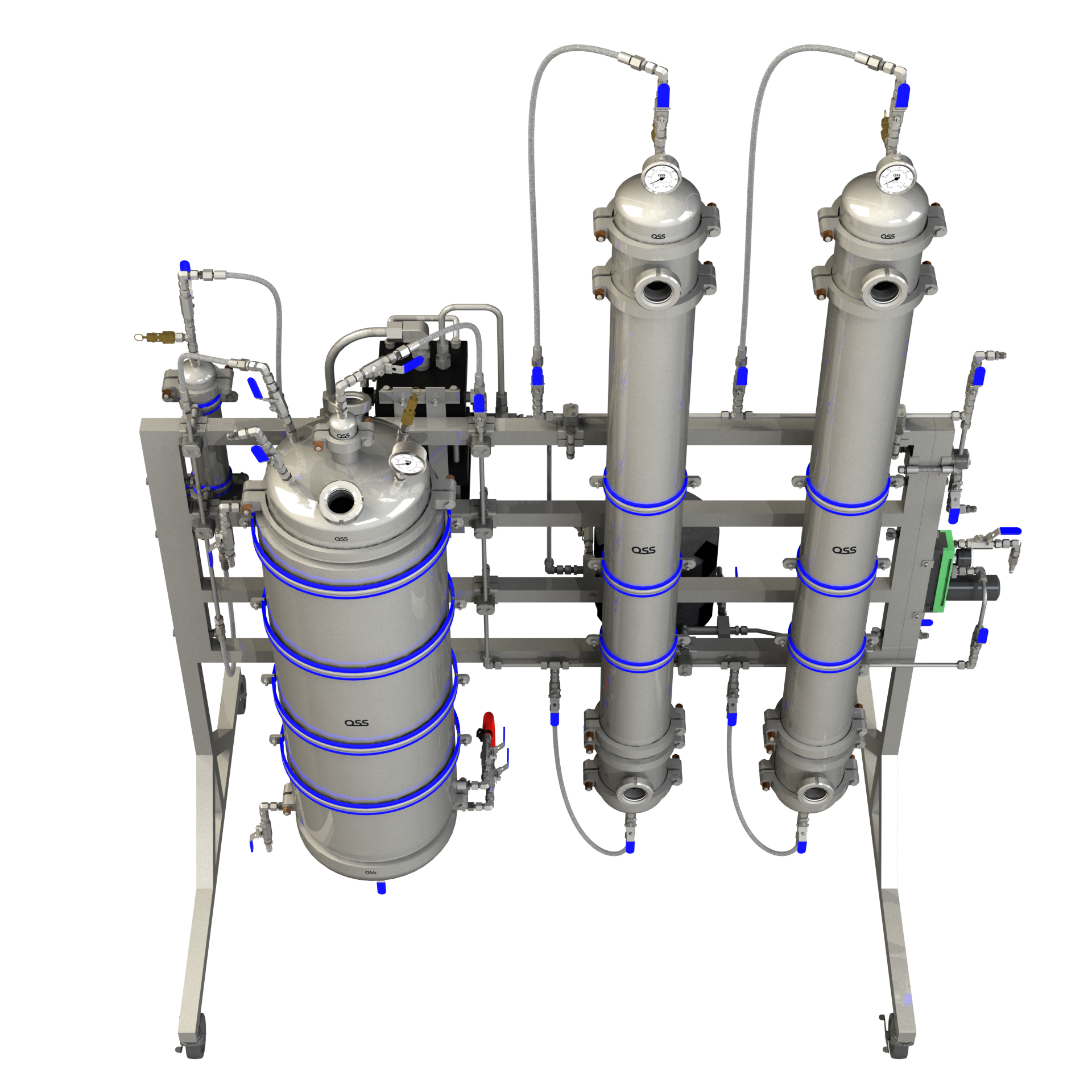

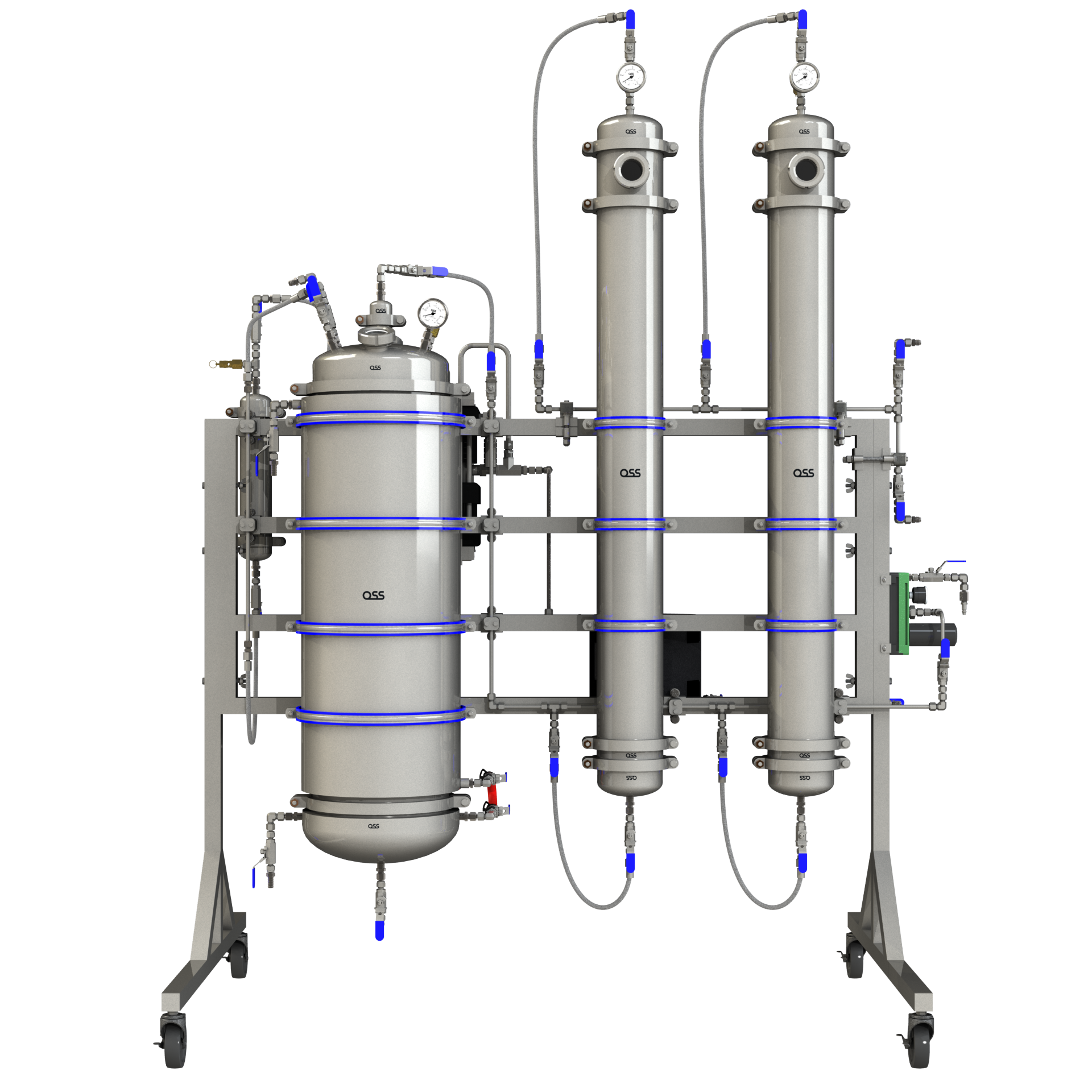

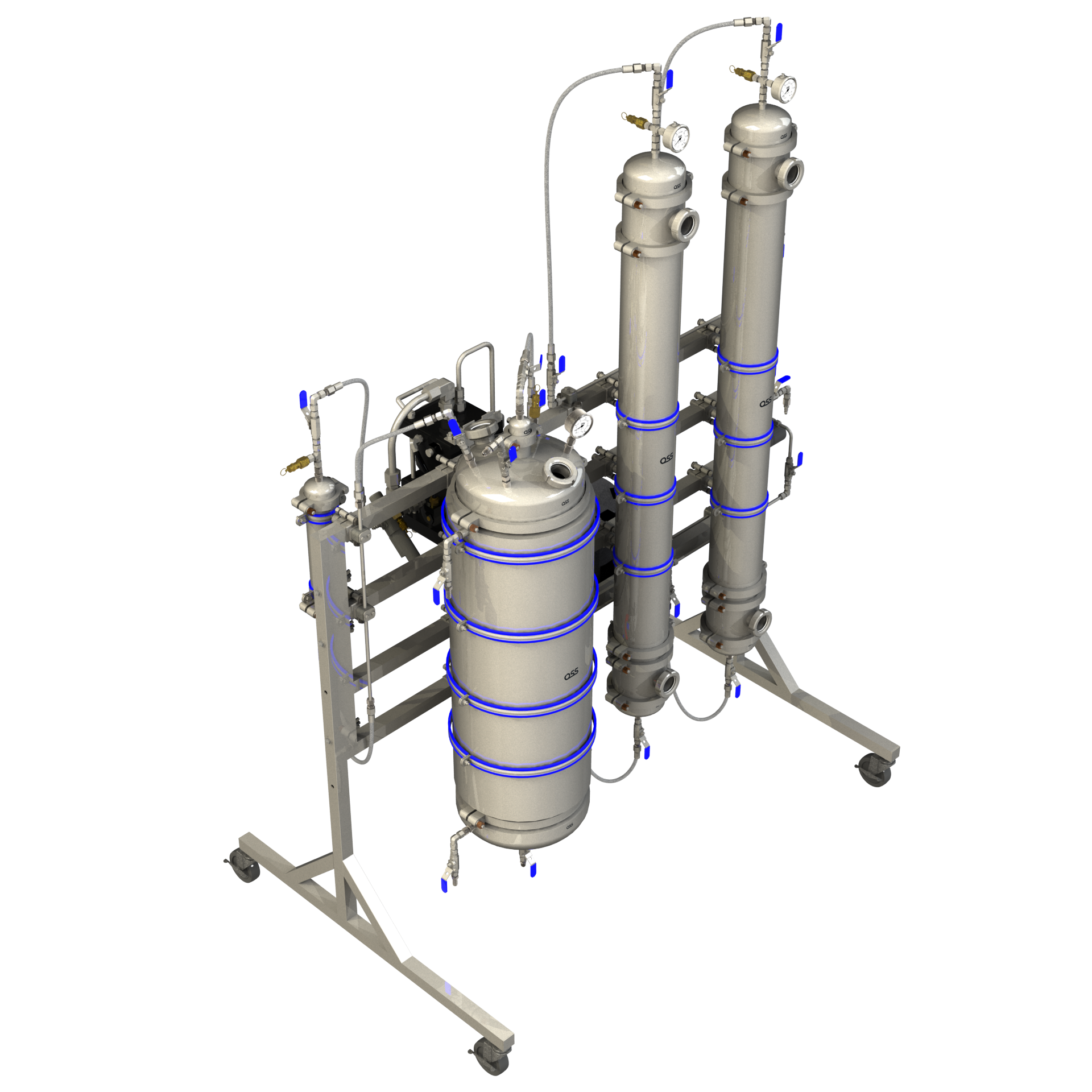

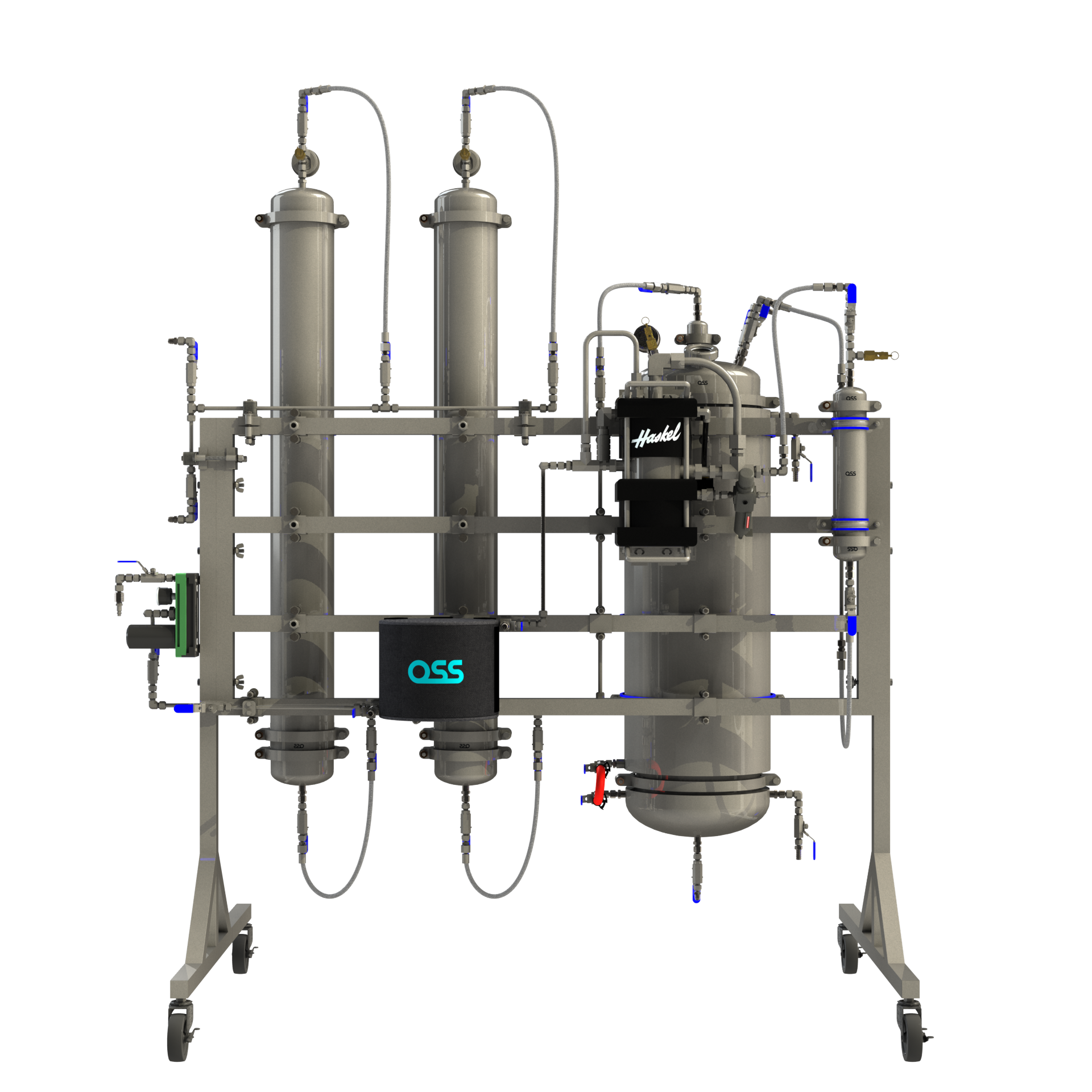

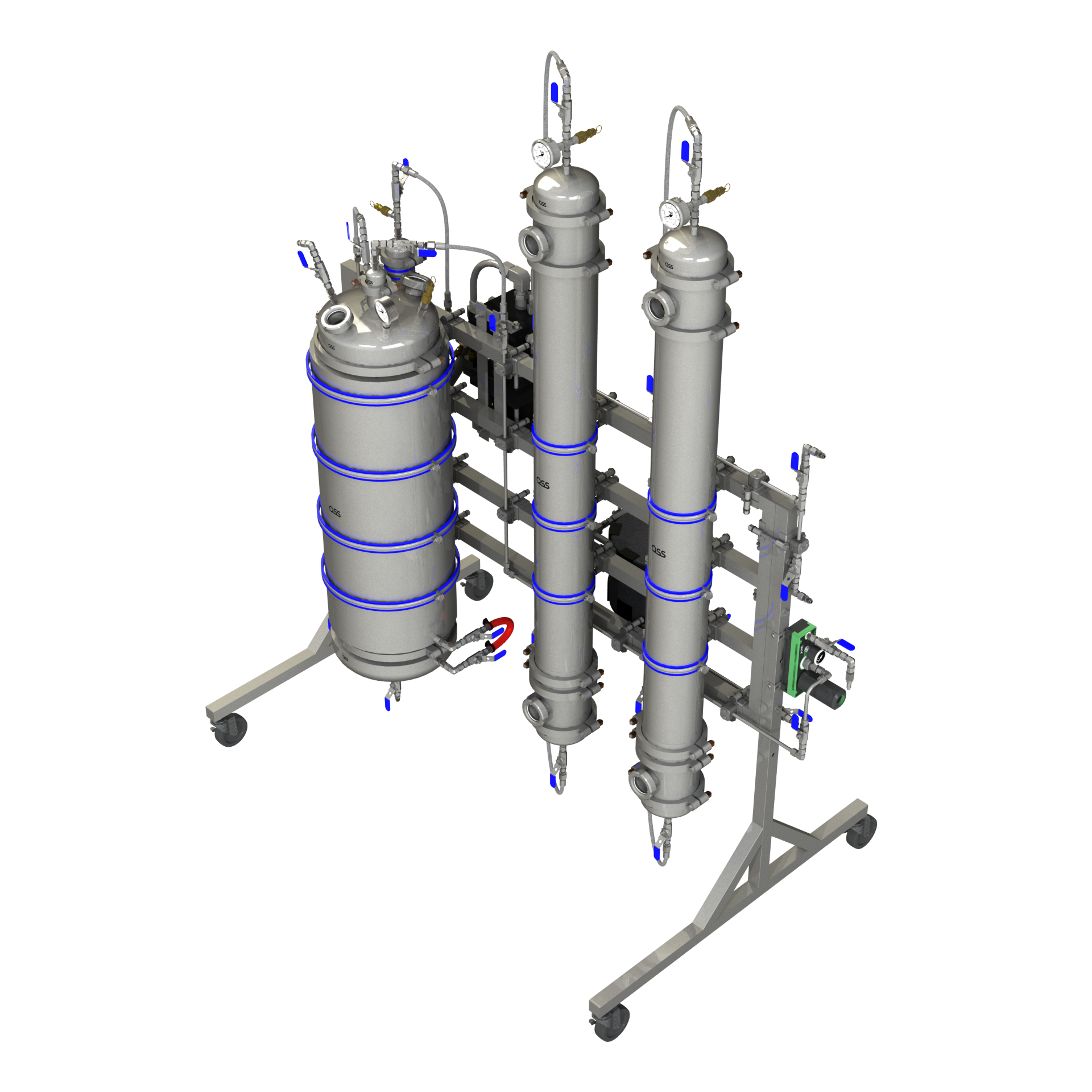

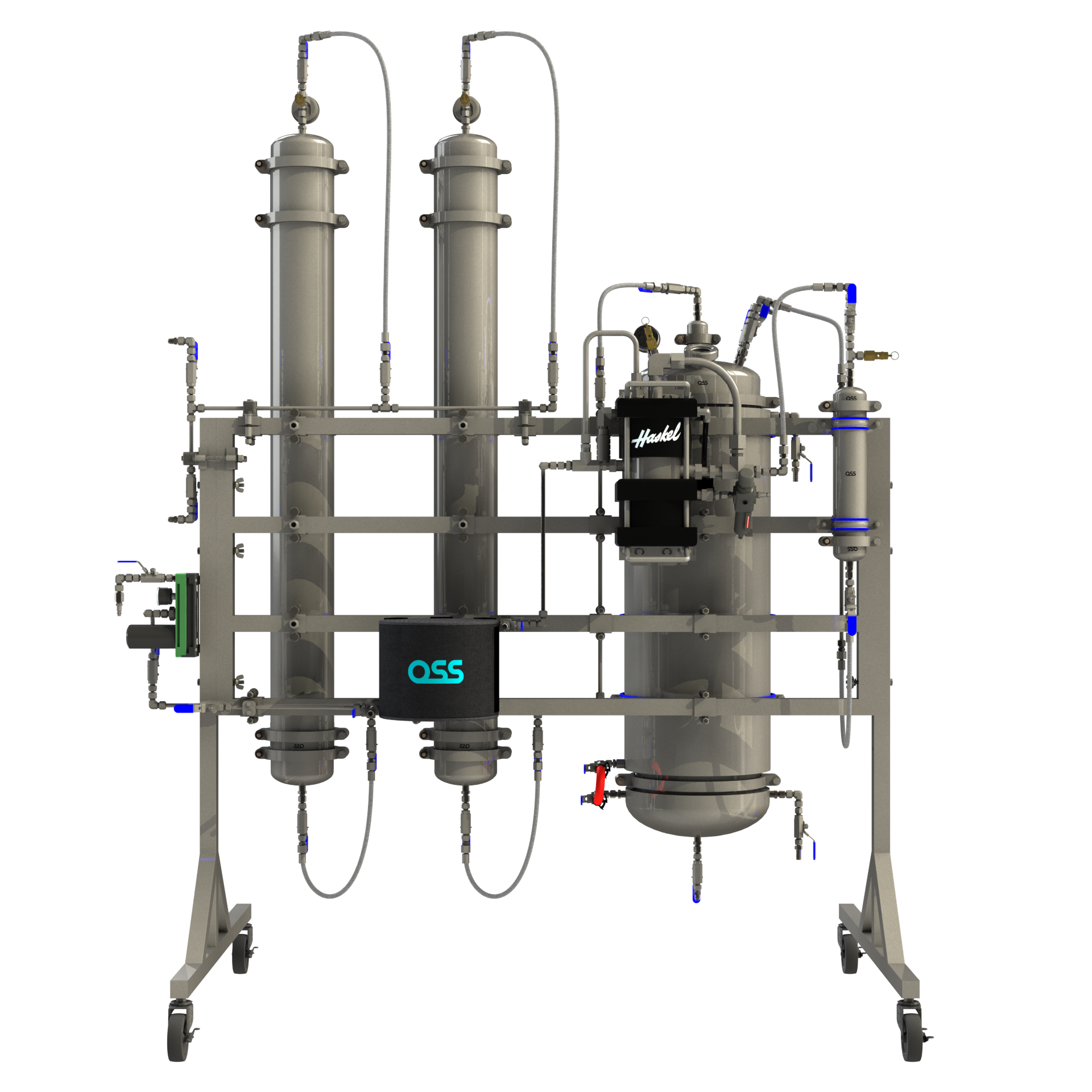

E-1 Extractor - (20lbs.) - 6"x48"

E-1 Extractor - (20lbs.) - 6"x48"

Regular price $ 17,144.93
Regular price $ 11,924.92 Sale price $ 17,144.93
Sale Sold out
Shipping calculated at checkout.


After 5+ years of evolved designs, we are proud to introduce our latest model of complete turn-key extraction solutions.




  • - 20lb Material Capacity
  • 2x 6"x48" Sanitary Tri-clamp Spools
  • - 12"x36" Evaporator Vessel
  • Choice of 40L/50lbs or 80L/100lbs Stainless Steel Solvent Tank(not included)
  • Integrated liquid/gas injection manifold
  • 25-25um Inline Filtration
  • 1-3um Inline Filtration
  • Inline Desiccant Filter Dryer (removes moisture in your gas!)
  • Sight Windows for Process Viewing on the Collection Vessel

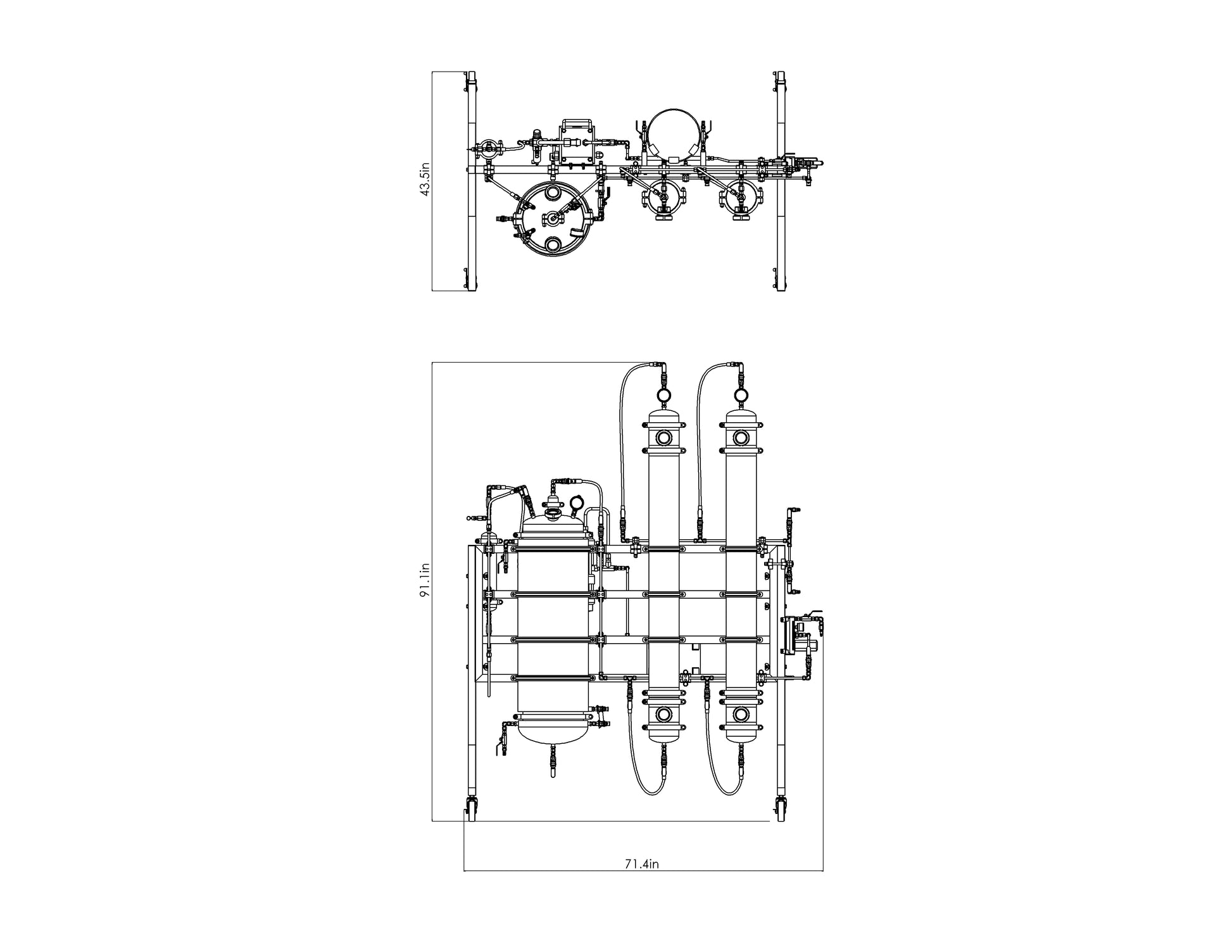

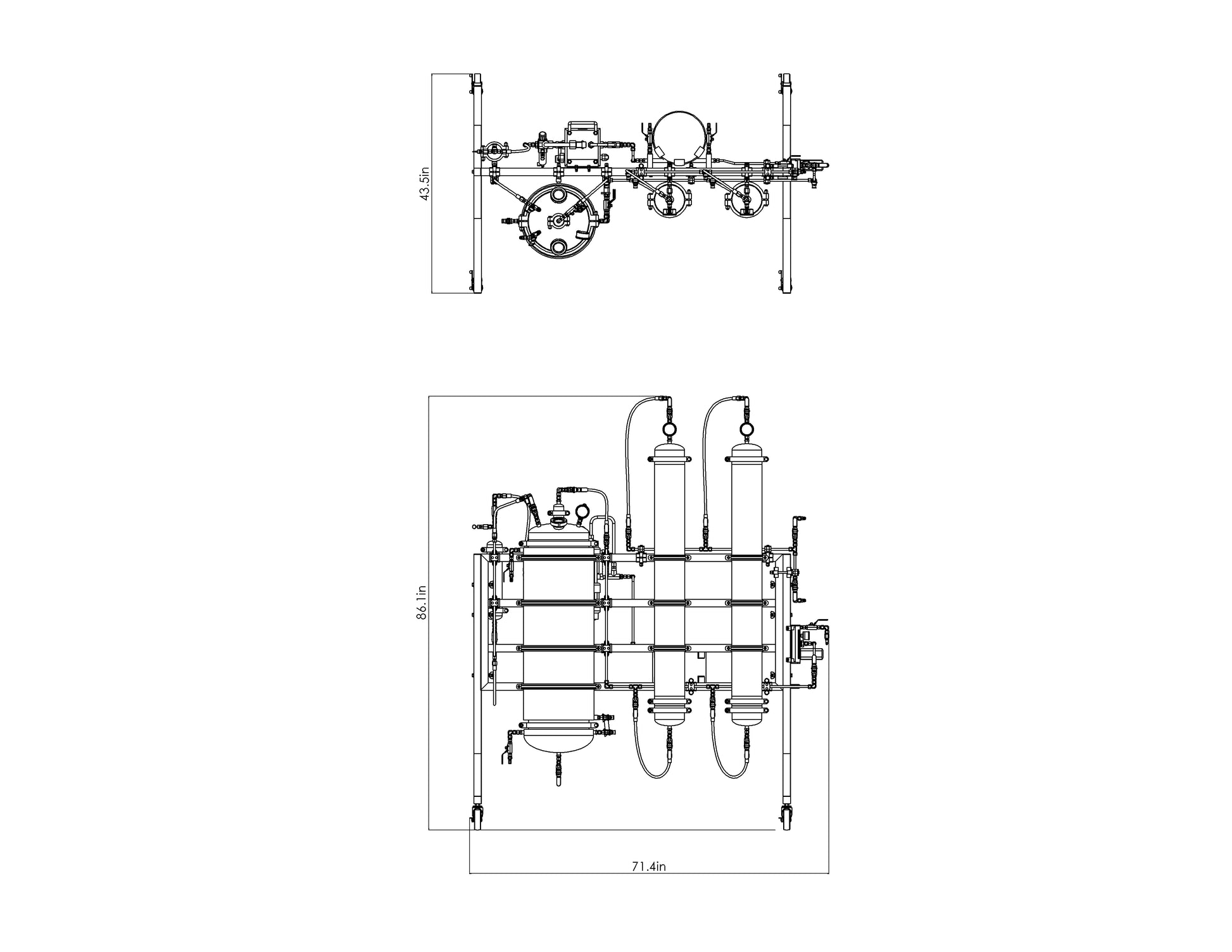

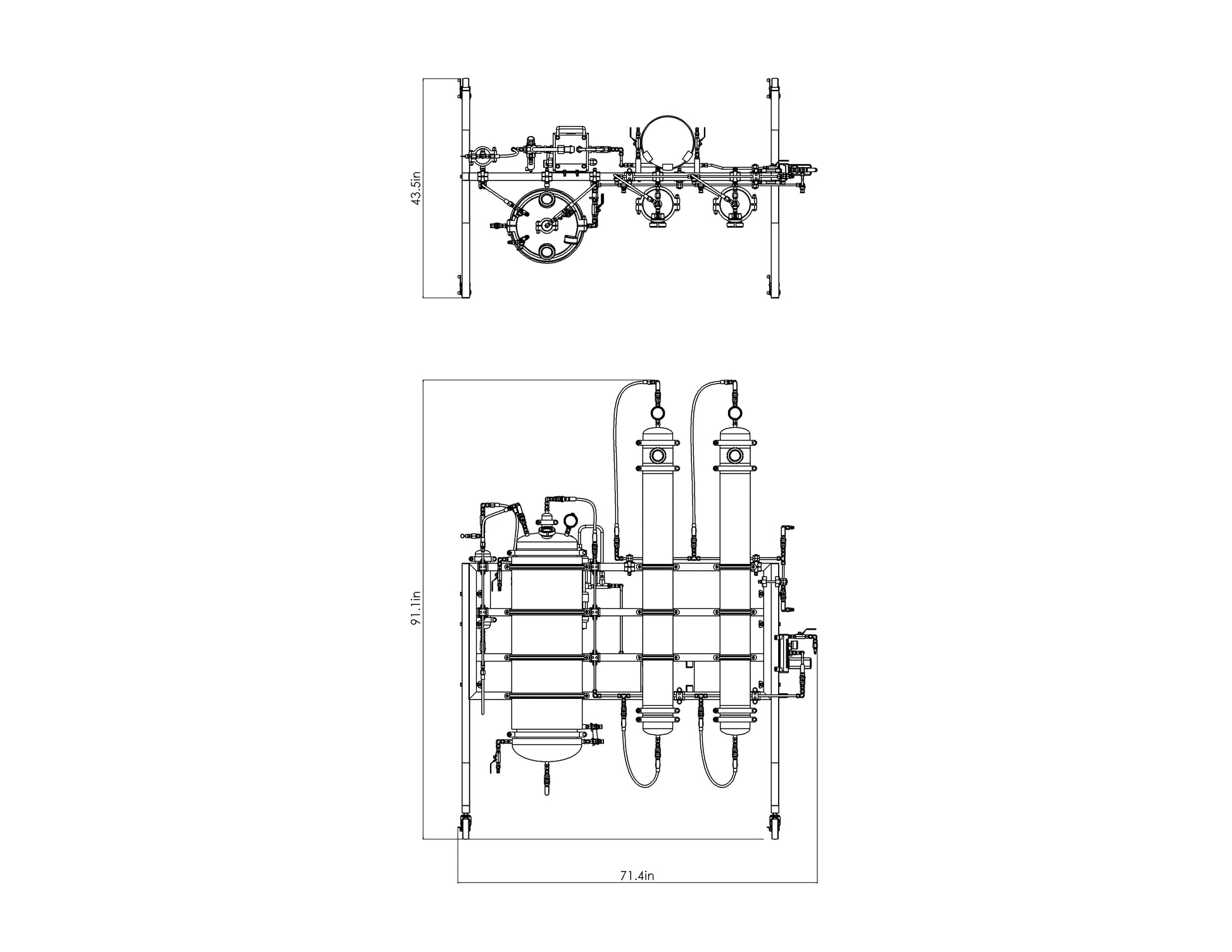

  • - Compact Footprint: (LxWxH) 64x29x74


  • - OSS Counter Flow Coil Recovery Setup eliminating the need for dry ice when recovering your solvents!
  • - Haskel AGD 1.5 Recovery pump able to recover up to 1lb+ per min.***
  • Max Inlet Pressure (psi): 300
  • Min Inlet Pressure (psi): ATM
  • Outlet Pressure (psi): 300
  • Static Outlet Stall Pressure: 1.5 Pa+Ps
  • Piston Displacement per Cycle: 60 in / 983.2 mL
  • Gas Inlet/Outlet Connections: 3/4" NPT / 1/2" NPT
  • Weight: 44lbs
  • Air Drive Inlet: 1/2" FNPT
  • Dimensions: (LxWxH) 18.83in x 15.82in x 9.38in


  • Pneumatic Venturi Vacuum Pump, eliminating the need for additional electrical in the extraction room, a perfect combo to your C1D1 space!
  • Deep vacuum levels to 28.1 -inHg.
  • Low-weight, configurable and modular design
  • Mounted directly to extraction frame for quick access!
  • Easy disassembly for maintenance.




  • 75 minute run time*.
  • - Process 60lbs+ of material in one 8 hour shift!**
  • - Eliminate dry ice on recovery
  • - Two Material Columns allowing for alternating load/wash cycles.
  • - Integrated manifold with -50c rated OSS Ball Valves




*All run times are based on 99.95% Iso-Butane.
**Run times do not include loading and unloading of material or cleanup time.
***Recovery times vary depending on the amount of available hydrocarbon vapors.



EXAMPLE OF JACKET CONNECTION OPTIONS

1/2" HOSE BARB

1/2" QUICK CONNECTS
