Huber

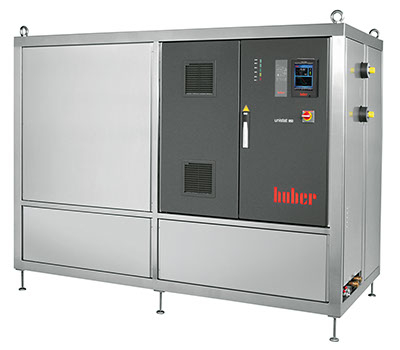

HUBER Unistat 950w -90C To 200C With Pilot ONE

HUBER Unistat 950w -90C To 200C With Pilot ONE

Regular price $ 478,300.00
Regular price Sale price $ 478,300.00
Sale Sold out
Shipping calculated at checkout.
The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7 touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

Standard Packages



Standard Package



 Part description

 Quantity

Part image

HUBER Unistat 950w -90°C to 200°C with Pilot ONE 1 pc

Mini-USB Cable 1 pc

E-Grade “Professional” (digital) 1 pc

User's manual 1 pc

Huber Unistat 950w features
  • Precise and reproducible temperature control results
  • Fastest heating and cooling rates
  • Wide temperature ranges with no fluid change
  • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
  • Adaptive temperature control, self-optimising
  • Efficient circulation pump
  • Data communication via LAN, internet, USB, RS232 and RS485
  • Efficient operation saves working time and operating costs
  • Proven functionality for the process industry
  • E-grade "Professional" included

Huber Pilot ONE multi-touch controller

General information & temperature controller
Temperature range -90...200C
Temperature stability 0.01C
Temperature control TAC, self-optimizing (True Adaptive Control)
Display resolution 0.01C
Alarm message optical, acoustical
Controller Pilot ONE (E-grade"Professional")
Safety class III / FL
Protection class IP20
Dimensions(W x D x H) 2630 x 1300 x 1980mm|103.54 x 51.18 x 77.95inches
Weight --kg|pounds
Heating / cooling capacity
Heating capacity 36kW
Cooling capacity
200 100 20 0 -20 -40 -60 -80 C
36 36 36 36 36 36 25 10 kW
Cooling machine water-cooled
Refrigerant1. stage R452A
Refrigerant2. stage R23 (7 kg)
Circulation pump
Pressure pump max. 240 lpm;4 bar|63.41gpm;58psi
Pump connection Flansch DN40 PN10/40 EN1092-1
Permissibleviscosity 100mm/s
Connections
Pt100 connection Pt100
Analogueinput via optional Com.G@te
Analogueoutput via optional Com.G@te
Digital interface RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp. 5...40C
Filling volume min. 30Liters|7.93gal
Volume of expansion 90Liters|23.78gal
Cooling water connection G1 1/4 AG
Cooling water differential pressure min. 3bar|43.5psi
Cooling water pressure max. 6bar|87psi
Power supply 460V 3~ 60Hz
