Across International
250C UL 18 Shelf Max 7.5 CF 5 Sided Heating Vacuum Oven 220V
250C UL 18 Shelf Max 7.5 CF 5 Sided Heating Vacuum Oven 220V
Couldn't load pickup availability
- Description
SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. Oven comes standard with 9 shelves. This unit only comes in 220V 50/60Hz.
Introducing the new Ai 18-shelf capacity 5 sided wall-heating 7.5 cu ft vacuum ovens, come standard with secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, andtwo year warranty.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
- ETL tested to UL and CSA standards
- New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
- All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
- 4th gen low proportional gain temperature controllerskeep your oven temperature within +/- 1F accuracy, ineither F or C.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 3/4" tempered safety glass.
- 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance within 30 minutes from our engineers.
Manufactured in accordance with
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Share

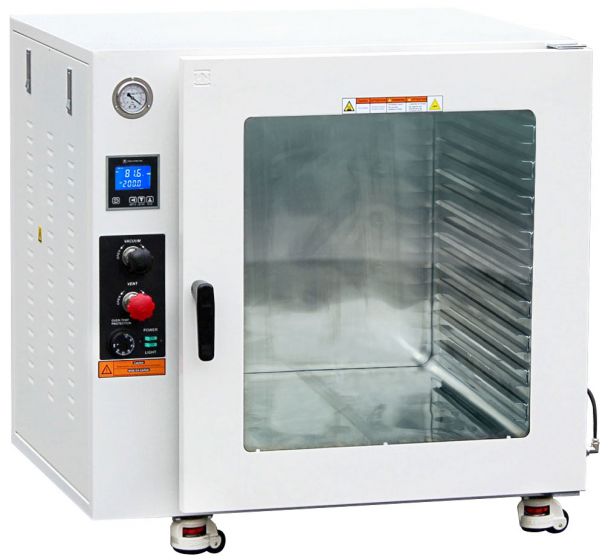

![250C UL 18 Shelf Max 7.5 CF 5 Sided Heating Vacuum Oven 220V](http://www.opensourcesteel.com/cdn/shop/products/at75x-front_at75x-ul_1_c613e36e-194e-40cc-bd67-6a3da59398f3.jpg?v=1640298313&width=1445)

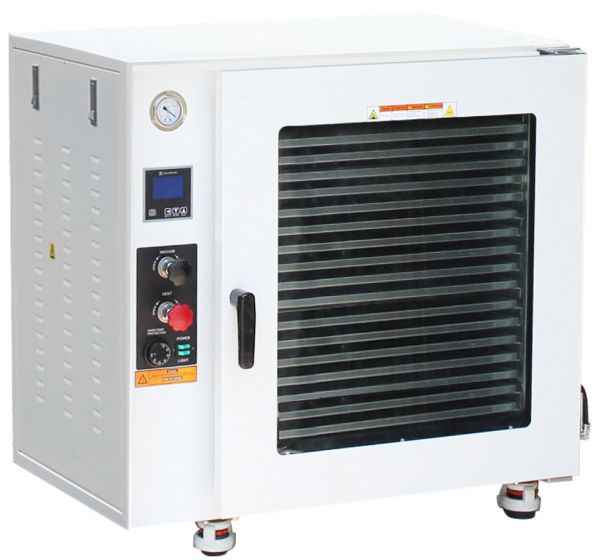

![250C UL 18 Shelf Max 7.5 CF 5 Sided Heating Vacuum Oven 220V](http://www.opensourcesteel.com/cdn/shop/products/at75x-w_at75x-ul_1_b1930f54-40bd-4368-b224-0e20aeb772d6.jpg?v=1640298313&width=1445)

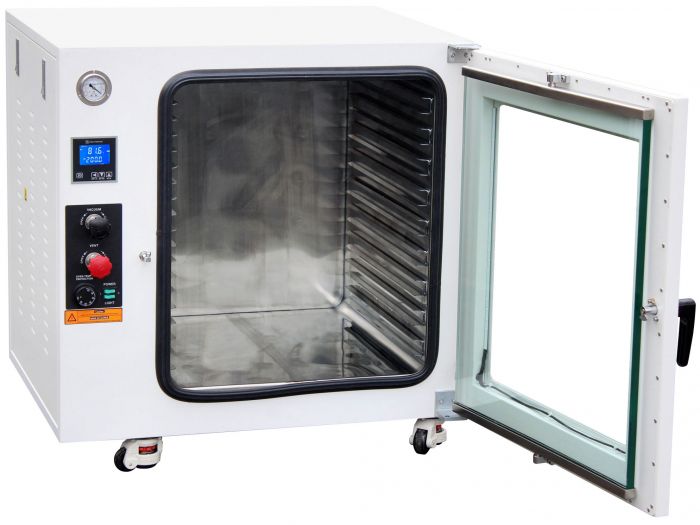

![250C UL 18 Shelf Max 7.5 CF 5 Sided Heating Vacuum Oven 220V](http://www.opensourcesteel.com/cdn/shop/products/at75x-open_at75x-ul_1_b5a06ab9-11c1-4c29-b6b9-452fa9133229.jpg?v=1640298316&width=1445)

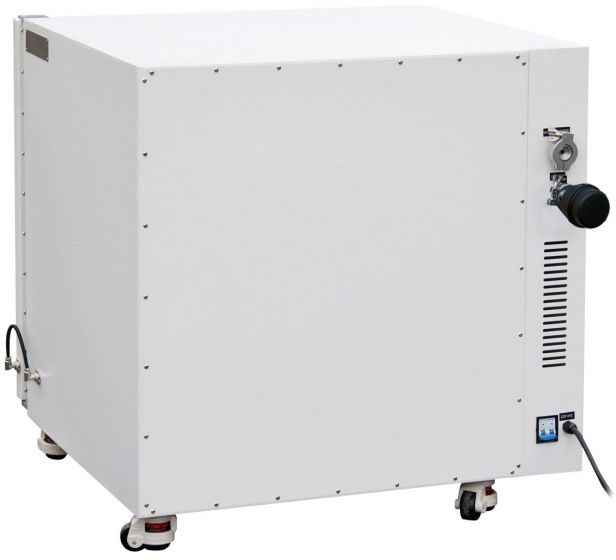

![250C UL 18 Shelf Max 7.5 CF 5 Sided Heating Vacuum Oven 220V](http://www.opensourcesteel.com/cdn/shop/products/at75x-back-filter_at75x-ul_1_bdd63a8c-46b3-4bc1-88e3-f38b09365217.jpg?v=1640298317&width=1445)
