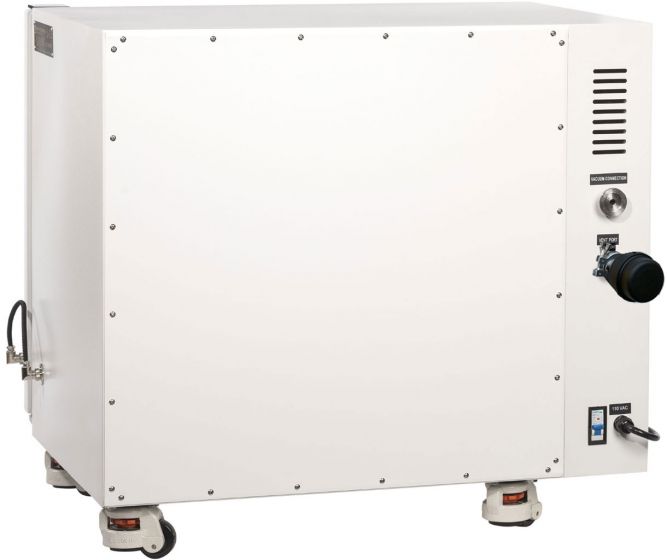

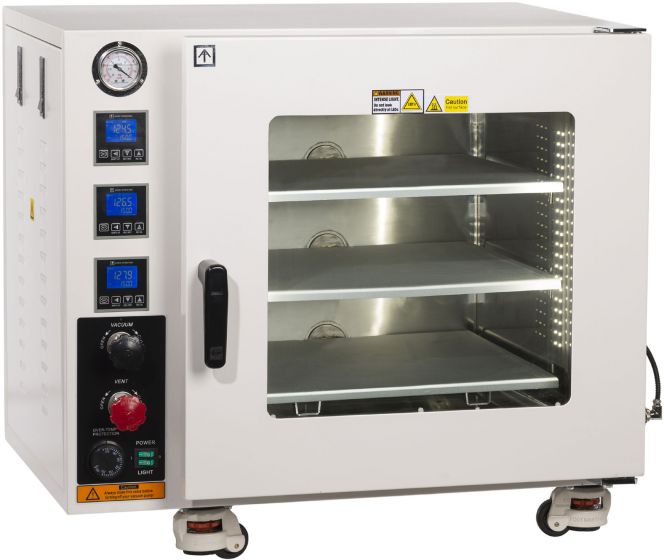

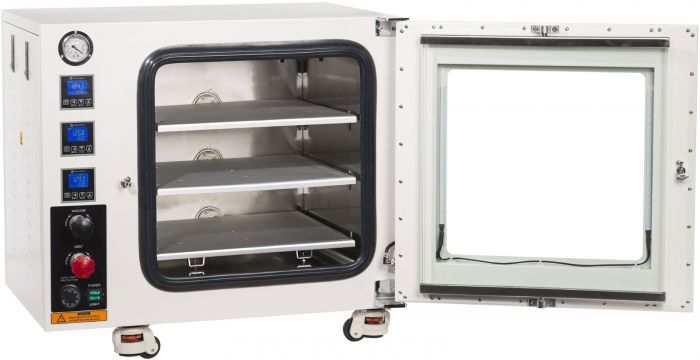

3.2 CF 480°F Vacuum Oven All SST Tubing & Valves

3.2 CF 480°F Vacuum Oven All SST Tubing & Valves

  • $ 4,990.00




Electric

110V +/-10% 50/60Hz 1-PH 13.6A, 1500 watts
or
220V +/-10% 50/60Hz 1-PH 6.8A, 1500 watts
Heaters: 500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient
and uniform heating.
Chamber
Size: 18 x 18 x 18"
Material: Stainless steel
Capacity: 3.2 cubic feet
Temperature control Controller: 3rd gen low proportional gain, microcomputer PID controlled with LCD display
Range: ambient to 480°F
Display units: Fahrenheit or Celsius
Accuracy: +/- 1°F
Uniformity: +/- 5% of setpoint
Dwelling timer range: 1 to 9999 minutes
Warm-up time to 100°F: 35 minutes
Warm-up time to 480°F: 60 minutes
Vacuum
Ultimate vacuum level: better than 500 microns/millitorrs
may vary based on your altitude, click here to learn more)
Mechanical gauge range: 0 to 30-inch mercury
Vacuum port: KF25 flange x 1
Vent port: 3/8" hose barb
Weight Unit: 260 Lbs, shipping: 400 Lbs
Dimensions (WxDxH) Unit: 30.5 x 24 x 29"
Shipping: 34 x 30 x 35"
Shelves
Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each
Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH)
Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2
Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2
The distance between shelves (without stackable shelves): 4.75 inches
The distance between shelves (with 3 stackable shelves): 2.25 inches
Door gasket material Silicone
Observation window 1/2" tempered safety glass
Safety
Built-in circuit breaker, overheat protector
In-door lights White LED (LED lights is optional on all 220V models)
CE compliance Yes
