Across International

Ai 200C 15L SST Compact Desktop Heated Recirculator - 220V

Ai 200C 15L SST Compact Desktop Heated Recirculator - 220V

Regular price $ 2,428.12
Regular price Sale price $ 2,428.12
Sale Sold out
Shipping calculated at checkout.

*Delivery time will be confirmed in the order

Open Source Steel is a registered distributor of Across International

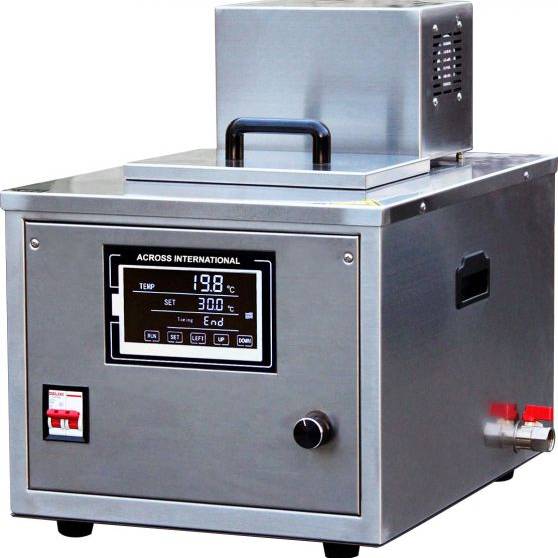

Ai 200°C 15L SST Compact Desktop Heated Recirculator - 220V

The Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

Features

  • ETL tested to UL and CSA standards
  • Powerful 2,800 watts heater
  • Adjustable pumping speed up to 15 liters per minute
  • 2nd generation 7" TFT touch screen controller
  • Front placed controller keeps all electronics away from the heat and expends lifespan of the controller
  • ANSI standard all stainless steel reservoir
  • All steel construction for durability
  • Small footprint saves valuable lab space
  • Comes with 250°C rated, heavy duty, flexible stainless tubing with insulation

Optional M16 male to 3/4" NPT adapters for Ai glass reactors $118.99

  • M16x1.0 male to 1/2" NPT female x 2
  • 1/2" NPT male to 3/4" NPT male x 2

Specifications

Model H200-15
Temperature range Ambient to 200°C
Electrical requirements 220V 60Hz 1-Phase 2,900 watts
Heating capacity 2,800 watts
Recirculating pump Pumping speed: 15 liters per minute, adjustable
Maximum head: 16 feet or 5 meters
Power: 100 watts
Reservoir
Dimensions: 10 x 12 x 8" (WxDxH)
Material: Type 304 stainless steel
Capacity: 15 liters or 4 gallons

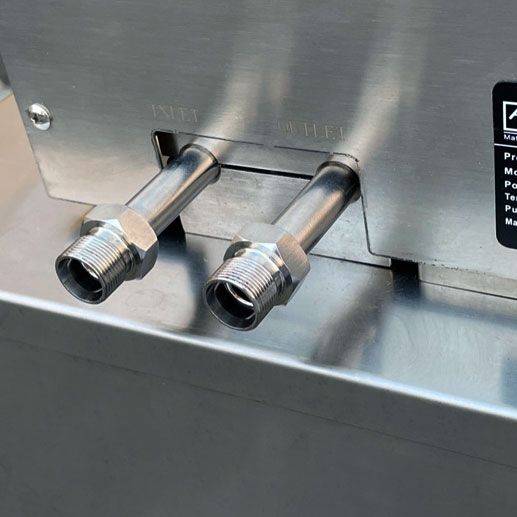

Thermo fluid connection: M16 x 2
Fluid drain port: 3/8" hose barb with on/off valve
Temperature controller Type: Digital microprocessor PID controlled
Display: 7" touch screen
Display unit: Celsius °C
Temperature step: 0.1°C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to 200°C
Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
Unit/shipping dimensions 14.75 x 19 x 18.25" / 17 x 22 x 22" (WxDxH)
Unit/shipping weight 40 Lbs / 55 Lbs
Safety Short circuit and ground protection
Over-current protection
Over-temperature protection
Upper/lower temperature alarm protection
Warranty One year
Compliance UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3



Standard package

Part description

Quantity

Part image

Ai H200-15 200°C 15L heated recirculator 1 pc

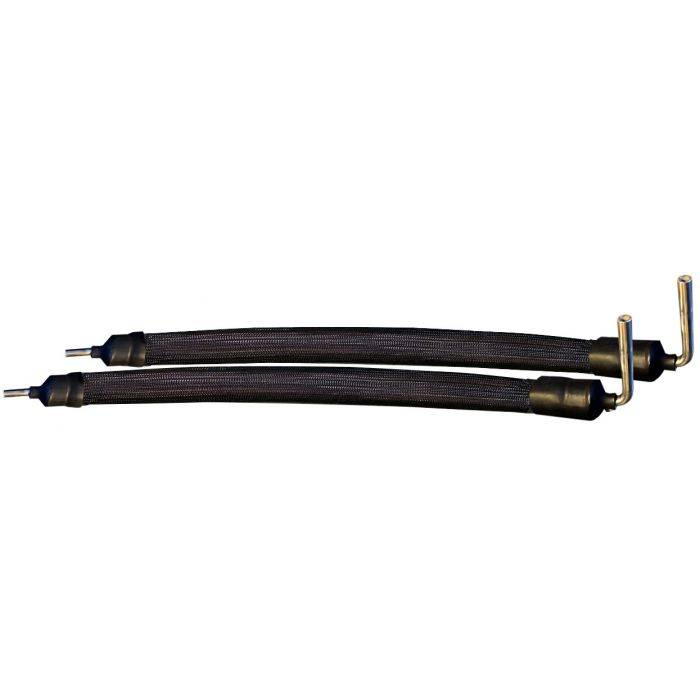

250°C rated flexible insulated stainless steel
tubing (40" L), pipe connection with M16 connection fitting
2 sets
Users manual 1 pc
