Ai -75°C 10L Recirculating Chiller with 30L/Min Centrifugal Pump
The re-designed Ai C80-10 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling...
Vendor :Across International
The re-designed Ai C80-10 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C80-10 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -75°C ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C80-10 circulating chiller features
- No dry ice or liquid nitrogen needed
- Advanced PID digital temp controller
- Built-in chilling fluid filter protects the recirculating pump and prevent blockage
- All steel construction for durability
- Cost saving as the water consumption is completely eliminated
- Built-in casters for mobility
- Plug and play, no assembly required
Specifications
Recirculating pump | Pump type: Centrifugal Model: 25PLBR30-10 Pumping speed: 8 gallon/min or 30L/min Power: 280W Pressure: 1 bar |

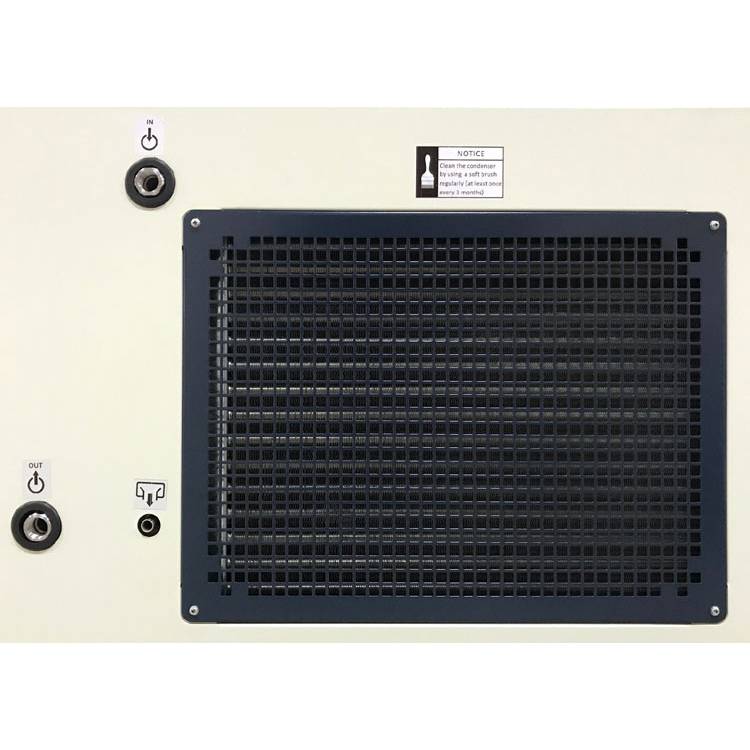

Radiator | Fan motor Make: Boyoung Model: YWF 4E-350 Power: 220V 60Hz 0.8A 180W Rotation speed: 1600rpm Flow rate: 2500 m2/hour Cleaning Clean radiator fins with a fin comb every three months |
Working environment |
Temperature: 5°C to 35°C Humidity: < 70% |

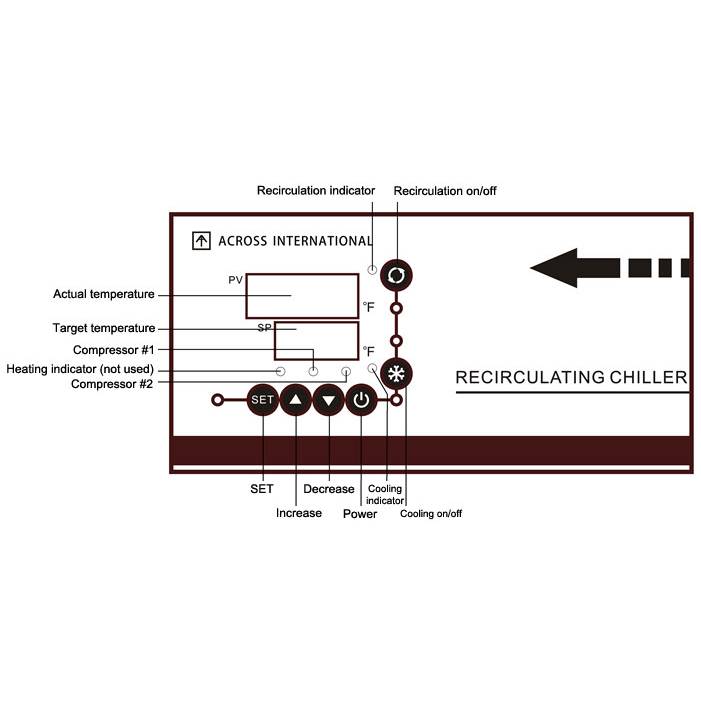

Temperature controller |
Temperature range: -80°C to -40°C Accuracy: +/- 2°C Type: Digital microprocessor PID controlled Display unit: Fahrenheit °F |
Temperature sensor type | Pt100 |
Housing |
Powder coated type 42 stainless steel |
Built-in swivel casters |
Four |
Safety | Compressor over-heat protection Short circuit and ground protection Over-current protection Over-voltage protection Over-heat protection |
Unit/shipping weight | 515 lbs / 615 lbs |
Unit/shipping dimensions | 38.5 x 25 x 52 inches / 44 x 30 x 64 inches (DxWxH) |
Recommended for |
50L to 100L rotary evaporators, or 50L jackted reactors |
