Ai DigiM 20L 300°C 2000 RPM Heating & Stirring Mantle - 220V

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly...

Vendor :Across International

Type :Heating Mantels

Quantity :

$ 1,431.00

Add to wishlist

More Info
Reviews

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.

Specifications

Model	DigiM20
Electrical requirements	220V 60Hz 1-Phase, 2900 watts, 13.2 A
Heating	Ambient to 300°C
Stirring	Min. speed: 110 rpm, max. speed: 2000 rpm Motor power: 40 watts Motor type: brushless DC motor

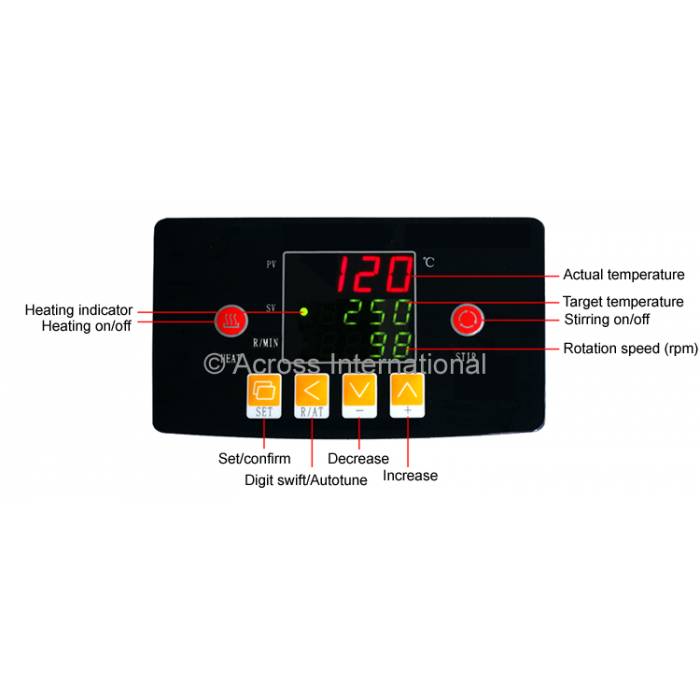

Controller	PID control with digital temperature and rotation speed display
External thermocouple	Type: PT100 Cable length: 43 inches Stainless steel probe length: 15 inches Stainless steel probe diameter: 5 mm
Flask holder	Maximum flask capacity: 20 liters Top opening diameter: 14.5 inches Depth: 7.5 inches
Dimensions (WxDxH)	Unit: 20.5 x 20.5 x 13 inches, shipping: 24 x 24 x 18 inches
Weight	Unit: 40 lbs, shipping: 50 lbs
Safety	Thermocouple failure protection
Certification	ETL tested to UL and CSA standards (optional), CE (standard)
Warranty	One year

Standard package

Part description	Quantity	Part image
Ai DigiM 20L digital heating & stirring mantle	1 pc
External temperature probe	1 pc
Internal temperature plug	1 pc
Boss head	2 pcs
Stainless steel support rod (15 inches)	2 pcs
PTFE coated stir bar	2 pcs
PTFE coated magnetic stir bar remover	1 pc
4 prong stainless steel clamp opens to 3 1/2"	2 pcs
User's manual	1 pc
