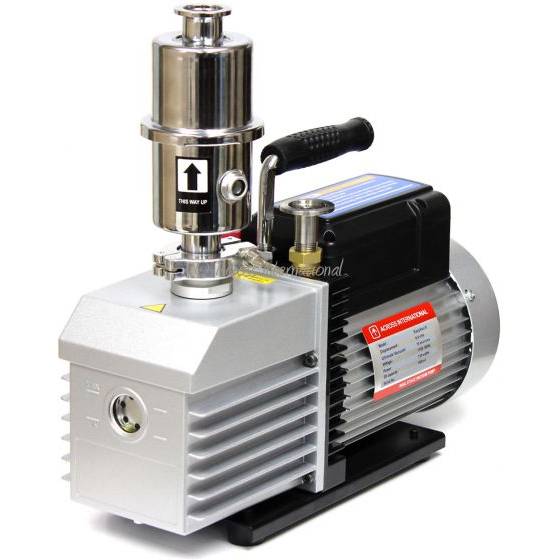

Ai EasyVac 9 cfm Compact Vacuum Pump with Oil Mist Filter

CALL TO ASK ABOUT GETTING ONE ON ORDER OR DROP SHIPPED DIRECTLY TO YOUR LOCATION.WE DO NOT CARRY IMMEDIATE STOCK OF THIS PRODUCT.New Ai EasyVac...

Vendor :Across International

Type :Vacuum Pumps

Quantity :

$ 740.63

Add to wishlist

More Info
Reviews

CALL TO ASK ABOUT GETTING ONE ON ORDER OR DROP SHIPPED DIRECTLY TO YOUR LOCATION.

WE DO NOT CARRY IMMEDIATE STOCK OF THIS PRODUCT.

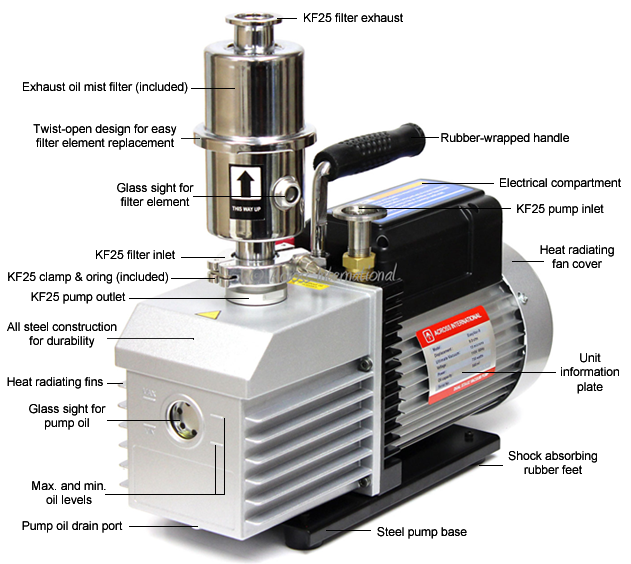

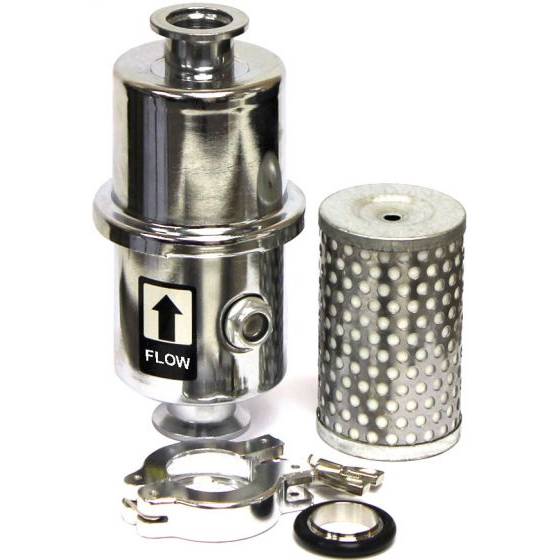

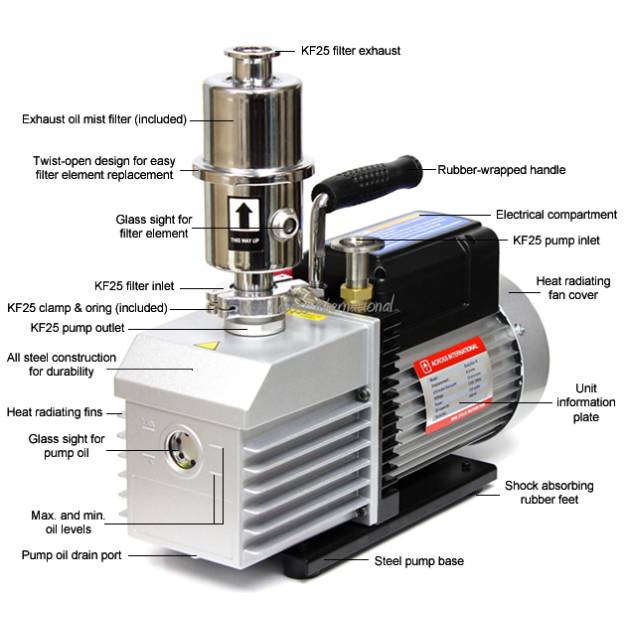

New Ai EasyVac 9 cfm single-stage sliding-vane rotary compact vacuum pump with 3/8" hose barb vacuum connector. Comes with a 3-foot food grade silicone hose and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. It is important to note that pumps should always be ran in a well ventilated area.

Specifications

Electrical requirements	110V/220V 50/60Hz switchable, single phase 750 watts (1 HP)

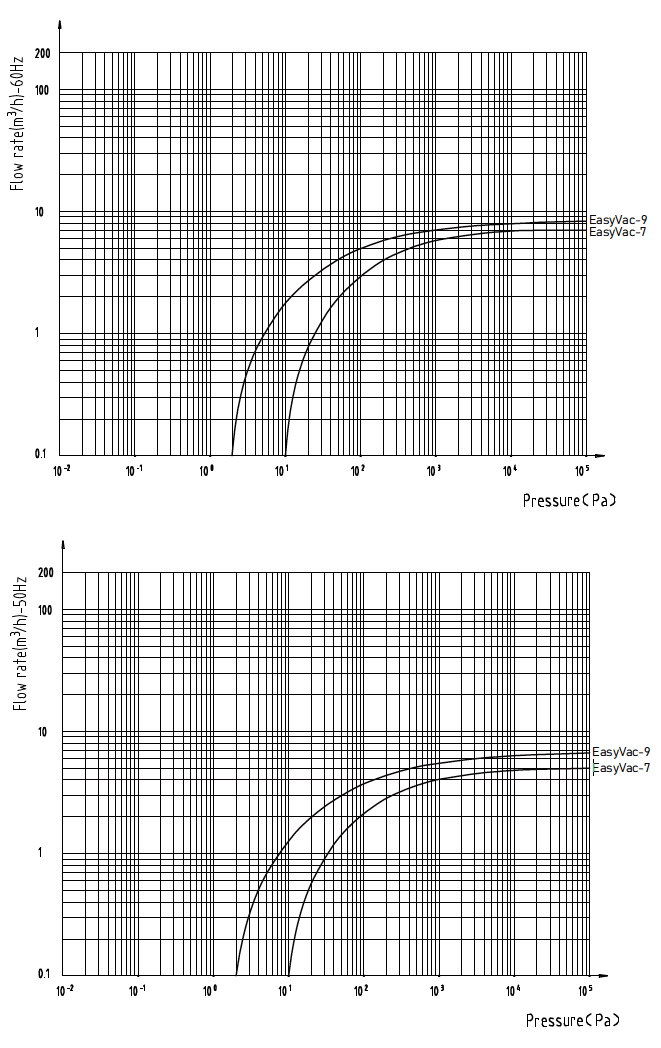

Pumping rate	9 cfm (110V 60Hz), 8 cfm (220V 50/60Hz)
Vacuum level	15 micron/millitorr
Vacuum connection	KF25/NW25 flange
Exhaust filter connection	KF25/NW25 flange
Oil volume	560 ml / 0.6 quart
Motor rate	1720 rpm
Working temperature	-5 to 60°C
Pump dimensions (LxWxH)	16.5 x 6 x 11", height is 16" with exhaust filter
Shipping dimensions (LxWxH)	20 x 9 x 13"
Pump weight	37 Lb
Shipping weight	41 Lb
Recommended oil	Ultragrade 19

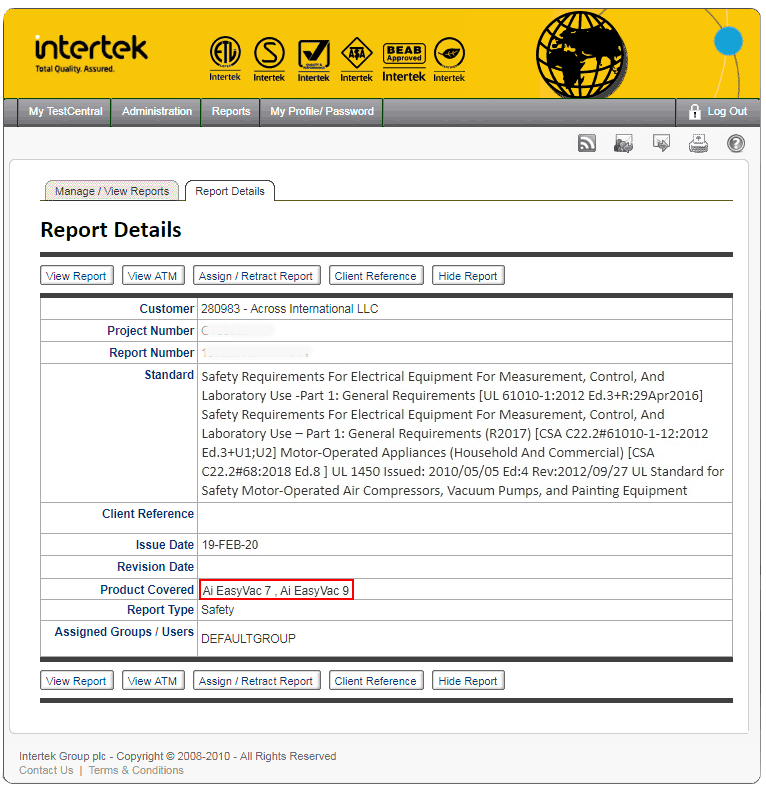

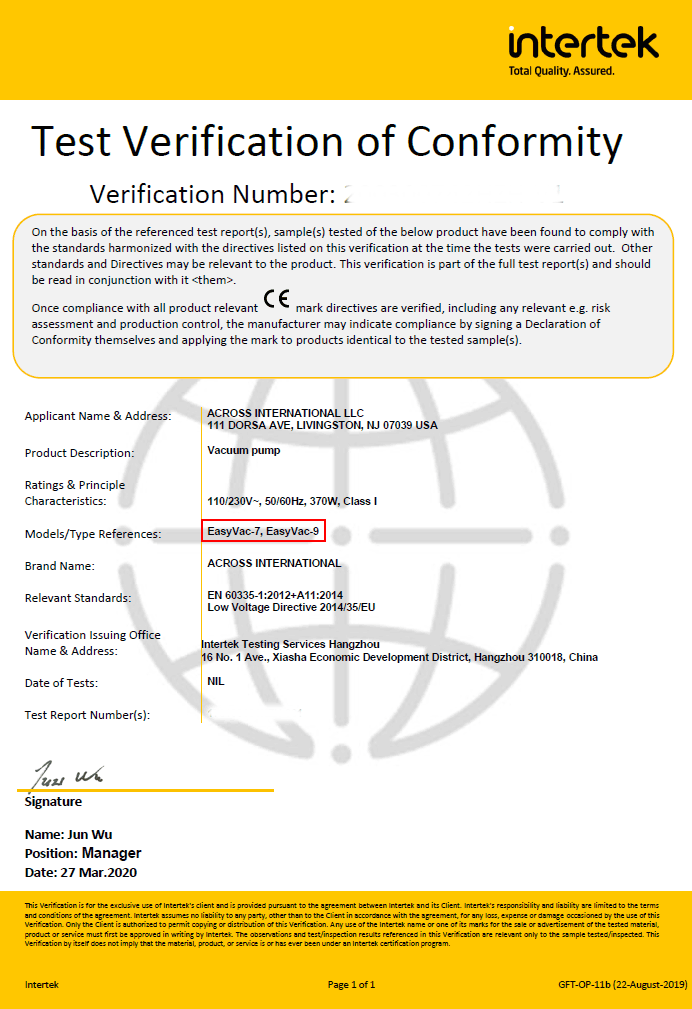

Compliance	ETL tested to UL and CSA standards, CE
Warranty	One year
Download	Product brochure
