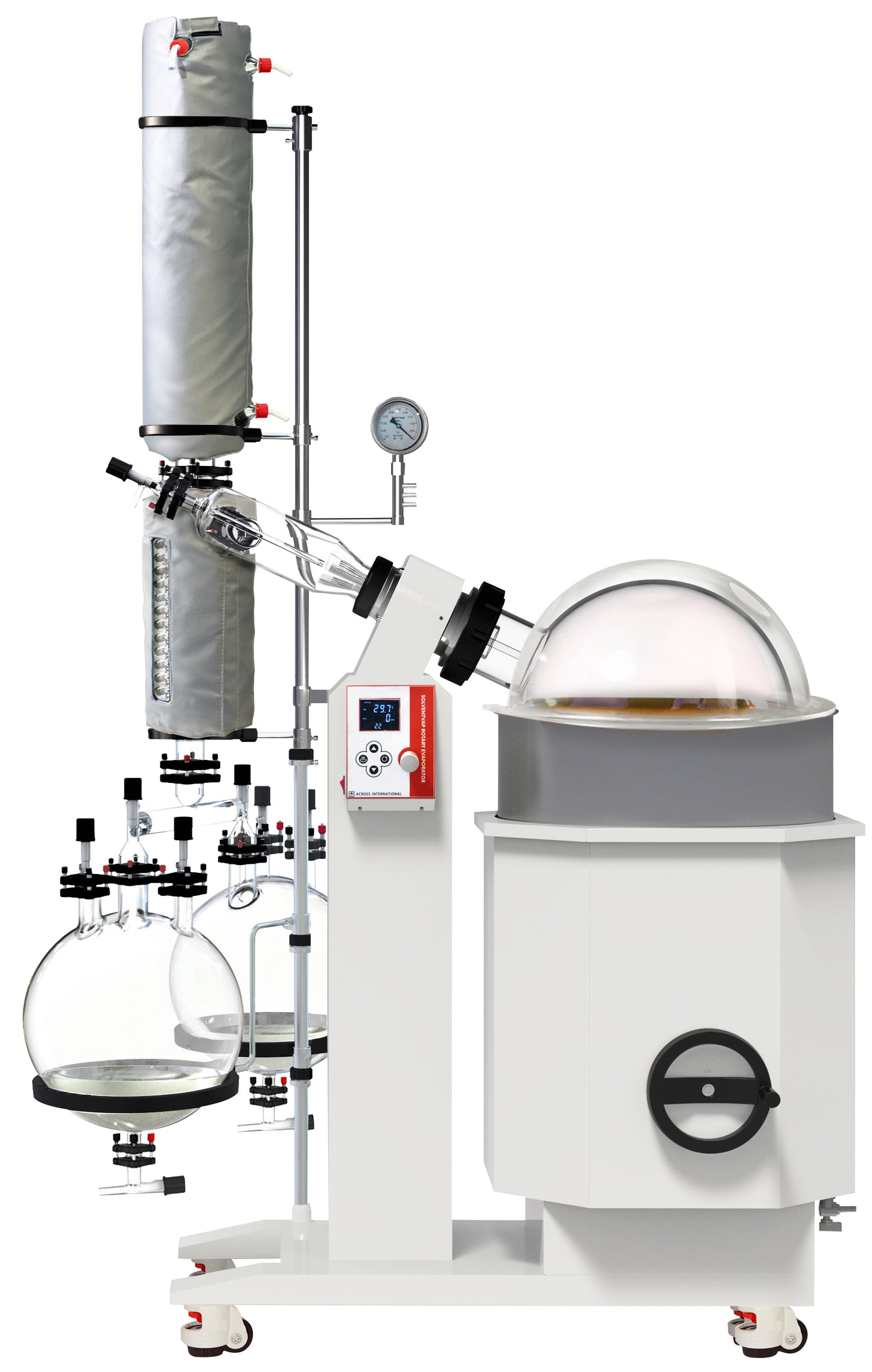

Ai SolventVap 13G/50L Rotary Evaporator

Ai SolventVap 13G/50L Rotary Evaporator

CALL TO ASK ABOUT GETTING ONE ON ORDER OR DROP SHIPPED DIRECTLY TO YOUR LOCATION.WE DO NOT CARRY IMMEDIATE STOCK OF THIS PRODUCT. Ai SolventVap...

Vendor :Across International

Type :Complete Packages

$ 13,115.63
Out of Stock

CALL TO ASK ABOUT GETTING ONE ON ORDER OR DROP SHIPPED DIRECTLY TO YOUR LOCATION.

WE DO NOT CARRY IMMEDIATE STOCK OF THIS PRODUCT.

Ai SolventVap 50L series rotary evaporators is now ETL tested to UL/CSA standards, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. SolventVap comes standard with vertical glassware and digital temperature/rotation control, while its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.

Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.

Standard Glassware Set includes 13.2 gallon (50 liters) round-bottomed evaporating flask, 5.28 gallon (20 liters) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser are great for distillation of solvents with higher boiling points.

Features

  • ETL tested to UL and CSA standards (a $3,000 value). CE certification optional.
  • New condenser insulation sleeves increase safety by protecting lab personnel from injury, in case of shattered glass caused by thermal shock. They also protect glassware and increase cooling efficiency (included with rotovap purchase).
  • Water bath cover enhances safety by protecting evaporating flask and the material inside; it gives you uniform temperature inside evaporation flask as well as energy saving by reducing heat loss. It also creates a better lab environment by preventing heat and humidity from escaping.
  • New swivel casters can be adjusted for rotovap to stand securely on uneven floor.
  • Come standard with a stainless steel 50L evaporating flask carrier with silicone cushions, custom made for Ai 50L SolventVap series rotary evaporators. This carrier can be placed on top of our 50L SolventVap's water bath for easy loading and unloading, or used as a flask stand.
  • Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
  • Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
  • Downward-condensing vacuum connection design ensures safe vacuum operation.
  • Motorized water bath lifting for precise control.
  • Additional manual water bath lift provides you peace of mind in case of power failure.
  • Easy, straight-forward visual operation with digital speed and temperature display.
  • PID temperature controller ensures accurate temperature control is maintained.
  • One year warranty on rotary evaporator except glassware and all sealing gaskets.

Specifications

Electrical requirements
220V 50/60Hz single phase, 29A, 6400 watts (rotation speed: 400 watts)
Glass material High borosilicate glass 3.3
Evaporating flask
Capacity: 13.2 gallon (50 liters or 1.8 cu ft)
Maximum load: Not to exceed 60% of the flask's capacity
Sealing flange: 4.9" diameter
Rotation speed: 10 to 110 rpm
Evaporating speed:
2 gallon/hour (water), 4 gallon/hour (alcohol)
Receiving flask
5.28 gallon (20 liters or 0.7 cu ft)
Condenser Glassware: Main + auxiliary triple-circulating cold traps, vertical
Chilling fluid connection: 3/8" hose barb x 4 (2 on main + 2 on auxiliary)
Condensing surface
Main condenser: 11,500 cm2 or 12.4 sq ft
Auxiliary condenser: 4,000 cm2 or 4.3 sq ft
Working environment
5 to 95°F
Water bath
Temperature range: ambient to 99°C (210°F)
Temperature controller: digital
Dimensions: 22.1" diameter x 12.2" height
Material: stainless steel
Media: distilled water only
Max. water level: not to exceed 1" from the top rim of the bath
Number of heaters: three
Drain port: one
Lifting: Motorized + manual
Maximum lifting distance: 9 inches
Vacuum
Ultimate vacuum level: < 3 torrs
Sealing: PTFE + Viton gaskets
Connection: 3/8" hose barb x 1
Safety Dry-run, over-temp shut-off, built-in circuit breakers
Dimensions (WxDxH) Unit: 52 x 30 x 92" (fully assembled)
Shipping:
46 x 28 x 58" (Evaporator), 41 x 34 x 32" (glassware)
Shipping weight 525 Lbs
Download Product brochure
Compliance UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016
CSA C22.2# 61010-1-12: 2012 Ed.3+ U1; U2 (R2017)
CE (Only available in 380V 50Hz, 3-Phase)
