ARO

ARO Needle Valve - 1/4" NPT

ARO Needle Valve - 1/4" NPT

Regular price $ 56.92
Regular price Sale price $ 56.92
Sale Sold out
Shipping calculated at checkout.

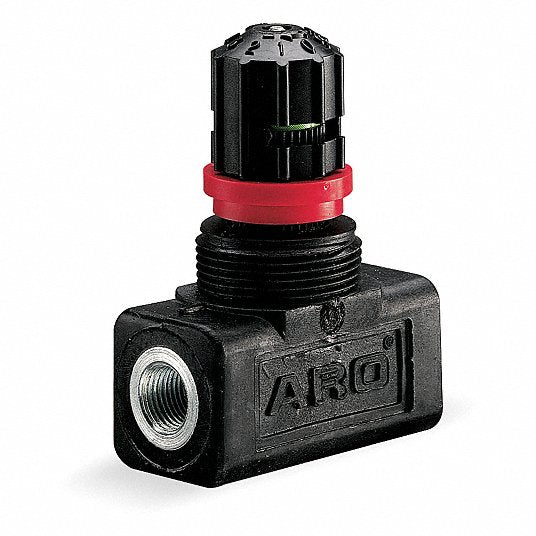

ARO Needle Valve - 1/4" NPT - 104104-N02

This ARO needle valve allows you to increase or decrease airflow in both directions. Model has a lightweight, corrosion-resistant housing and features a calibrated adjustment knob that allows you to easily set the flow rate, plus a red lock ring to secure your pressure setting. Valve comes with a 4-stage needle, color-coded micrometer, zinc-plated pipe port inserts, and a threaded body for panel mount installation.



Item Needle Valve
Directions Controlled 2
Valve Inlet Port 1/4 in NPT
Valve Outlet Port 1/4 in NPT
Valve Max. Pressure Rating 200 psi
Max. CFM - Valves 28 cfm
Adjustment Knob Calibrated
Body Composite
Pipe Port Inserts Zinc Plated
Length 1 29/32 in
Width 15/16 in
Height 2 53/64 in
Pneumatic Valves Product Group Flow Control Valve
