Open Source Steel

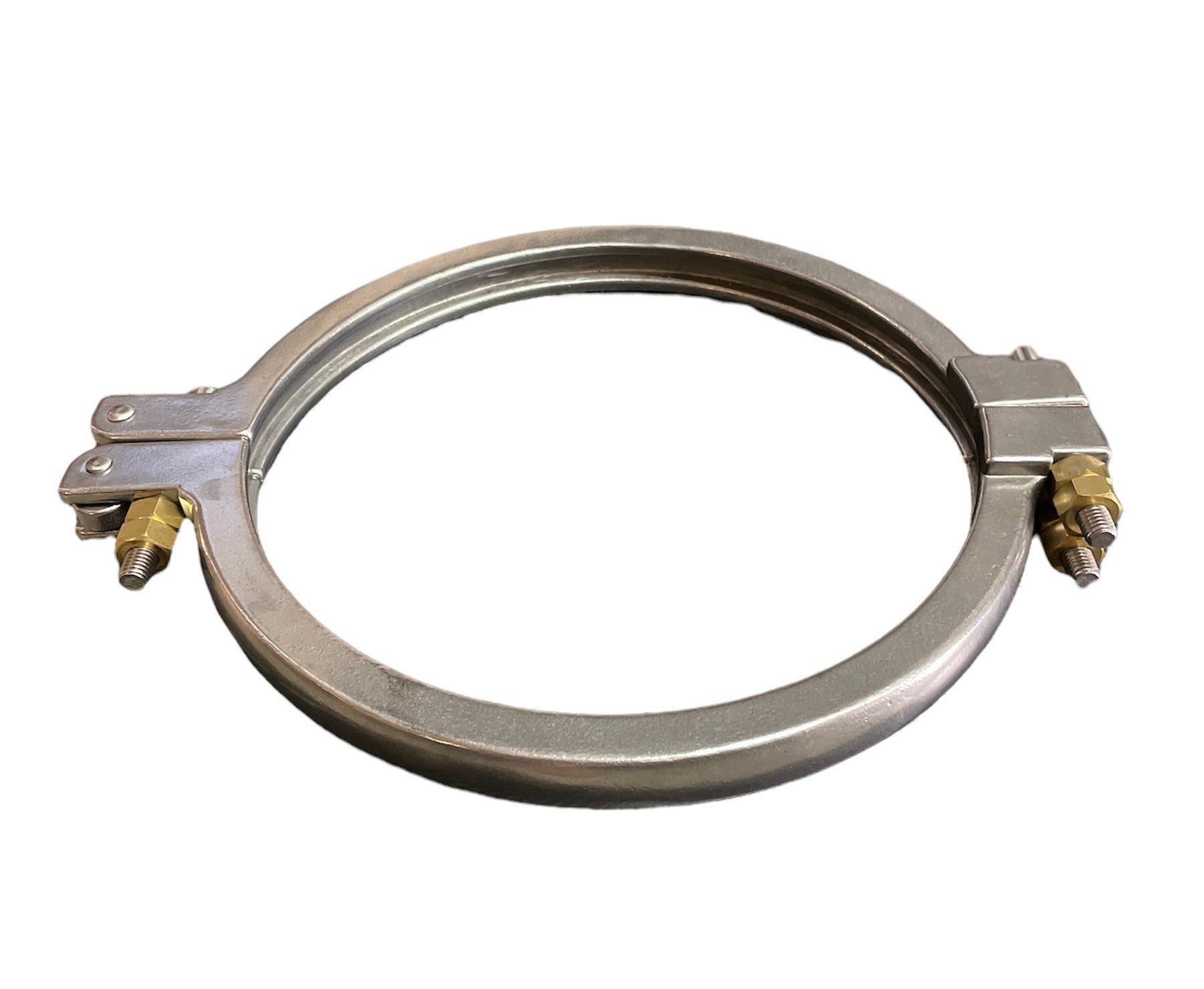

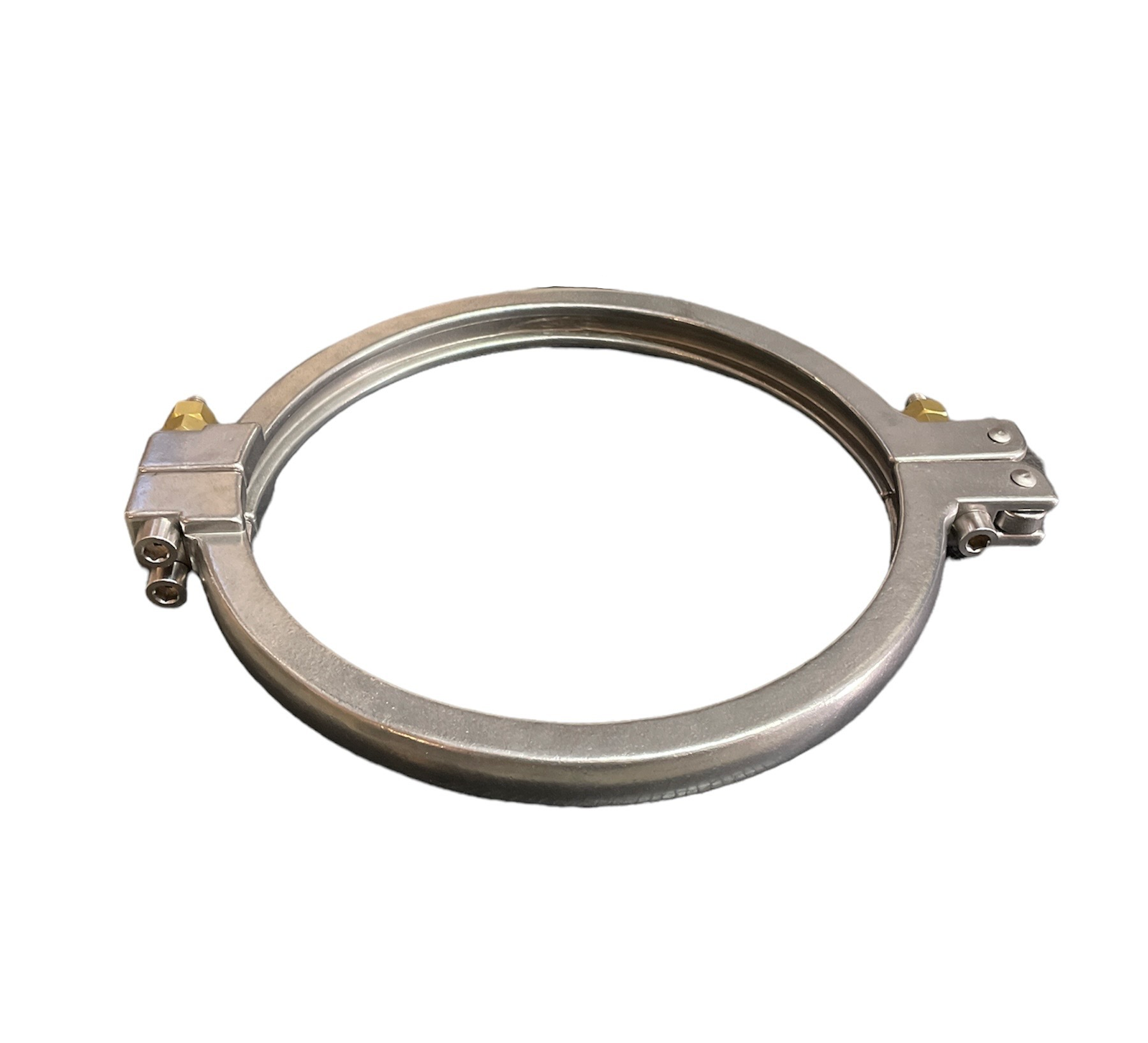

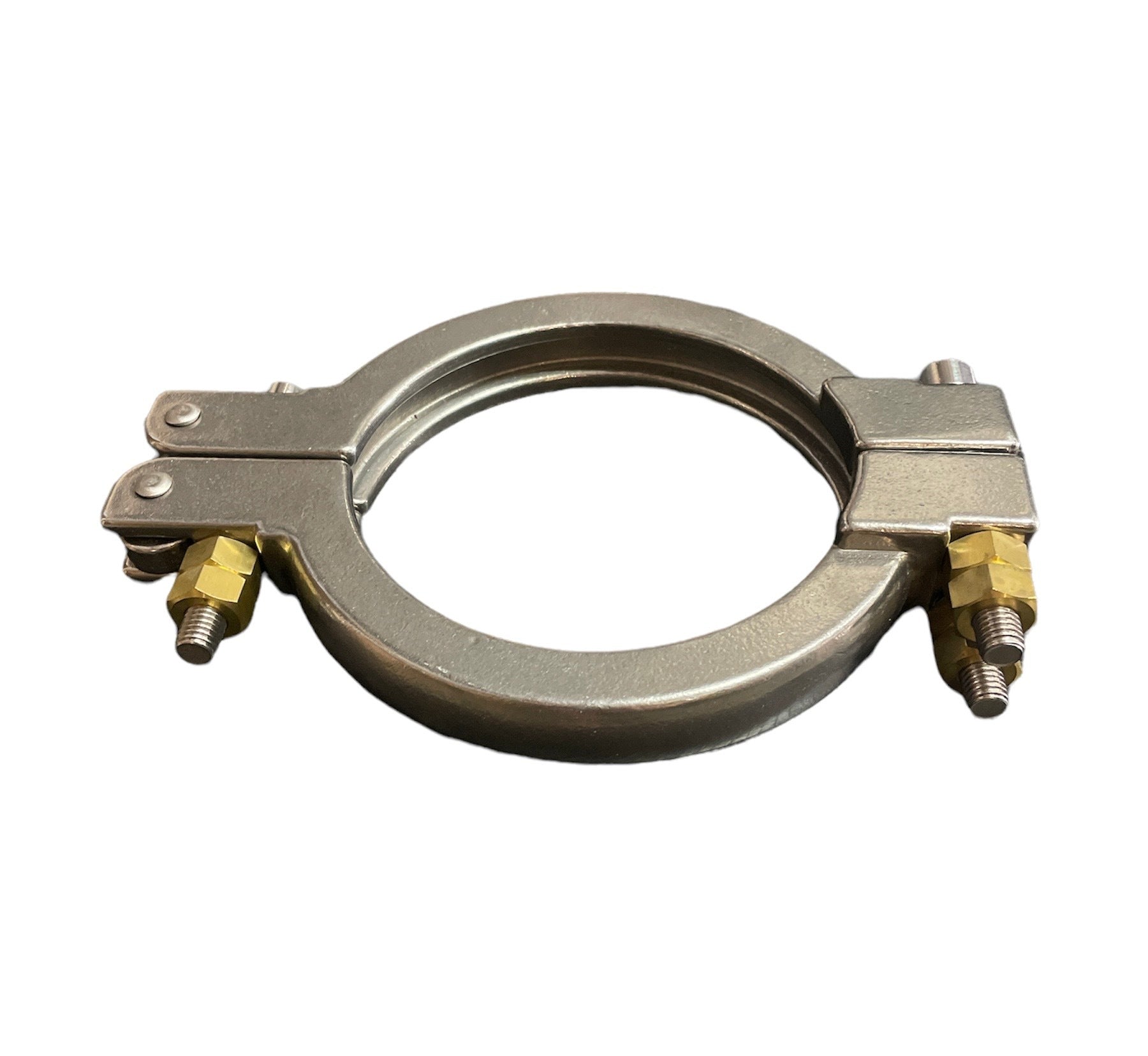

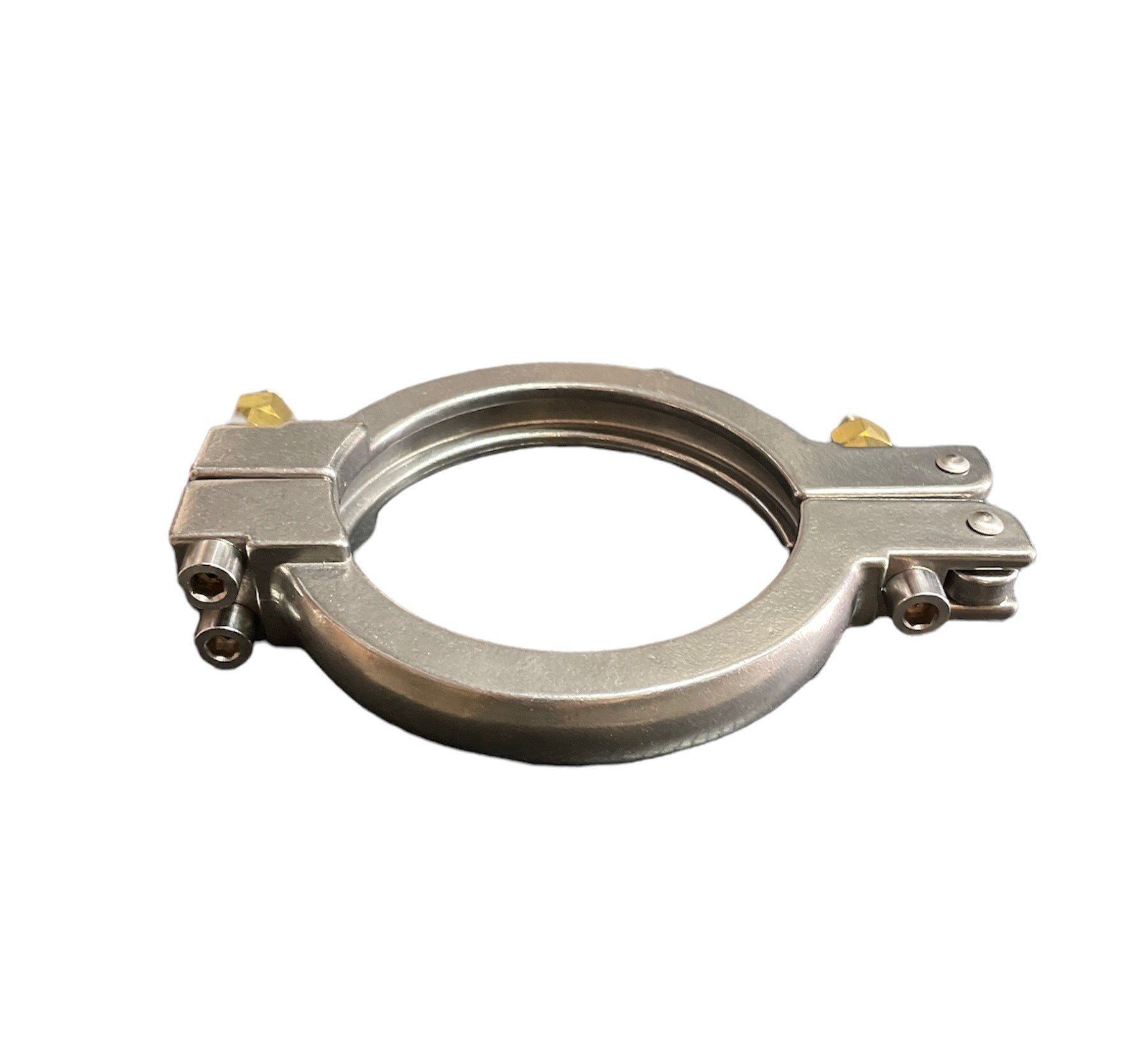

ASME Style Double Bolt Tri-Clamp

ASME Style Double Bolt Tri-Clamp

Regular price $ 99.37
Regular price Sale price $ 99.37
Sale Sold out
Shipping calculated at checkout.

ASME Style Double Bolt Tri-Clamp - 6" or 12"

The bolt is a 1/2"-13 coarse x 4" Smooth socket cap bolt, with dimensions below:
Head height: 1/2"
Length: 4"
Thread length: 2"
Diameter: 1/2"
Head diameter: 3/4"
Drive size: 3/8" Allen Wrench

 EXAMPLE OF SOCKET CAP BOLT





Nut Dimensions

Diameter/Thread Count: 1/2"-13 coarse
Width across the flats:  3/4"
Height: 7/16"
