Open Source Steel

Diamond Miner - 12"

Diamond Miner - 12"

Regular price $ 1,937.13
Regular price Sale price $ 1,937.13
Sale Sold out
Shipping calculated at checkout.

Diamond Miner - 12" (also known as Jacketed Sauce Pot)

This 12" Diamond Miner is used for crystallizing botanical extracts into live resin terpene-rich sauce. This Diamond Miner eliminates the need for glass jars and makes your degassing procedure safer.

-Remove the 12" x 6" Jacketed Collection Base to easily remove diamonds from your sauce mix.

-Refining your extract into sauce has never been easier.

-Sight windows lets you easily monitor crystal growth.

Ā

Specifications:

  • 304 Grade Stainless Steel
  • Spanner Style Sight Glass Windows
  • 12" x 6" Jacketed Collection Base
  • High-pressure clamps
  • OSS Compression Valve with 3/8" MJIC
  • Compound Gauge (-30)-(150)
  • MAWP: 145 psi

Ā

Comes Assembled & Pressure tested!

Ā

Ā Diamond Miner Types

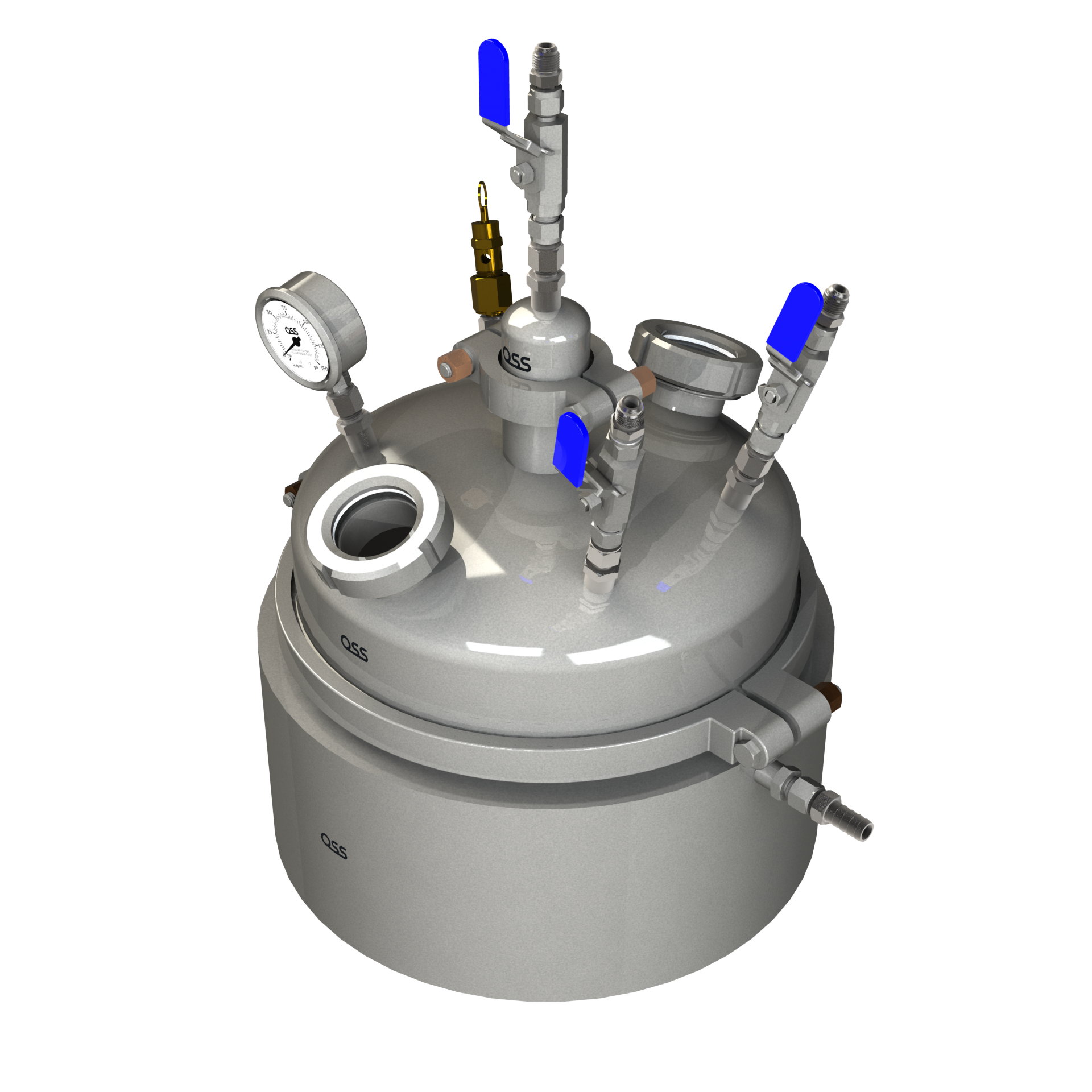

Bottom Mount Gauge - No Valve on Jacket

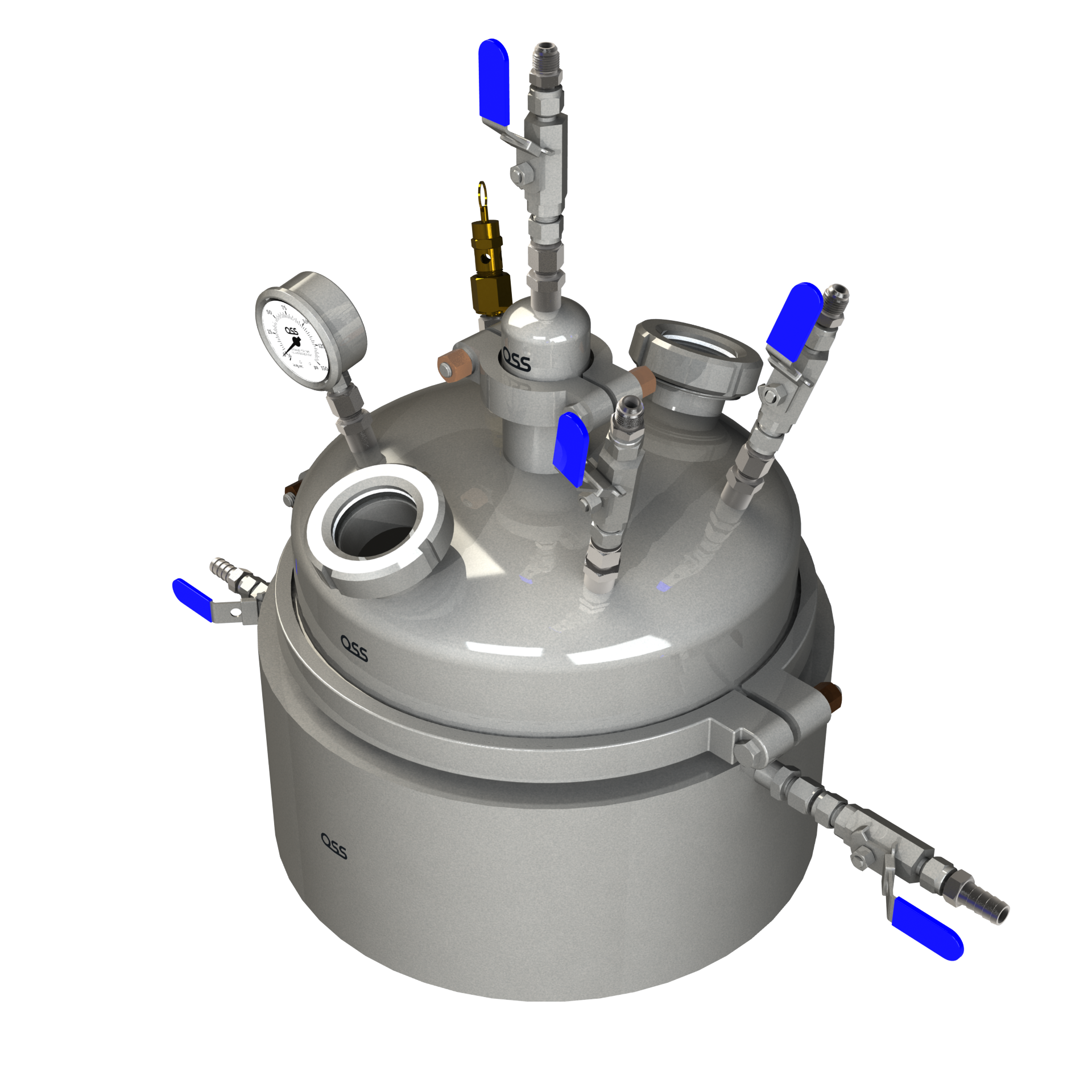

Bottom Mount Gauge - Compression Valves on Jacket

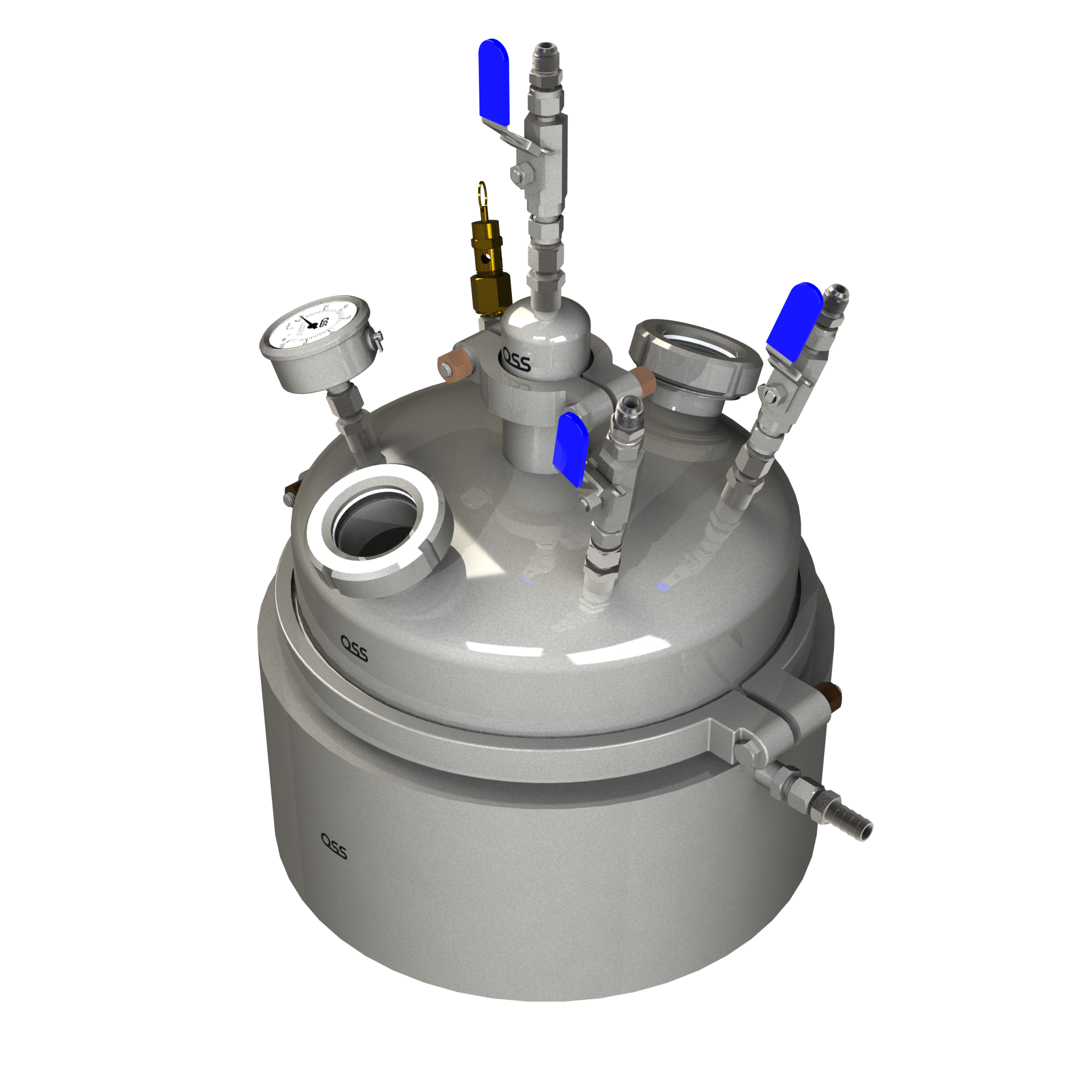

Back Mount Gauge - No Valve on Jacket

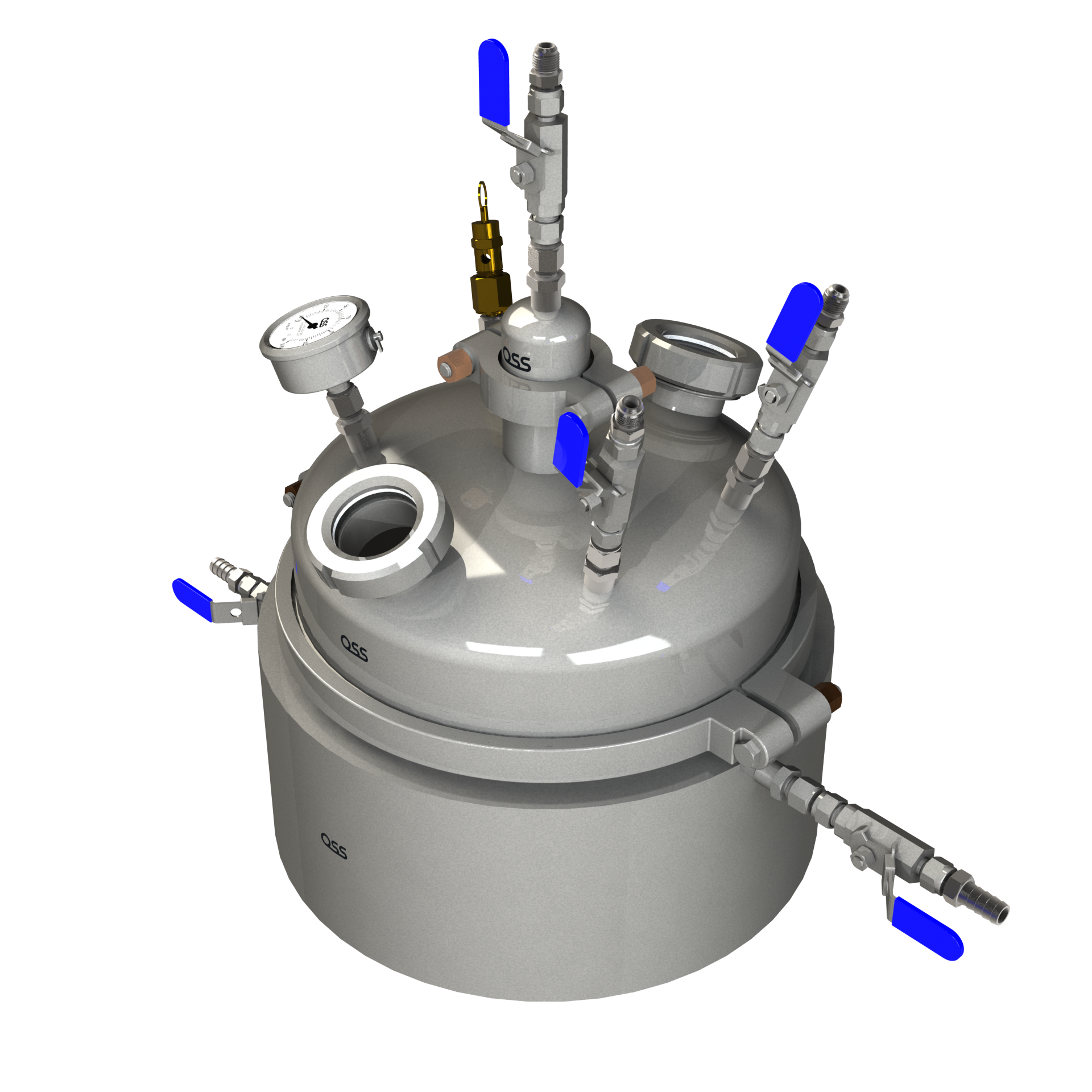

Back Mount Gauge - Compression Valves on Jacket

Ā

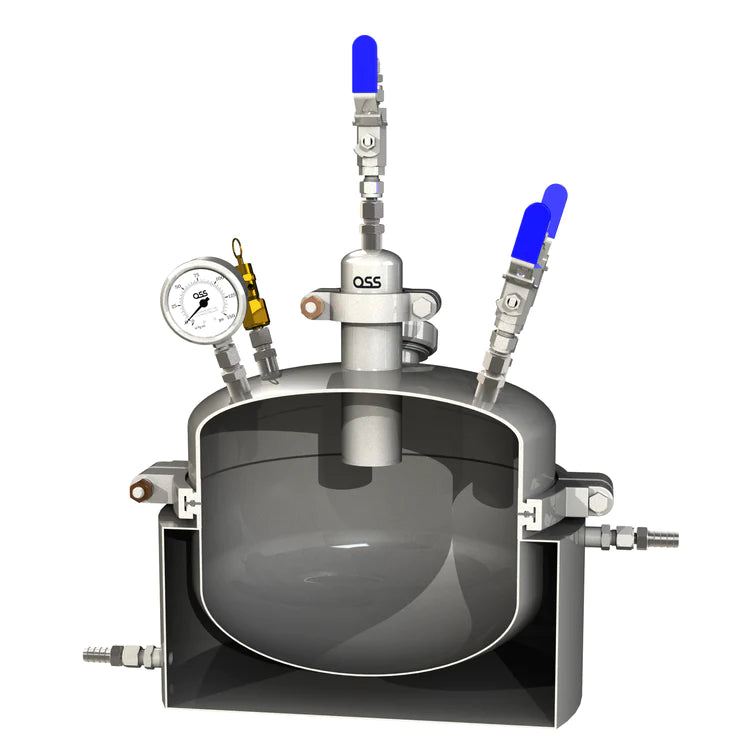

Ā Section View


Ā
