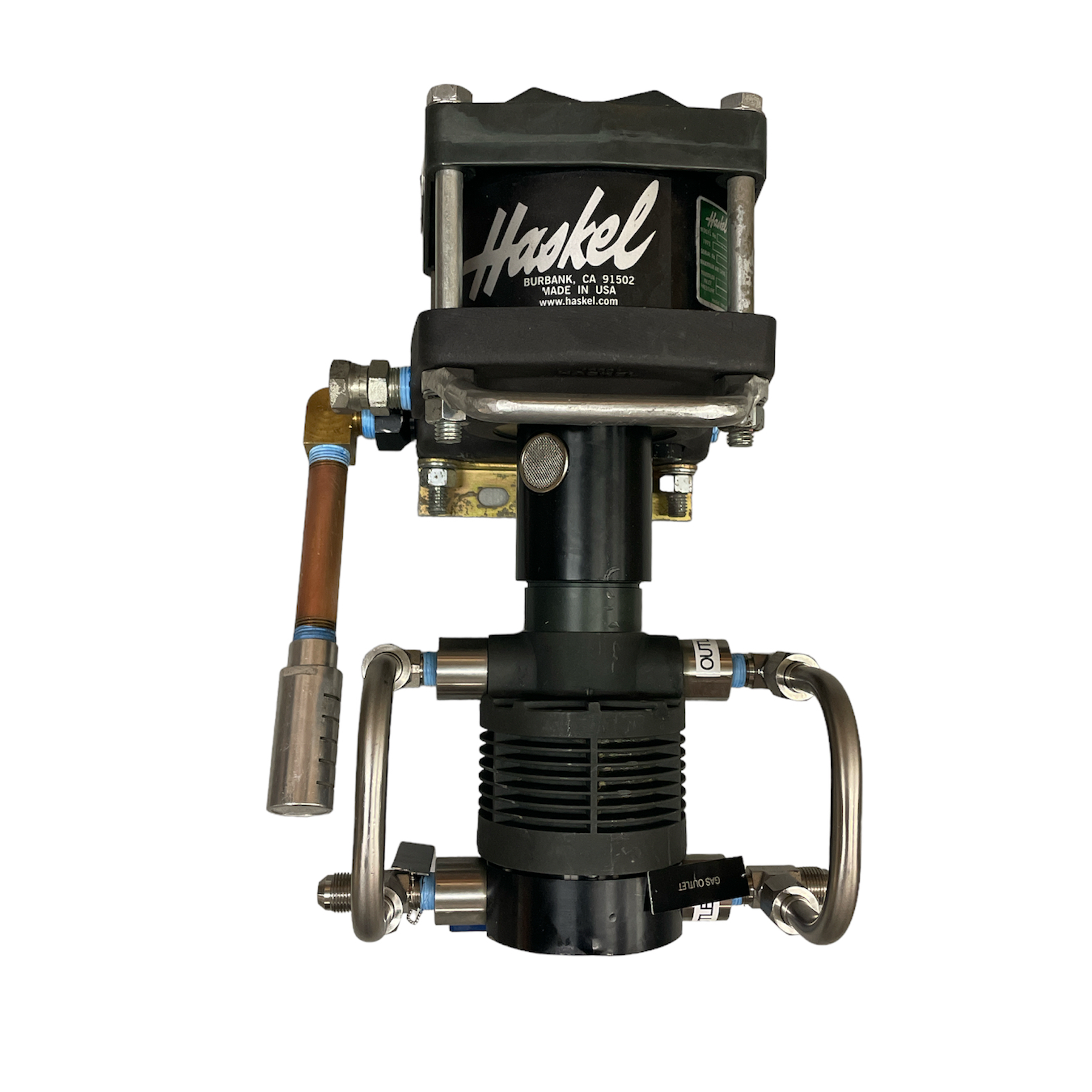

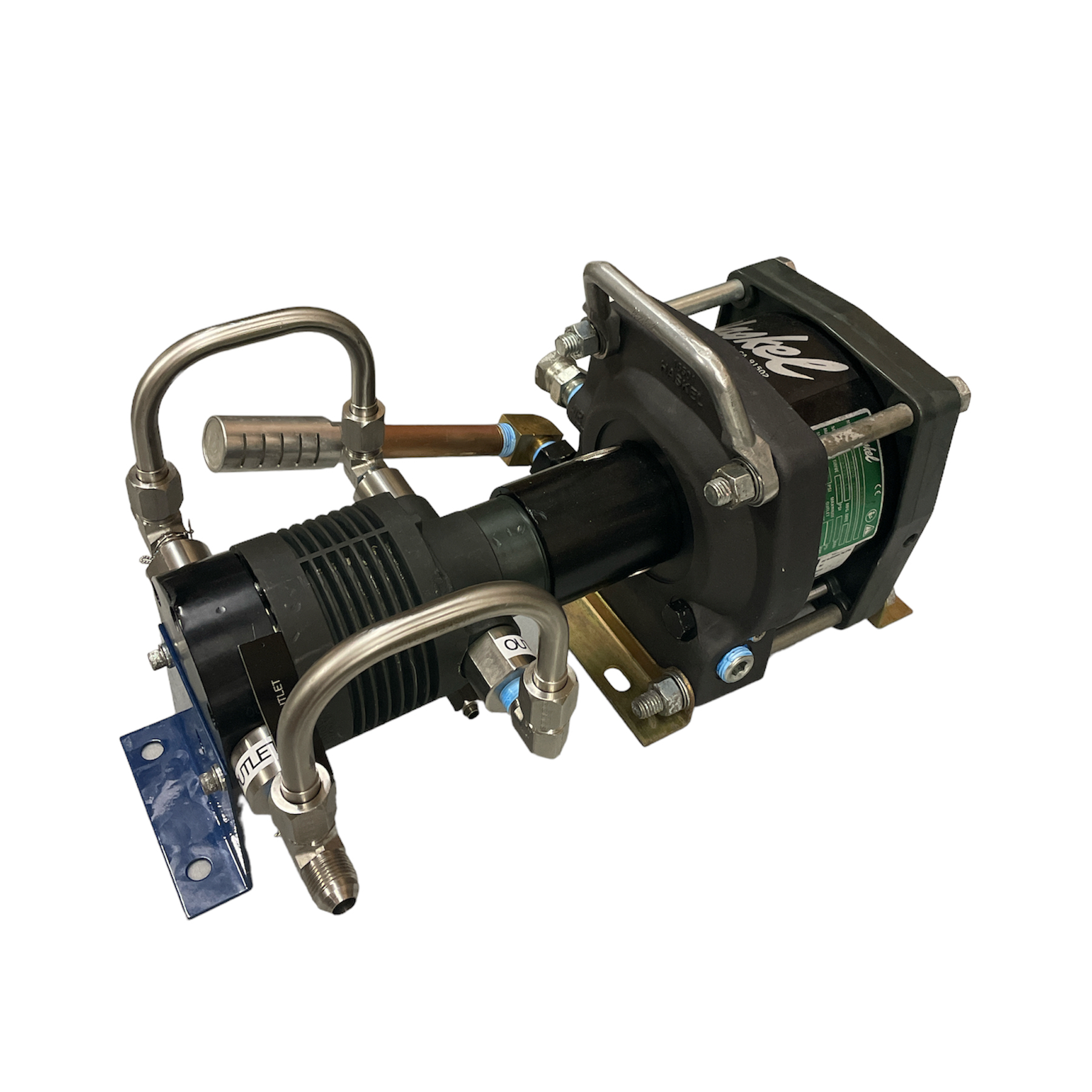

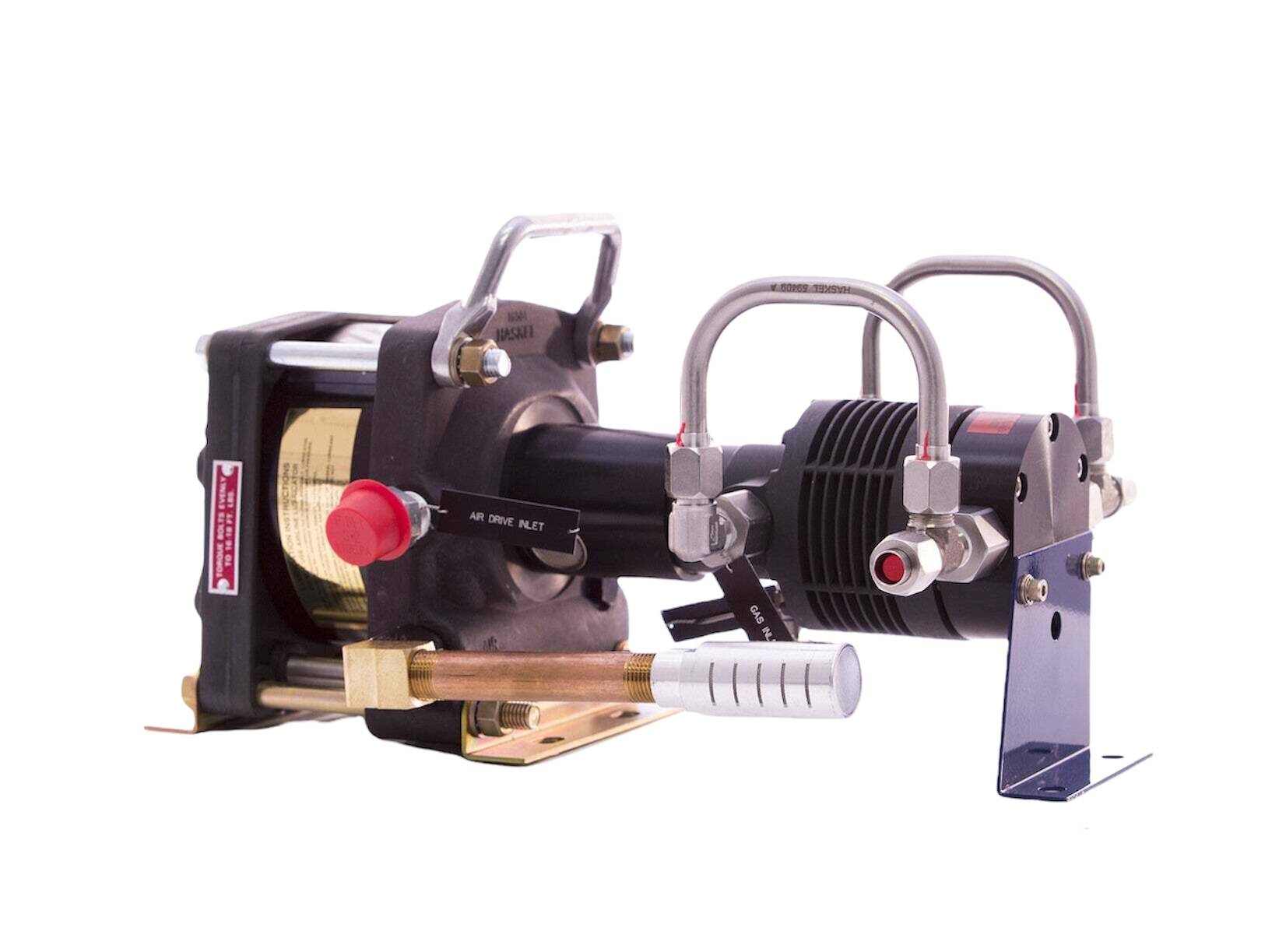

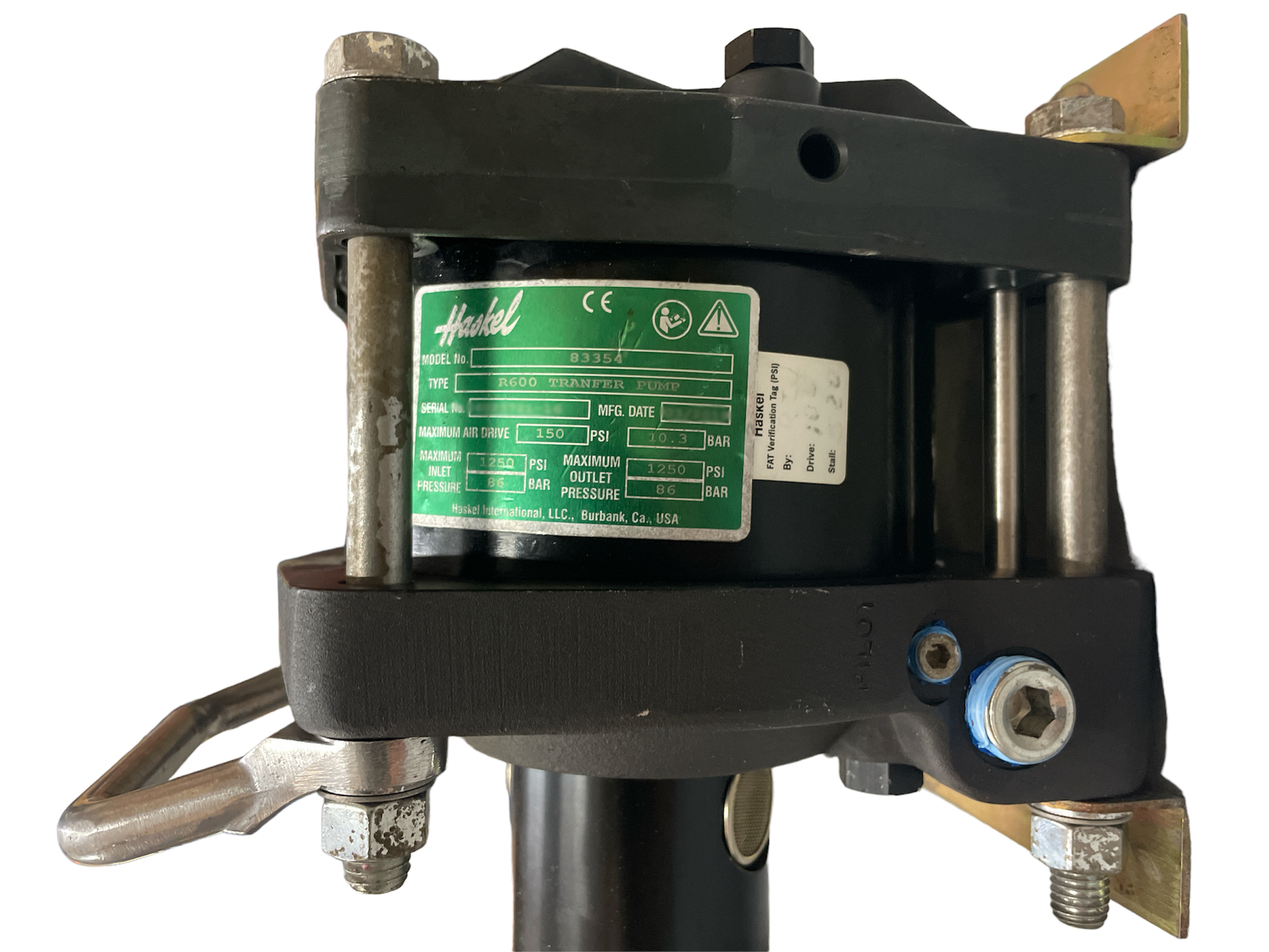

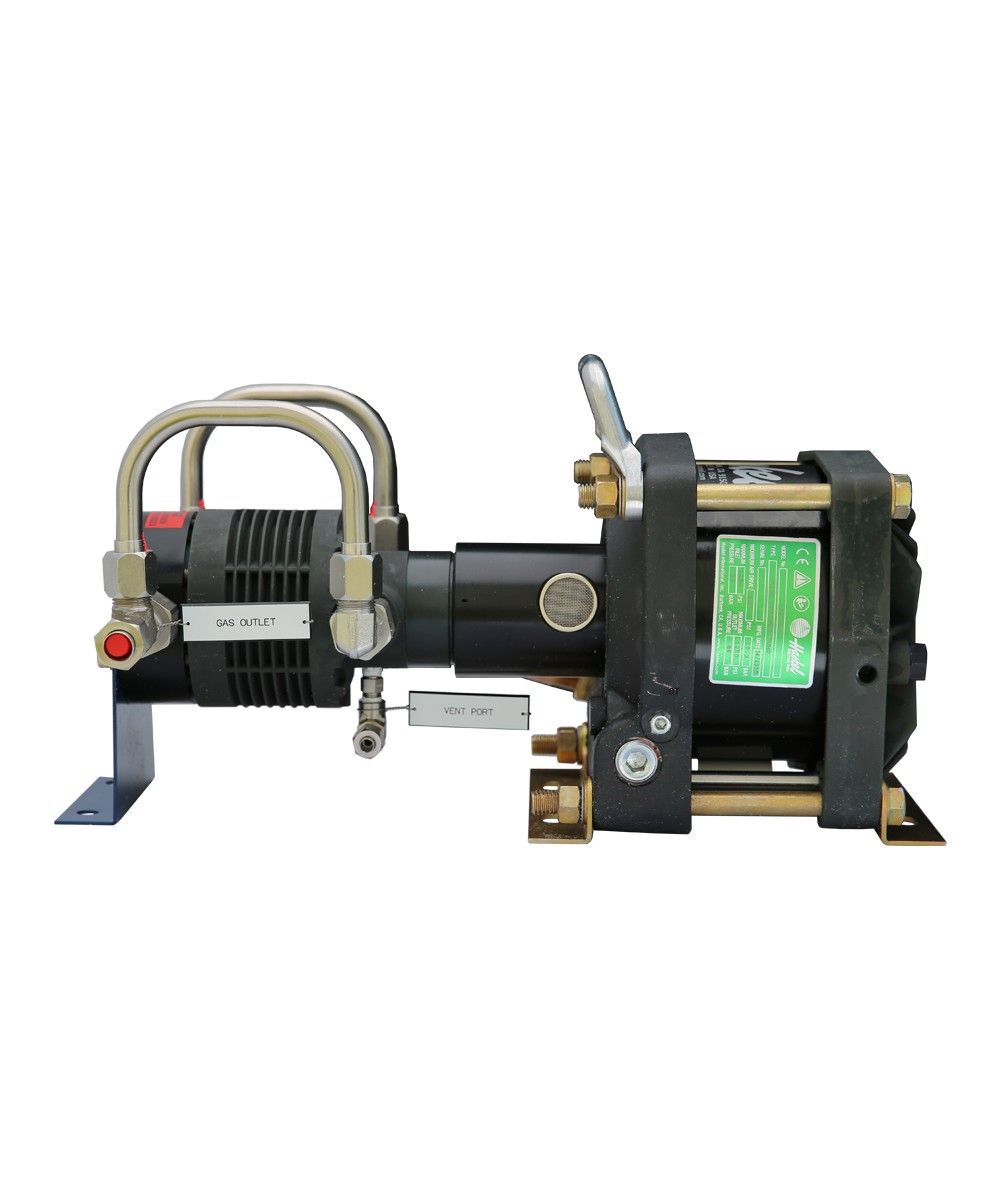

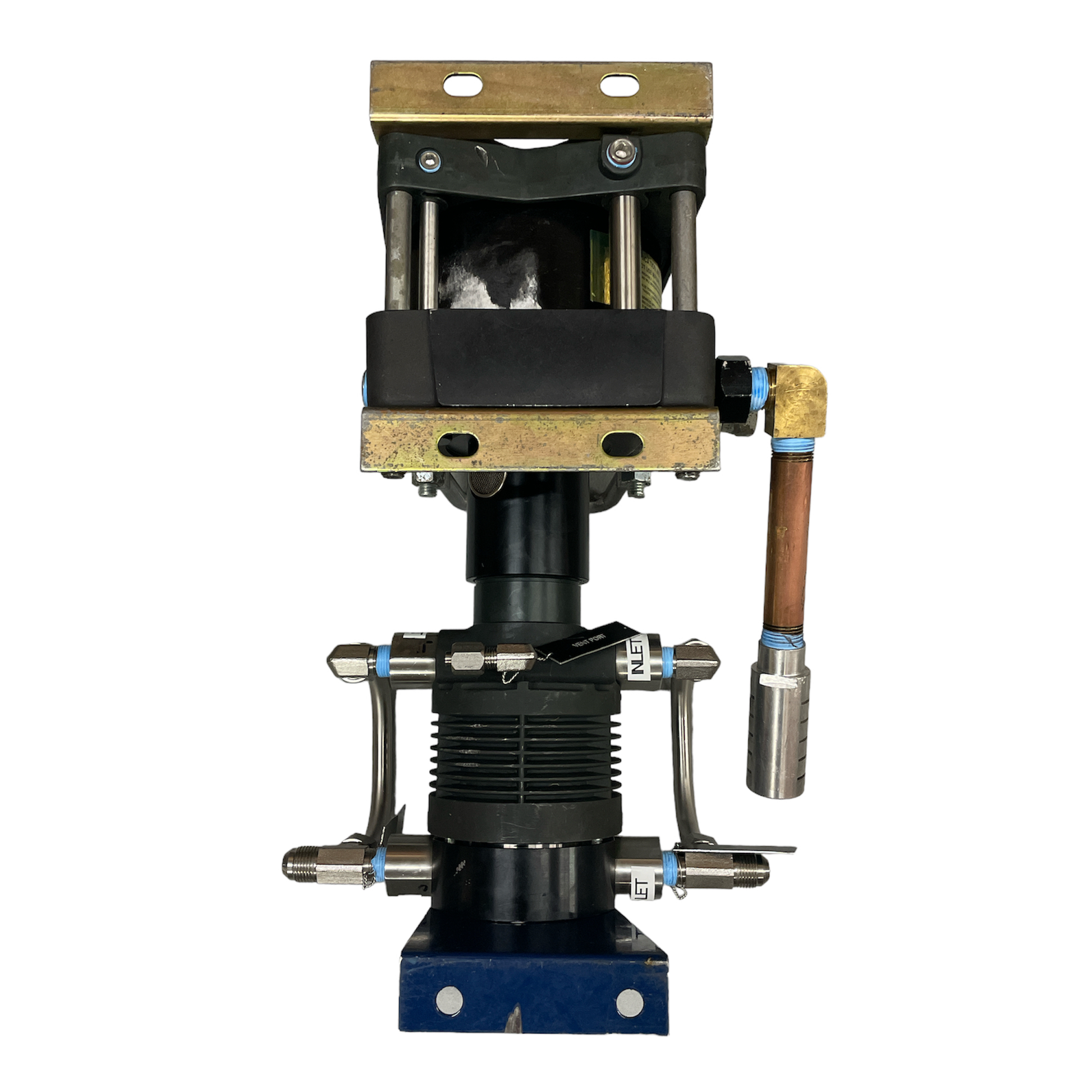

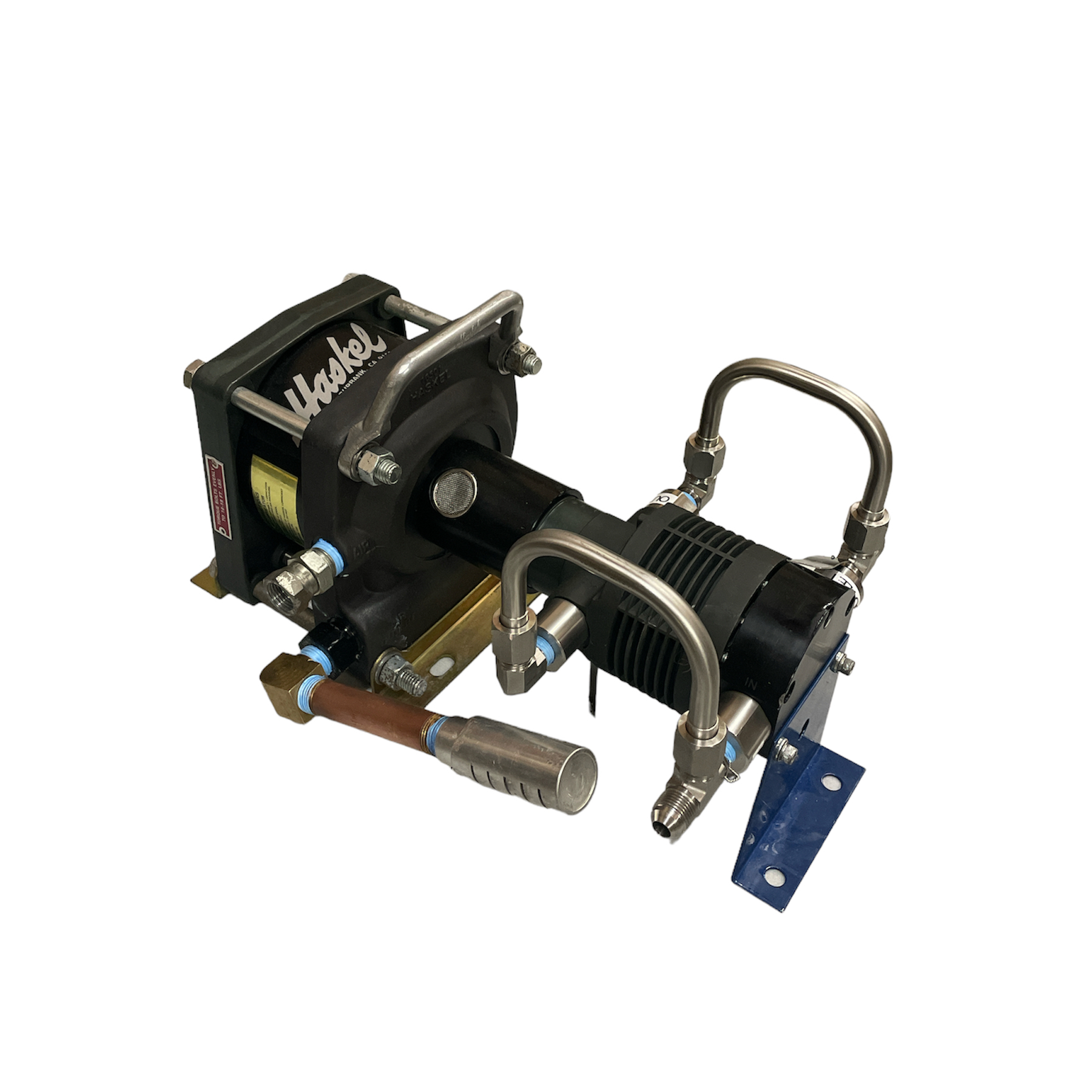

Haskel EXT420 Dual Stage Pneumatic Recovery Pump

Haskel EXT420 Dual Stage Pneumatic Recovery Pump

Regular price $ 3,218.94
Regular price Sale price $ 3,218.94
Sale Sold out
Shipping calculated at checkout.

The Haskel EXT420 is a pneumatically driven single stage, double acting R600 butane refrigerant transfer pump.

EXT-420 high-pressure, positive-displacement two-stage piston pumps are safe, proven, reliable, and energy saving butane/propane extraction pumps.

The high-pressure pumps offer the flexibility to speed completely variable from zero to maximum lbs/minute.

No need for unloaders or bypass valves, simply add gauges and hoses to suit your application.

Product Specifications

Pump Ratio 4:1
Pump Displacement
per Cycle
20 cu. in.
Drive Size 5 in.
Max Outlet Pressure 1250 PSI
Seals Viton
Wetted Section Metals Stainless Steel
Inlet Connection 1/2" MJIC
Outlet Connection 1/2" MJIC

Features and Benefits

Ideal when inlet pressures are 25 to 50 psi (1.7 to 3.4 bar) and outlet pressures are 125 to 150 psi (8.6 to 10.3 bar)
The pump will transfer approximately lb/ min with an inlet pressure of 50 psi (3.4 bar) and an outlet pressure of 150 psi (10.3 bar) at maximum speed
Will draw pressure down to 15 psi (1 bar) with an outlet pressure of 150 psi (10.3 bar)
Safe for handling propane and butane (Vent port must be connected to an exhaust line that vents leaked gas outdoors)
Viton and PTFE seals
Stainless steel and aluminum wetted components
High butane transfer rates
No electrical components
Stall against load - start against load - or run dry
Requires compressed air to drive the pump - approximately 30 CFM at 100 psi (7 bar) to run the pump at maximum speed (about 60 cycles per minute)
Clean No lubrication required in the gas section Nothing is added to the gas


Haskel EXT-420 Technical Parts Diagram - Click Here


we recommend having these parts on hand in your service department for the gas drive section of your pump.


item 17 - part #: 17527 - RING, PISTON CARBON FILLED TEFLON
Item 55 - part #: 568330-7 - O-RING VITON

item 52 - part#: 568039-7 - O-RING VITON
