Leviton

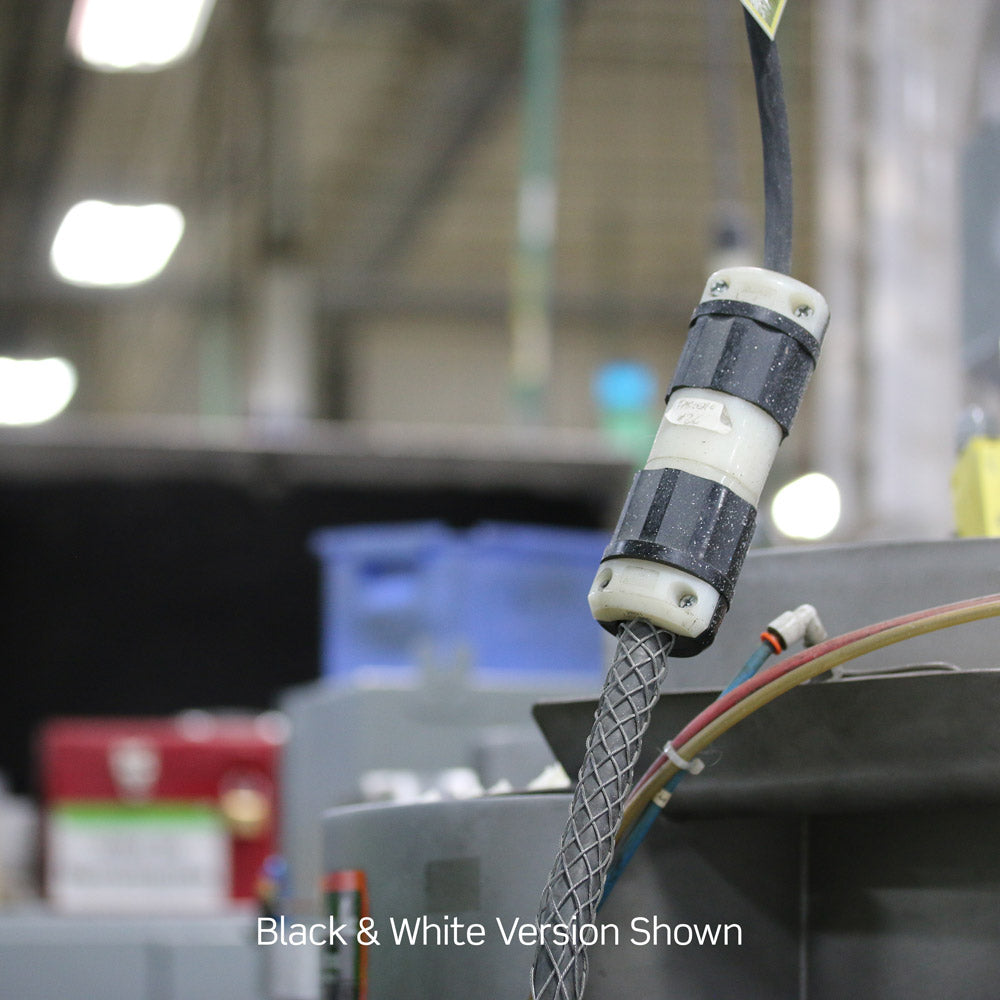

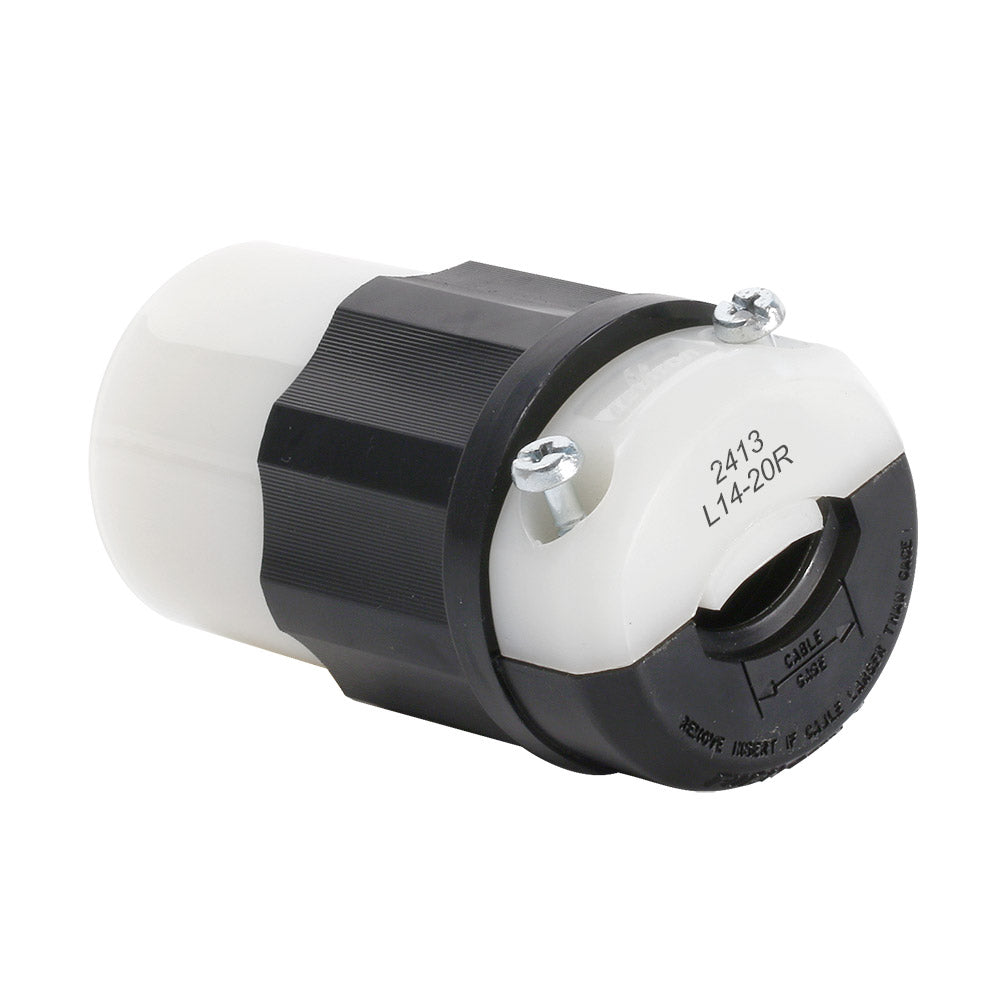

Leviton 2413 Locking Connector, 20 Amp, 125/250 Volt
Leviton 2413 Locking Connector, 20 Amp, 125/250 Volt
Regular price
$ 15.00
Regular price
$ 15.00
Sale price
$ 15.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Locking Connector, 20 Amp, 125/250 Volt, Industrial Grade, Black & White
20 Amp, 125/250 Volt, NEMA L14-20R, 3P, 4W, Locking Connector, Industrial Grade, Grounding - BLACK-WHITE
Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- Made proudly in the USA
Ā
Dimensional Data

Wiring Diagram

UPC Code:Ā 078477808290
Country Of Origin:Ā United States
Country Of Origin:Ā United States
RoHS Compliant:Ā Yes
NEMA:Ā L14-20R
Mechanical Specifications
At Rated Voltage:Ā 2 HP L-L / 1 HP L-NCord Range:Ā 0.560 to 0.775
Product ID:Ā Ratings are permanently marked on device
Terminal Accom.:Ā 18-10 AWG
Terminal ID:Ā Brass-Hot, Green-Ground, Silver-Neutral
Torque Range:Ā 10-14 in-lbs
Wire Gauge:Ā 14-10 AWG
Electrical Specifications
Amperage:Ā 20 ACurrent Interrupting:Ā Certified for current interrupting at full rated current
Dielectric Voltage:Ā Withstands 2000V per UL498
Grounding:Ā Grounding
Pole:Ā 3
Temperature Rise:Ā Max 30C after 250 cycles OL at 200 percent rated current
Voltage:Ā 125/250 VAC
Wire:Ā 4
Environmental Specifications
Environment:Ā DryFlammability:Ā Rated HB or better UL94
Operating Temperature: -40°C to 60°C
Material Specifications
Assembly Screws:Ā Steel, Zinc Plated
Back Cover:Ā Thermoplastic
Blades/Contacts:Ā Solid Brass
Body Material:Ā Impact Modified Nylon
Clamp Insert:Ā Nylon
Color:Ā Black-White
Cord-Clamp:Ā Nylon
Terminal Screws:Ā Brass
Wire Module:Ā Nylon
Color:Ā Black-White
Device Type:Ā Locking Connector
NEMA:Ā L14-20R
CSA C22.2 No. 42:Ā File LR-406
NEMA:Ā WD-6
NOM:Ā 057
UL Fed Spec WC-596:Ā File E13393
UL498:Ā File E13393
Warranty:Ā Limited Lifetime Warranty Warranty
Blades/Contacts:Ā Solid Brass
Body Material:Ā Impact Modified Nylon
Clamp Insert:Ā Nylon
Color:Ā Black-White
Cord-Clamp:Ā Nylon
Terminal Screws:Ā Brass
Wire Module:Ā Nylon
Product Features
Brand:Ā Black and WhiteColor:Ā Black-White
Device Type:Ā Locking Connector
NEMA:Ā L14-20R
Standards and Certifications
ANSI:Ā C-73CSA C22.2 No. 42:Ā File LR-406
NEMA:Ā WD-6
NOM:Ā 057
UL Fed Spec WC-596:Ā File E13393
UL498:Ā File E13393
Warranty:Ā Limited Lifetime Warranty Warranty
