Open Source Steel

Lil Terp Extractor - (2.5lbs.) - 4"x24"

Lil Terp Extractor - (2.5lbs.) - 4"x24"

Regular price $ 3,336.31
Regular price Sale price $ 3,336.31
Sale Sold out
Shipping calculated at checkout.

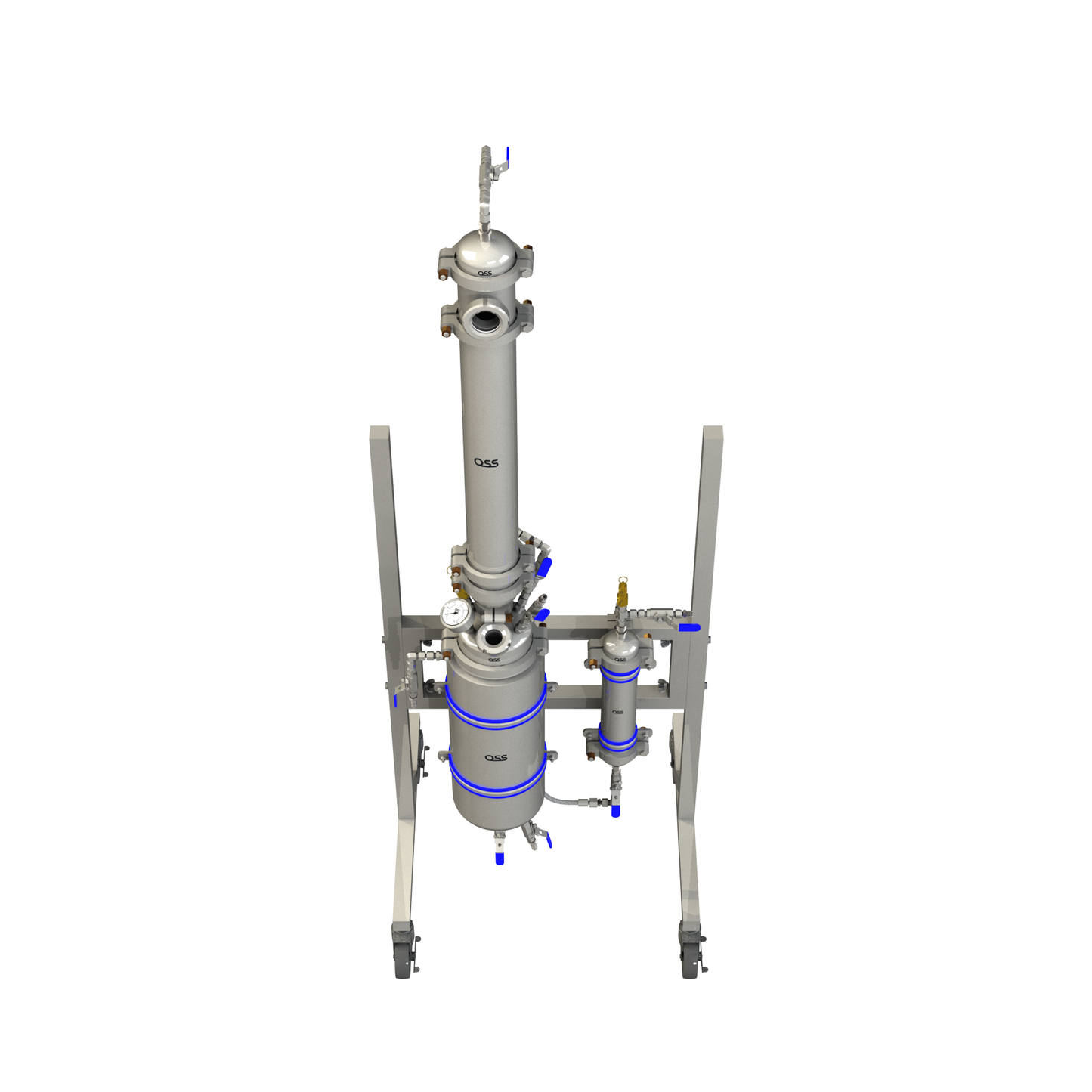

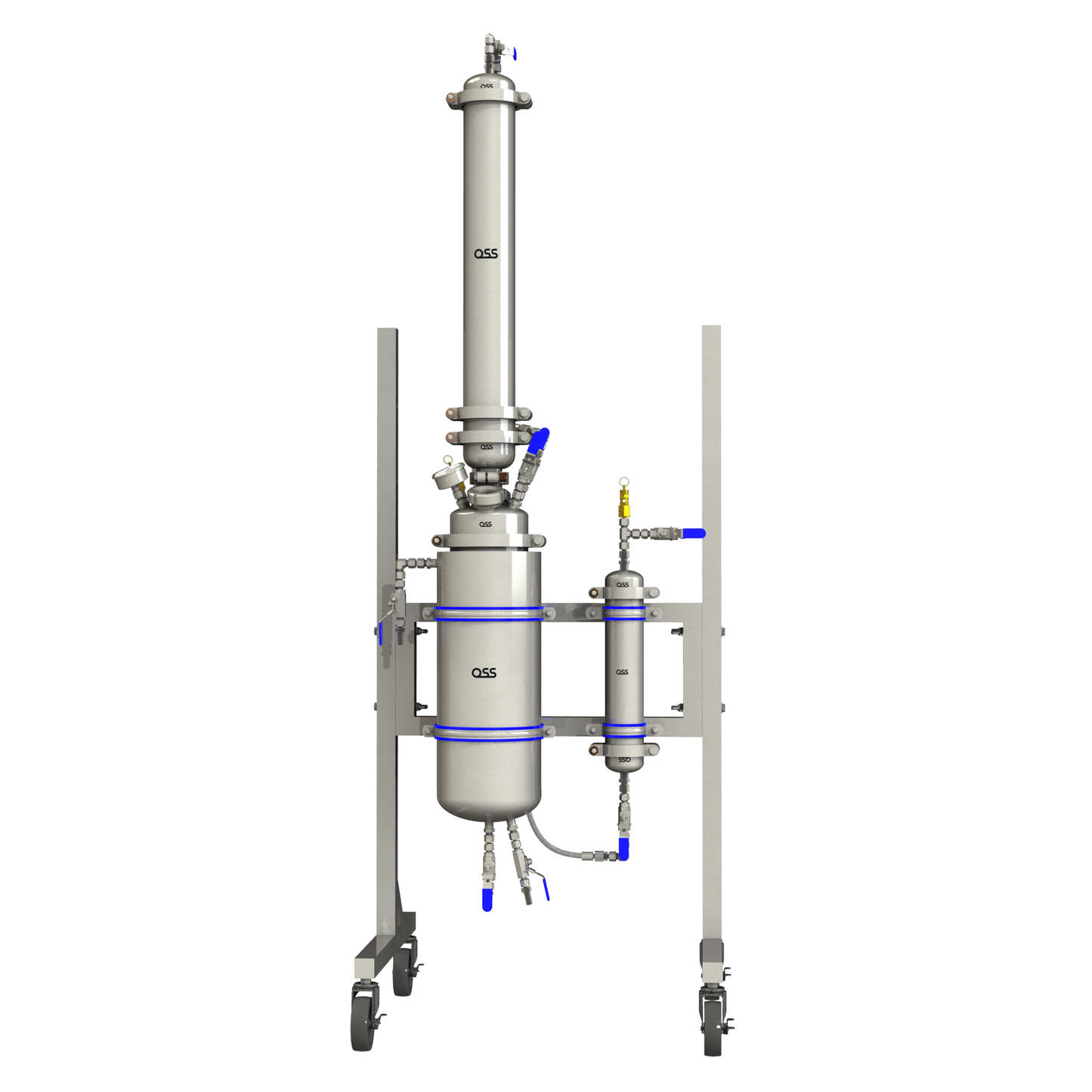

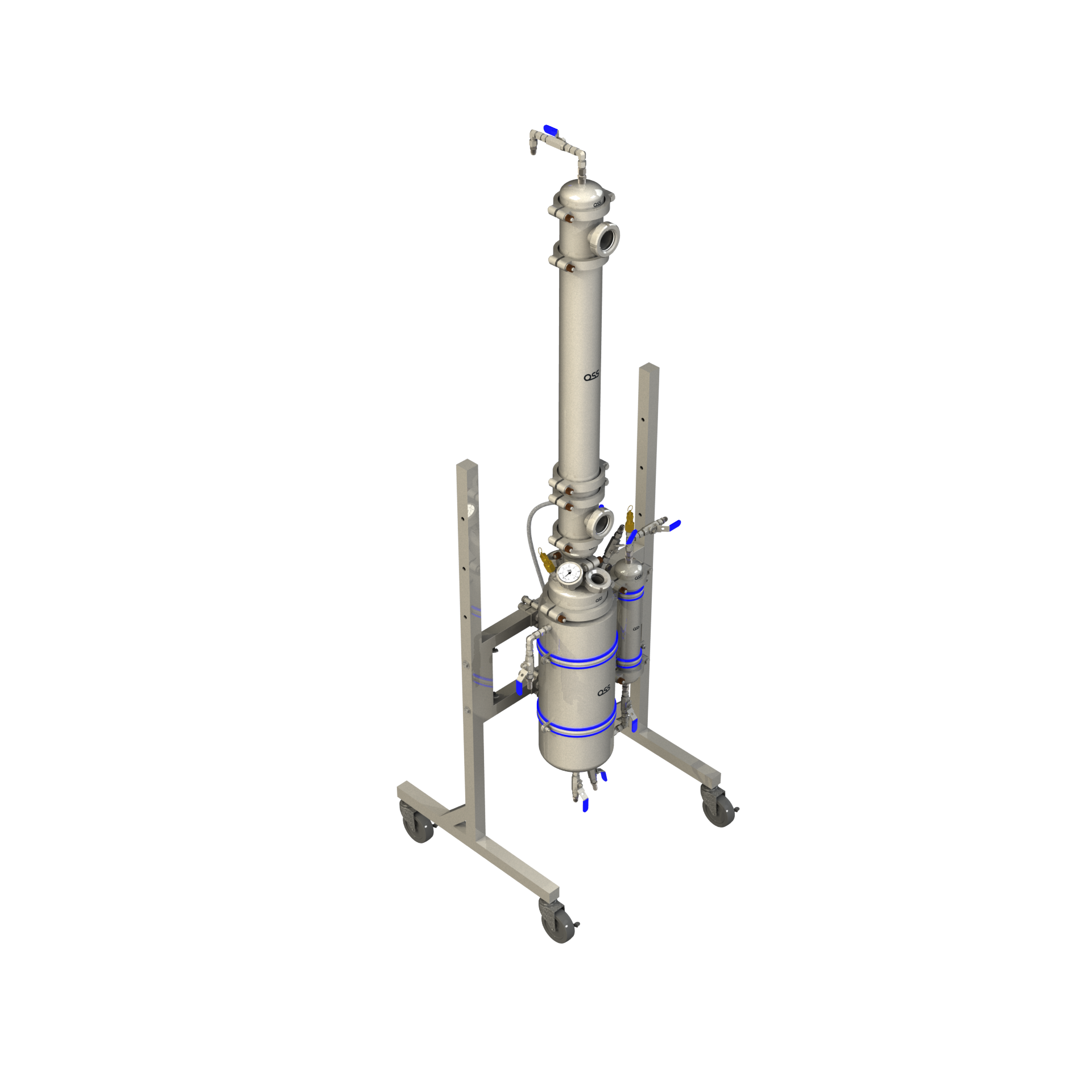

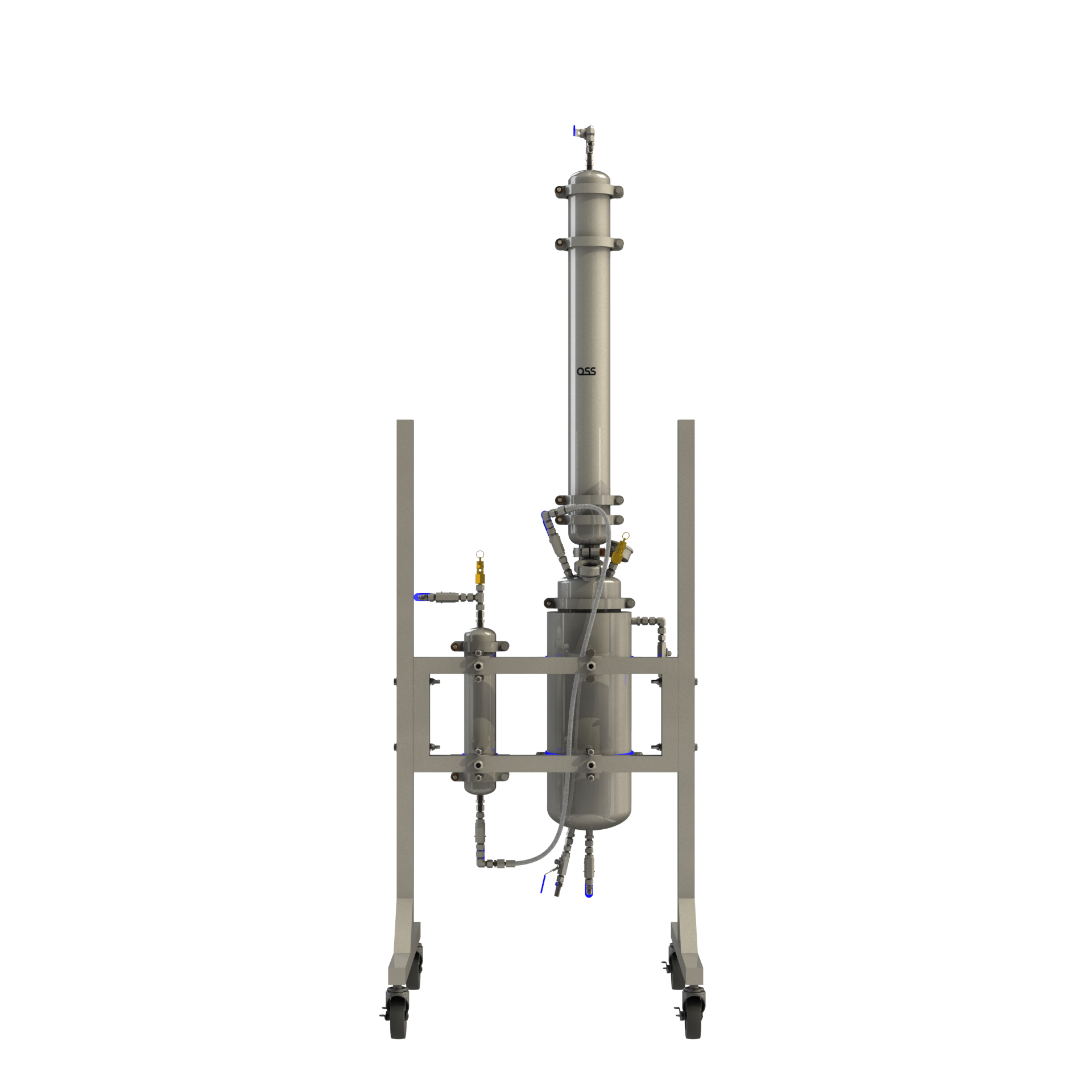

The Lil Terp - 2Lb Extractor


A compact racked extractor used for lower volume runs


lbs of Fresh Frozen lbs of Whole Flower lbs of Coarse Ground lbs of Butane lbs of Propane lbs of 70/30 Butane/Propane
Material Column Capacity 1.5 2.0 2.8 6.2 5.3 5.9

*Material Weight is calculated at 100% volume

lbs of Butane lbs of Propane lbs of 70/30 Butane/Propane
~15lb Solvent Tank Capacity 16.3 13.8 15.6

*Solvent Weight is calculated as 80% Total Vessel Volume
*Maximum volume should not exceed 80% for hydrocarbons

Comes Assembled & Pressure tested, saving you time and $$$!!


Features:
4"x24" Material Column
Inline Filtration Stack
Jacketed 6"x18" Collection Vessel
125psi Pressure Relief Valves
150psi Pressure Gauges
Stainless Steel Braided PTFE Hosing (3/8" JIC Connections)
Optional: Jacketed Hosing (1/2" Hose Barb Connections)


Accessories Included:
1-3 micron Filter Papers
20-25 micron Filter Papers
1x 4" Filter Plate
2x 4" Filter Rings
2x 4"x24" Nylon Filter Socks
Nylon Hose Clamps



EXAMPLE OF JACKET CONNECTION OPTIONS

1/2" HOSE BARB

1/2" QUICK CONNECTS



 Replacement & Accessory Items



Compression Ball Valve - 3/8" Compression Ball Valve - 3/8"



1/2" Hose Barb x 3/8" Compression Tube Stub 1/2" Hose Barb x 3/8" Compression Tube Stub



LQ6 CPC Quick Connects



1/2" ID Rubber Hose - Custom Length 1/2" ID Rubber Hose - Custom Length
1/2" ID Rubber Hose - Preset Lengths 1/2" ID Rubber Hose - Preset Lengths
Nylon Filter Sock
R2 Rack R2 Rack
Evaporator Vessel
Molecular Sieve Molecular Sieve
Molecular Sieve Bead Molecular Sieve Bead
Stainless Steel Braided PTFE Hose - (3/8")
Ashless Quantitative Filter Paper (Pack of 100) Ashless Quantitative Filter Paper (Pack of 100)
Filter Stack Inserts Filter Stack Inserts
Compression Compound Gauge - 3/8" Compression Compound Gauge - 3/8"
Brass Pressure Relief Valve (125 PSI) - MNPT Brass Pressure Relief Valve (125 PSI) - MNPT
Nylon Hose Clamp, Max O.D. 0.875in. Nylon Hose Clamp, Max O.D. 0.875in.
View full details
