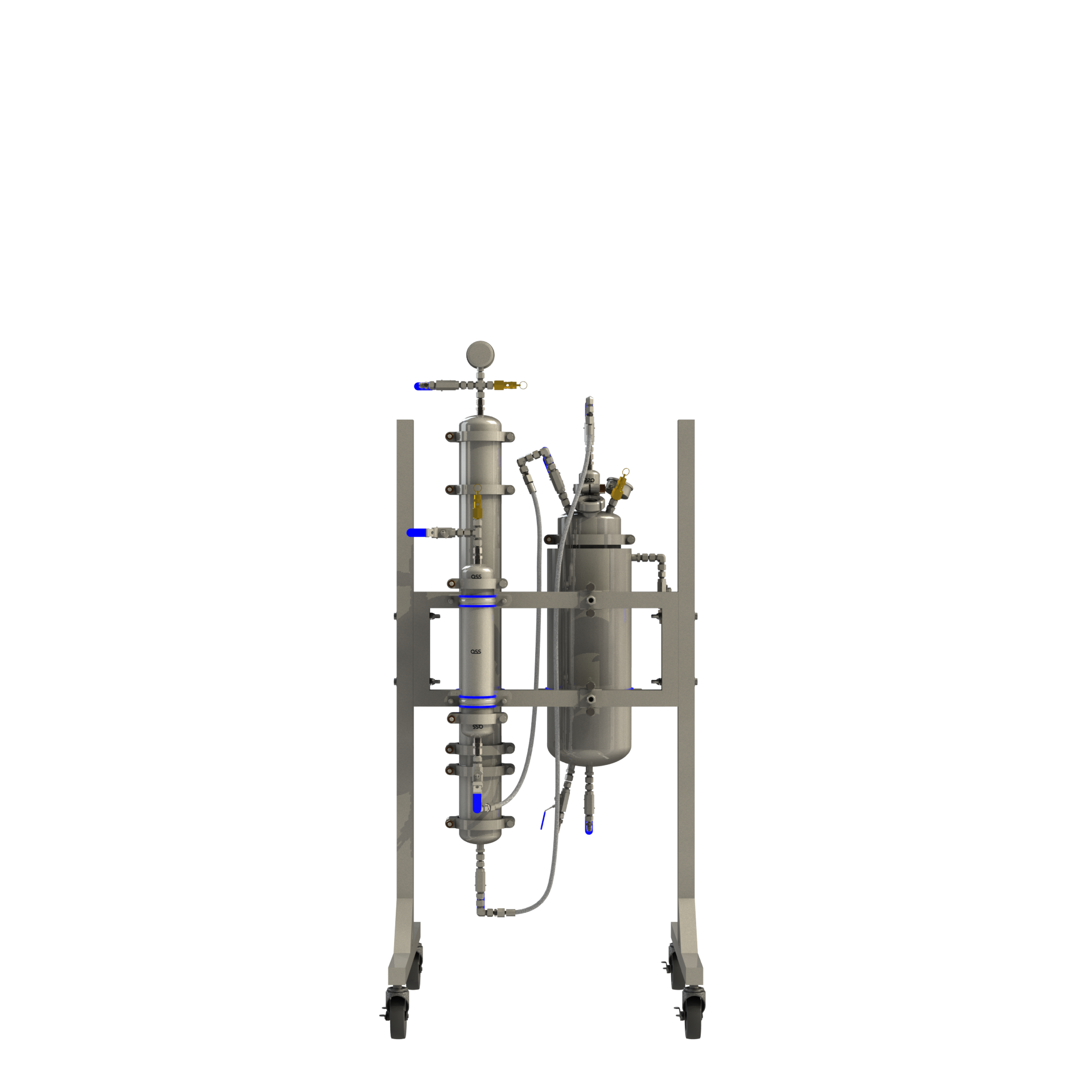

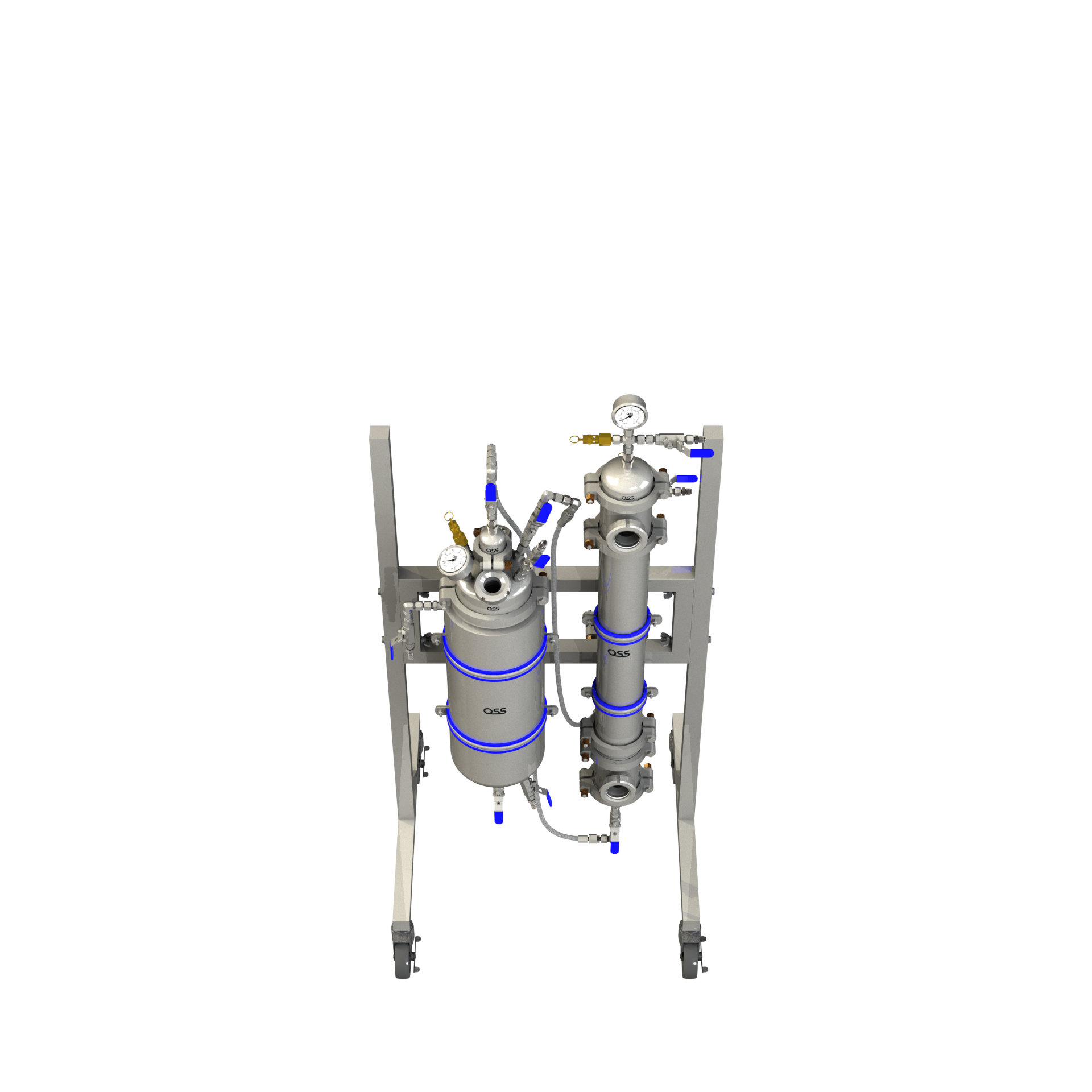

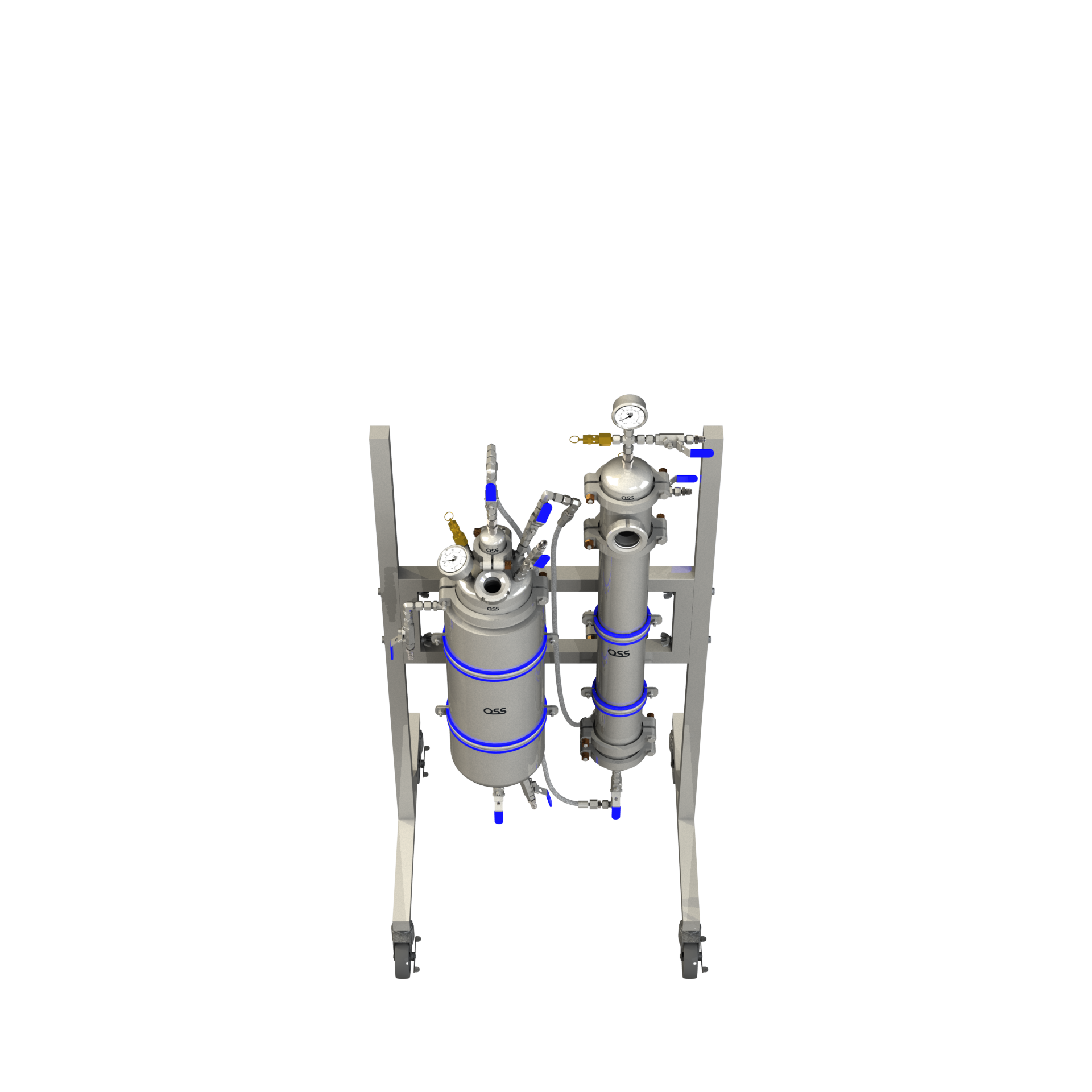

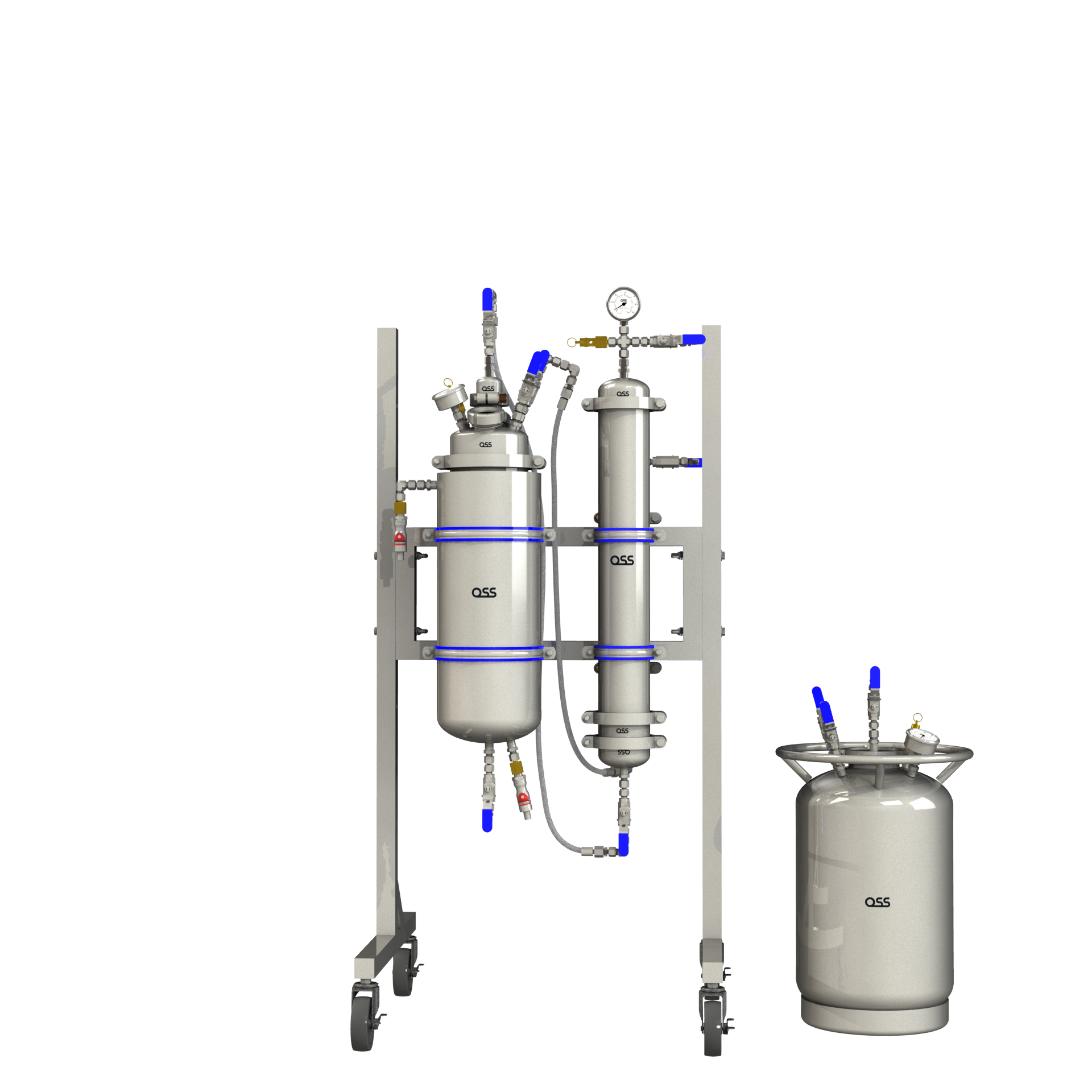

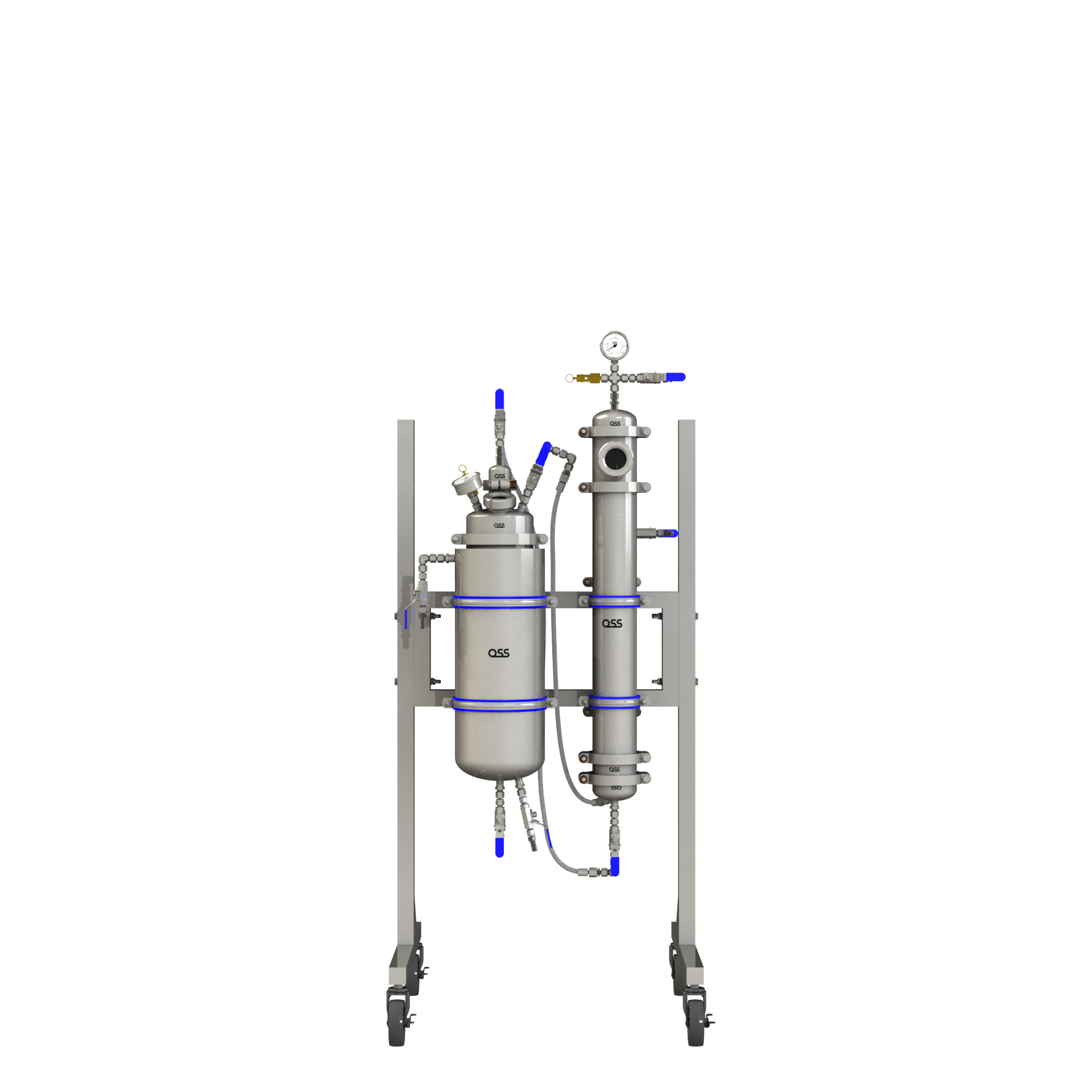

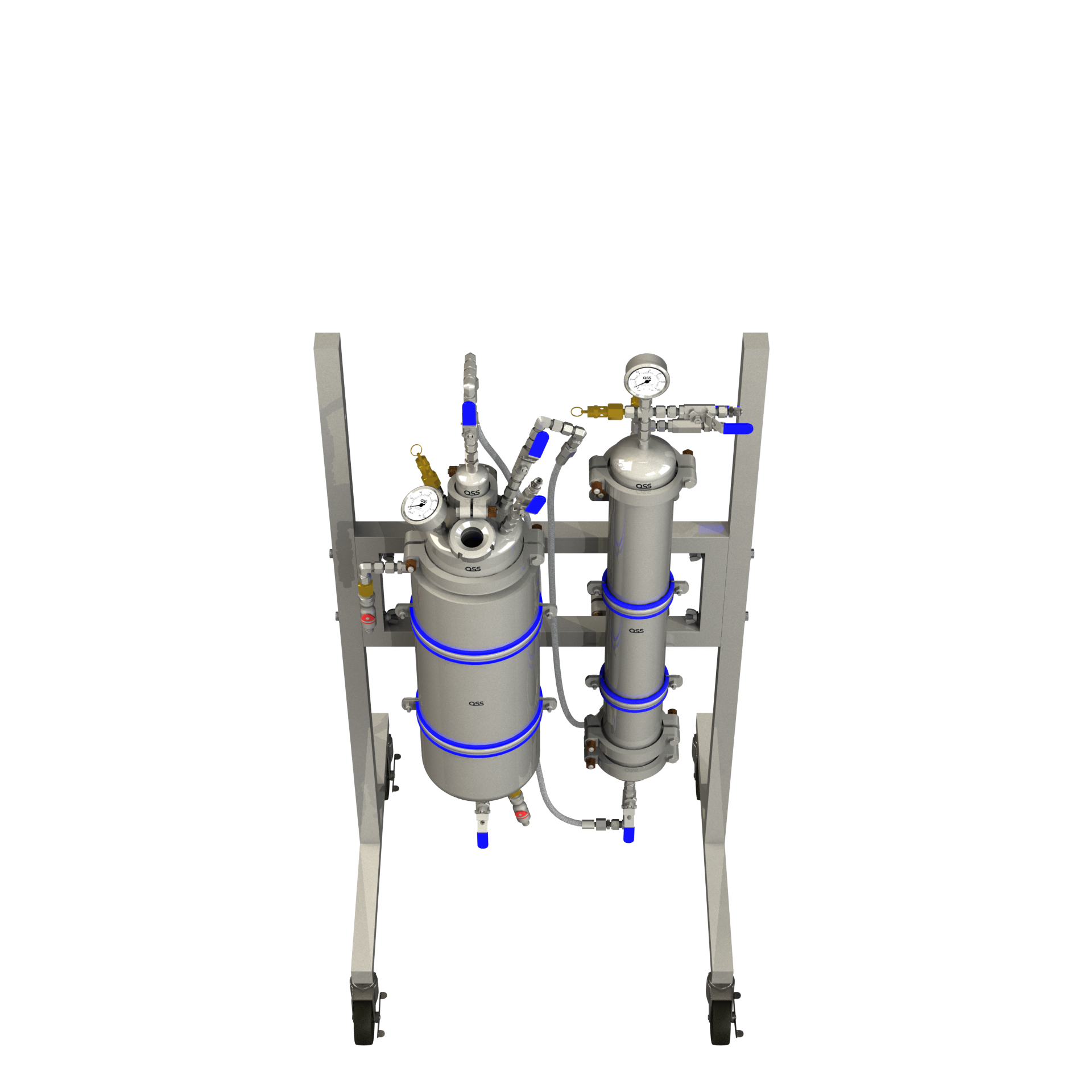

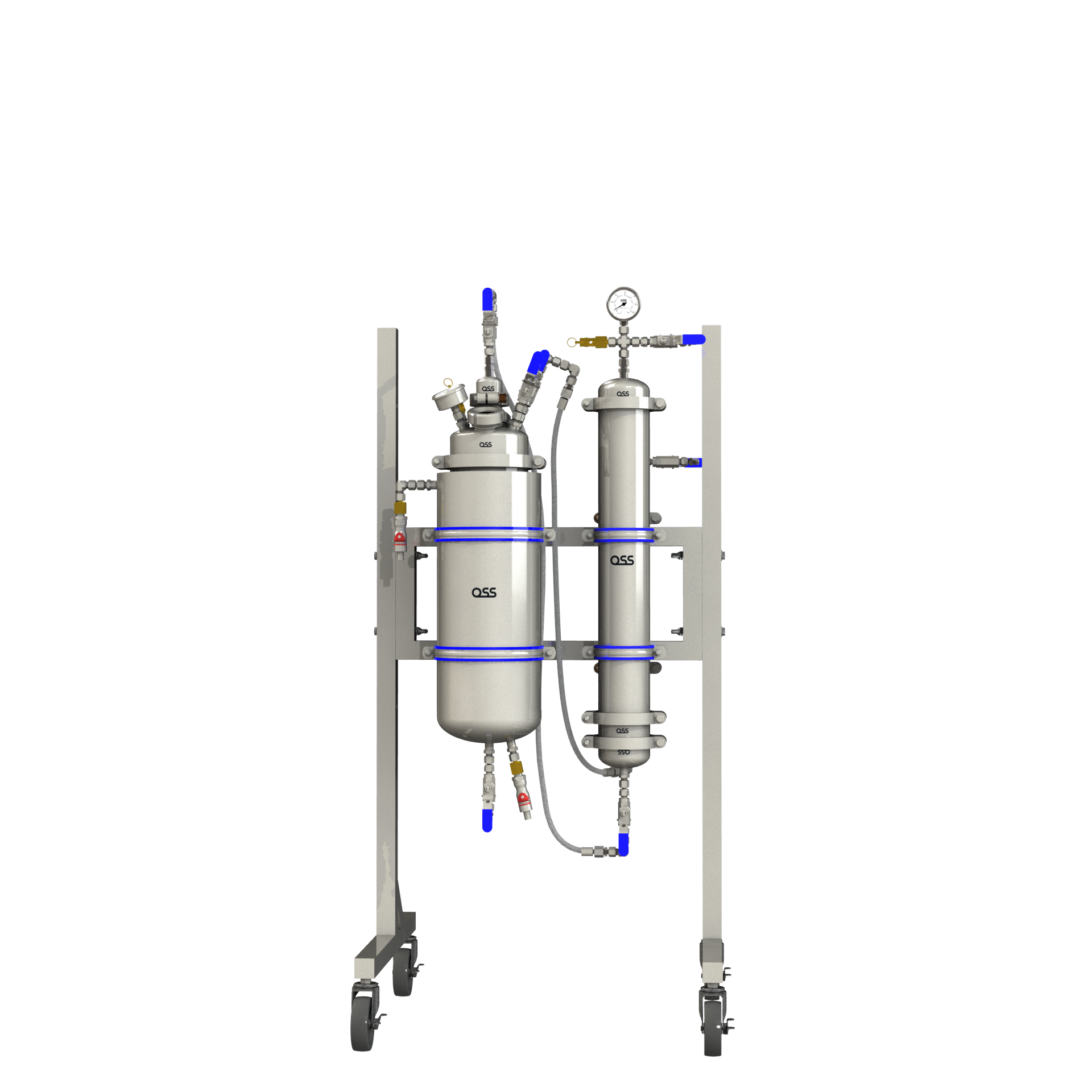

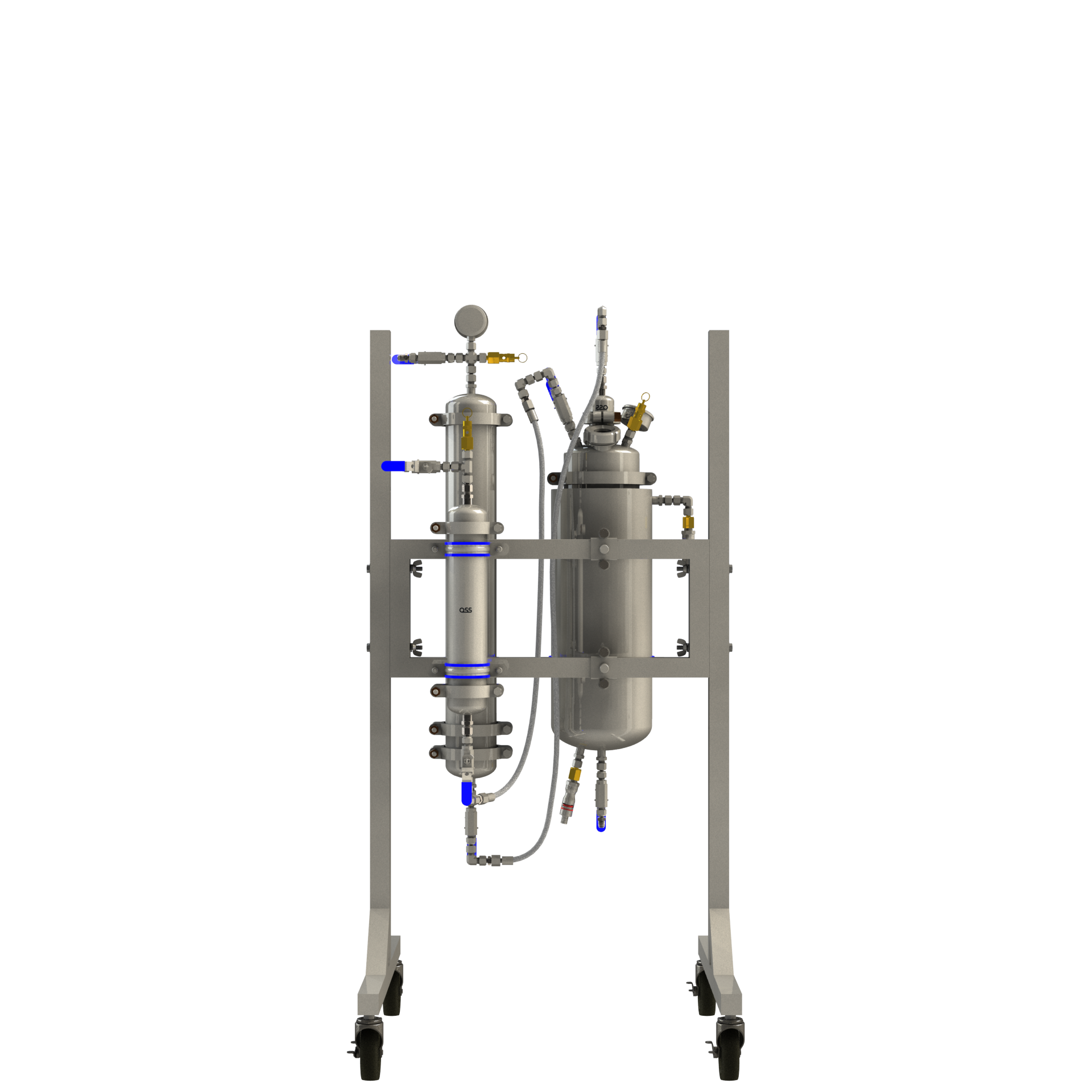

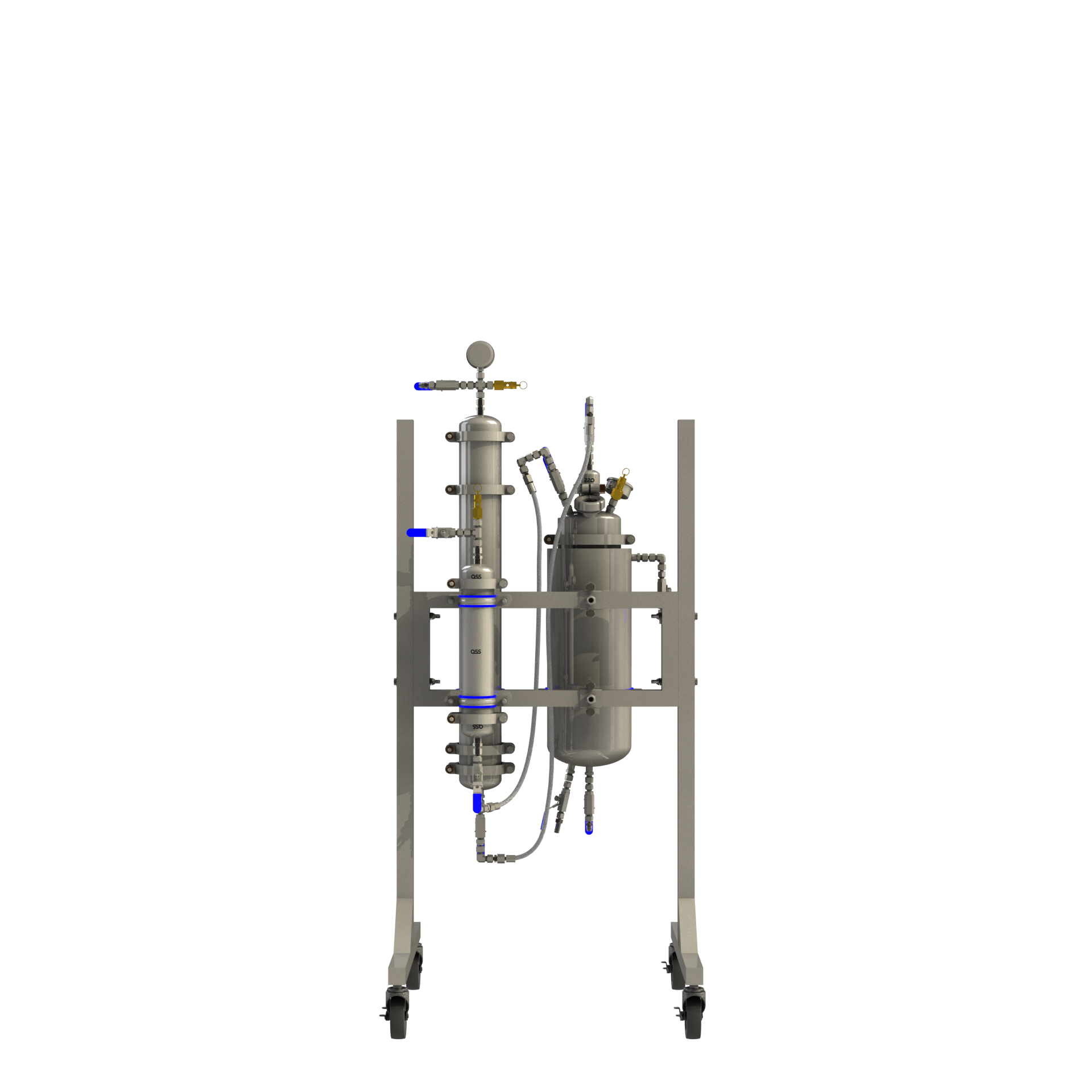

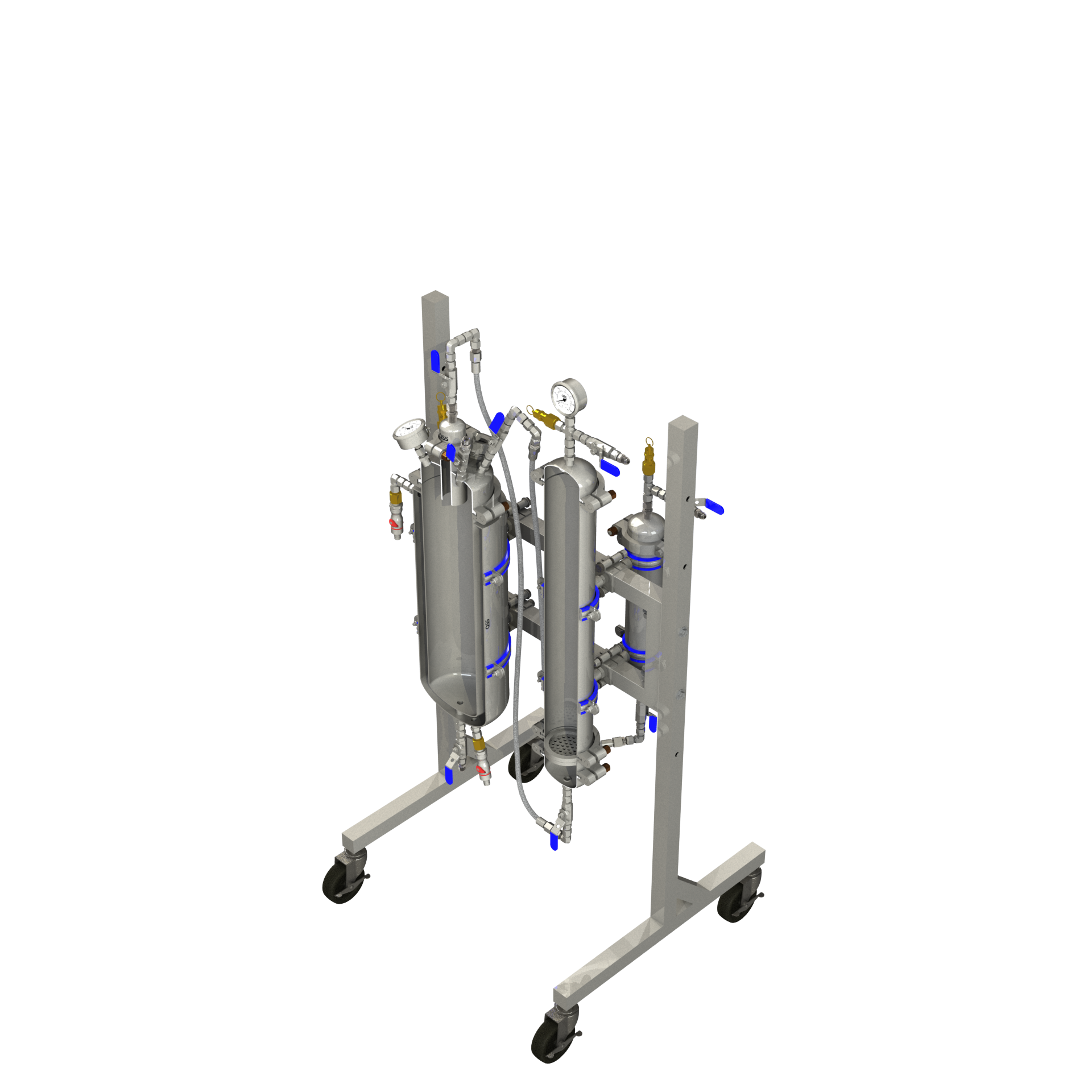

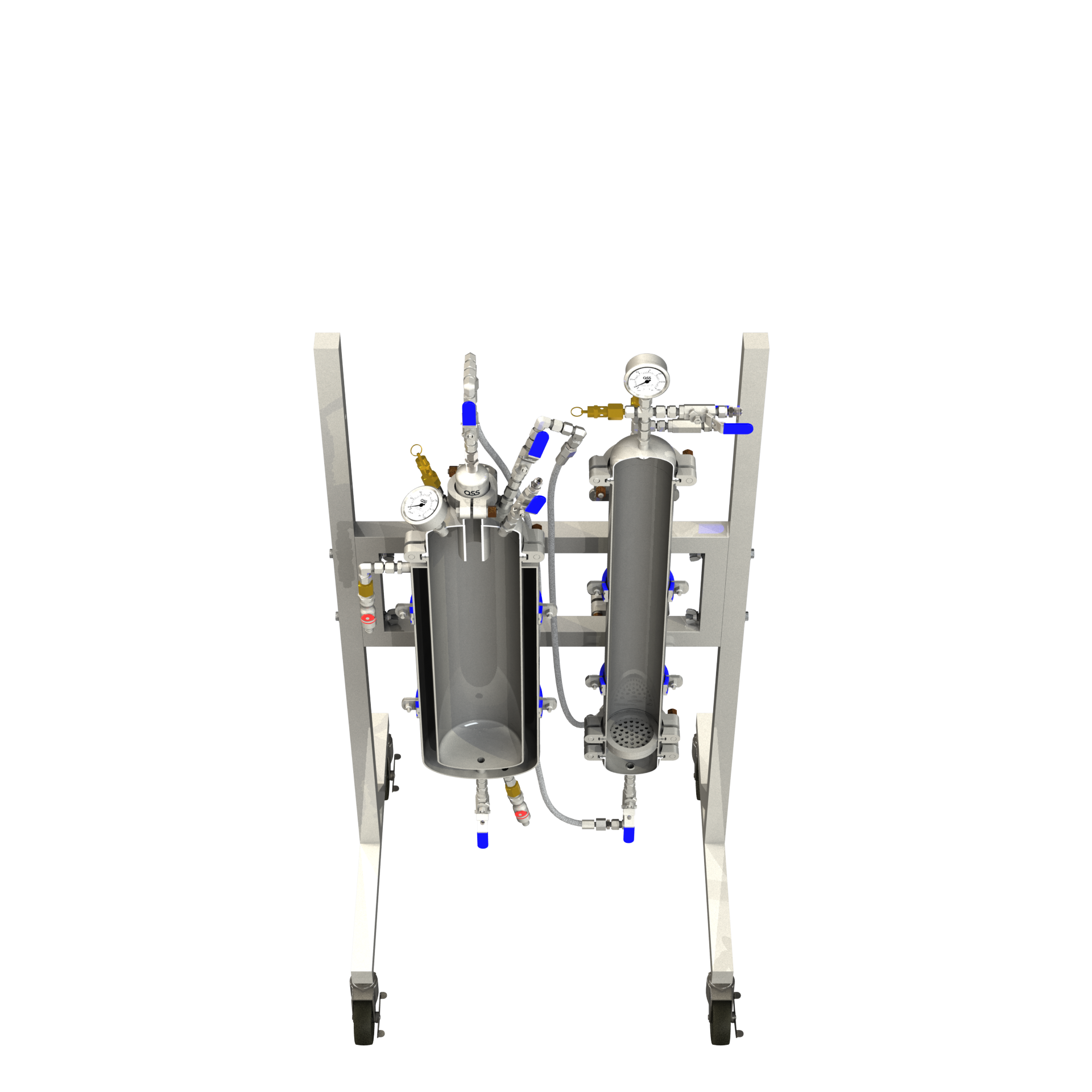

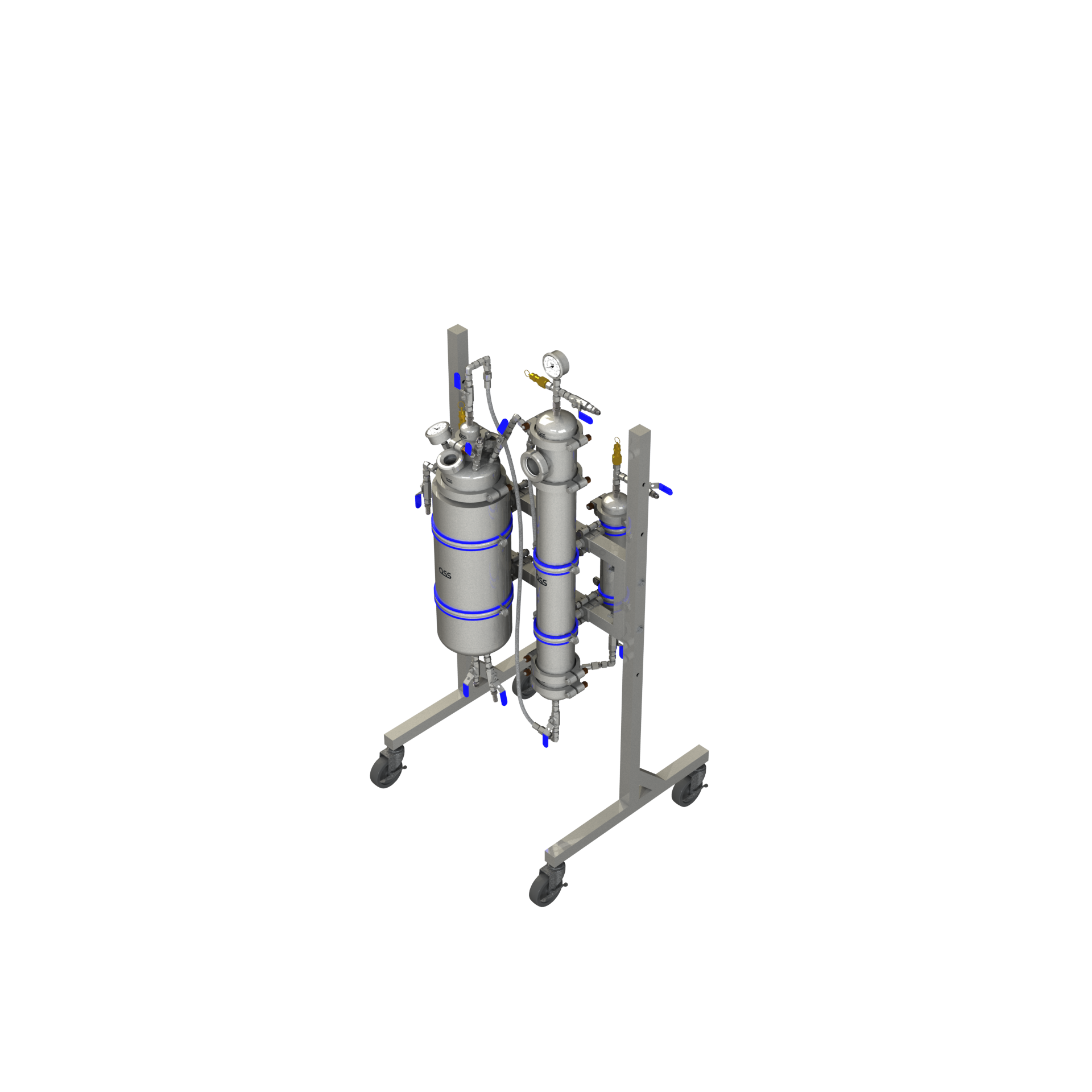

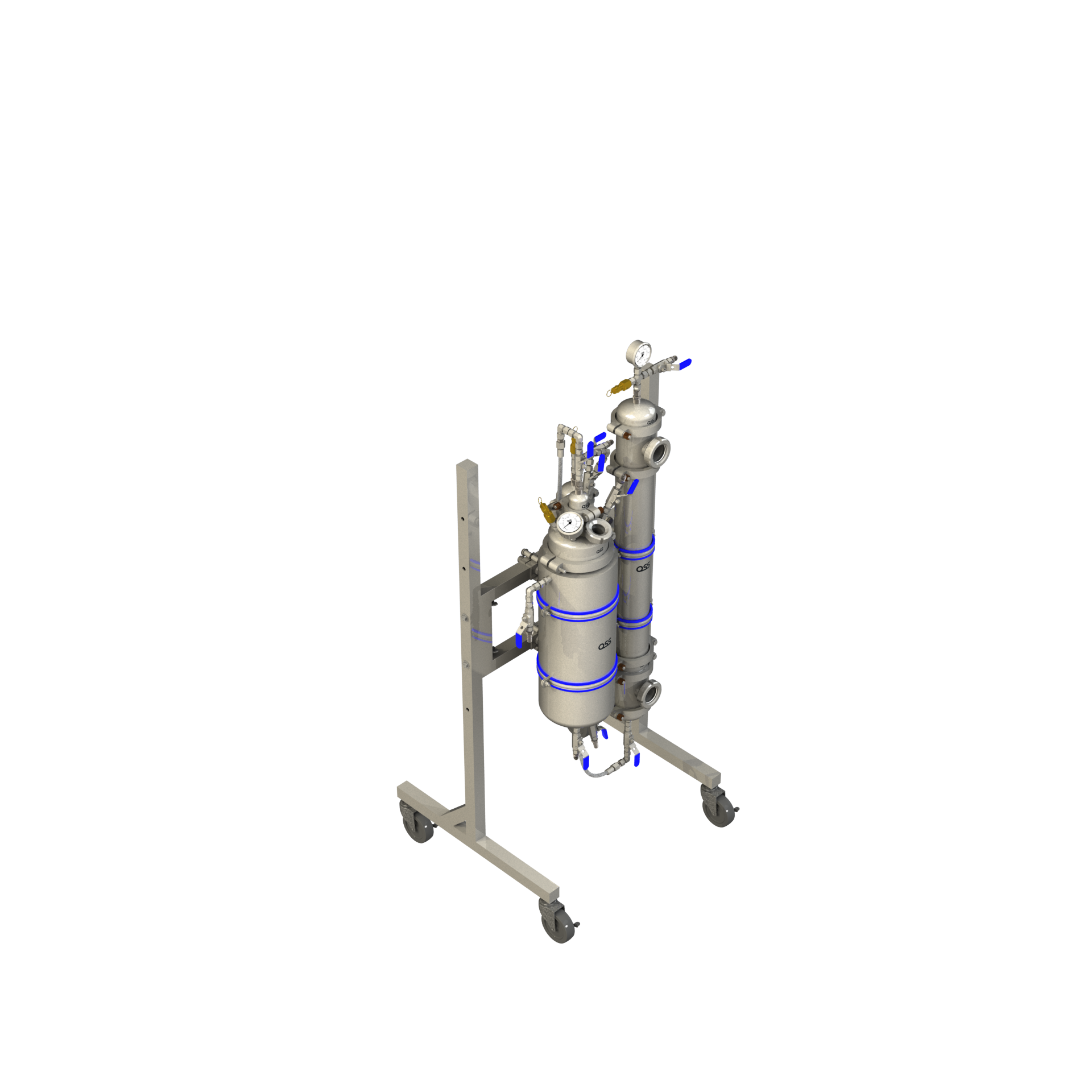

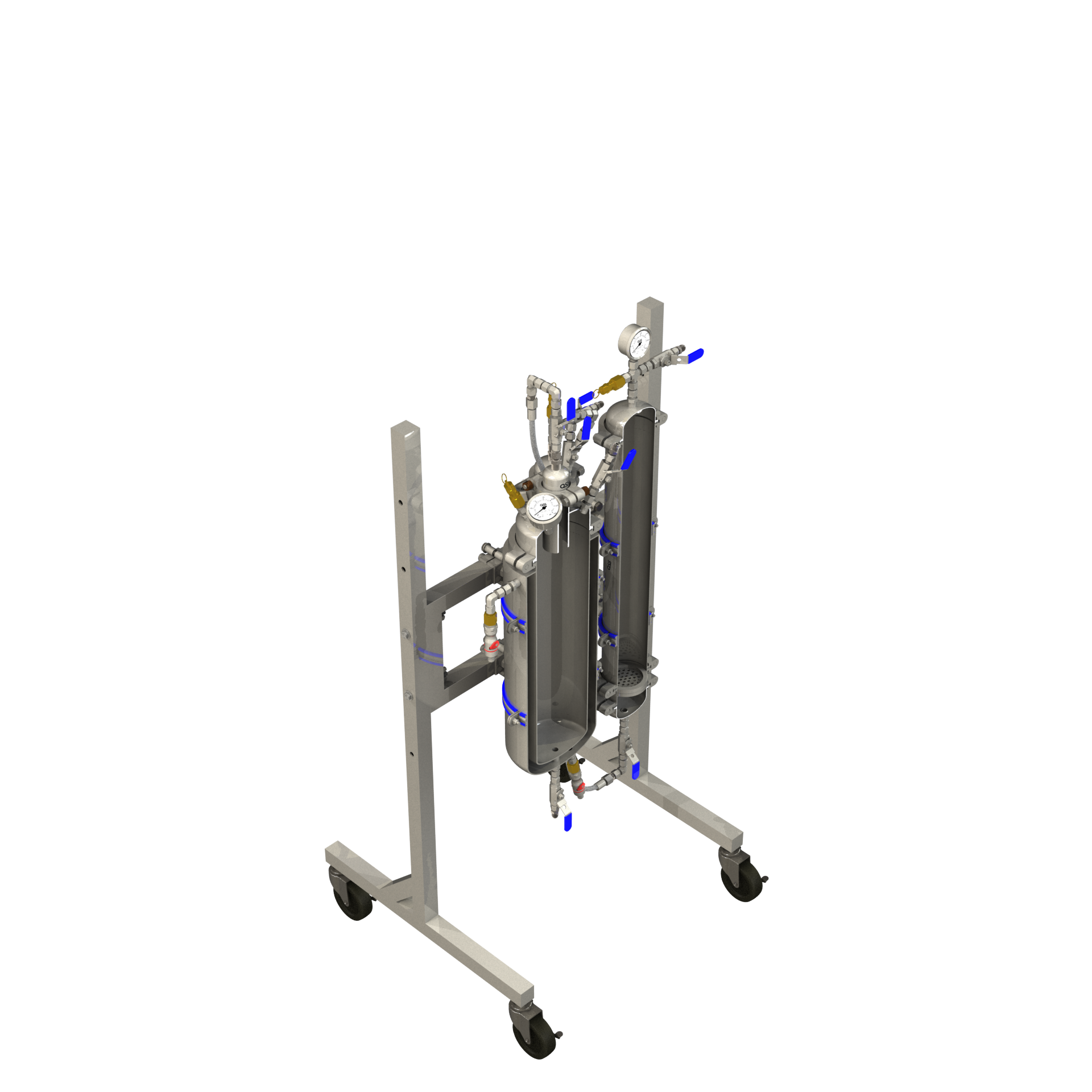

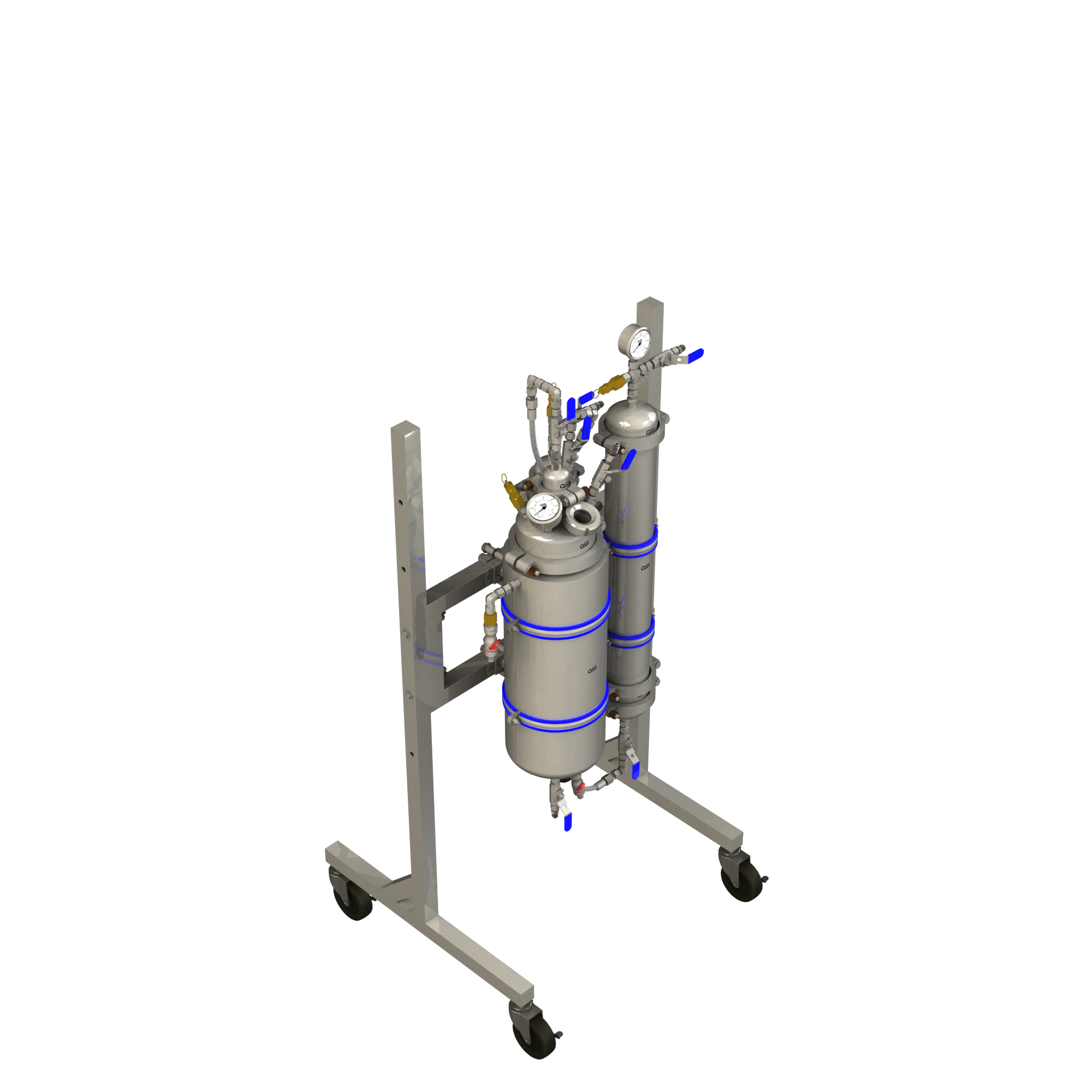

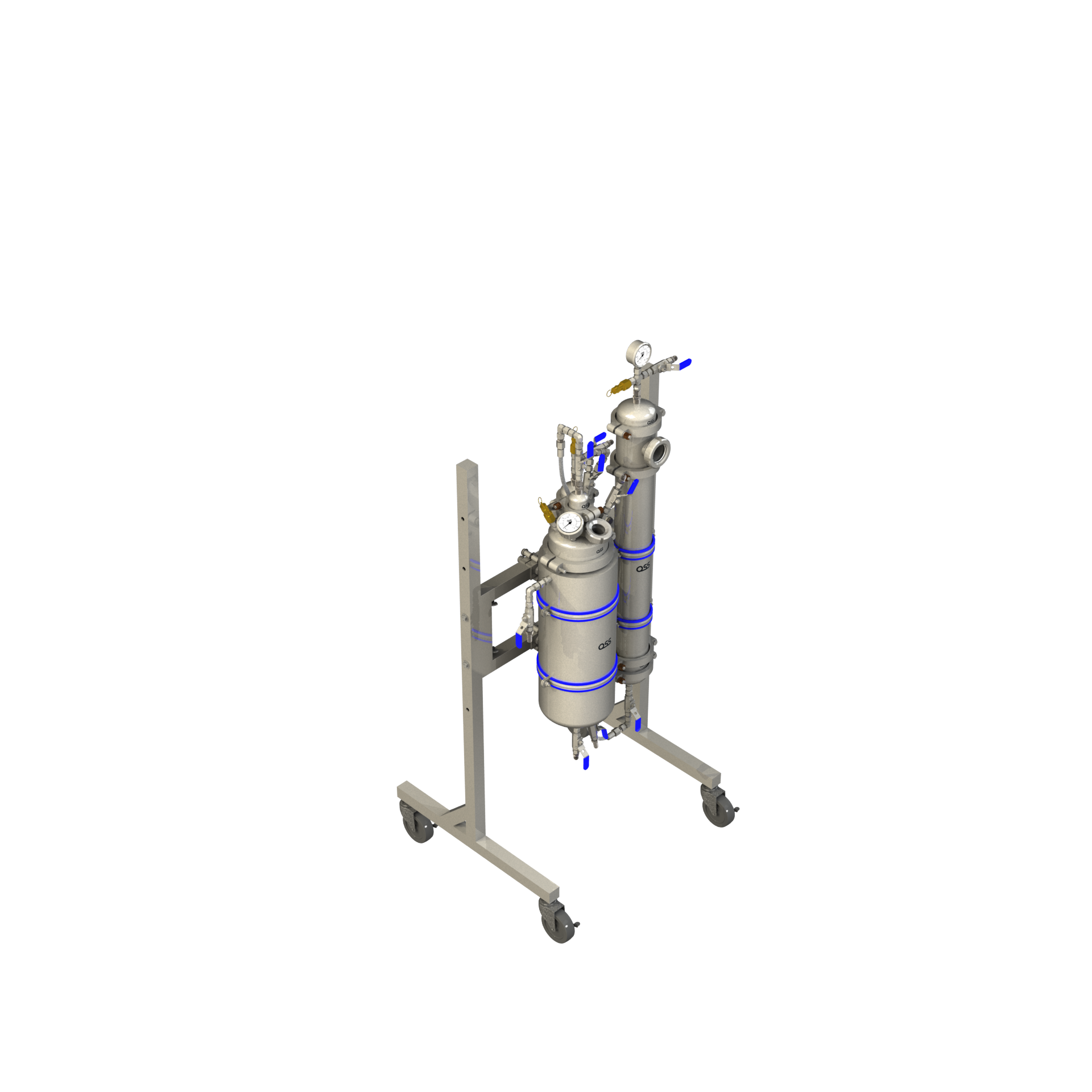

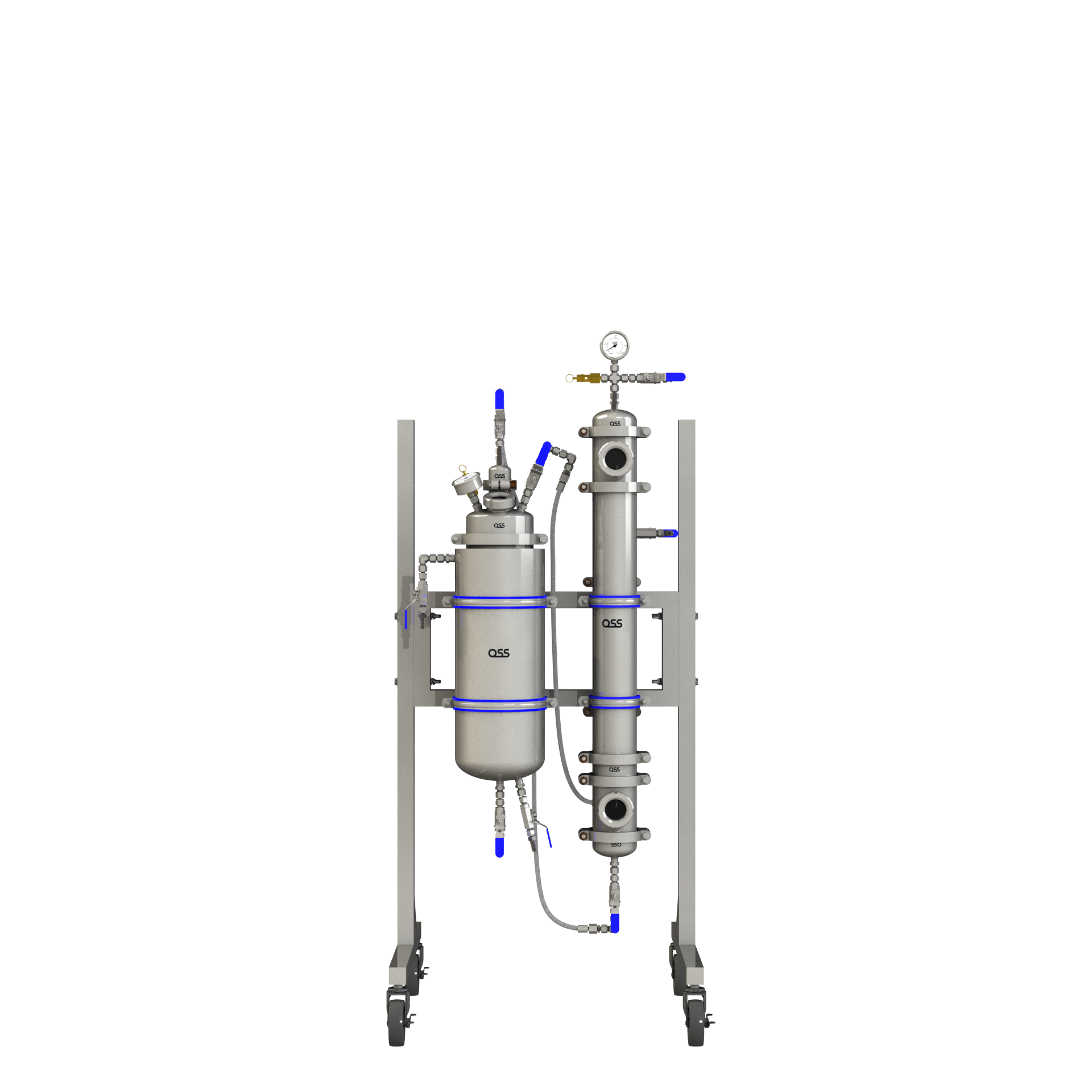

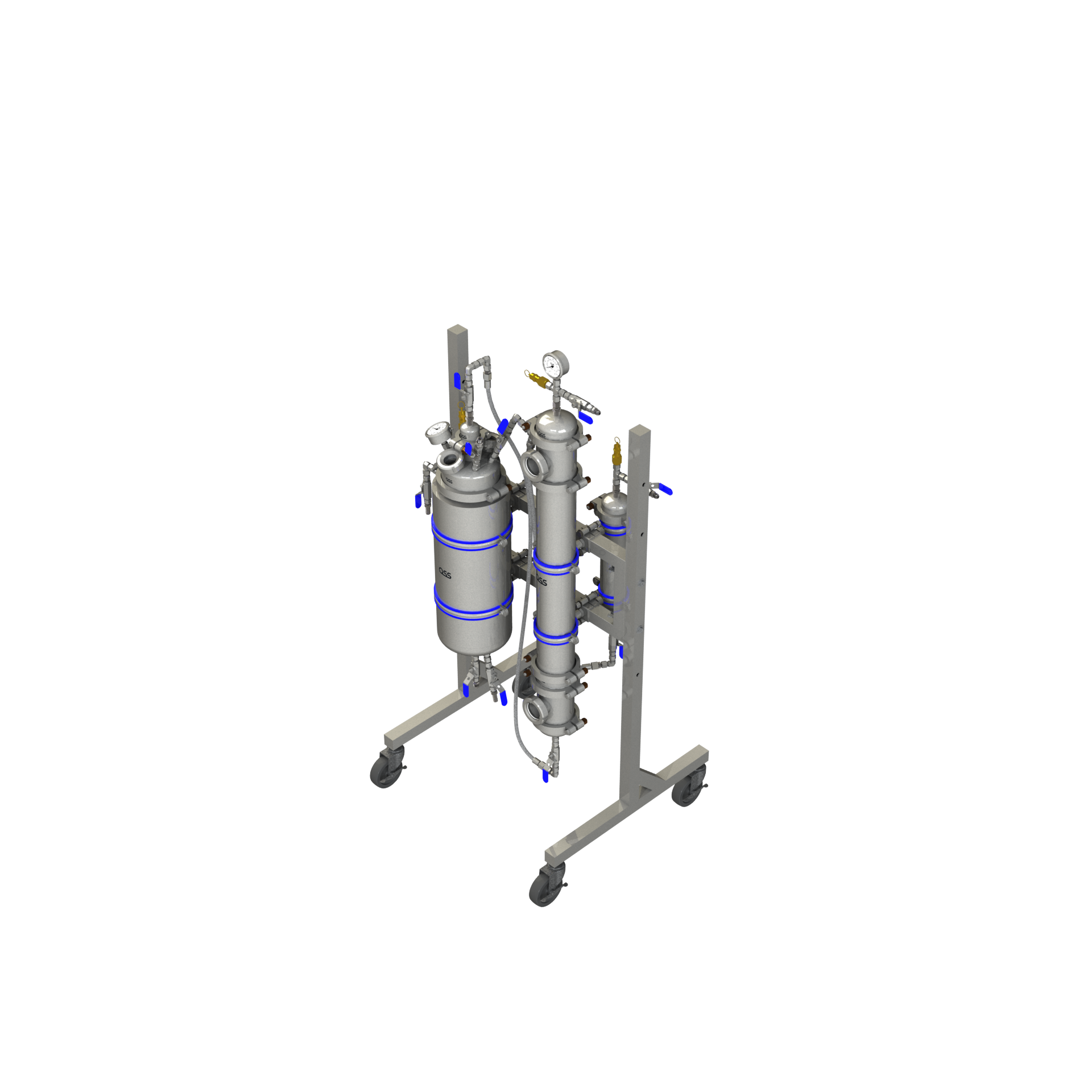

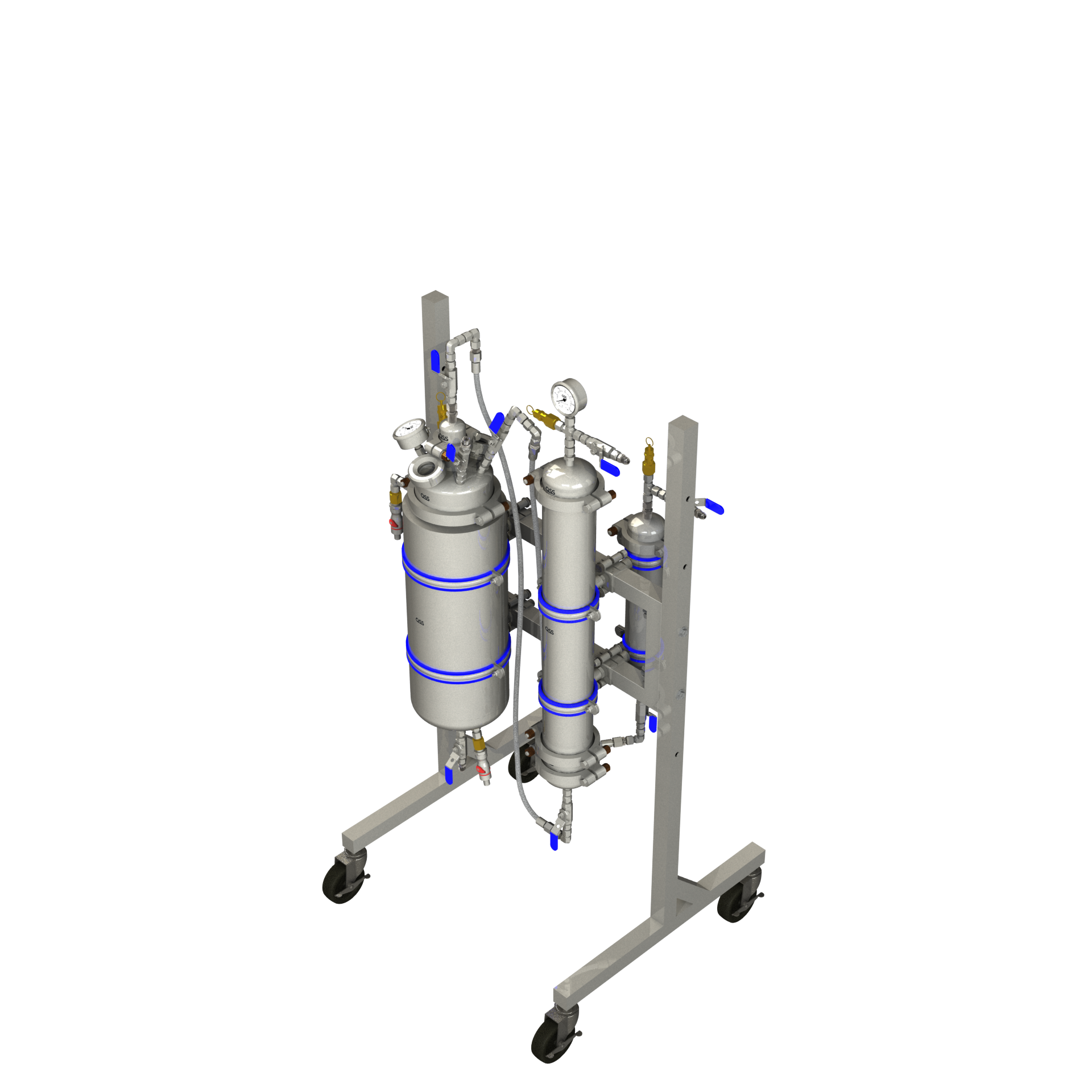

Lil Terp V2 Extractor - (2.5lbs.) - 4"x24"

Lil Terp V2 Extractor - (2.5lbs.) - 4"x24"

Regular price $ 3,730.89
Regular price Sale price $ 3,730.89
Sale Sold out
Shipping calculated at checkout.

The Lil Terp V2- 2Lb Extractor


A compact racked extractor used for lower volume runs


lbs of Fresh Frozen lbs of Whole Flower lbs of Coarse Ground lbs of Butane lbs of Propane lbs of 70/30 Butane/Propane
Material Column Capacity 1.5 2.0 2.8 6.2 5.3 5.9

*Material Weight is calculated at 100% volume

Comes Assembled & Pressure tested, saving you time and $$$!!


Features:
4"x24" Material Column
Inline Filtration Stack
Jacketed 6"x18" Collection Vessel
125psi Pressure Relief Valves
150psi Pressure Gauges
Stainless Steel Braided PTFE Hosing (3/8" JIC Connections)
Optional: Jacketed Hosing (1/2" Hose Barb Connections)


Accessories Included:
1-3 micron Filter Papers
20-25 micron Filter Papers
1x 4" Filter Plate
2x 4" Filter Rings
2x 4"x24" Nylon Filter Socks
Nylon Hose Clamps



EXAMPLE OF JACKET CONNECTION OPTIONS

1/2" HOSE BARB

1/2" QUICK CONNECTS
