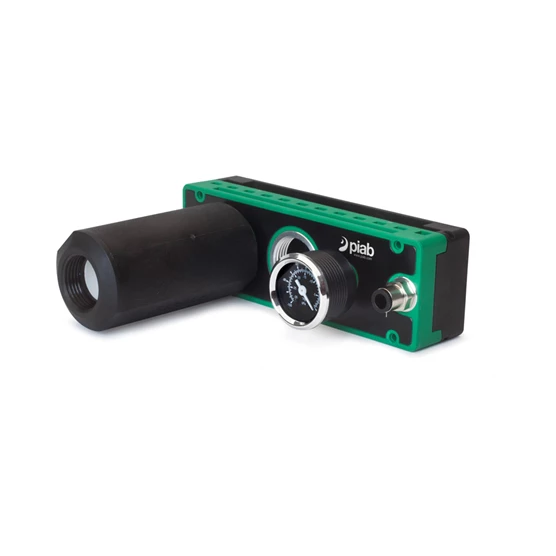

PIAB piCLASSIC Xi40-3 x1 COAX Cartridge Vacuum Pump

PIAB piCLASSIC Xi40-3 x1 COAX Cartridge Vacuum Pump

Regular price $ 541.97
Regular price Sale price $ 541.97
Sale Sold out
Shipping calculated at checkout.

PIAB piCLASSIC Xi40-3 x1 COAX Cartridge

  • Patented COAX® technology inside the most energy efficient ejector technology.
  • The Xi cartridge offers high flow at deep vacuum levels to 28.1 -inHg.
  • Suitable for non-porous applications when deep vacuum level is needed.
  • Large capacity range, available with 1 to 6 COAX® Xi40 three-stage cartridges. A smaller piCLASSIC can easily be upgraded with more capacity if needed.
  • Low-weight, configurable and modular design.
  • Easy disassembly for maintenance.



THIS PUMP IS AIR DRIVEN AND MUST HAVE AN AIR COMPRESSOR TO OPERATE.

*MOUNTING REQUIRED*

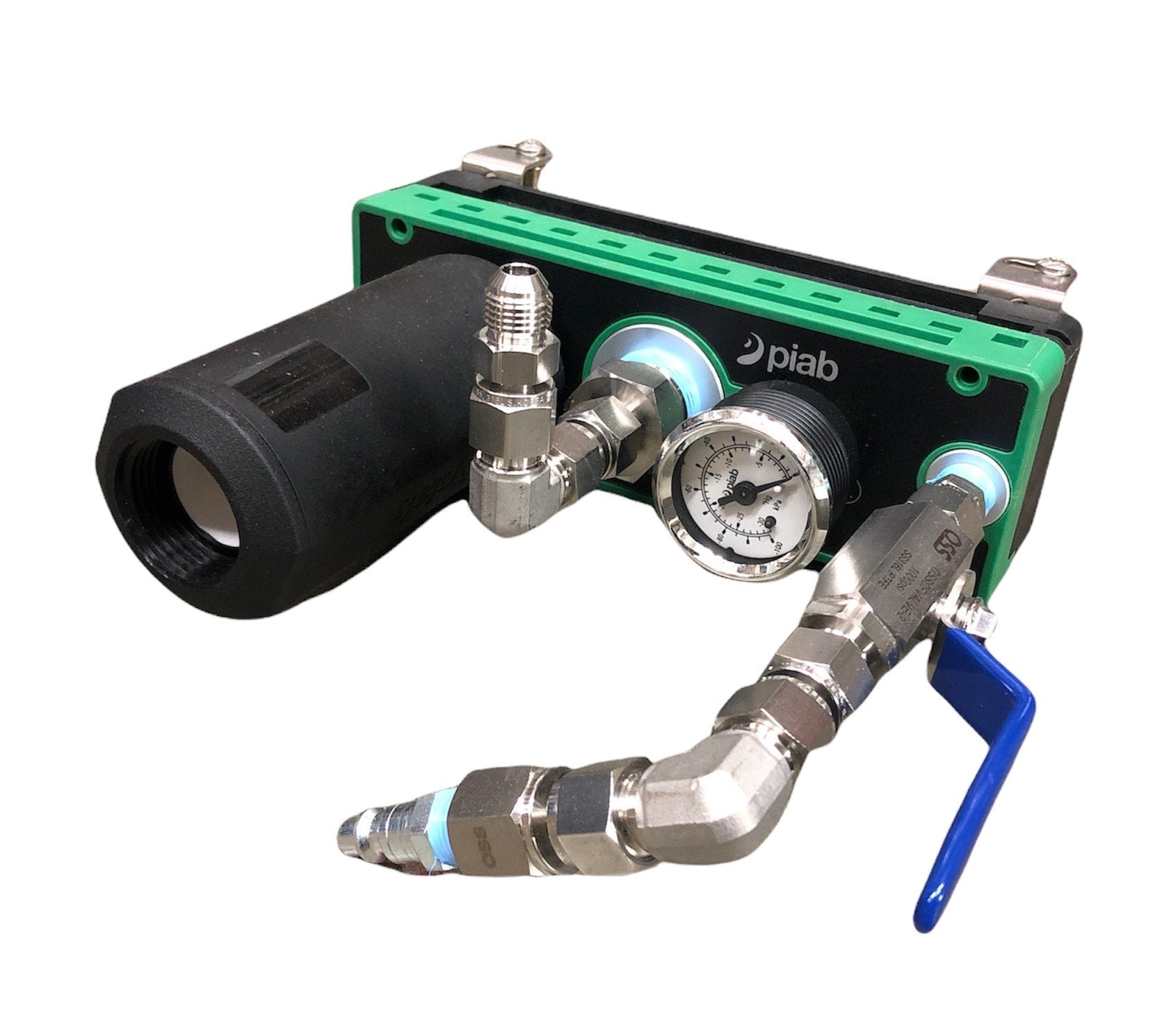

 Complete Kit Comes Taped and Assembled!
- Just mount pump and attach air line!


Fitting Connections for Complete Kit


 Mounting Solutions

A. #10-24 Rivnut w/ L-Bracket(included)

Rivet Nut - #10-24

Example of Hand Riveter

Astro Pneumatic AST1442 13" Long Nut/Thread ­Setting Hand Riveter

Hole spacing: ~6.3125in
Drill-bit Size for Rivnut: 19/64in*

B. 1.5" Clamp Options w/
Piab Vacuum Pump Mounting Plate
(sold separately)

Piab Vacuum Pump Mounting Plate
Square Mounting Clamp - 1.5"
Square Mounting Clamp - 1.5"
Manifold Mounting Clamp A
Manifold Mounting Clamp B

C. Unistrut Hardware w/
Piab Vacuum Pump Mounting Plate
(sold separately)

*Piab Vacuum Pump Mounting Plate is compatible with Unitstrut Hardware*


 Replacement & Accessory Items

3/8" Compression Tube Adapter x 3/4" MNPT
