Open Source Steel

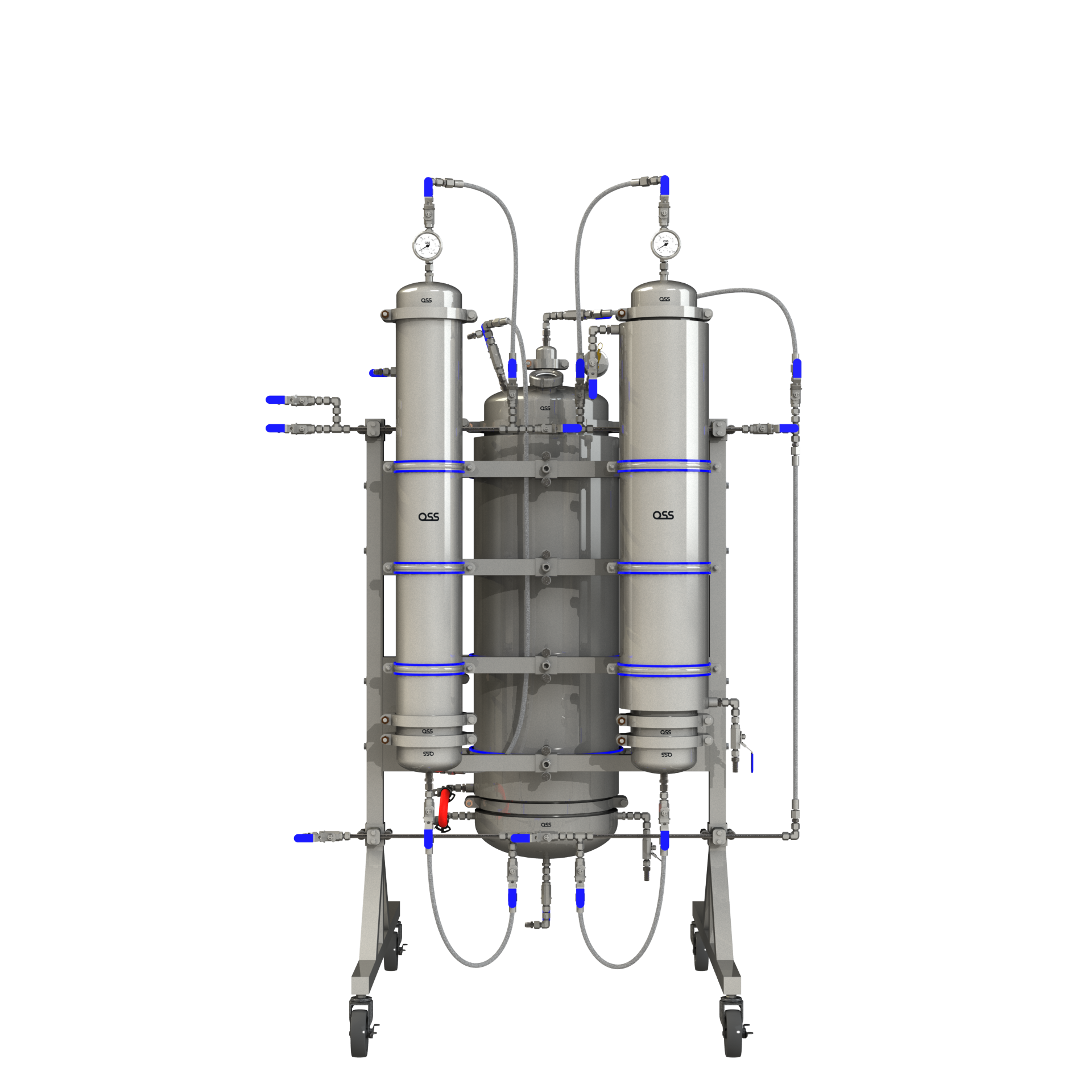

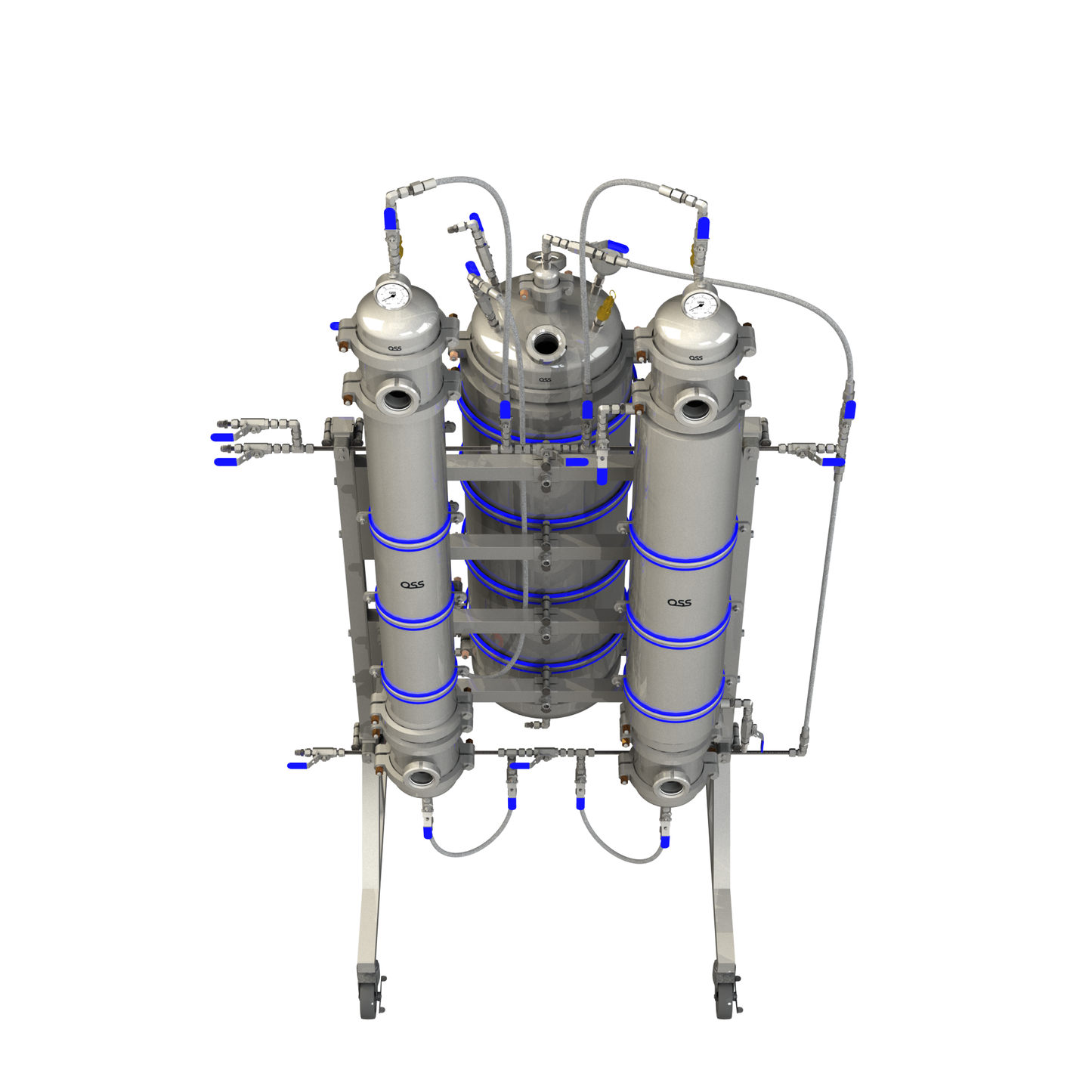

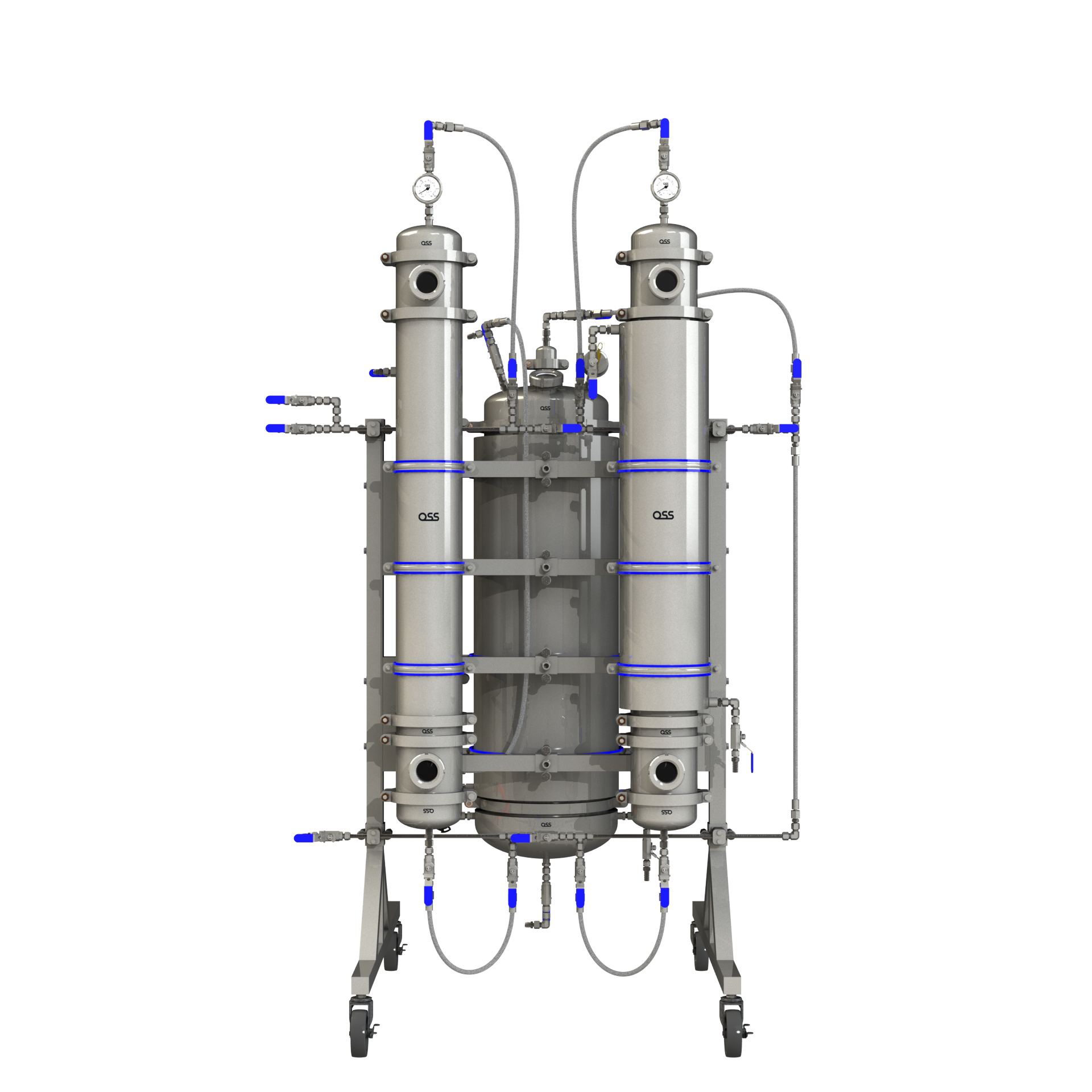

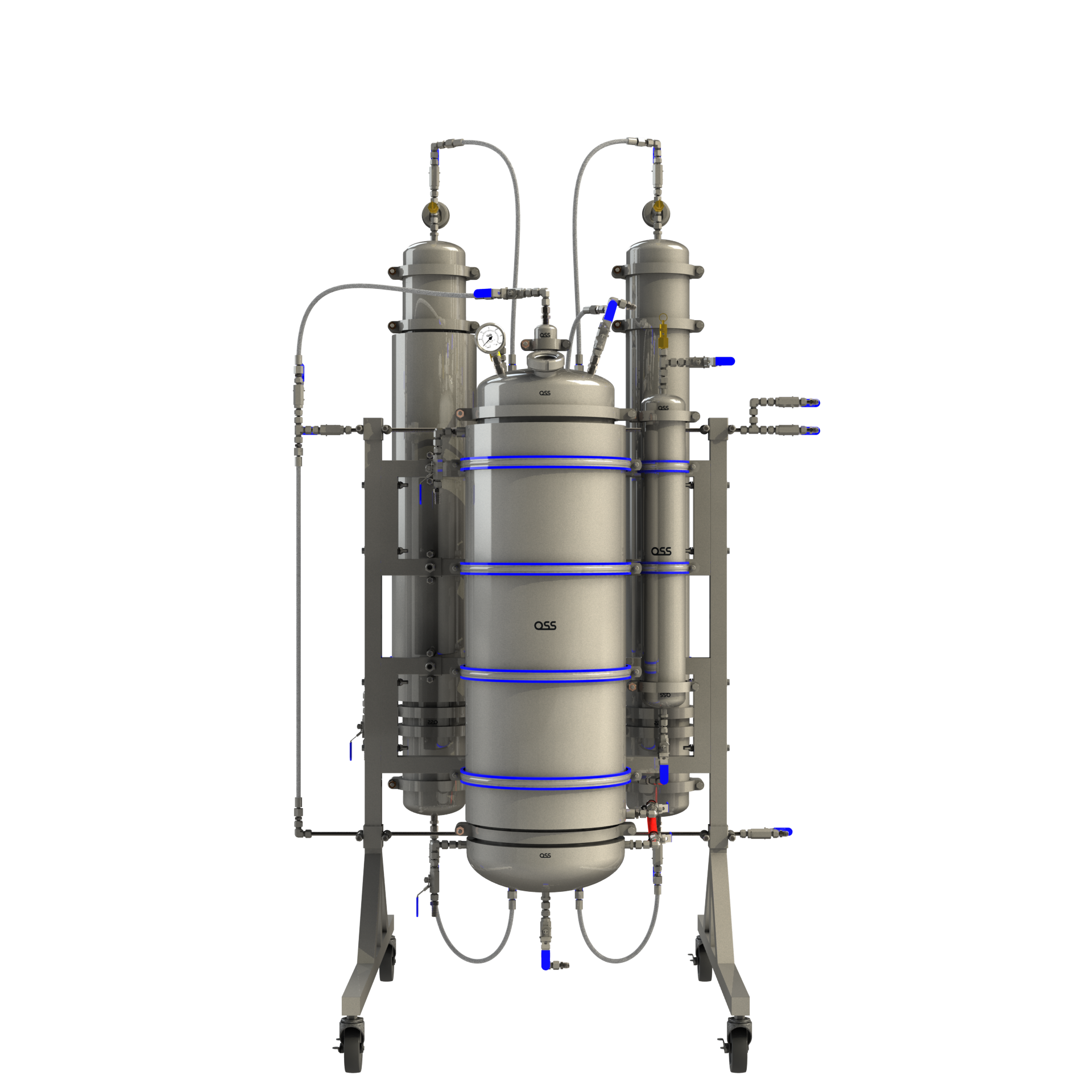

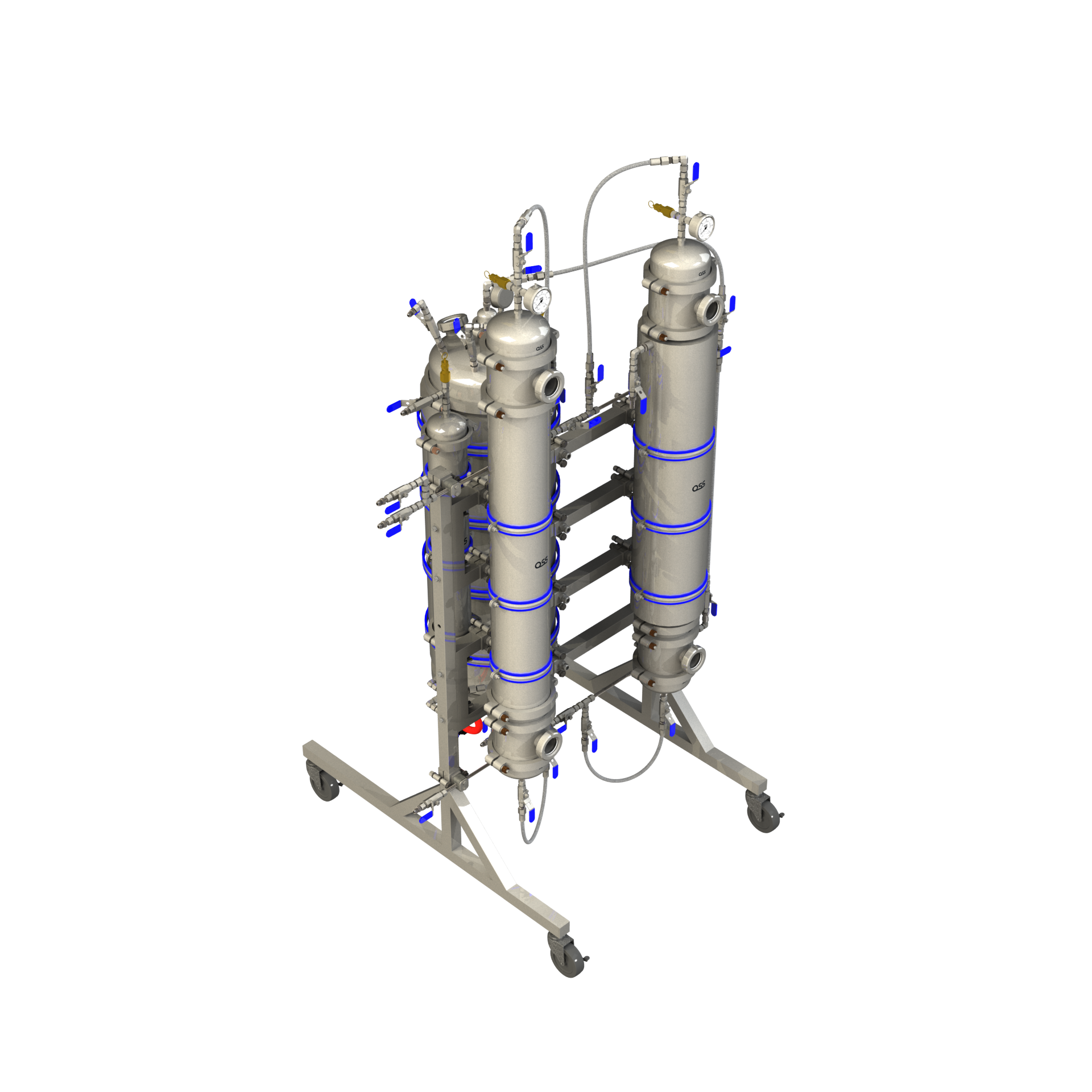

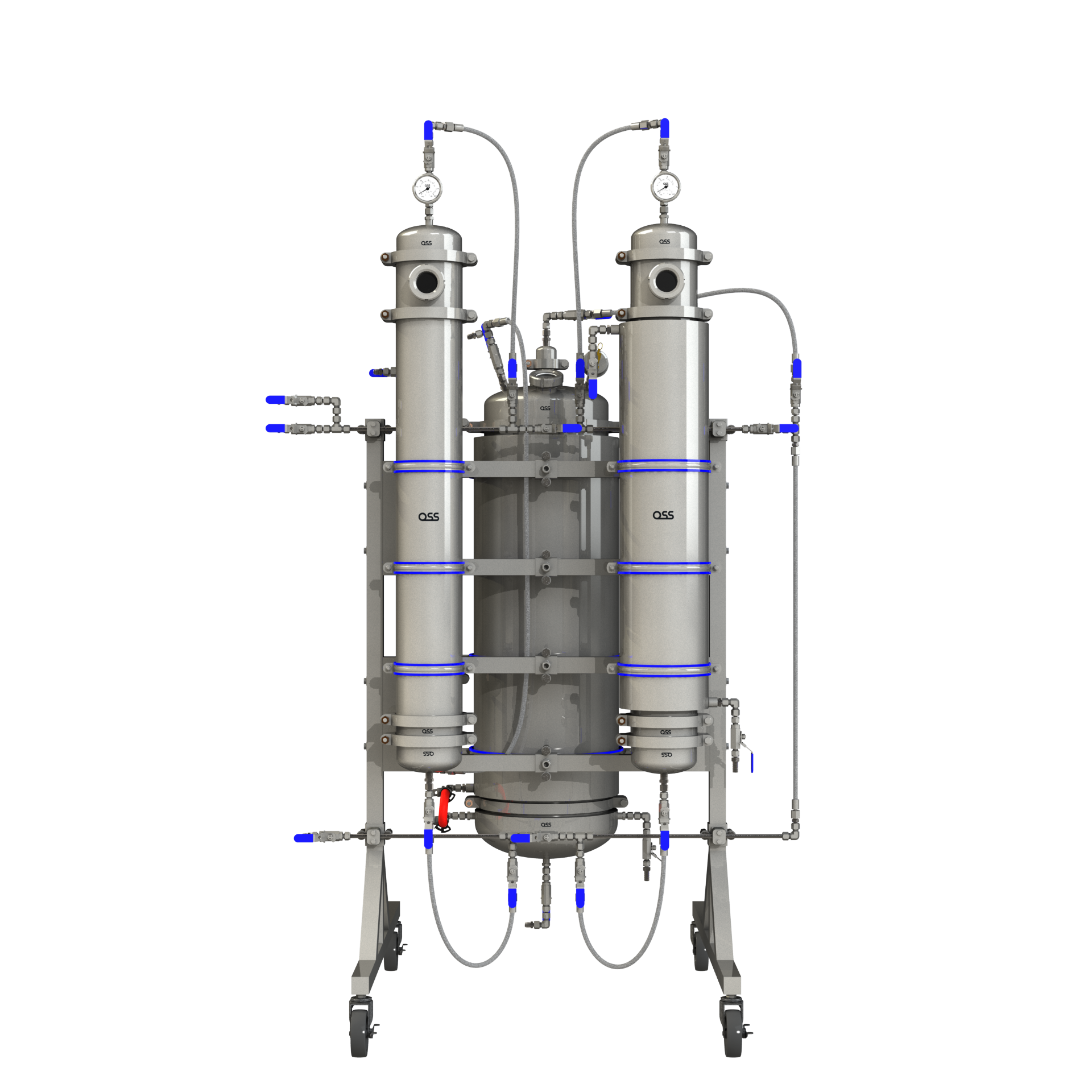

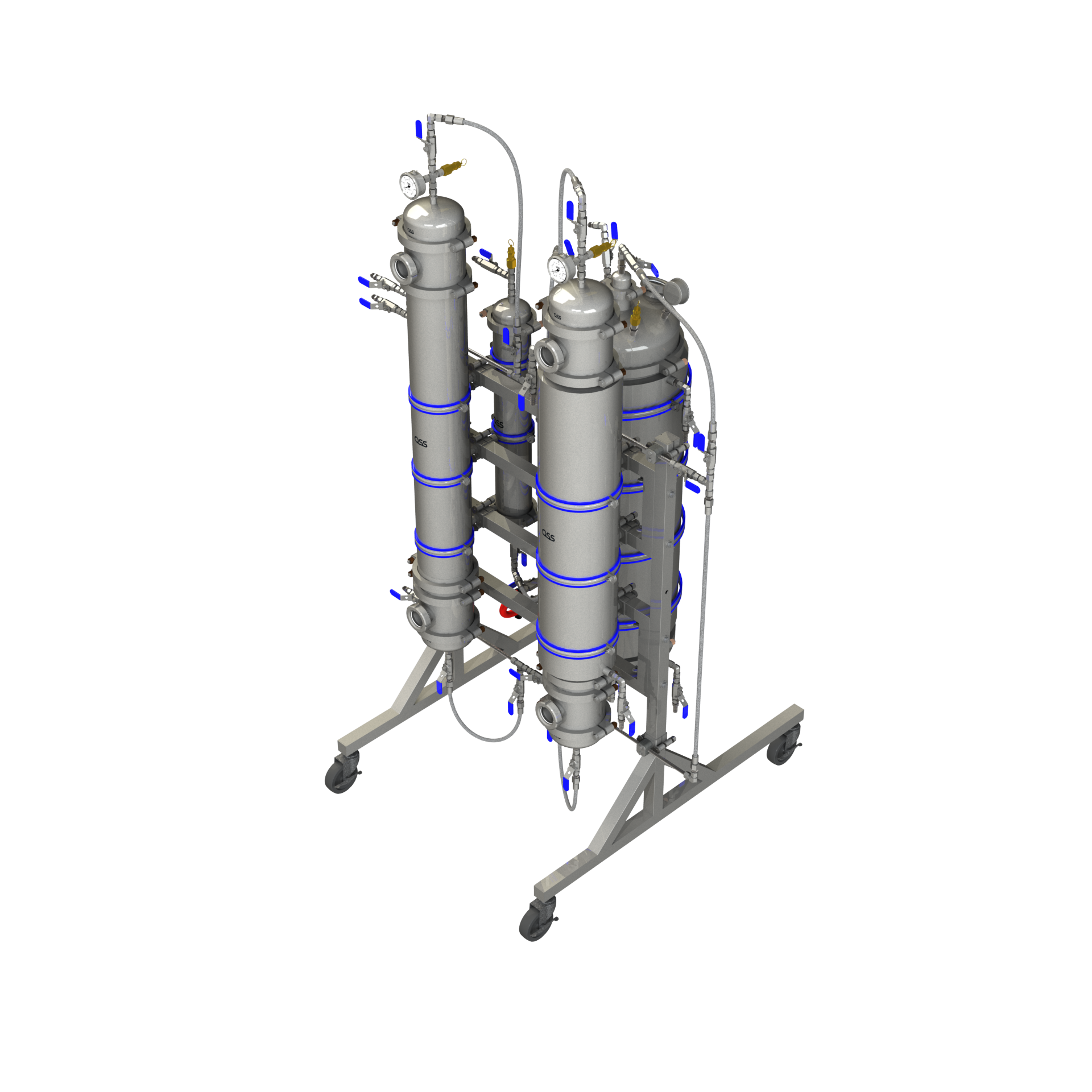

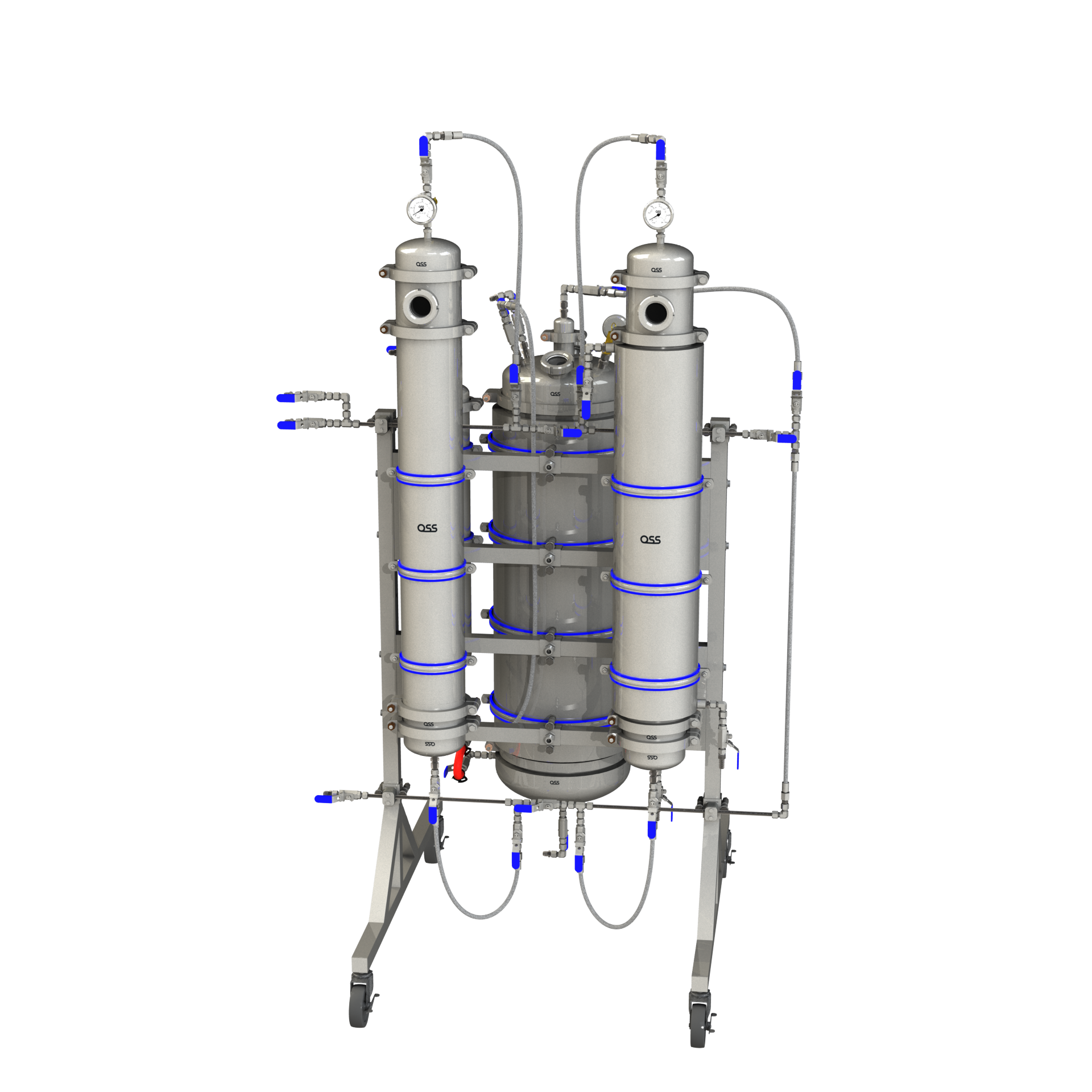

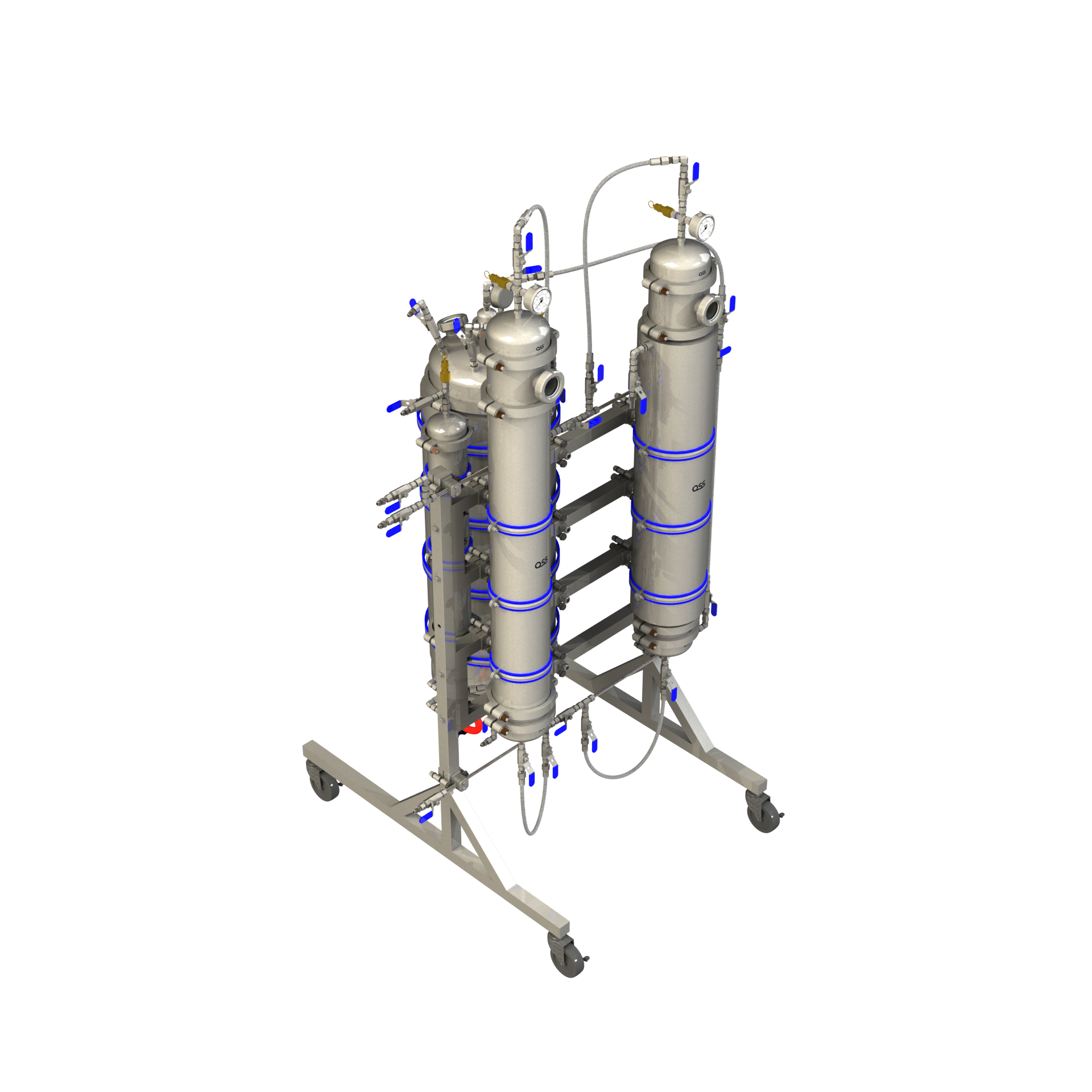

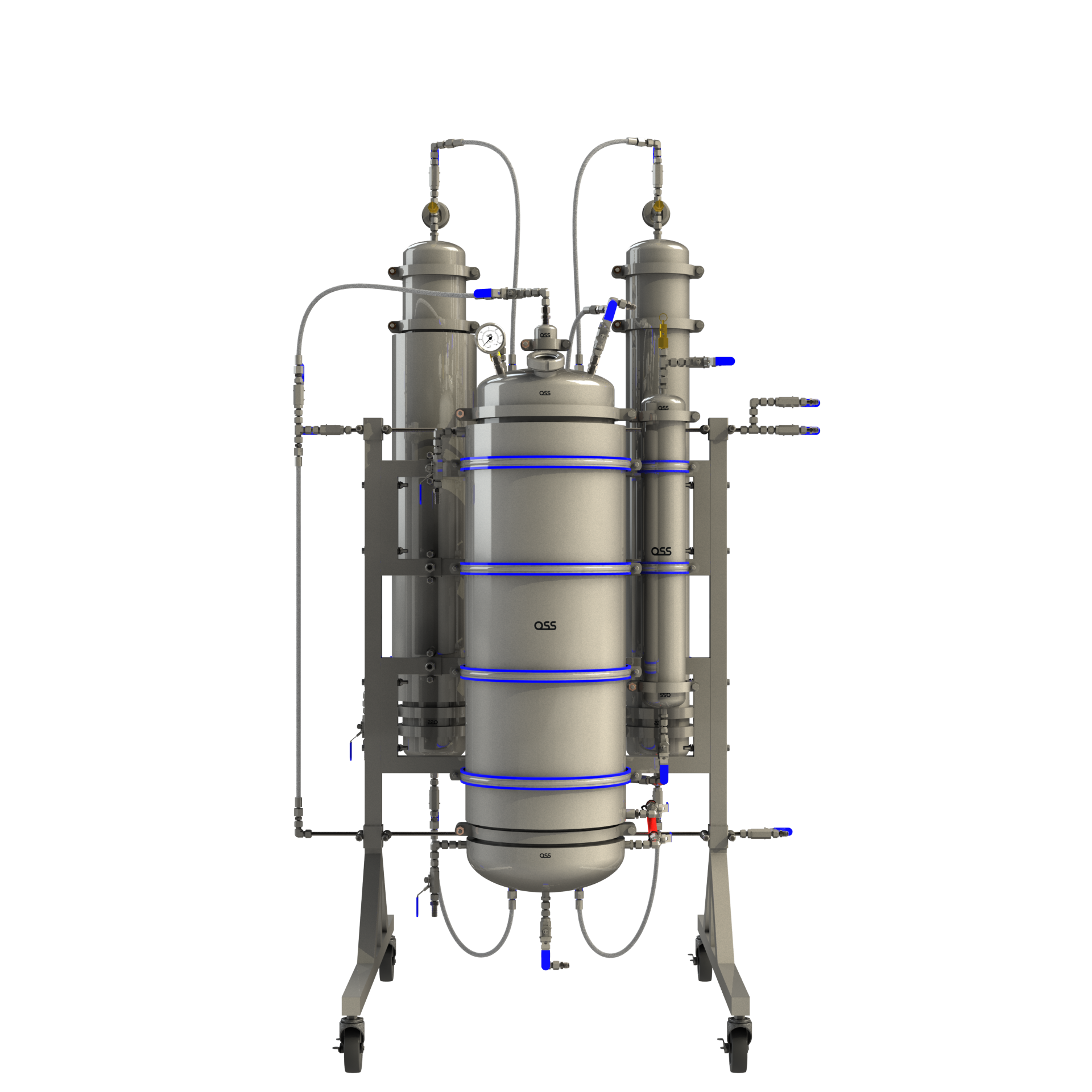

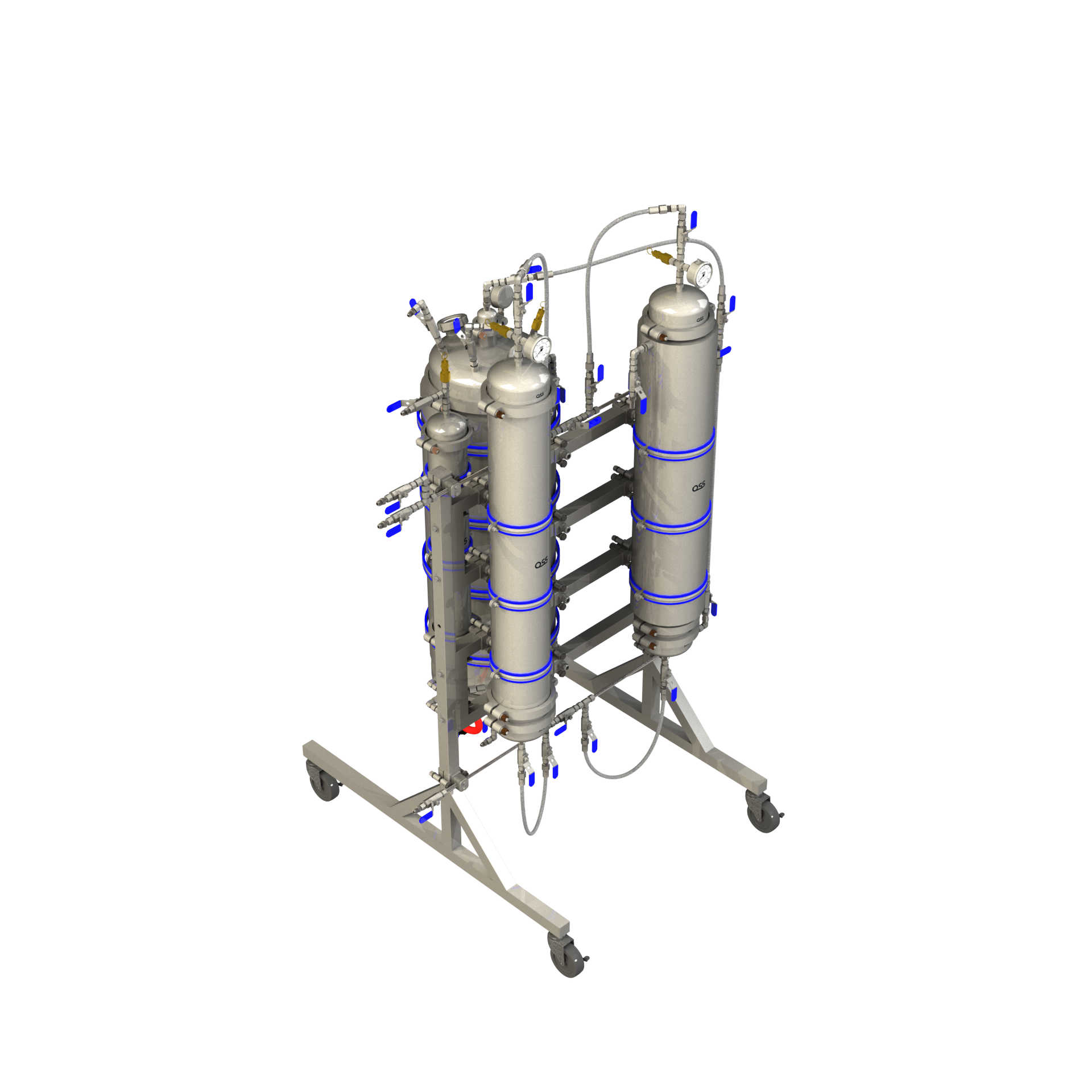

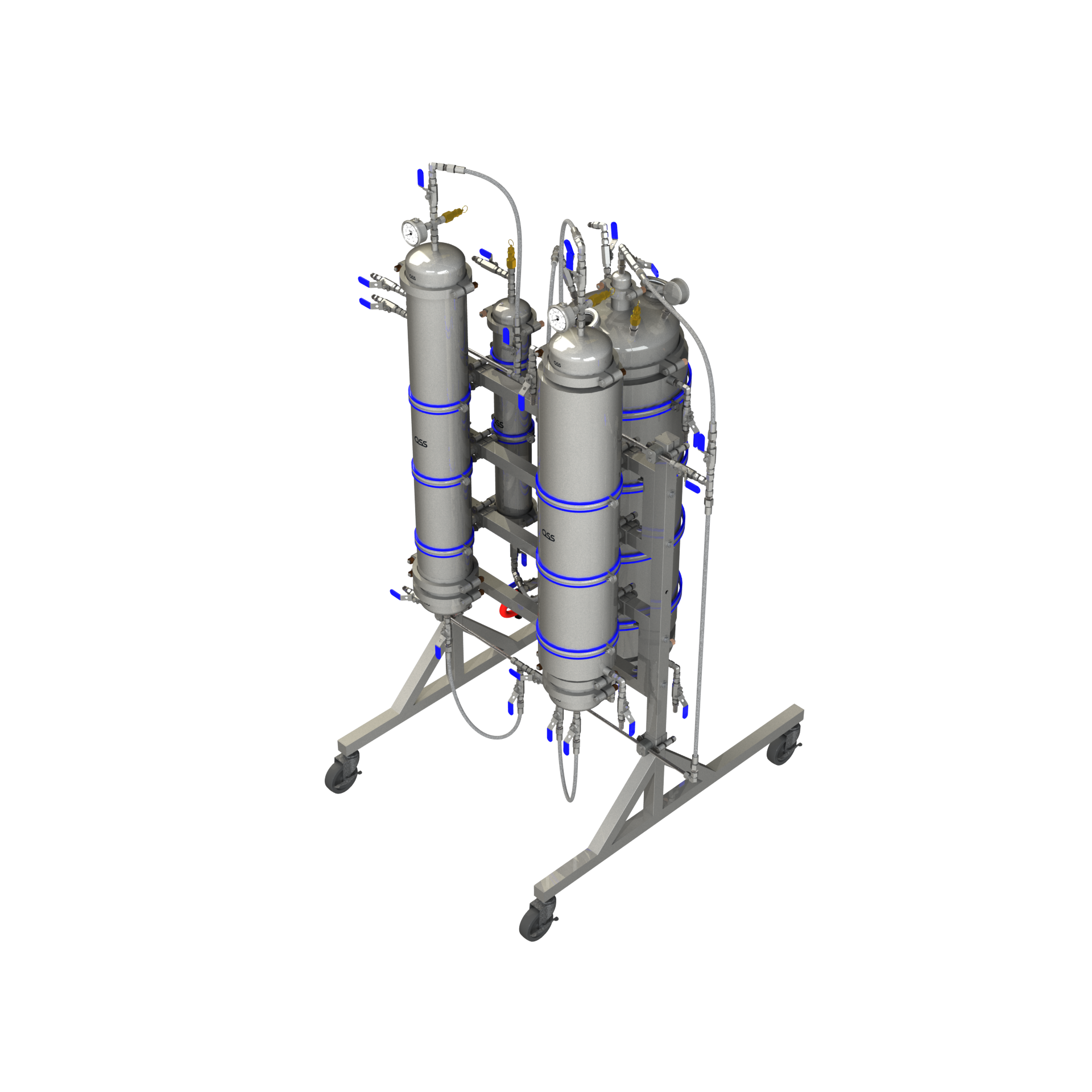

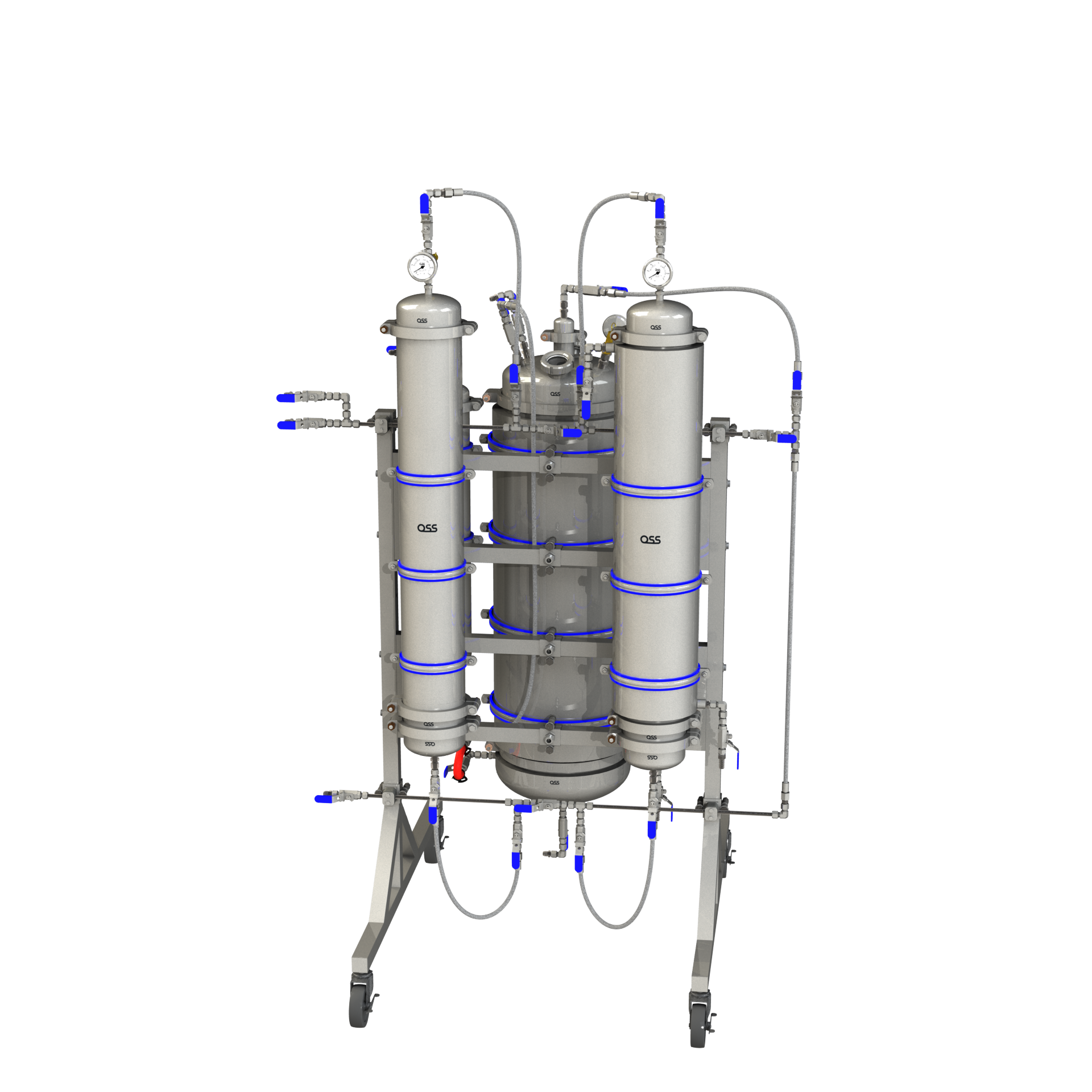

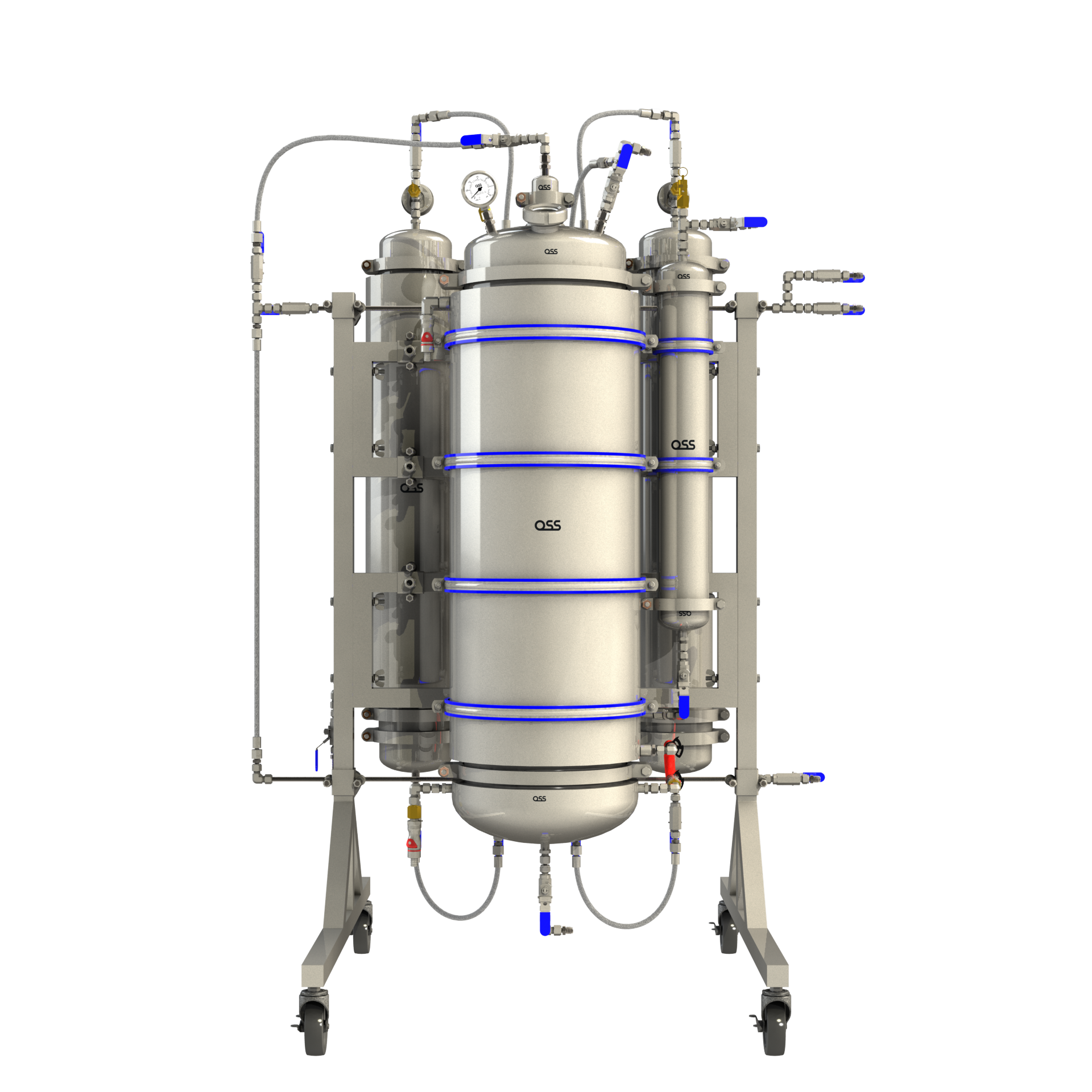

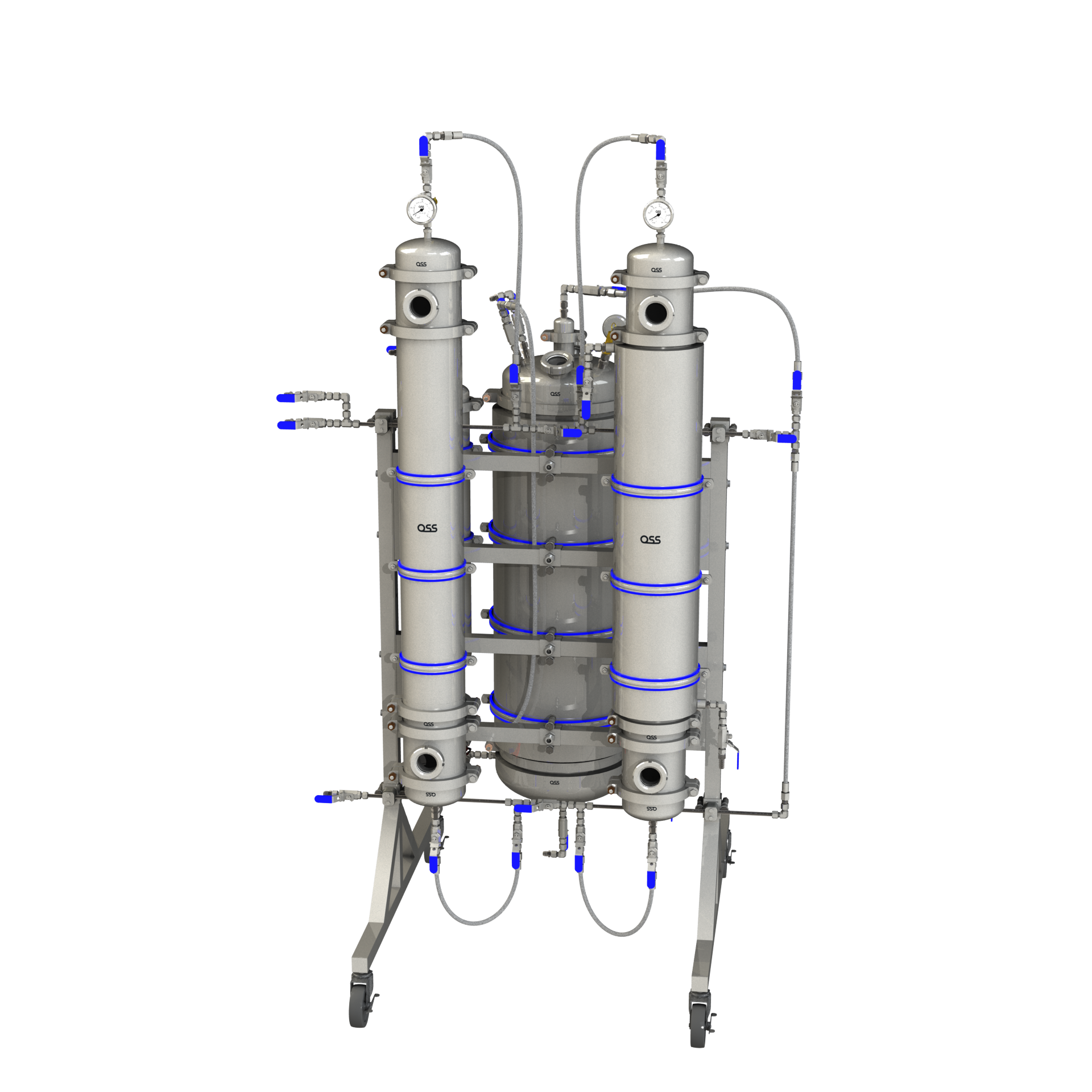

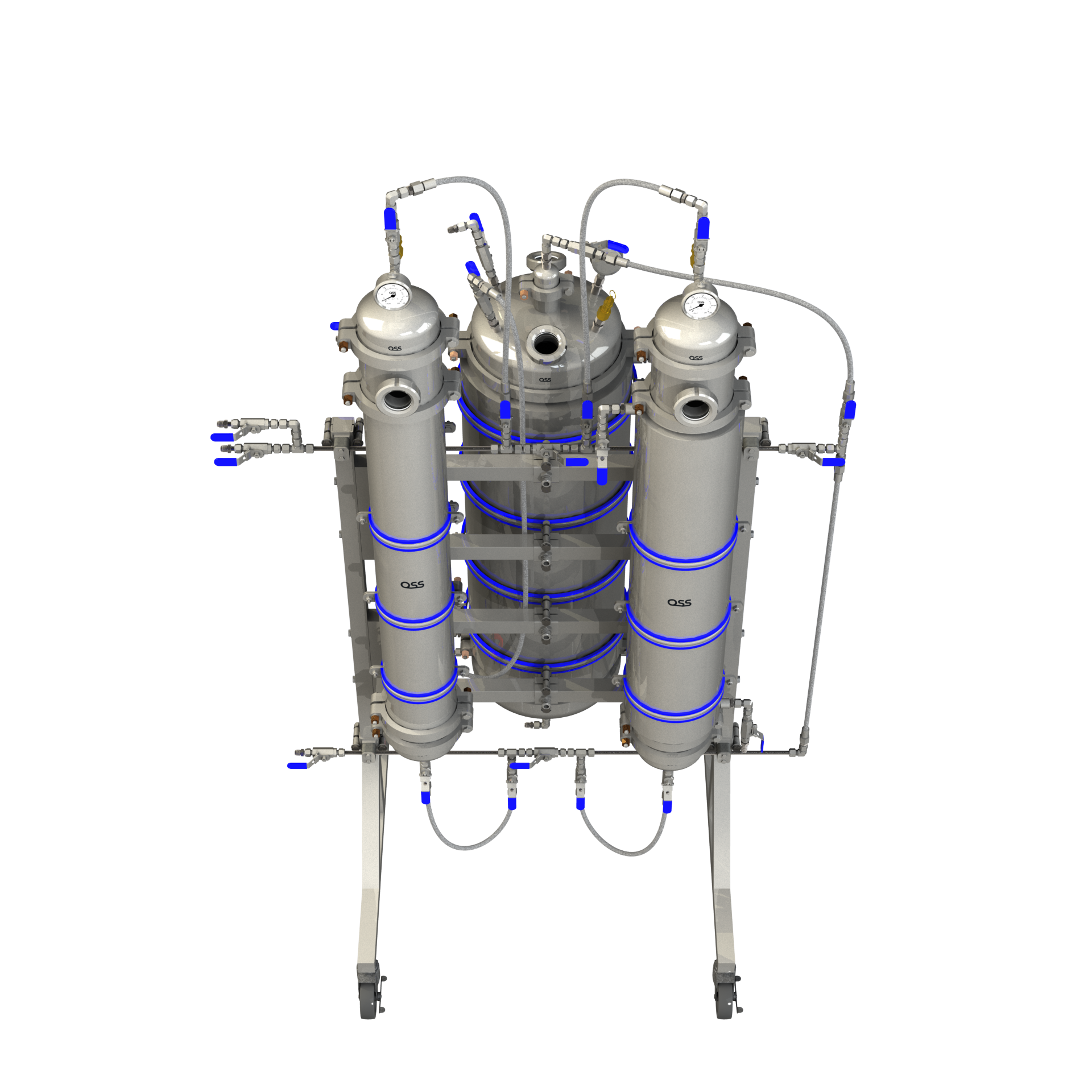

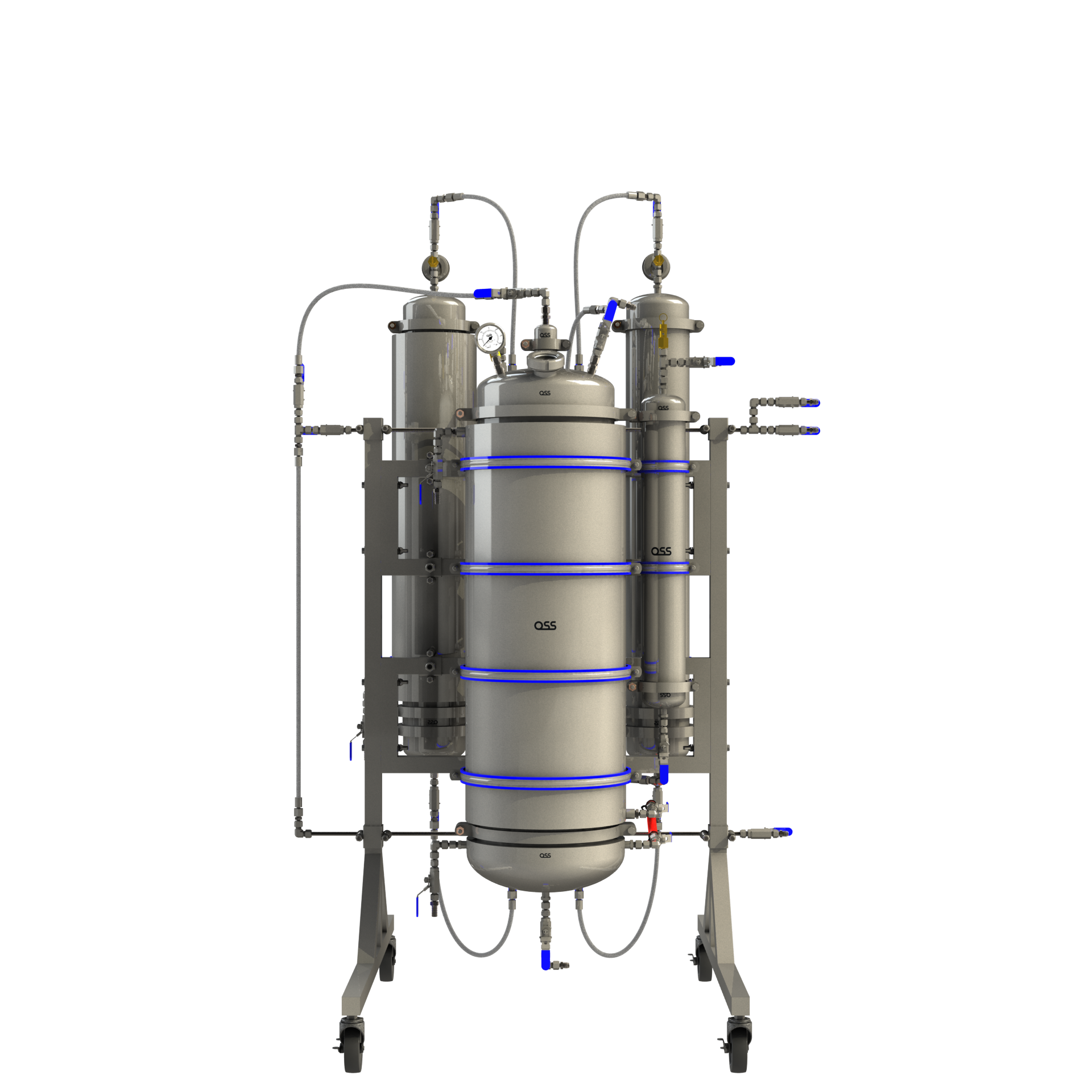

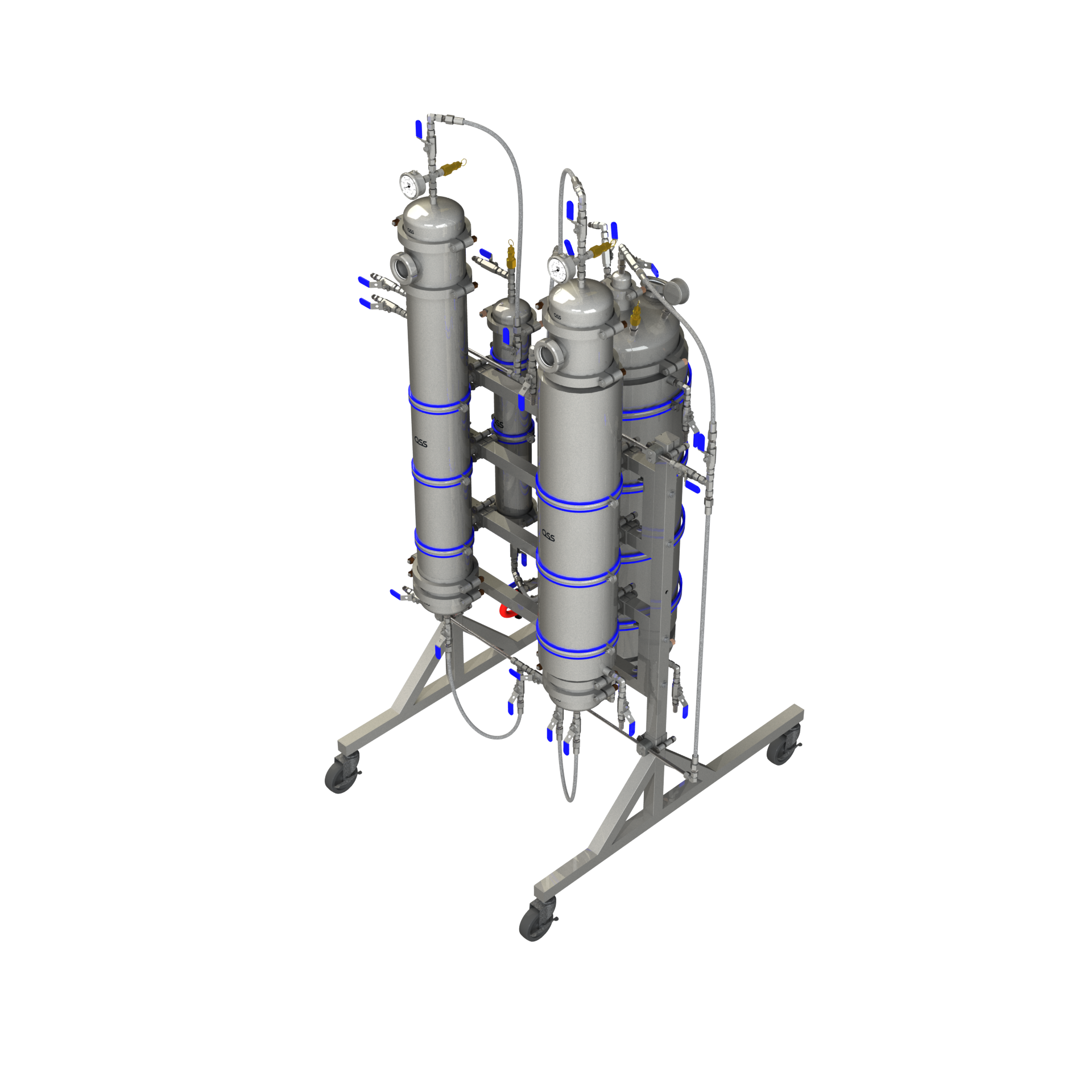

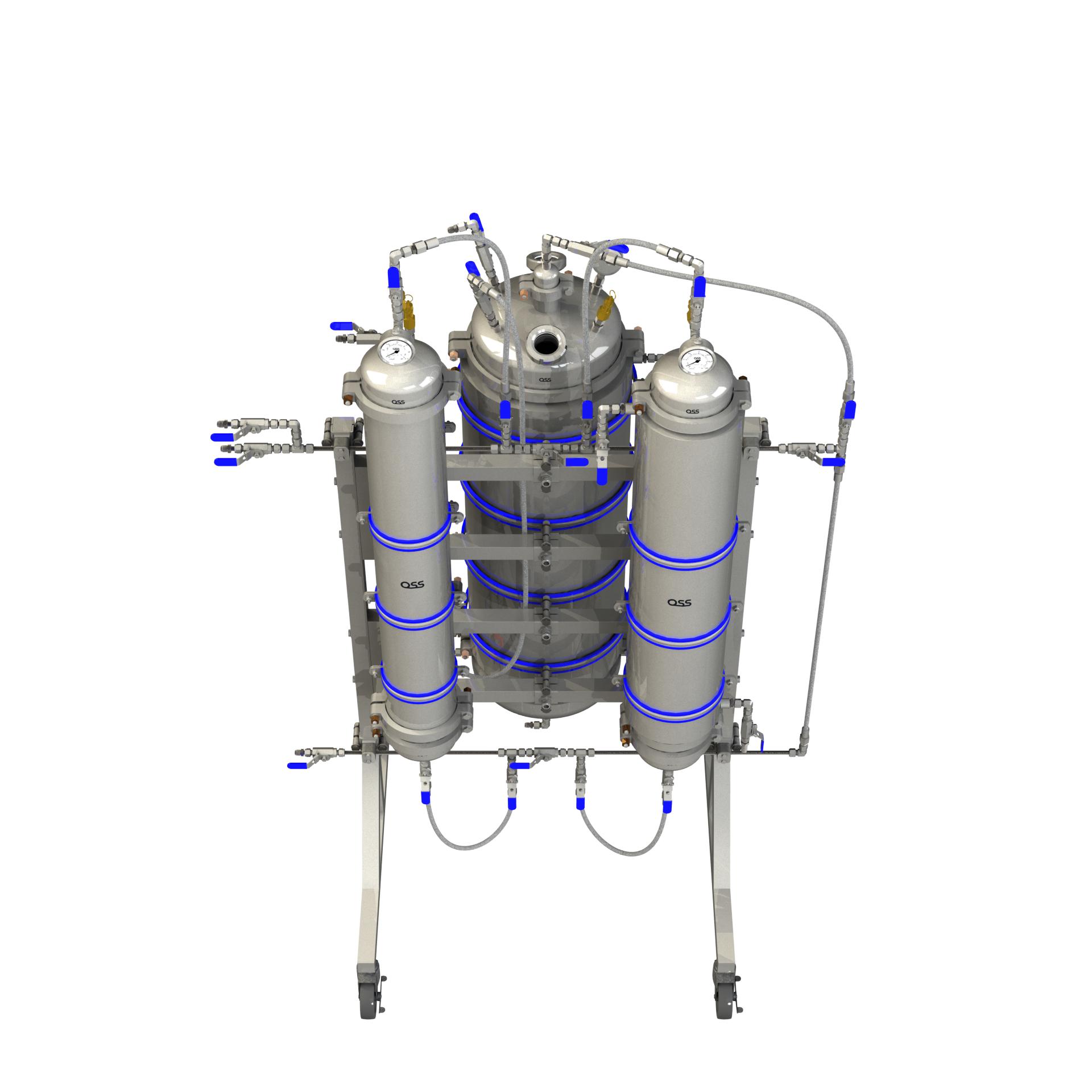

Rainier V2 Extractor - (15lbs.) - 6"x36"

Rainier V2 Extractor - (15lbs.) - 6"x36"

Regular price $ 13,462.69
Regular price Sale price $ 13,462.69
Sale Sold out
Shipping calculated at checkout.

Pre-Assembled & Pressure Tested!

  • Two 6” x 36” - 15 lb Material Capacity Spools
  • 12” x 36” - 40L/50lbs Evaporator Vessel
  • Integrated liquid/gas injection manifold
  • 25-25um Inline Filtration
  • 1-3um Inline Filtration
  • 4” x 24” Inline Desiccant Filter Dryer (removes moisture in your gas!)
  • 2” Inline Sight Windows for Process Viewing (watch your complete extraction start to finish!)
  • ⅜” Double Ferrule Compression Fittings & Ball Valves
  • ⅜” AN/JIC Hose Connections

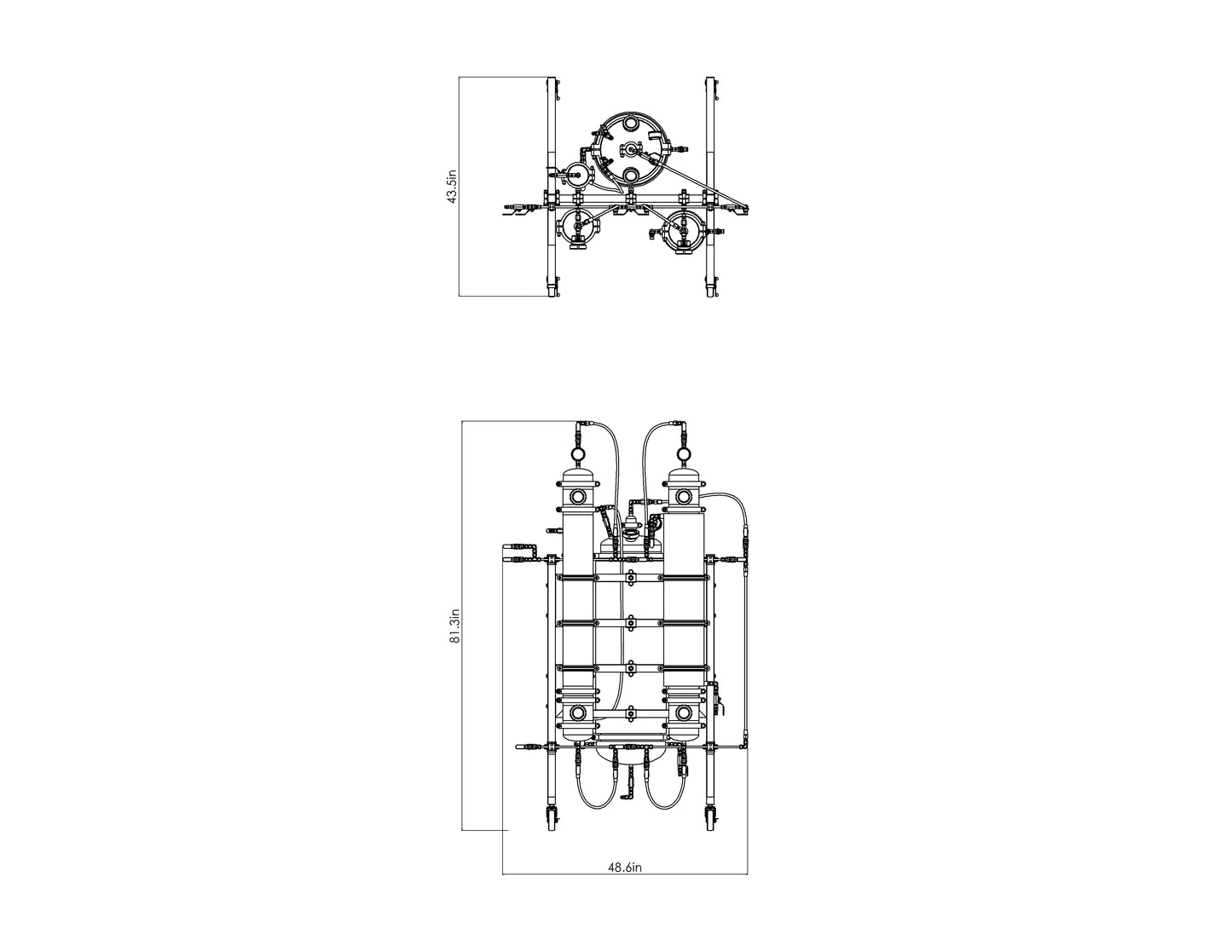

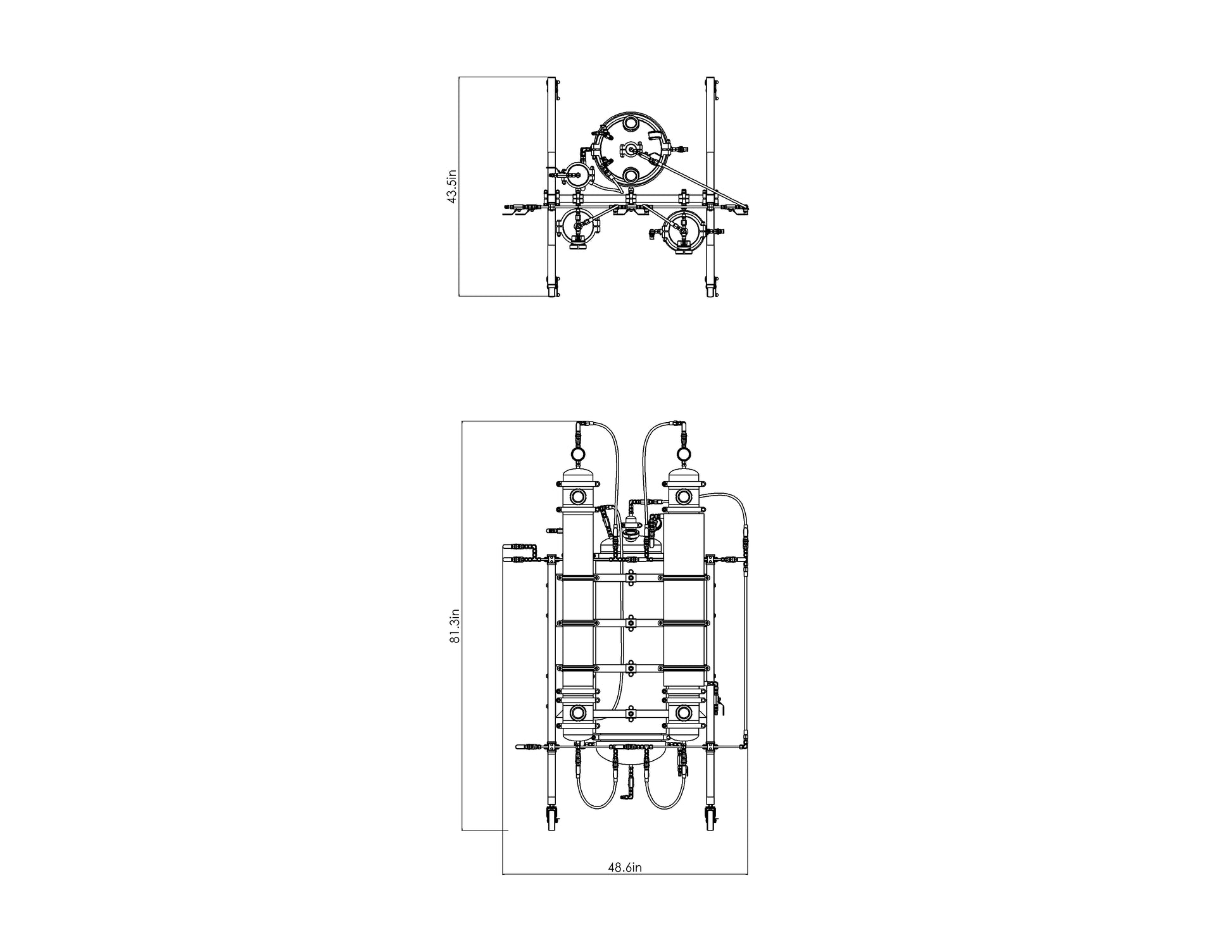

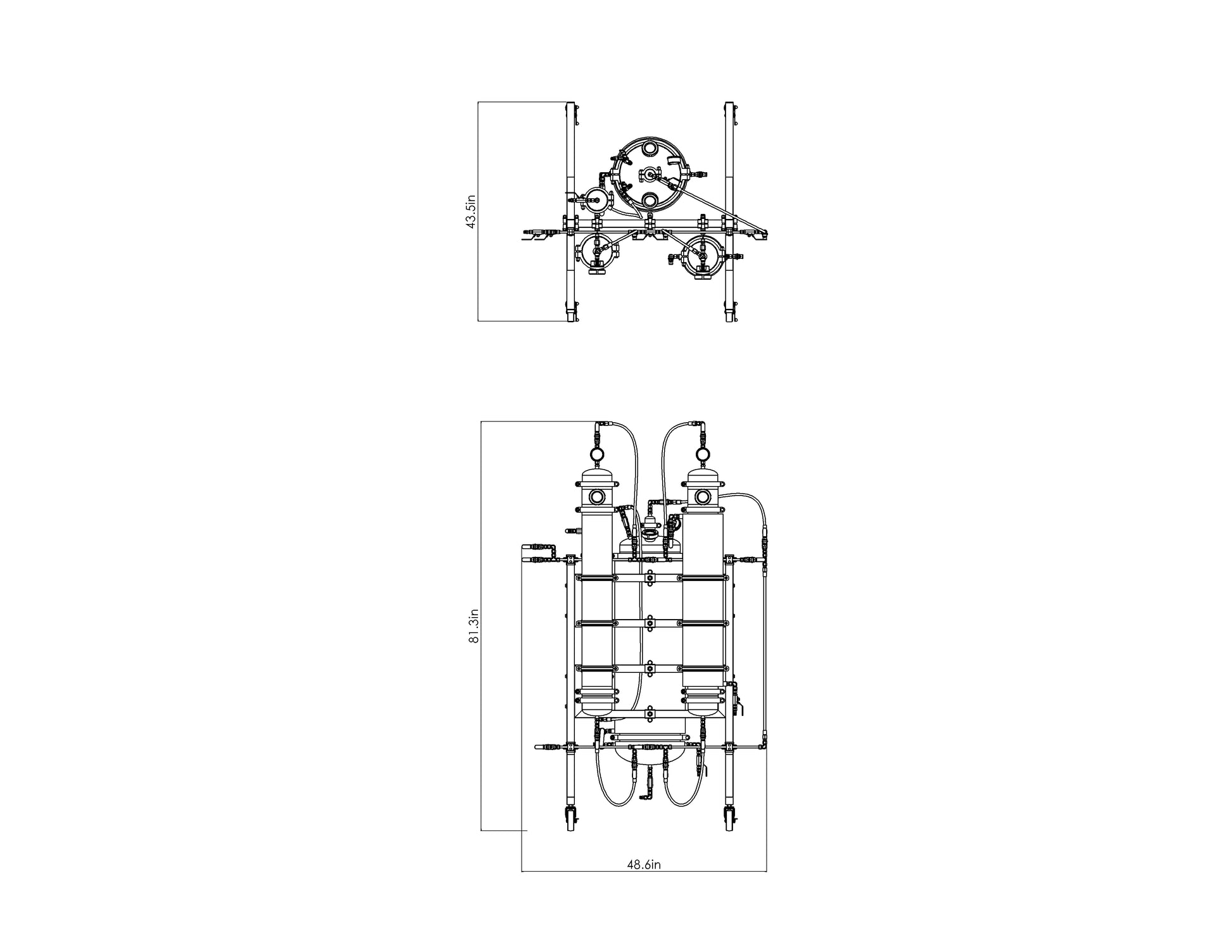

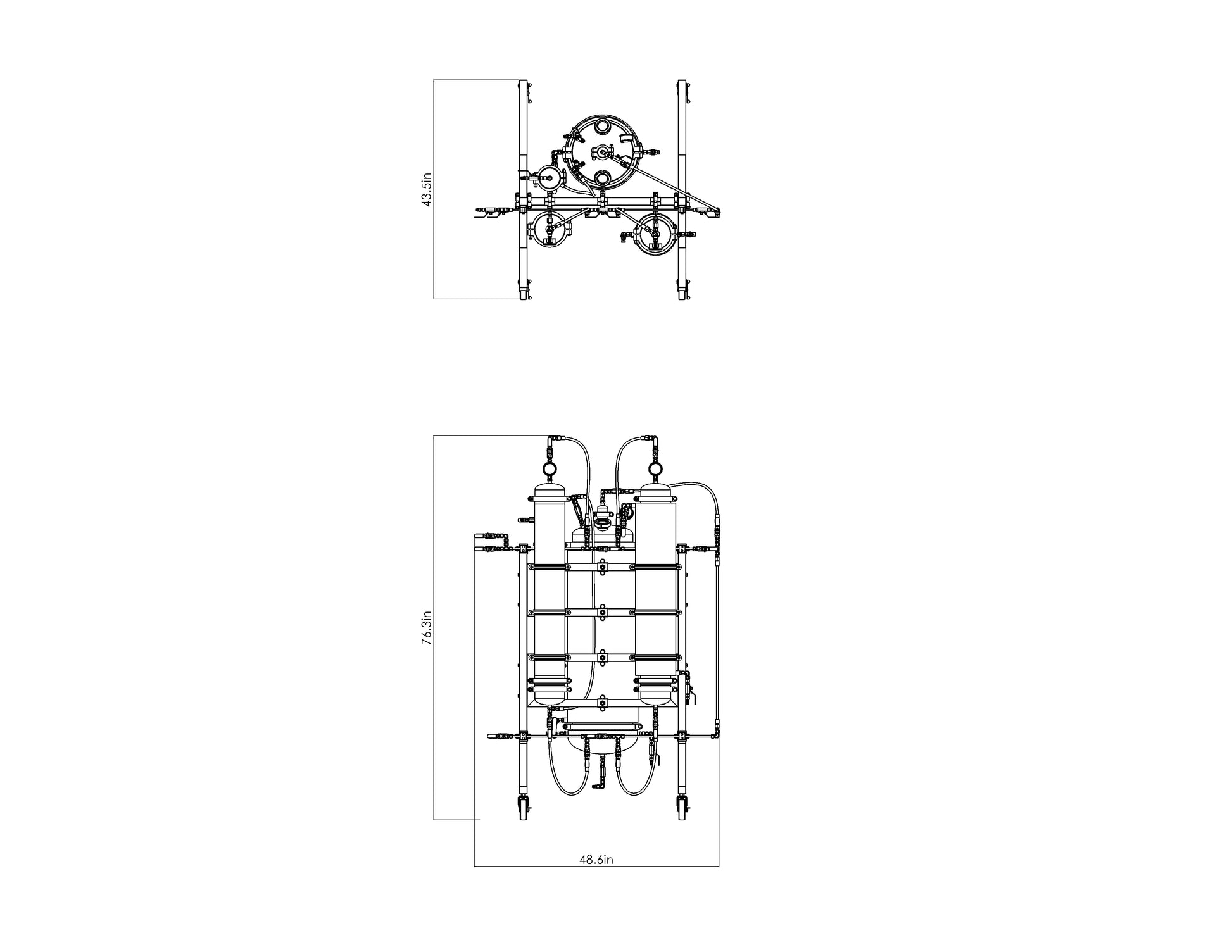

  • Compact Footprint: (LxWxH) 41x29x74

    • 90 minute run time*.
    • Process 60lbs+ of material in one 8 hour shift!**
    • Two Material Columns allowing for alternating load/wash cycles.
    • Integrated manifold with -50c rated OSS Ball Valves
    • Round Bottom Jacketed Base designed for hot water recirculation for a speedy recovery
    • Easy to use pour spout for oil capture

    • SOLVENT TANK SOLD SEPARATELY
    • Setup for Passive Recovery
      -If you're recovering actively, look into our Coils/CondensersPumpsand Heaters/Chillers to upgrade
    • Included Filter Papers - (1-3micron and 20-25micron)
    • Included Filter Socks - (4x Size - 6"x36")
    • Included Stainless Braided Hosing - (4x 18", 1x 24", 1x 32", 2x 48", 1x 72", 1x 96")
    • Optional: Rubber Hosing for Hot Water Recirculation (½” x 25ft)
    • *All run times are based on 99.95% Iso-Butane.
    • **Run times do not include loading and unloading of material or cleanup time.
    • ***Recovery times vary depending on the amount of available hydrocarbon vapors.



    EXAMPLE OF JACKET CONNECTION OPTIONS

    1/2" HOSE BARB

    1/2" QUICK CONNECTS



     Replacement & Accessory Items



    Compression Ball Valve - 3/8" Compression Ball Valve - 3/8"



    1/2" Hose Barb x 3/8" Compression Tube Stub 1/2" Hose Barb x 3/8" Compression Tube Stub



    LQ6 CPC Quick Connects



    1/2" ID Rubber Hose - Custom Length 1/2" ID Rubber Hose - Custom Length
    1/2" ID Rubber Hose - Preset Lengths 1/2" ID Rubber Hose - Preset Lengths
    Nylon Filter Sock
    Evaporator Vessel
    Material Column
    Jacketed Material Column
    R3 Rack R3 Rack
    Molecular Sieve Molecular Sieve
    Molecular Sieve Bead Molecular Sieve Bead
    Stainless Steel Braided PTFE Hose - (3/8")
    Ashless Quantitative Filter Paper (Pack of 100) Ashless Quantitative Filter Paper (Pack of 100)
    Filter Stack Inserts Filter Stack Inserts
    Compression Compound Gauge - 3/8" Compression Compound Gauge - 3/8"
    Brass Pressure Relief Valve (125 PSI) - MNPT Brass Pressure Relief Valve (125 PSI) - MNPT
    Nylon Hose Clamp, Max O.D. 0.875in. Nylon Hose Clamp, Max O.D. 0.875in.
