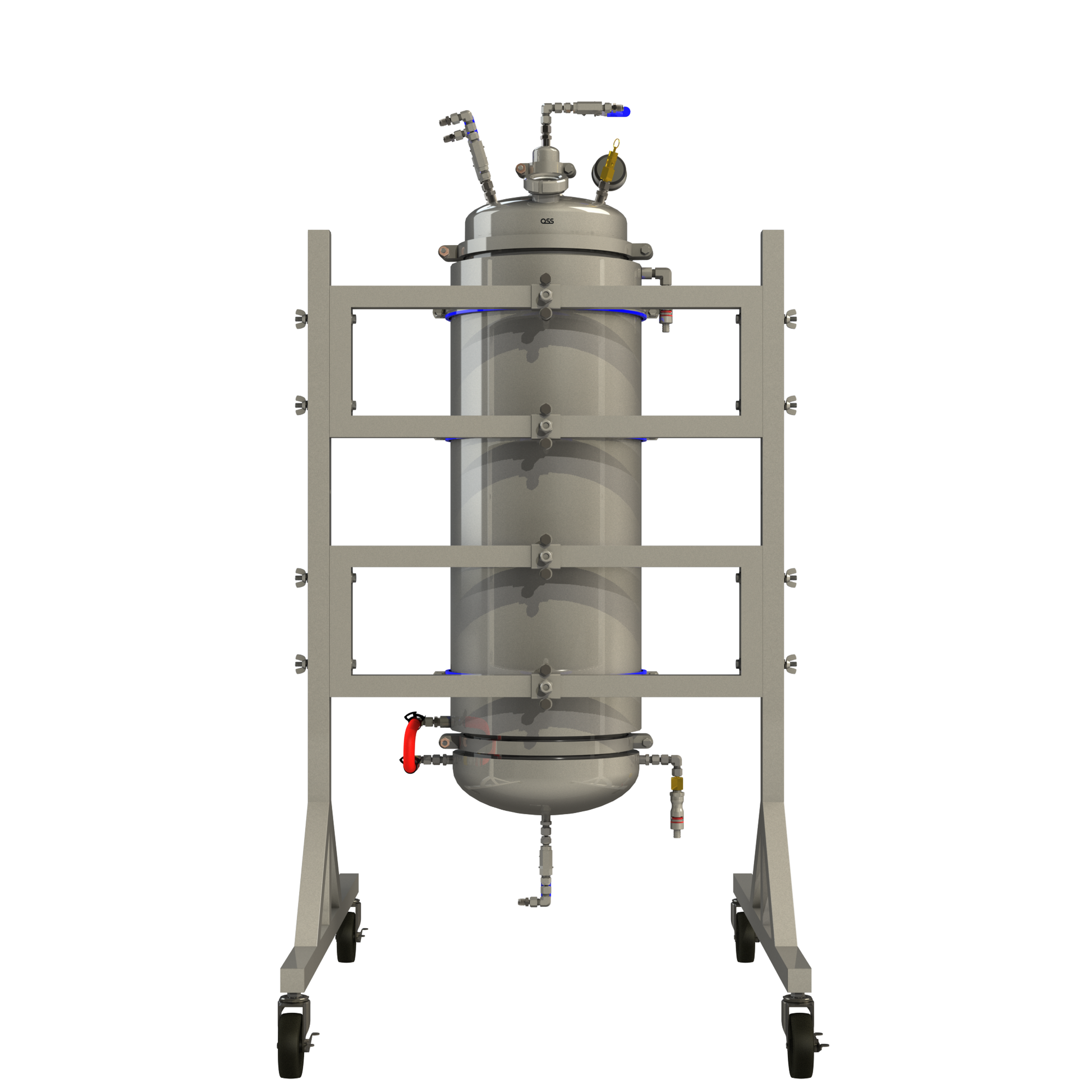

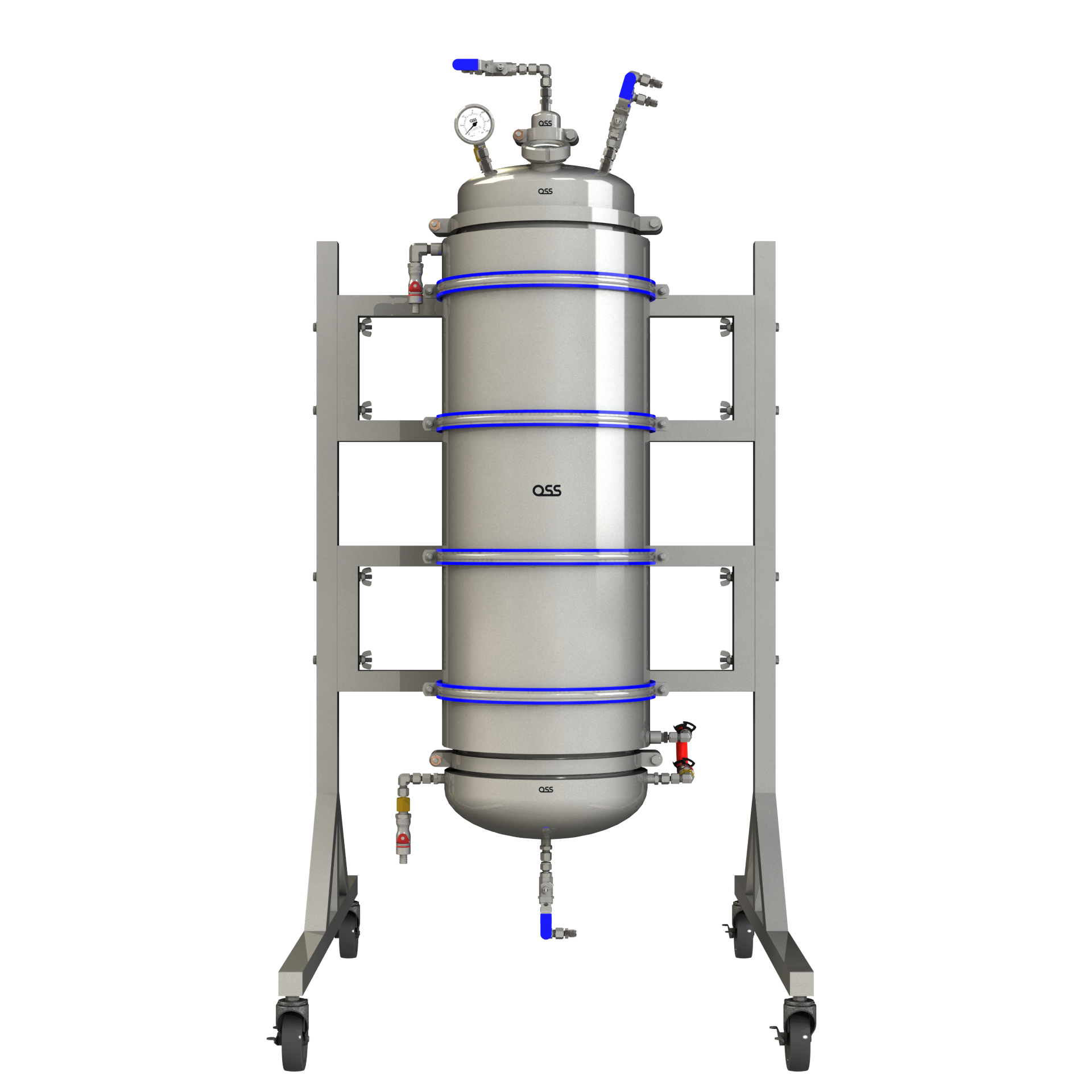

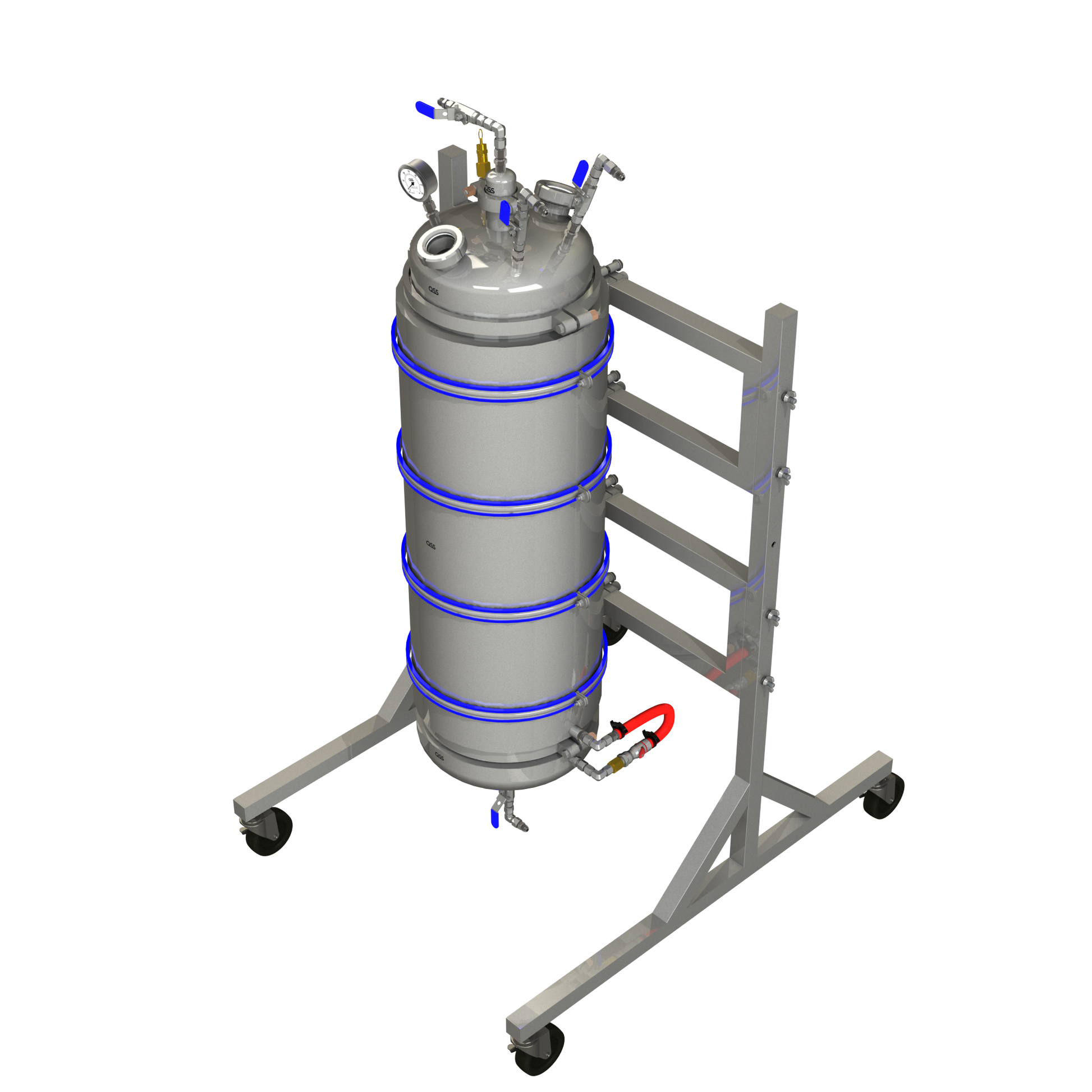

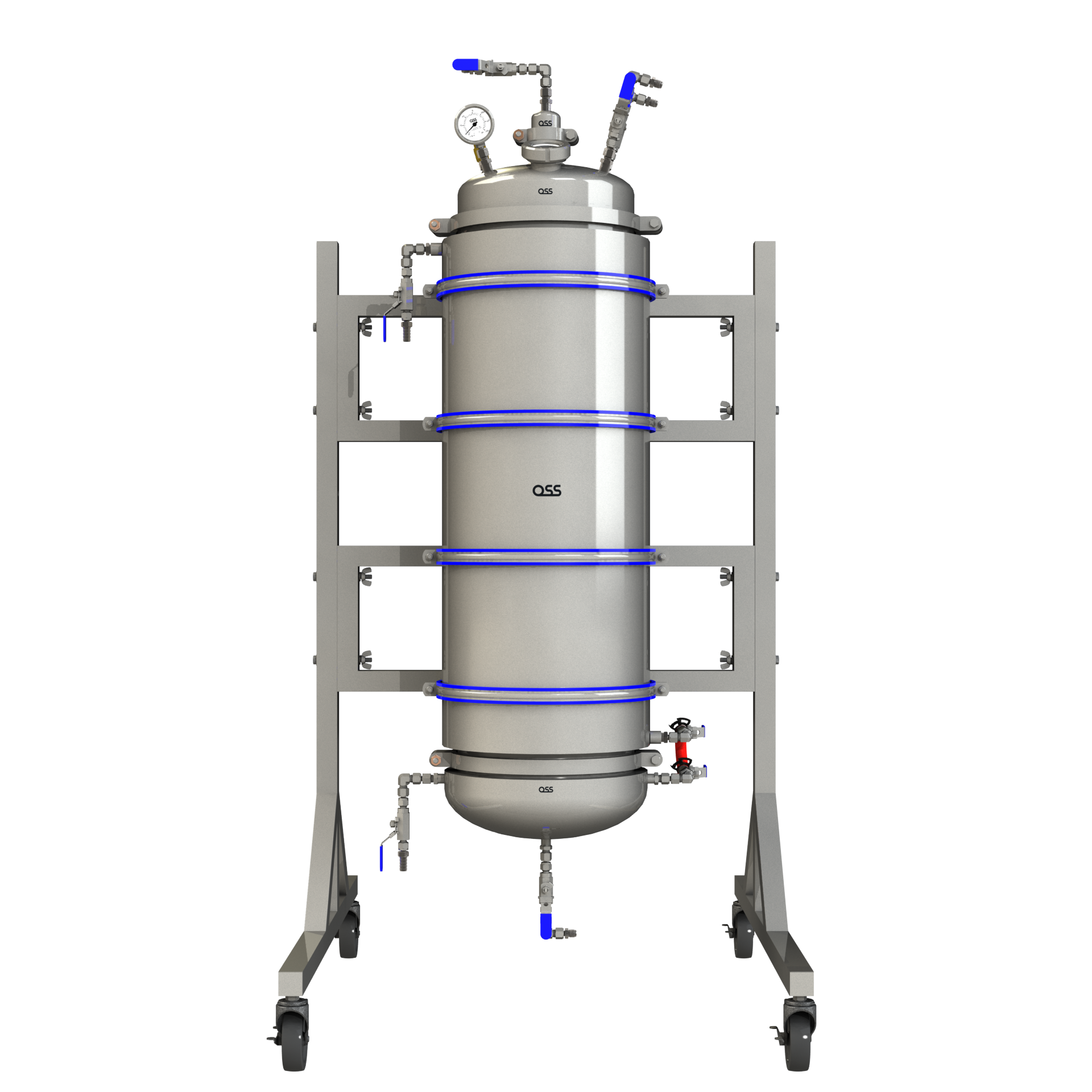

Single Sided Collection Rack

Single Sided Collection Rack

Contains the following parts.    Component index Product ID Description Quantity OSS-G-VIT-12 12" Viton Tri-Clamp Fitted Gasket 2 1 OSSTC12HPC High-Pressure Tri-Clamp 12" 2 2...

Vendor :Open Source Steel

Type :Complete Packages

$ 4,399.99
Add to wishlist

Contains the following parts.



Component index Product ID Description Quantity

OSS-G-VIT-12 12" Viton Tri-Clamp Fitted Gasket 2
1 OSSTC12HPC High-Pressure Tri-Clamp 12" 2
2 OSSLID12COMP 12" Compression Rounded Lid W/ Sight Windows 1
3 OSSJS12X36 Jacketed Sanitary Tri-Clamp Spool 12x36 1
4 10107 12" Jacketed Compression Round Bottom Collection Base 1
5 OSS-RACK-R2 R2 Rack 1
6 OSS-RACK-R2-CEN R2 Rack Center 1
7 213-517-1 SS HEX CAP SCREW 18-8 4
8 130-007-1 SS FLAT WASHER 18-8 8
9 130-207-1 SS MED LOCK WASHER 18-8 4
10 232-110-1 Wing Nuts, M10 1.5 4
11 OSSTCARC2COMP 2" Compression Rounded Tri-Clamp Cap 1
12 62368 LQ6 CPC Quick Connect Stem 4
13 62370 LQ6 CPC Quick Connect Body 4
14 OSSMC14 Stainless Mounting Clamp 14" 4
15 10121 3/8" Compression Compound Gauge 150 bottom mount 1
16 4277 3/8" PRV x Compression Adapter O-Ring Seal 3
17 10186 3/8" PRV x Compression Adapter Body 3
18 5633W-125 Brass ASME PRV 3/8" x 125 PSI 1
19 OSSCFVALVE2W 3/8" OSS Compression Ball Valve 5
20 OSSCF38xMJICTS 3/8" MJIC x 3/8" Tube Stub 5
21 OSSCF38PORT 3/8" Compression Port Connector 11
22 OSSCF38ELBOW 3/8" Compression Elbow Union, 90 Degree 7
23 OSSG2VIT 2" Viton Tri-Clamp Gasket 1
24 OSSTC2HPC High Pressure Tri-Clamp 2" 1
25 OSSFA14FN14MN90 3/8 FNPT x 3/8 MNPT 90 Elbow 2
26 OSSHO38x72 Stainless Steel Braided PTFE Hose 3/8x72 1
27 143816 Manifold Tubing SS316 3/8" OD x 0.035" Wall











9
