Open Source Steel

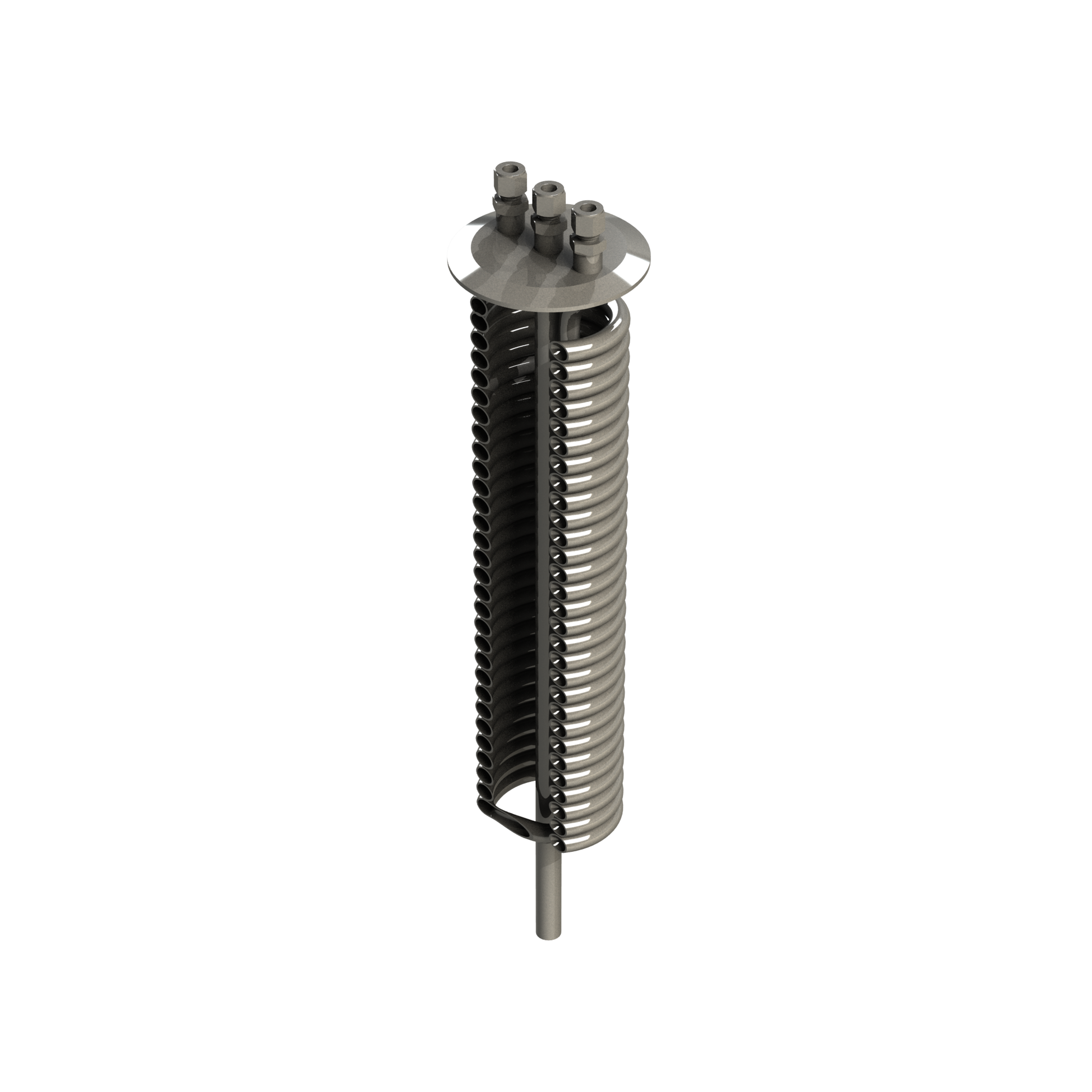

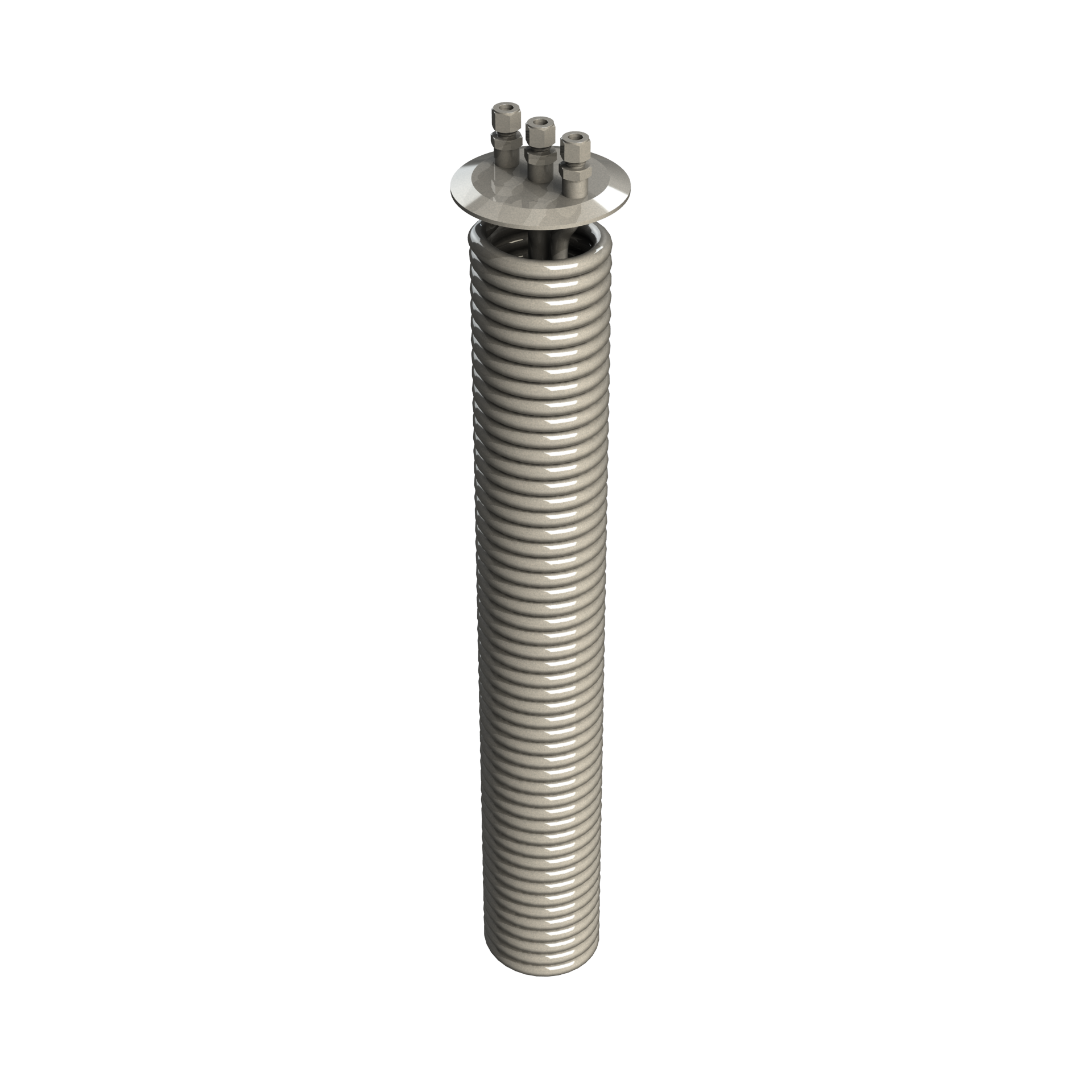

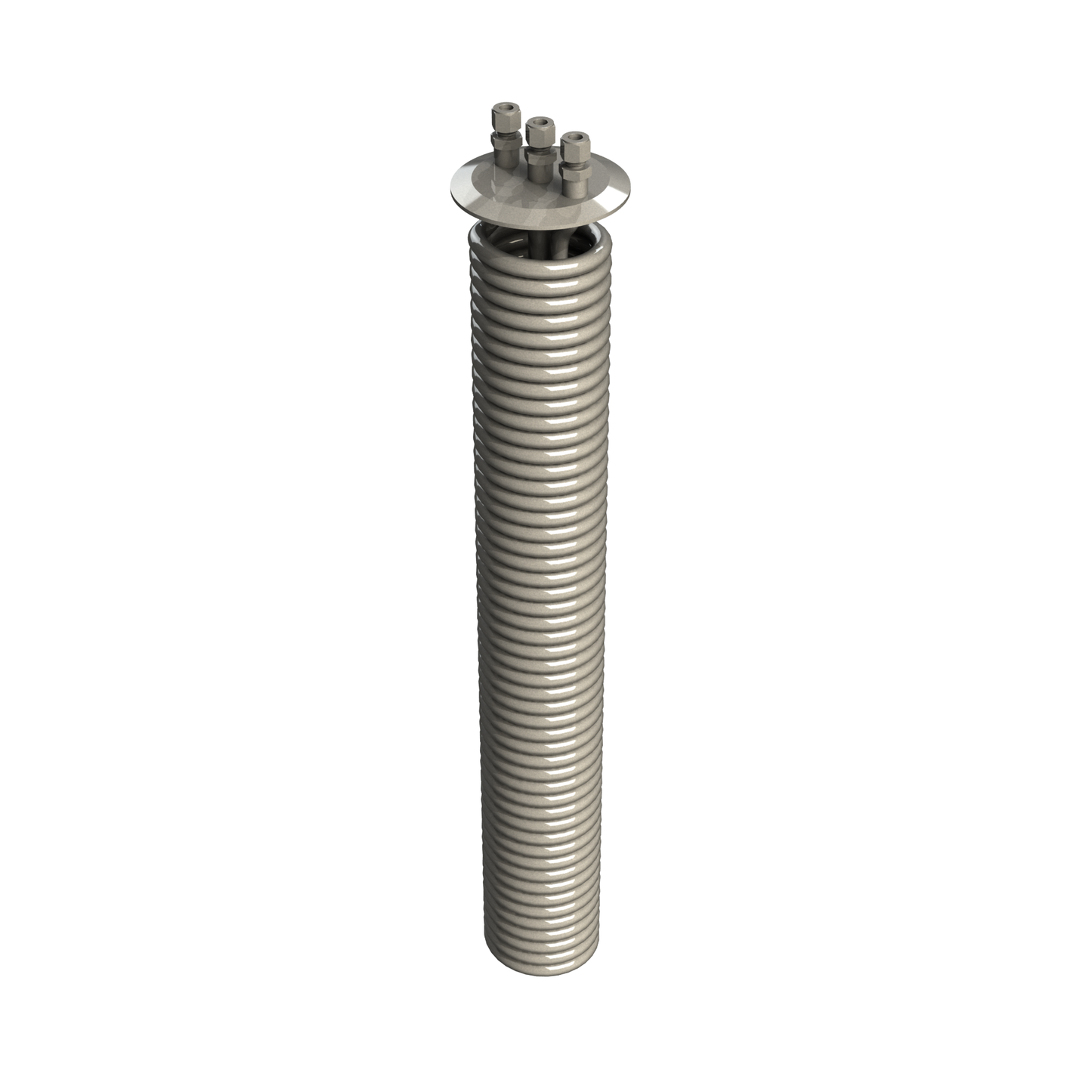

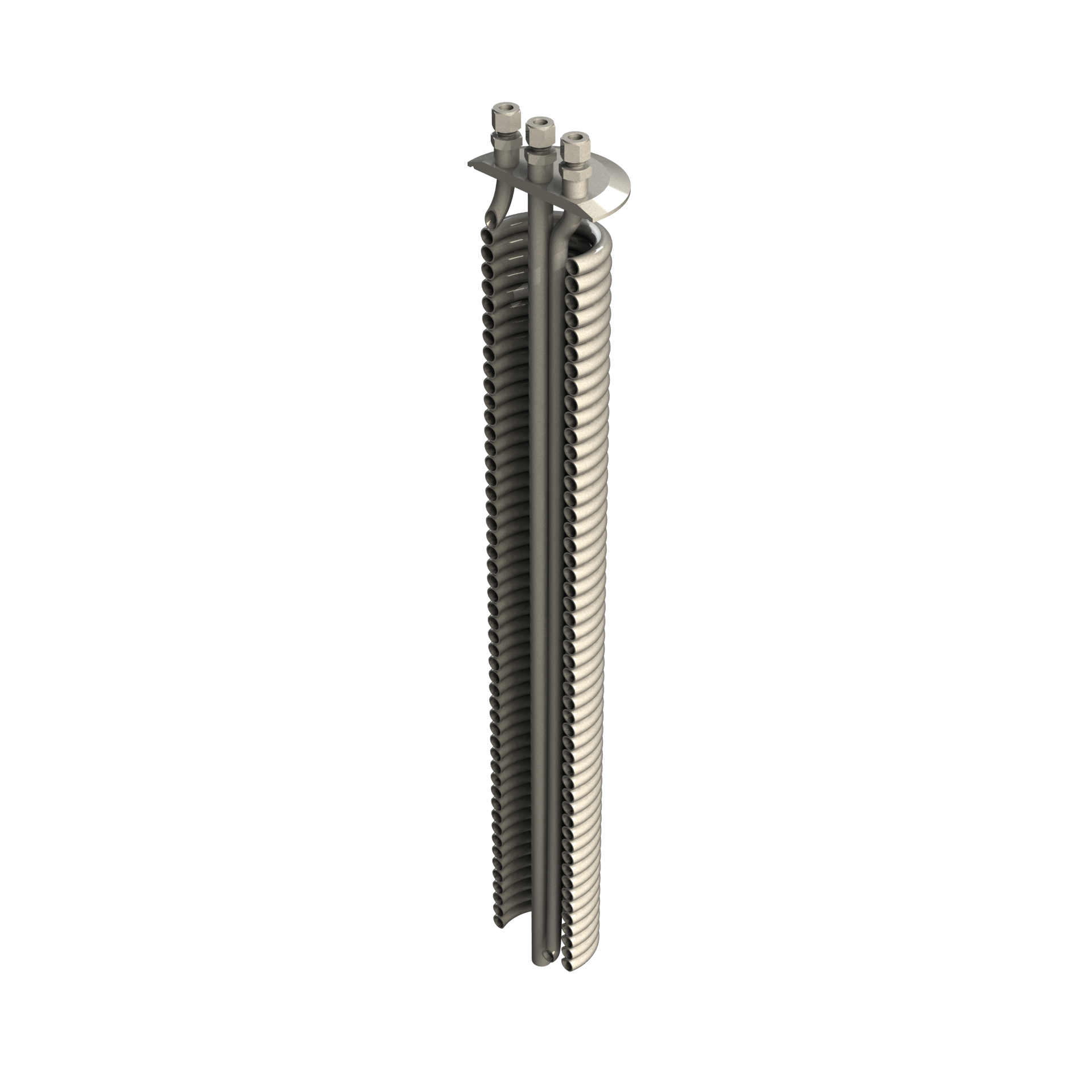

Condensing Coil Siphon Tube for Solvent Tank

Condensing Coil Siphon Tube for Solvent Tank

Regular price $ 710.50
Regular price Sale price $ 710.50
Sale Sold out
Shipping calculated at checkout.

Condensing Coil Siphon Tube for Solvent Tank

Size Options Available:

50lb Jacketed Solvent Tank
50lb Solvent Tank
25lb Solvent Tank

Description:

This coil increases your control of solvent temperature/pressure

Circulate liquid/vapor in the coil while still allowing use of the dip tube

Comes with 3x 3/8" Compression Fittings on a 4" Tri-Clamp Flat Cap

Coil Tubing Diameter: 1/2"

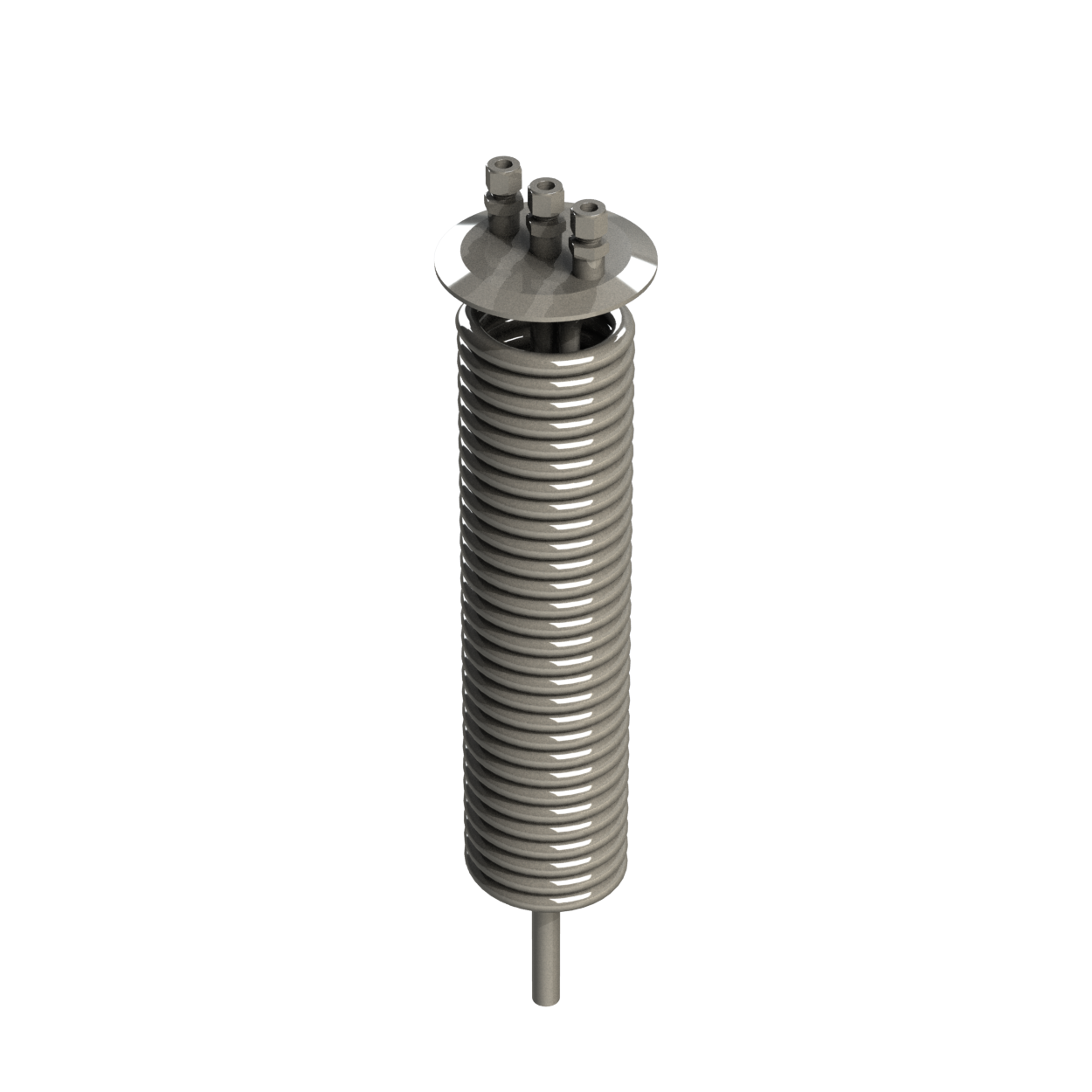

 EXAMPLE OF 25LB SOLVENT TANK



 CONDENSING COIL DIPTUBE LENGTHS

*measured from under the flat cap to the end of the diptube
50lb Jacketed Solvent Tank 30 1/2"
50lb Solvent Tank 28 5/16"
25lb Solvent Tank 20 1/8"





SOLVENT TANK DIPTUBE LENGTHS

*measured from under the flat cap to the end of the diptube
100lb Jacketed Solvent Tank 48 3/16"
100lb Solvent Tank 48 3/16"
50lb Jacketed Solvent Tank 30 1/2"
50lb Solvent Tank 28 5/16"
25lb Jacketed Solvent Tank 13 3/16"
25lb Solvent Tank 20 1/8"
15lb Solvent Tank 22 7/16"
10lb Jacketed Solvent Tank 13 3/4"



 COIL PATH LENGTHS

50LB = 43FT
25LB = 25FT



If you're buying for an older style tank or need a custom length cut, follow these instructions:

At checkout, in the Section "ADD A COMMENT TO YOUR ORDER?", please note the custom length needed. Thanks!

*DOES NOT FIT WITH OUR 25LB JACKETED TANKS
