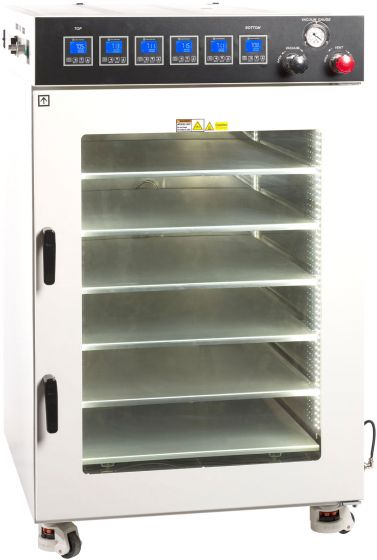

UL/CSA Certified 16 CF Vacuum Oven w/ 6 Shelves & SST Tubing

UL/CSA Certified 16 CF Vacuum Oven w/ 6 Shelves & SST Tubing

Electrical requirements 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts Heating 250 watts x 6, built into 6...

Vendor :Across International

Type :Vacuum Ovens

$ 15,790.00
Add to wishlist
Electrical requirements
110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
or
220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
Heating 250 watts x 6, built into 6 aluminum shelves, for the fastest, most energy efficient
and uniform heating.
Chamber
Dimensions: 25.6 x 30 x 35.5" (WxDxH)
Material: Stainless steel
Capacity: 16 cubit feet
Temperature control Controller: 3rd gen low proportional gain, microcomputer PID controlled with LCD display
Range: ambient to 100°C (200°F)
Display units: Fahrenheit or Celsius
Uniformity: +/- 5% of setpoint
Dwelling timer range: 1 to 9999 minutes
Vacuum
Ultimate vacuum level: better than 500 microns/millitorrs
(
may vary based on your altitude, click here to learn more)
Mechanical vacuum gauge range: 0 to 30 inch mercury
Mechanical vacuum gauge type: oil-filled
Vacuum port: KF25 flange x 1
Vent port: 5/8" hose barb x 1
Vacuum pump: Sold separately
Approximate time to reach full vacuum:
With Edwards E2M28 21 cfm pump: 8 minutes
With Ai SuperVac 11.3 cfm pump: 11 minutes
Weight Unit: 710 Lbs, shipping: 985 Lbs
Dimensions (WxDxH) Unit: 33 x 37 x 52"
Shipping: 46 x 39 x 60"
Shelves
Heated shelves: 6 non-removalbe aluminum shelves, 25 x 29.25 inches (WxD) each
Optional stackable aluminum shelves: 25 x 29.25 x 2.375 inches (WxDxH)
Distance between shelves (without stackable shelves): 5 inches
Distance between shelves (with 6 stackable shelves): 2.375 inches
Total area without stackable shelves: 731 x 6 = 30 sq ft or 4386 sq inch
Total area with 6 stackable shelves: 731 x 12 = 60 sq ft or 8772 sq inch
Door gasket material Silicone or Viton
Observation window 1/2" tempered safety glass
Safety
Built-in circuit breaker
Overheat shutoff protection
Secondary over-temp protection dial

In-door lights White LED (pre-installed)
Compliance UL/CSA (E482564), CE
Warranty 2 years
Download Product brochure
