Open Source Steel

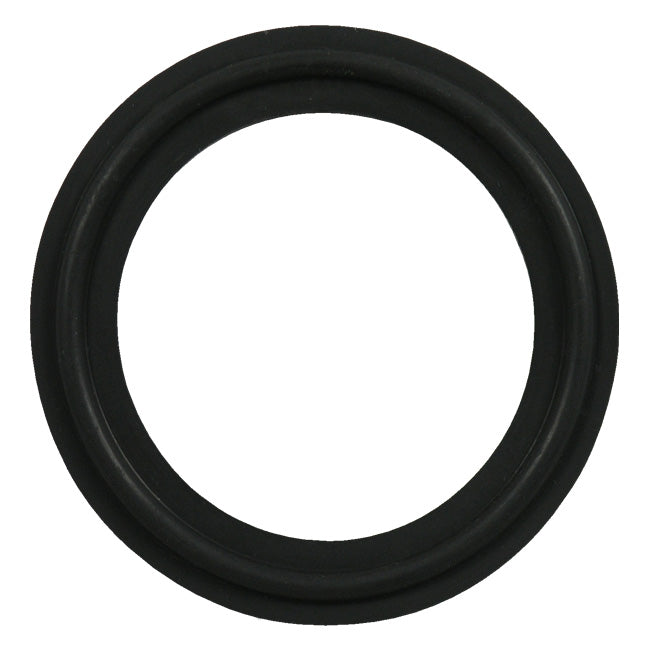

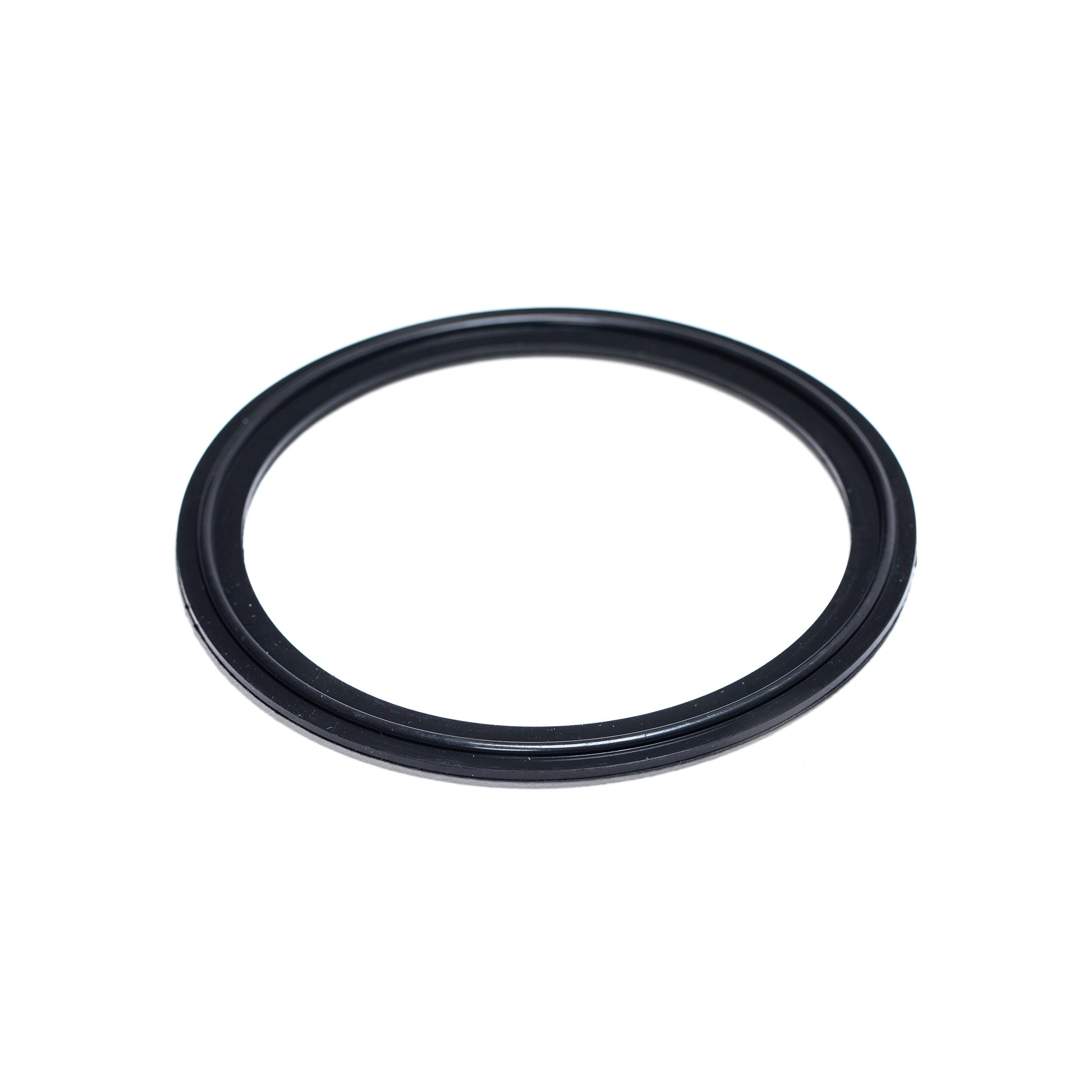

Viton Tri-Clamp Gasket

Viton Tri-Clamp Gasket

Regular price $ 1.18
Regular price Sale price $ 1.18
Sale Sold out
Shipping calculated at checkout.

Viton Tri-Clamp Gasket

Temp. Rating: -30°F to 400°F

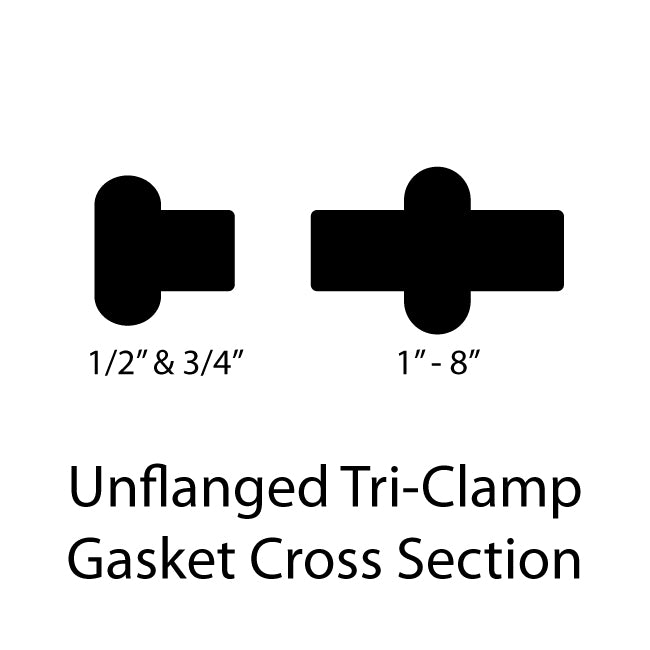

Tri-Clamp® Gasket Sizing
Size Inside Diameter Outer Diameter Bead Diameter
1/2" 0.40"
(10.2mm)
0.87"
(22mm)
n/a
3/4" 0.64"
(16.2mm)
0.87"
(22mm)
n/a
1" 0.90"
(22.9mm)
2.00"
(50.5mm)
1.71"
(43.5mm)
1-1/2" 1.39"
(35.3mm)
2.00"
(50.5mm)
1.71"
(43.5mm)
2" 1.88"
(47.8mm)
2.52"
(64mm)
2.22"
(56.5mm)
2-1/2" 2.39"
(60.5mm)
3.05"
(77.5mm)
2.78"
(70.5mm)
3" 2.88"
(73.1mm)
3.58"
(91mm)
3.29"
(83.5mm)
4" 3.85"
(97.7mm)
4.67"
(119mm)
4.33"
(110mm)
5" 4.86"
(123.5mm)
5.68"
(144.2mm)
5.29"
(134.3mm)
6" 5.80"
(147.2mm)
6.57"
(167mm)
6.16"
(156.5mm)
8" 7.80"
(198mm)
8.56"
(217.4mm)
8.15"
(207mm)
10" 9.74"
(247.4mm)
10.55"
(268mm)
10.12"
(257mm)

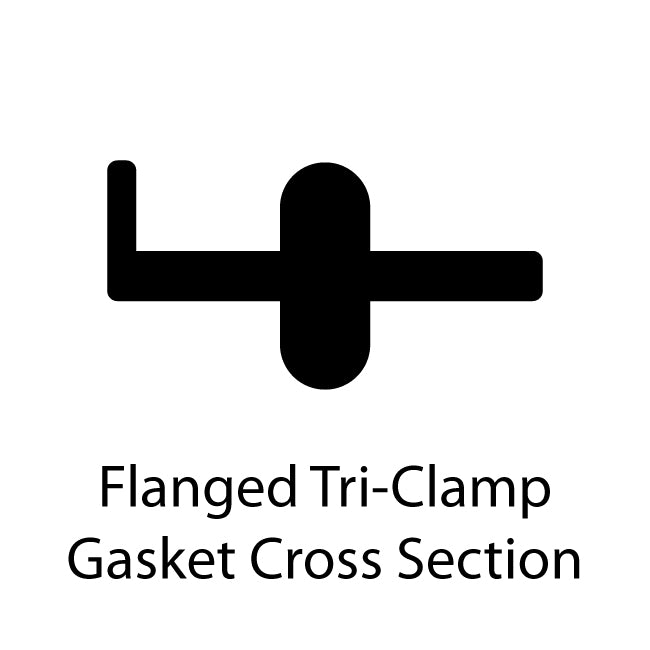

12"

Flanged

11.74"
(298.2mm)
12.66"
(321.6mm)
12.17"
(309mm)
