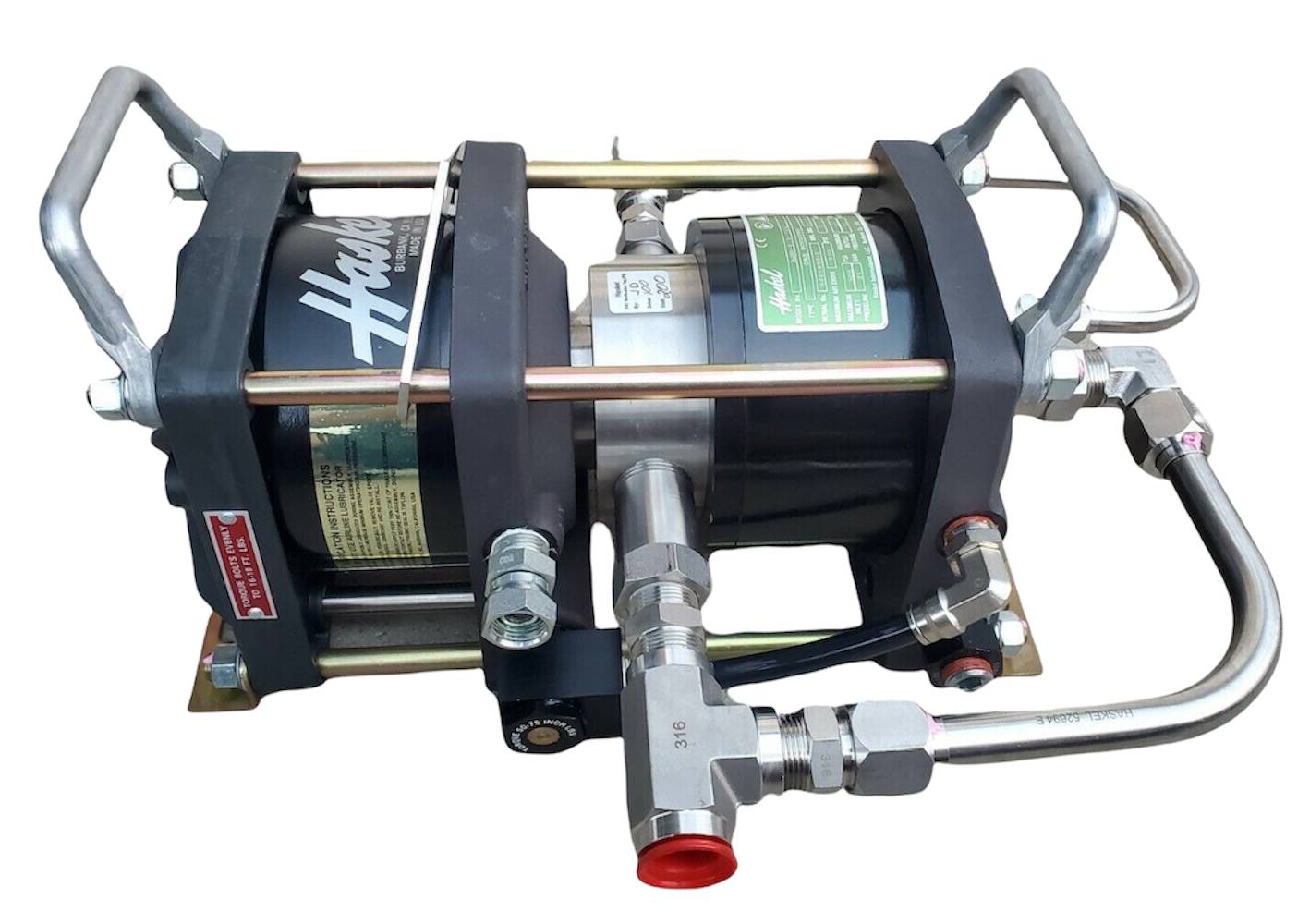

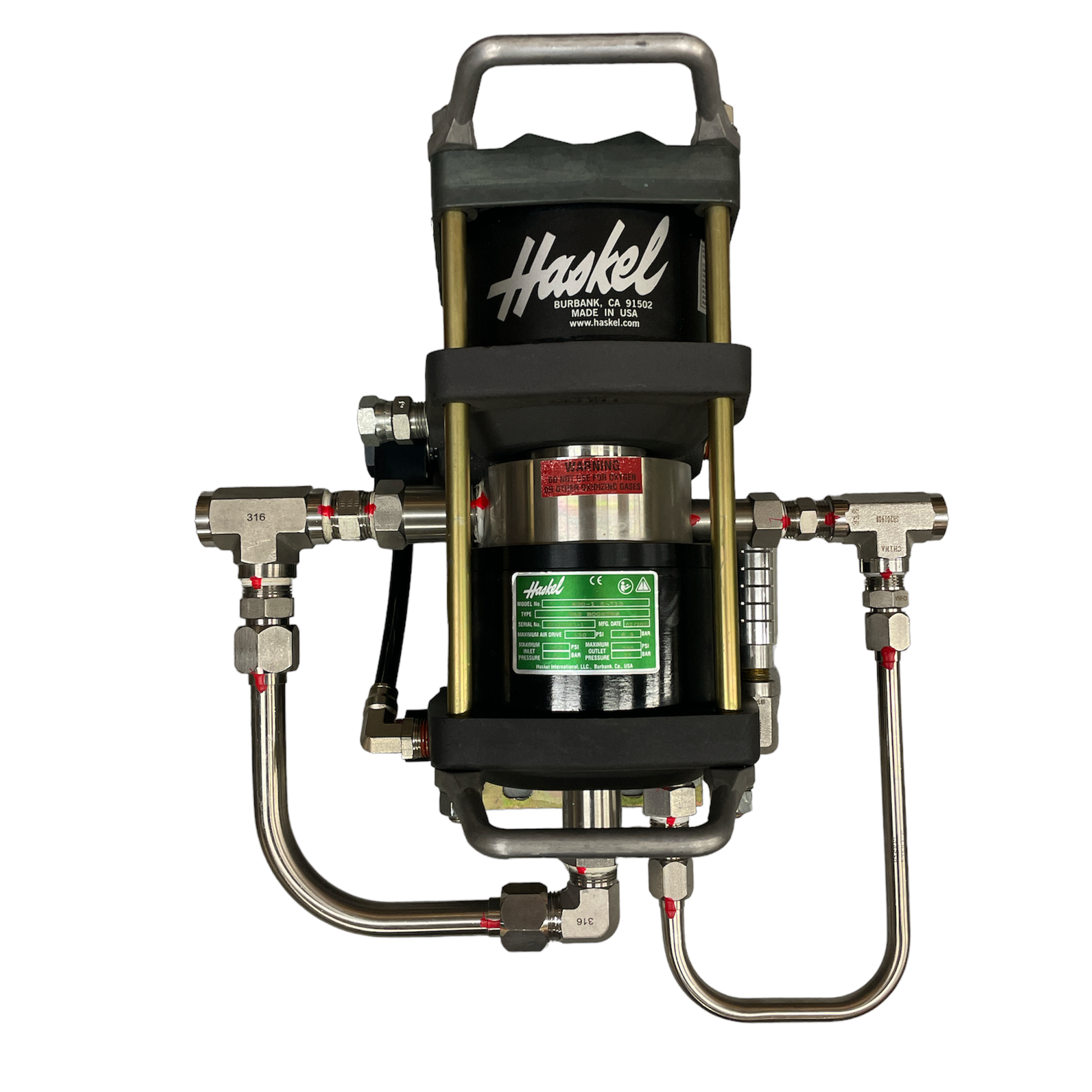

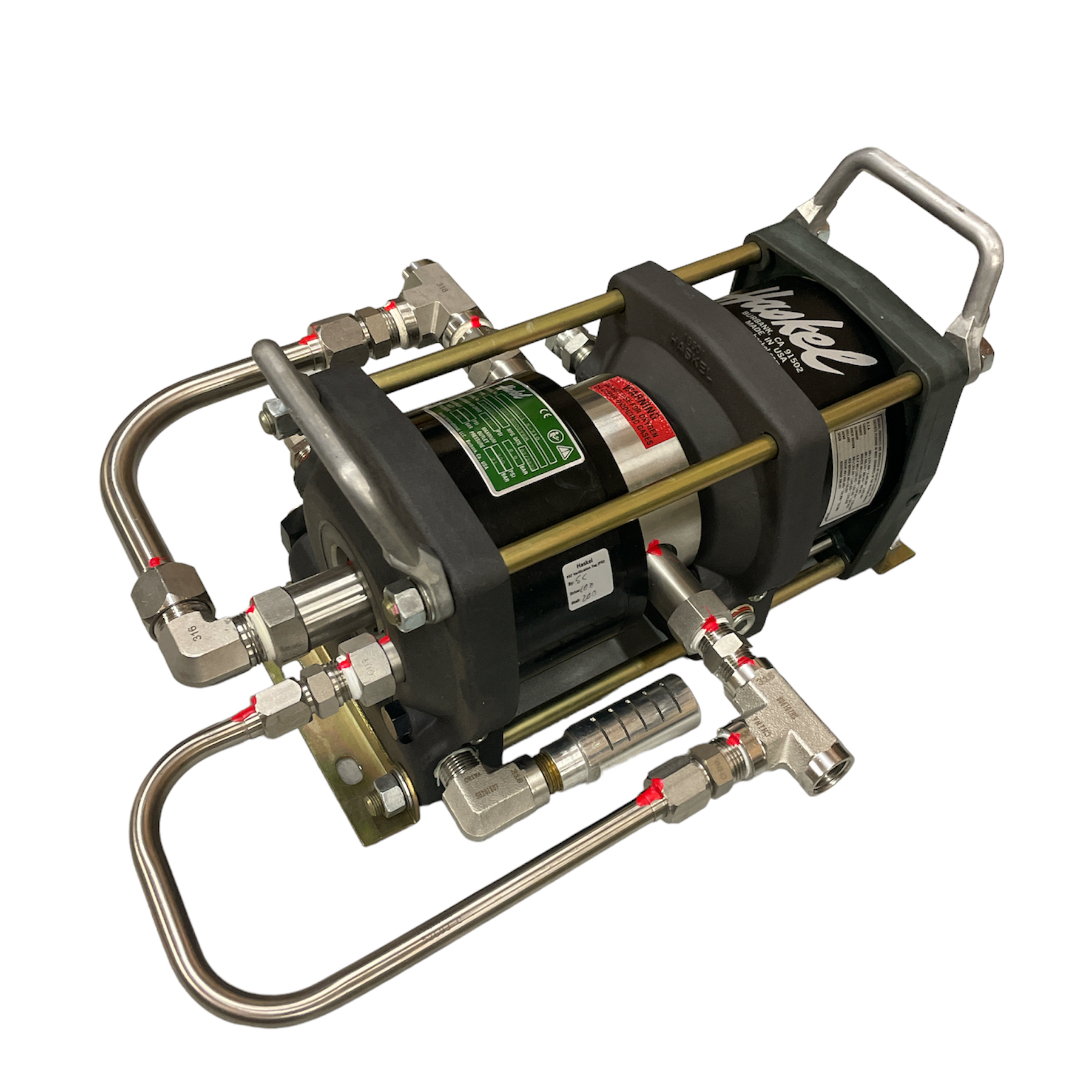

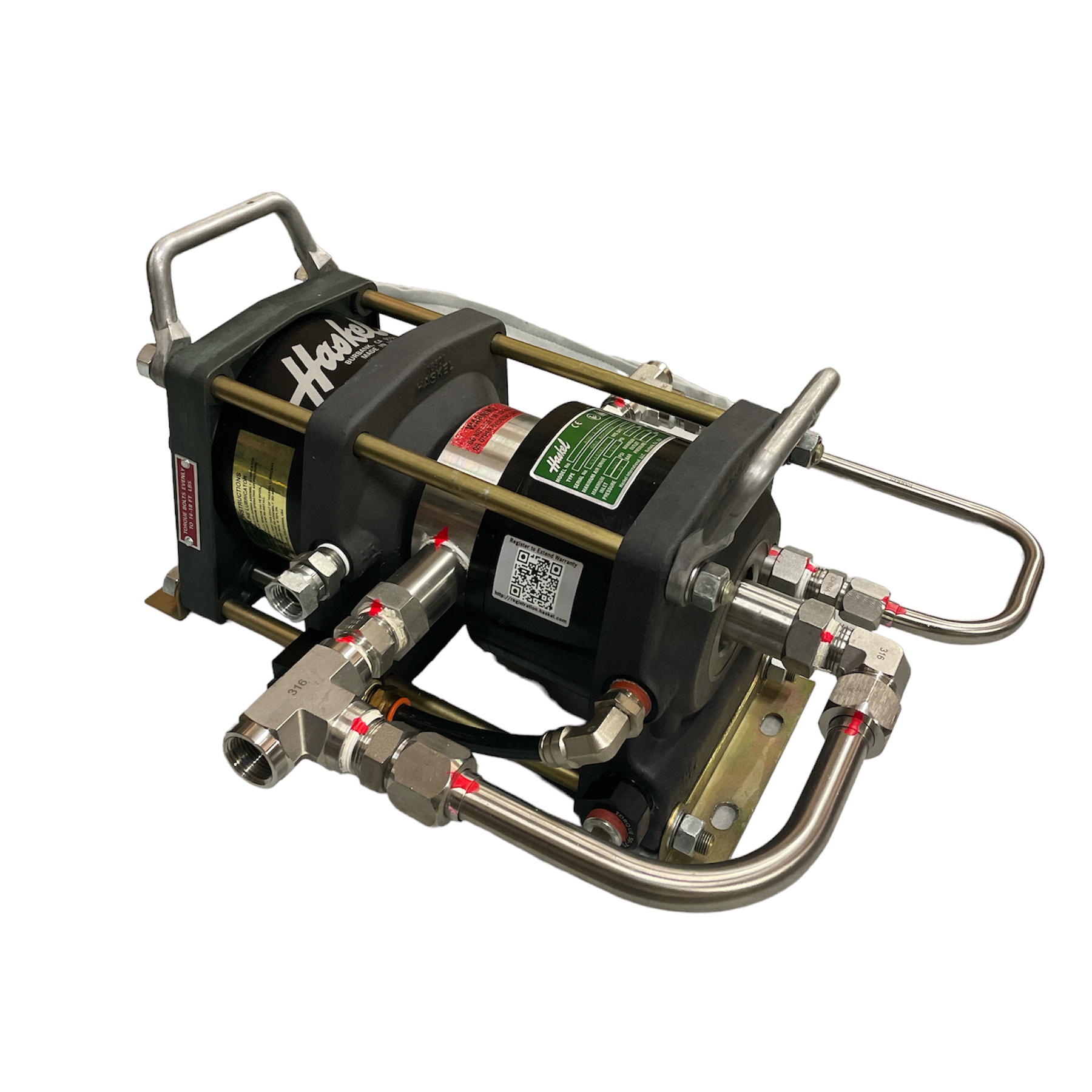

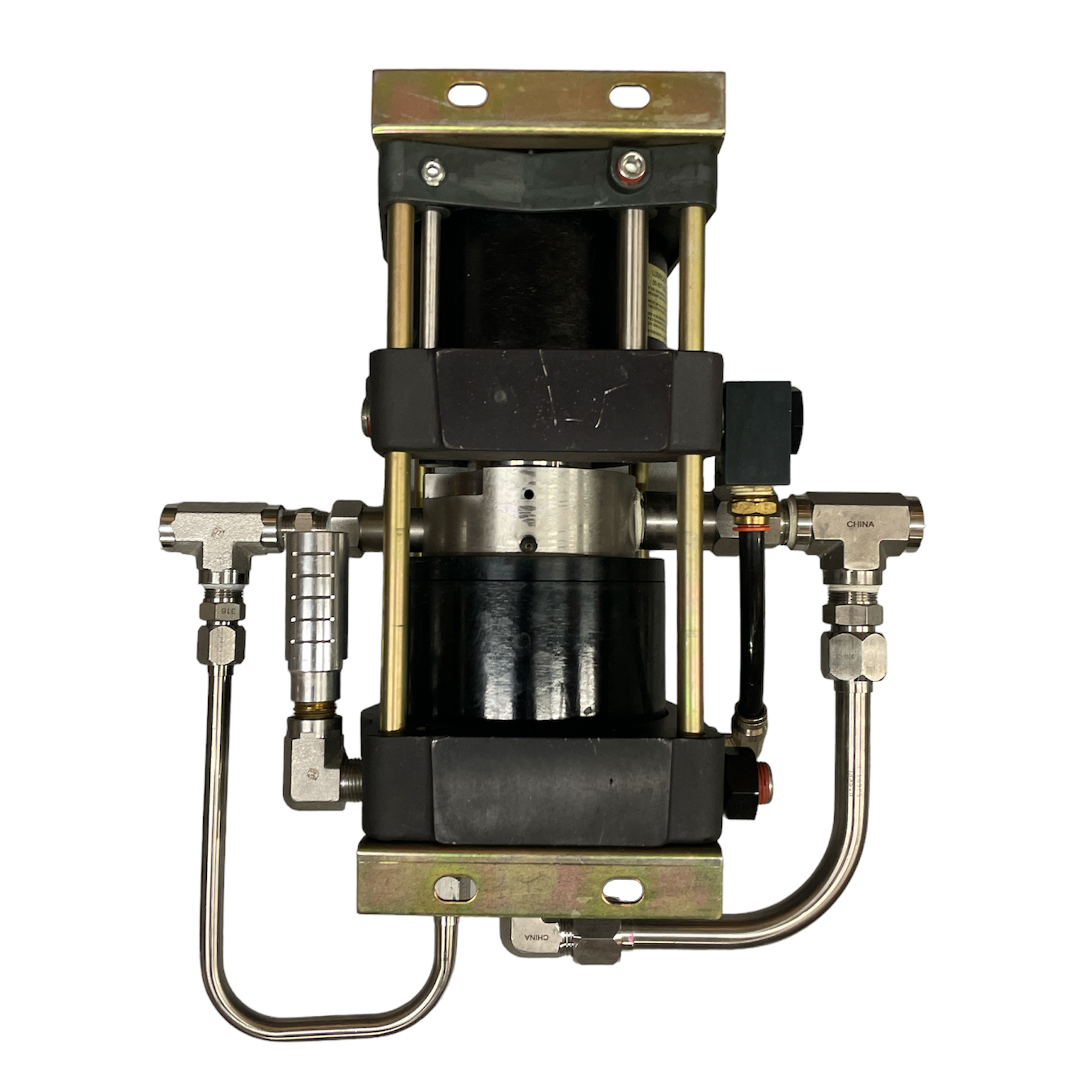

Haskel AGD-1.5 Gas Booster

Haskel AGD-1.5 Gas Booster

Regular price $ 7,782.00
Regular price Sale price $ 7,782.00
Sale Sold out
Shipping calculated at checkout.

With a nominal pressure ratio of 1.5:1, the Haskel model AGD-1.5 Double-Acting, Single-Stage Gas Booster utilizes air pressure to boost gas pressures to a maximum of 300 psi PSIG.

Features & Benefits:

  • Reliable, easy to maintain, compact and robust
  • No heat, flame or spark risk
  • Infinitely variable cycling speed and output
  • Pneumatic driven units do not require electrical connections
  • Easy to apply automatic controls
  • No limit or adverse affect to continuous stop/start applications
  • Seal systems designed for long working life
  • No air line lubricator required
  • Hydrocarbon free separation between air and gas sections
  • Built-in cooling (most models)
  • Suitable for most gases
  • Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat
  • Inlet Connection: 3/4" FNPT
  • Outlet Connection: 1/2" FNPT



Technical Data:

  • Ratio: 1.5:1
  • Min GAS supply pressure: ATM
  • Max GAS supply pressure: 300 psi
  • Max rated GAS outlet pressure: 300 psi
  • Static outlet stall pressure formula: 1.5 Pa + Ps (Pa = air drive pressure, Ps = GAS supply pressure)
  • Inlet Connection: 3/4" FNPT
  • Outlet Connection: 1/2" FNPT
  • Min AIR drive pressure: 20 psi
  • Max AIR drive pressure: 130 psi
  • Piston Displacement Per Cycle (In.3) - 60in

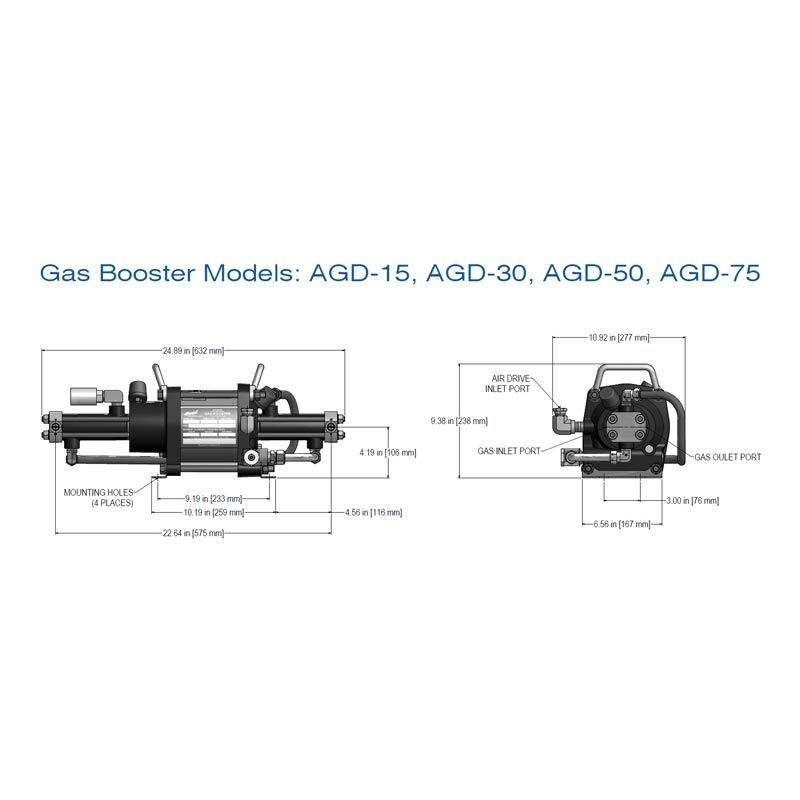

Technical Drawing PDF - Click Here

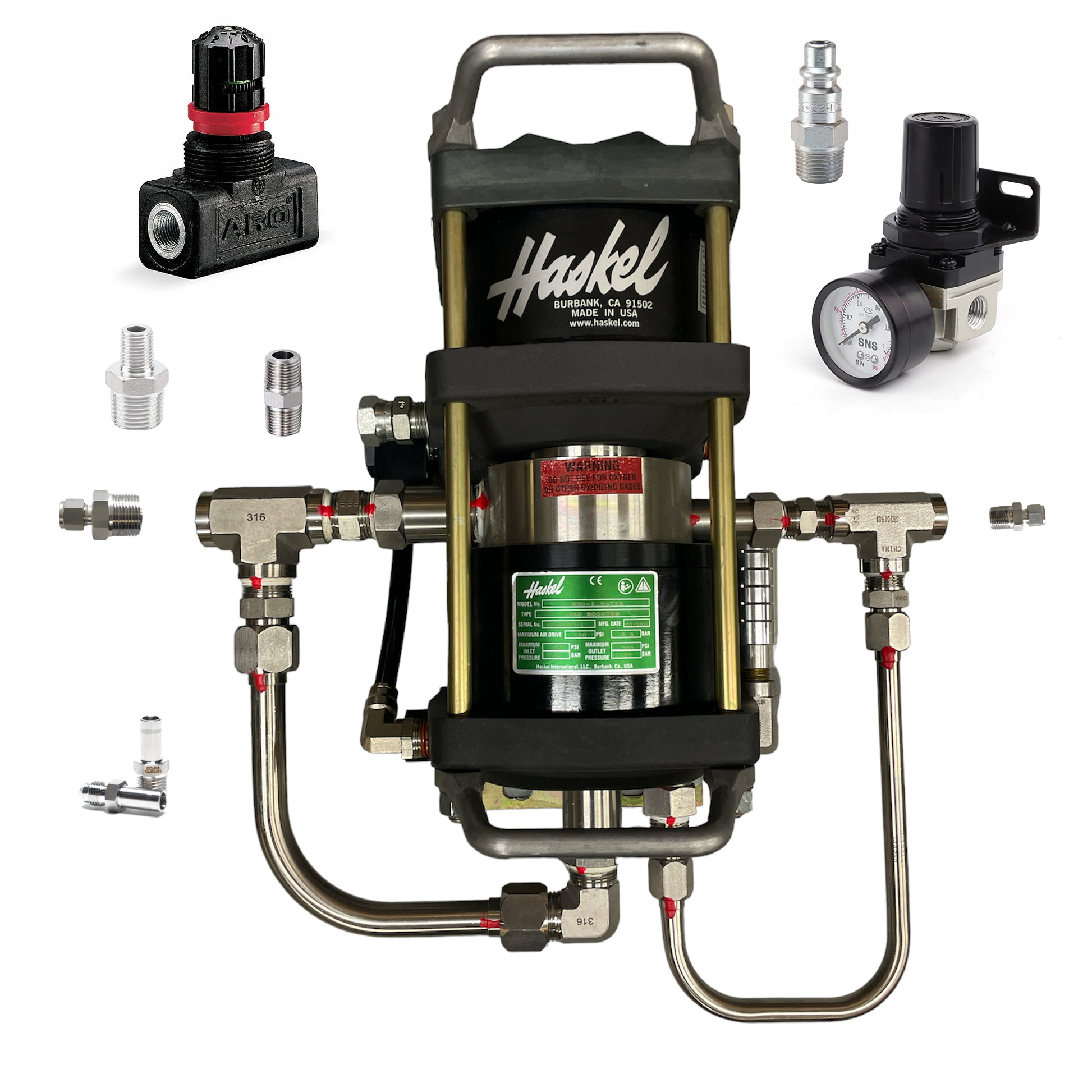

 Replacement & Accessory Items



Haskel AGD-1.5 Gas Booster
SNS Air Pressure Regulator, Female Thread 1/4 NPT, 0-150 PSI SNS Air Pressure Regulator, Female Thread 1/4 NPT, 0-150 PSI
ARO Needle Valve - 1/4" NPT ARO Needle Valve - 1/4" NPT
MNPT x Industrial Air Plug - 1/4" MNPT x Industrial Air Plug - 1/4"
MJIC x 3/8" Tube Stub
3/8" Compression Tube Adapter x MNPT
Hex Nipple - MNPT x MNPT Hex Nipple - MNPT x MNPT
Hex Reducing Nipple - MNPT x MNPT
