Jacketed Solvent Tank - 25lb

Jacketed Solvent Tank - 25lb

$ 886.46
$ 886.46
Sale Sold out
Shipping calculated at checkout.

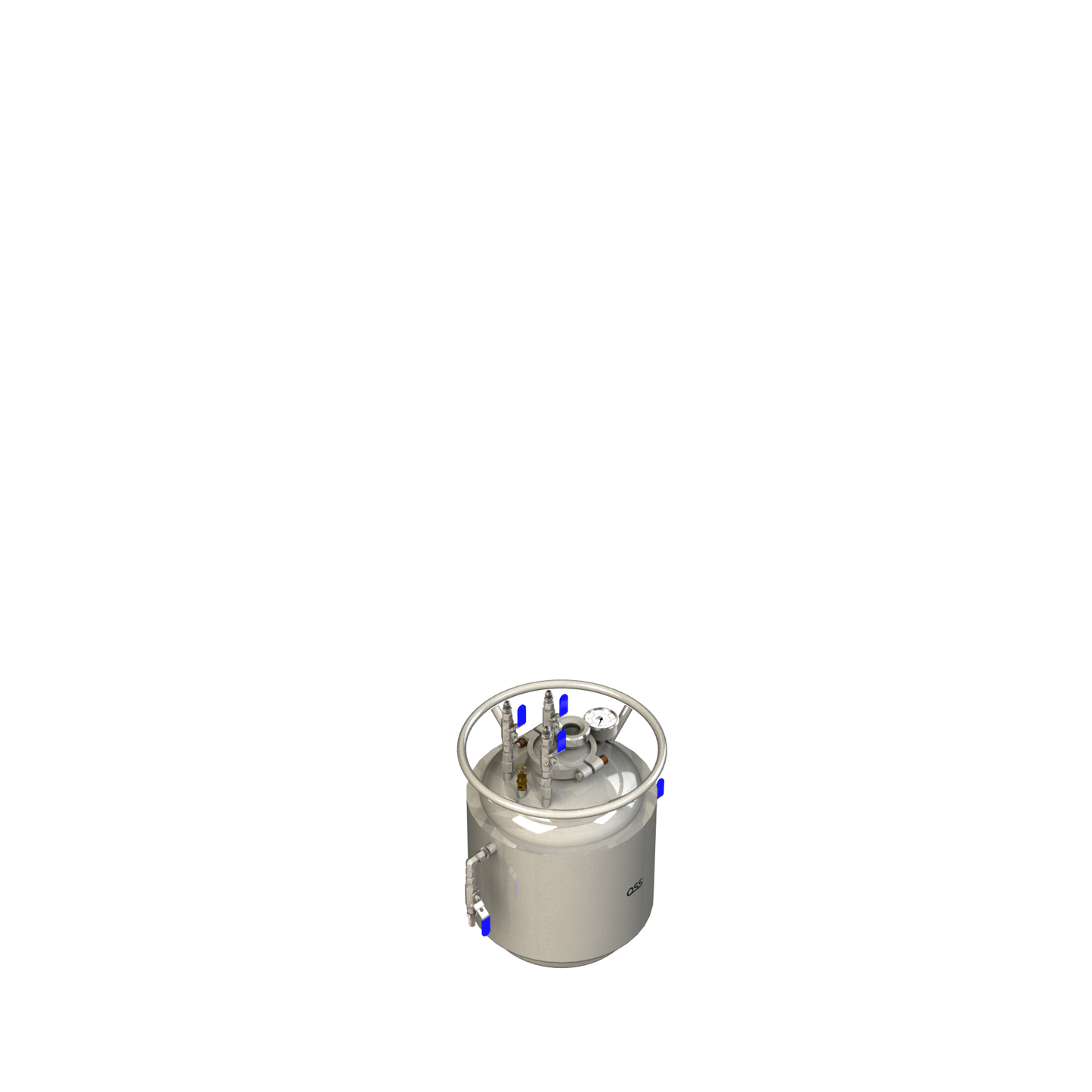

OSS Jacketed Solvent Tank - 25lb



Solvent storage vessel; ~25lb capacity


Fully Jacketed Solvent Tank


Comes Assembled & Pressure tested, saving you time and $$$!!


Features:
Compound Pressure Gauge - -30-150psi
Pressure Relief Valve - 125psi
3/8" JIC Connections
4" Center Opening
14" Safety Ring
Bottom Crush-Proof Ring
Jacketed Recirculation - 1/2" Hose Barb
Nylon Hose Clamps
Thread Tape



Optional Accessories:
25ft 1/2" Rubber Hosing for Recirculation

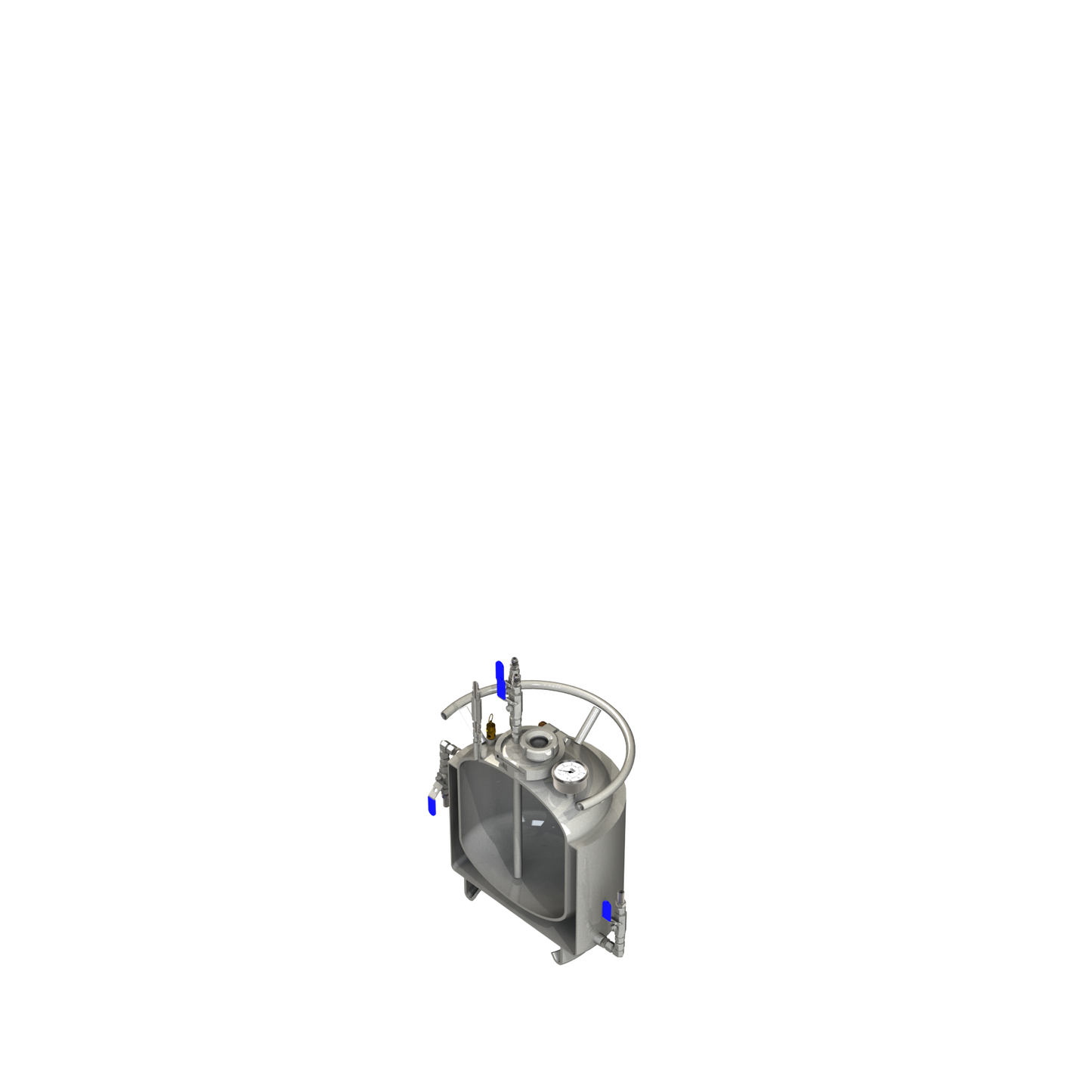

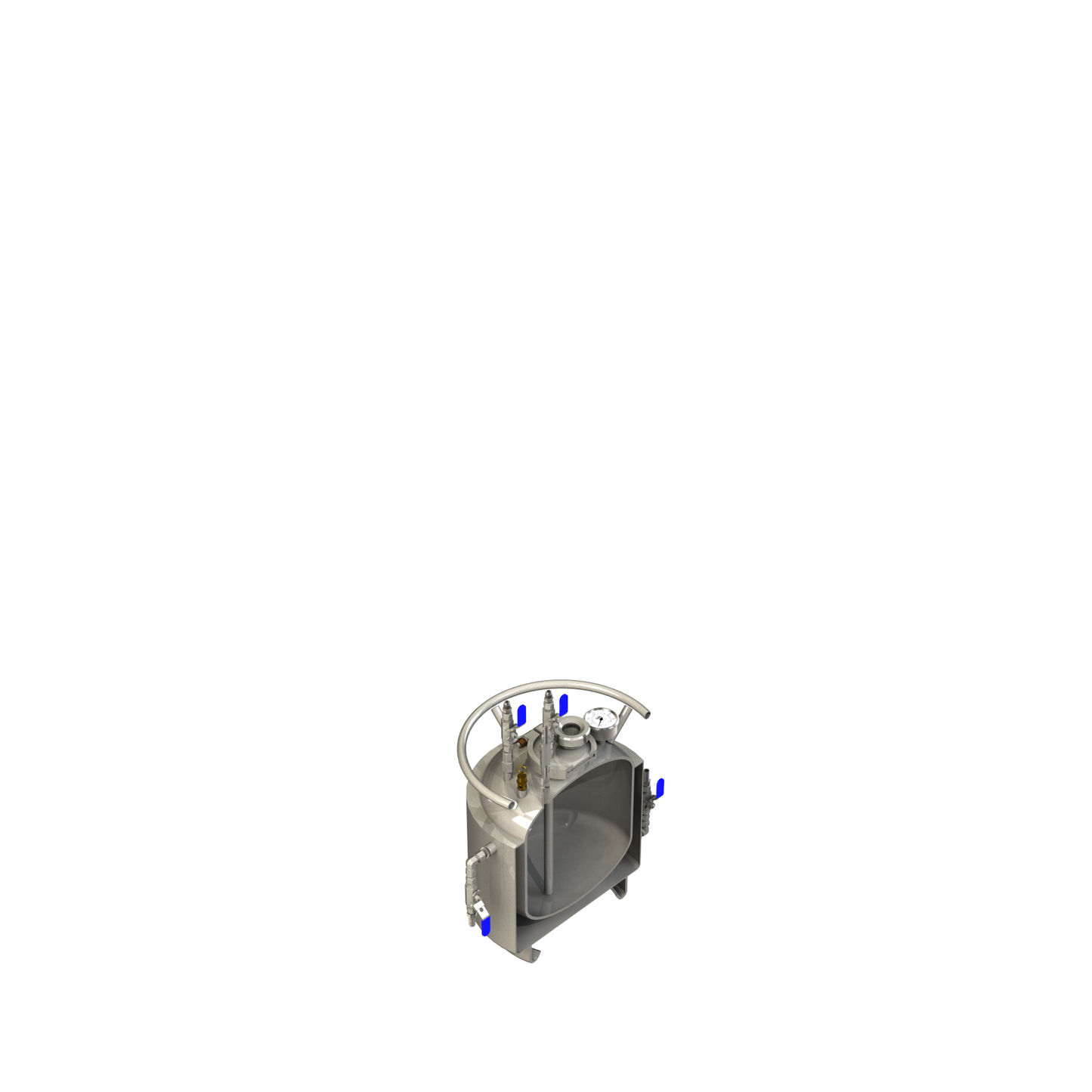

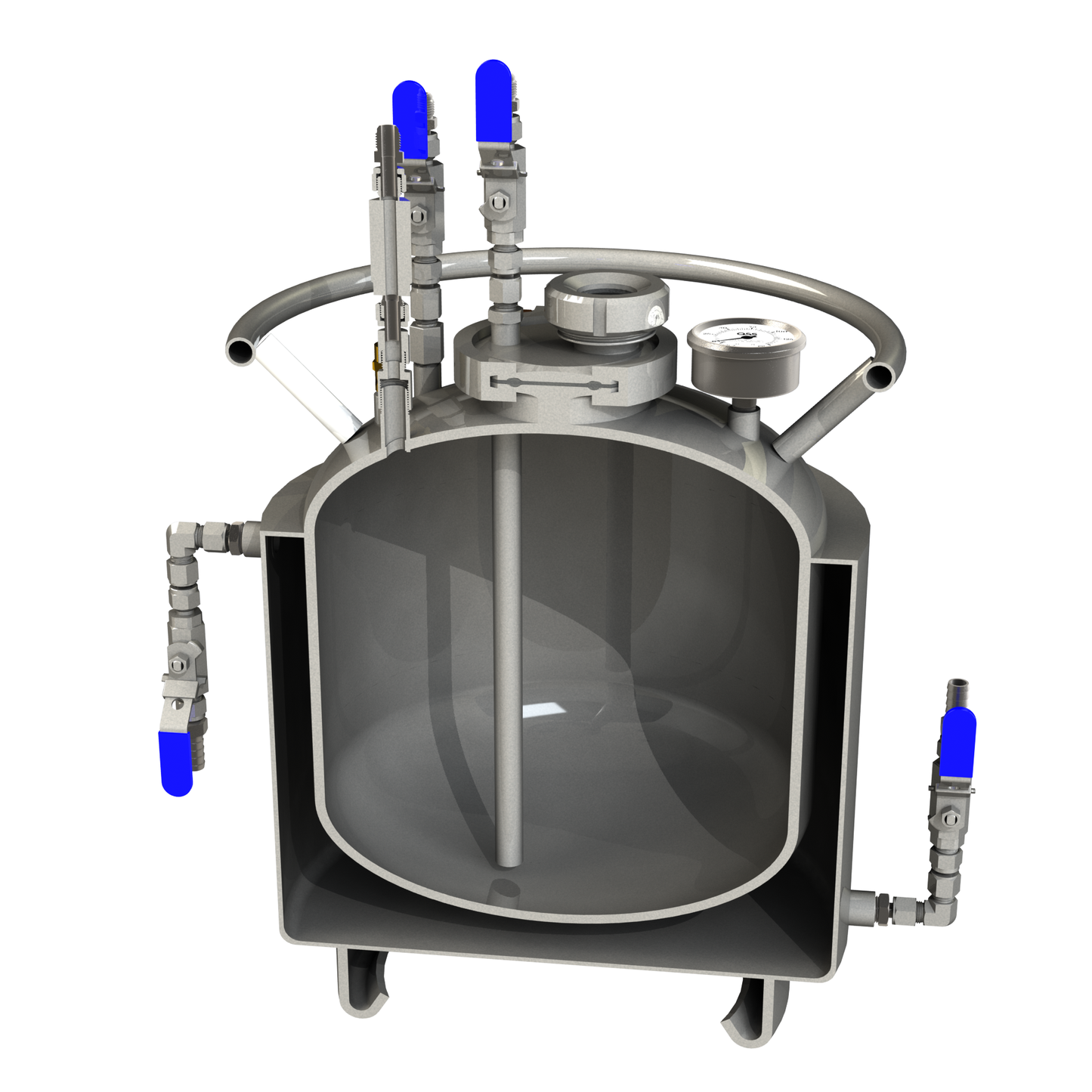

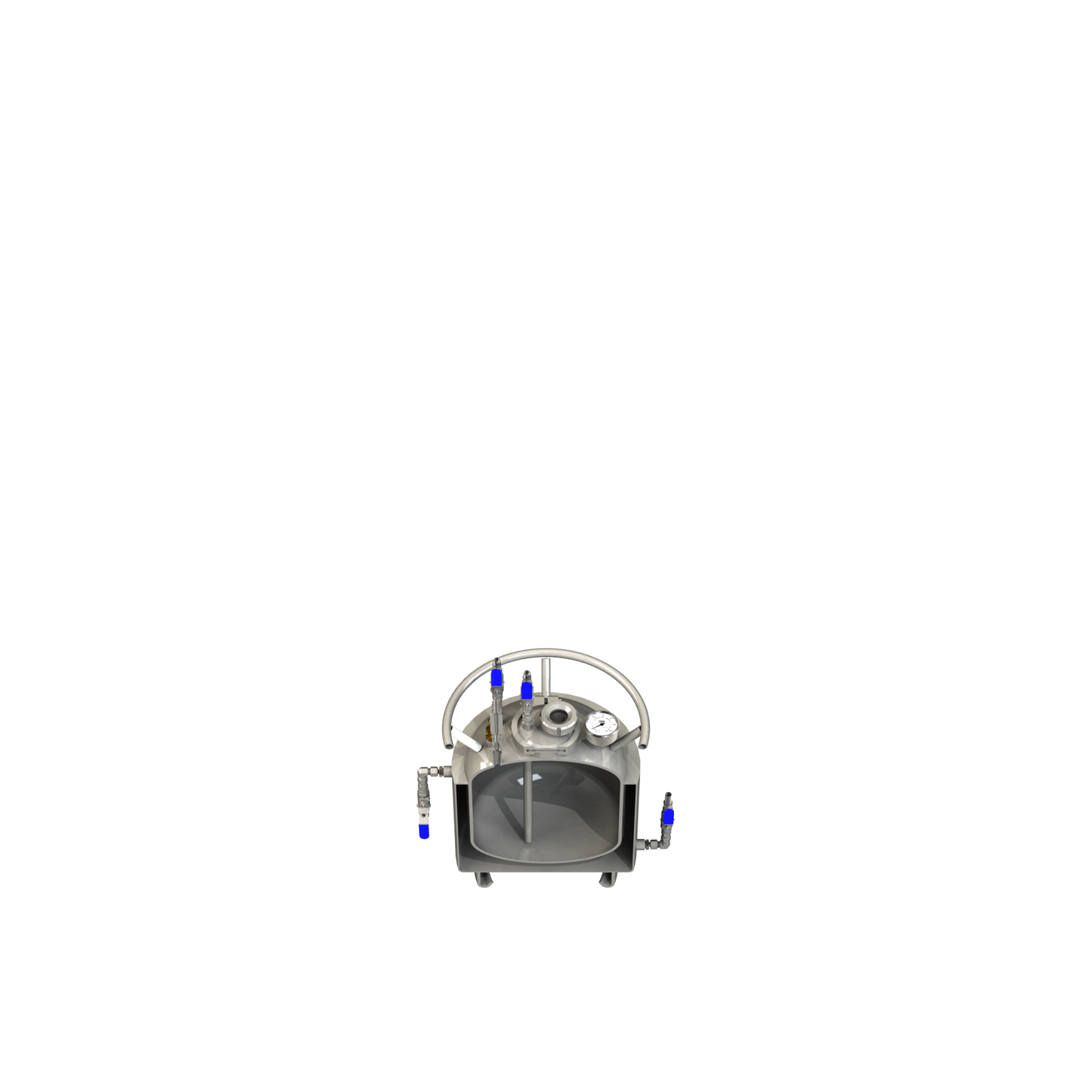

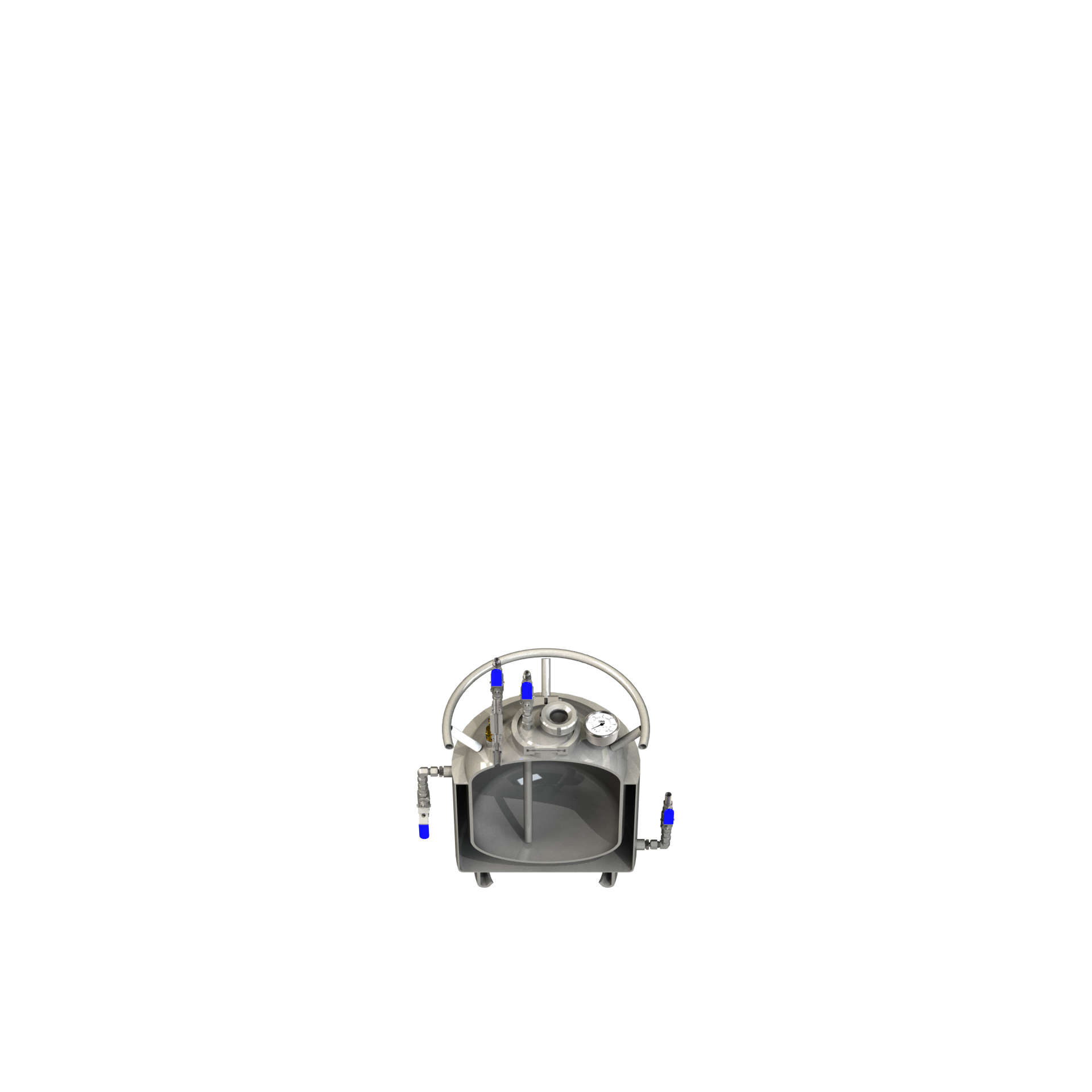

 SECTION VIEW

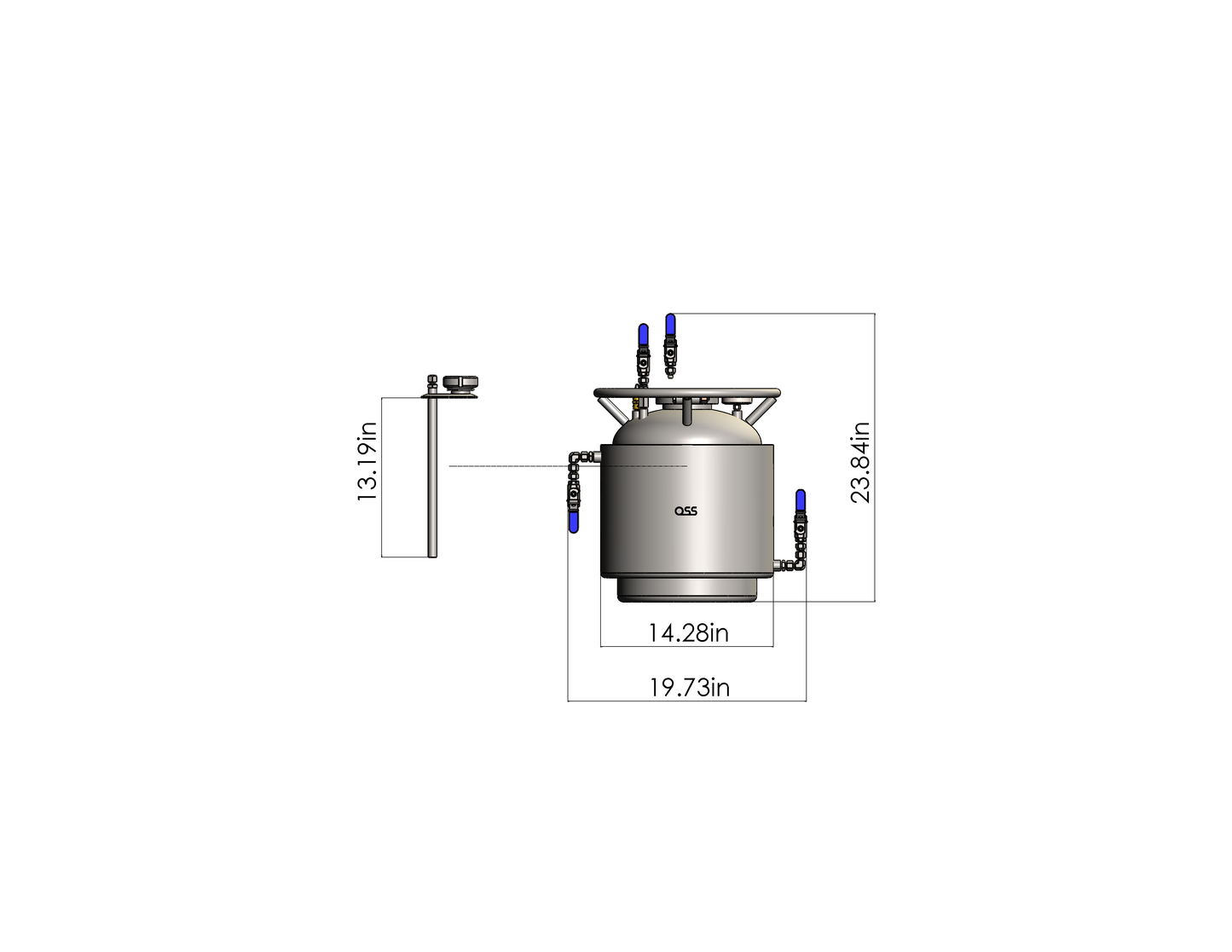

 DIMENSIONS



 TANK VOLUME @ 80% CAPACITY

19LBS 70/30 BUTANE/PROPANE
*Solvent storage should not exceed 80% total volume



WALL THICKNESS
BODY - 6MM
JACKET - 3MM


     25LB JACKETED SOLVENT TANK OPTIONS

    Back Mount Gauge - Sightglass Diptube

    Bottom Mount Gauge - Sightglass Diptube

    Back Mount Gauge - Standard Diptube

    Bottom Mount Gauge -Standard Diptube



       REPLACEMENT AND ACCESSORY ITEMS
      Solvent Tank Siphon Tube With Sight Glass Solvent Tank Siphon Tube With Sight Glass
      1/2" ID Rubber Hose - Custom Length 1/2" ID Rubber Hose - Custom Length
      1/2" ID Rubber Hose - Preset Lengths 1/2" ID Rubber Hose - Preset Lengths
      High Pressure Tri-Clamp High Pressure Tri-Clamp
      Viton Tri-Clamp Gasket Viton Tri-Clamp Gasket
      Compression Ball Valve - 3/8" Compression Ball Valve - 3/8"
      Compression Compound Gauge - 3/8"
      Brass 3/8" FNPT x 3/8" Compression Tube Stub Tapeless Adapter Brass 3/8" FNPT x 3/8" Compression Tube Stub
      Brass Pressure Relief Valve (125 PSI) - MNPT Brass Pressure Relief Valve (125 PSI) - MNPT
      MJIC x 3/8" Tube Stub MJIC x 3/8" Tube Stub
      Sight Glass Collar Sight Glass Collar
      Borosilicate Sight Glass Borosilicate Sight Glass
      Replacement Sight Glass Seal Replacement Sight Glass Seal
